Manual Rigid Box V U Shape Grooving Machine for Cardboard MDF Paper Grey Board Chipboard Slotting Cutting Making Sample groove

Manual Rigid Box V U Shape Grooving Machine for Cardboard MDF Paper Grey Board Chipboard Slotting Cutting Making Sample groove

  • 1 - 4 Sets
    $750
  • 5 - 9 Sets
    $550
  • >= 10 Sets
    $400

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Manual Rigid Box V U Shape Grooving Machine for Cardboard MDF Paper Grey Board Chipboard Slotting Cutting Making Sample groove

Product overview

Core functionalities

Applicable scenarios

Unique advantages

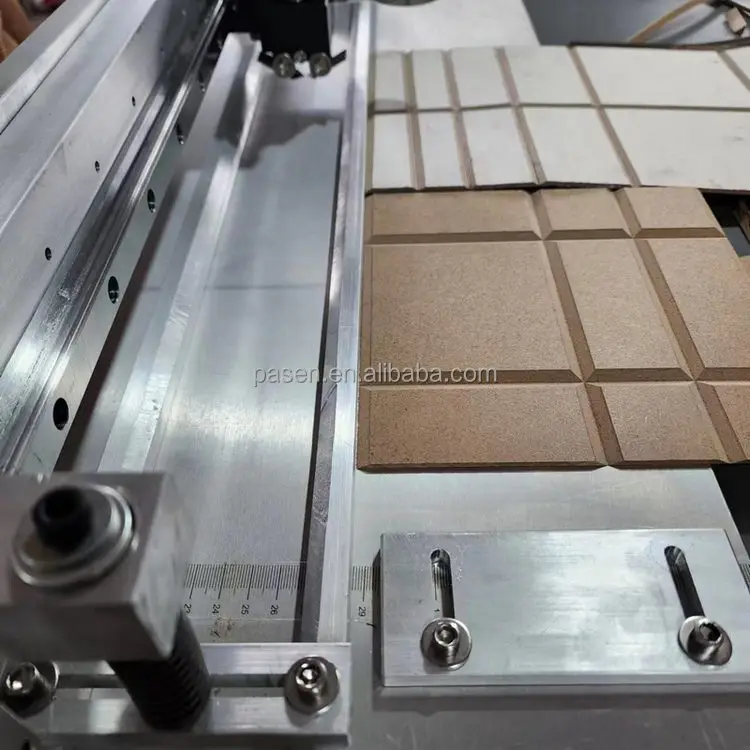

  • Precision Grooving & Slotting: Designed to create V/U-shaped grooves and slots in materials like cardboard, MDF, paper, grey board, and chipboard for rigid box manufacturing.
  • Manual Operation: Enables controlled, customizable cuts through adjustable blade depth and angle settings, ideal for crafting samples or intricate designs.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With a corrosion-resistant stainless steel body, you can ensure durability in industrial environments, outlasting traditional models prone to rust or wear.*

  • 2. Ergonomic Manual Controls and Adjustable Blades

    • With ergonomic manual controls and adjustable blades, you can achieve precise cuts for custom grooves, offering more flexibility than fixed automated systems.*

  • 3. Versatile Material Compatibility

    • With compatibility for cardboard, MDF, and wood, you can handle diverse materials for packaging needs, expanding your project versatility compared to single-material machines.*

  • 4. Ideal for Small-Scale and Sample Production

    • Designed for manual operation, this machine is ideal for small-scale production or sample making, ensuring flexibility in workshops compared to large industrial machines requiring continuous operation.*

  • 5. Safety-Compliant Industrial Design

    • With compliance to industrial safety standards, you can ensure safe operation in workshops, protecting both operators and materials through features like blade guards and ergonomic handles.*

Product details

Manual Rigid Box V U Shape Grooving Machine for Cardboard MDF Paper Grey Board Chipboard Slotting Cutting Making Sample groove

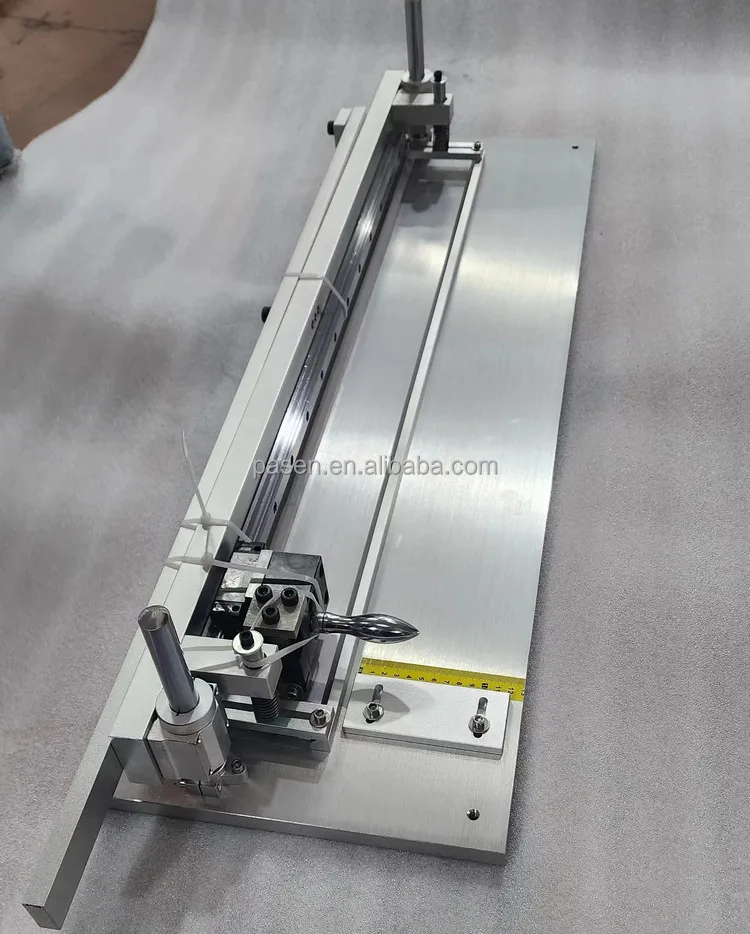

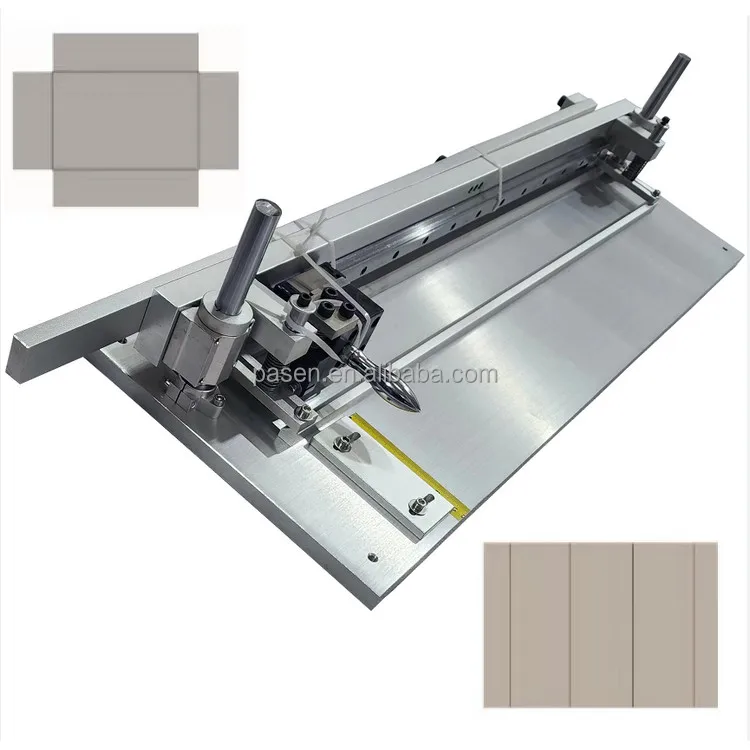

The Manual Rigid Box V U Shape Grooving Machine is a precision tool designed for cutting and slotting materials like cardboard, MDF, paper, and chipboard. Built with corrosion-resistant stainless steel and ergonomic design, it ensures durability and ease of use for crafting custom grooves and samples.

Technical specifications

FeatureSpecificationBenefit
Material CompatibilityPaper, cardboard, wood, MDF, chipboardVersatile for diverse packaging materials

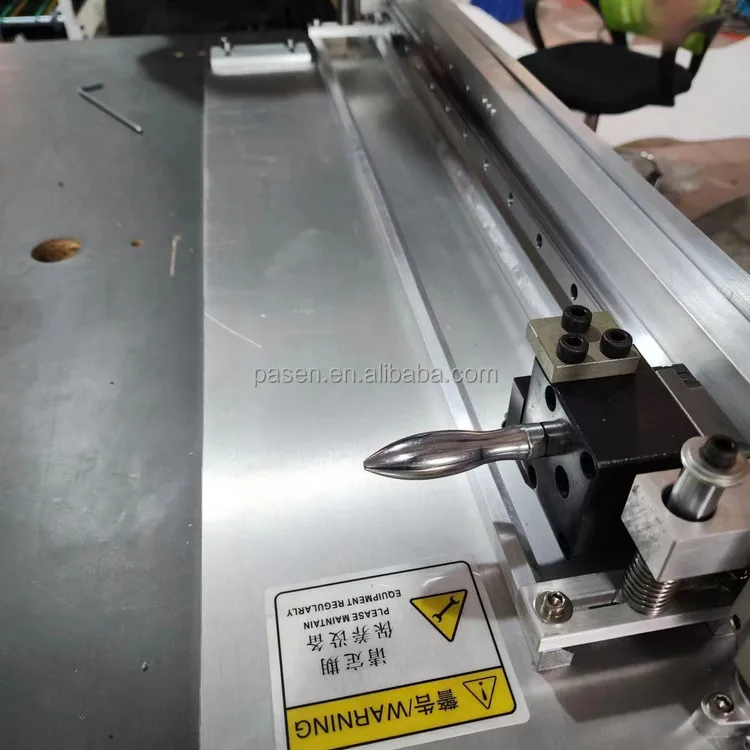

Cutting MechanismManual adjustable blade with depth/angle controlPrecision control for intricate designs
Safety FeaturesBlade guard and ergonomic handlesMinimizes operational risks
DurabilityStainless steel constructionWithstands heavy industrial use
Warranty1 yearComprehensive post-purchase support

Customization guide

Adjustable blade depth and angle parameters to meet custom groove specifications for specialized packaging designs.

Get inspired

With its manual precision and adjustable blade, you can craft sharp V/U grooves for rigid boxes or delicate slots for paper prototypes. For example, medium-thickness cardboard is ideal for creating sturdy packaging samples, while thin paper allows intricate designs for presentation models.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Cutting Thickness10mm12mm (+15%)15mm (+50%)
Adjustable Blade Range0-45°0-60° (+33%)0-90° (+100%)
Precision Level±1mm±0.8mm (+20%)±0.5mm (+50%)

Supplier's note

  1. Technical Breakthroughs:

    • Stainless Steel Construction: Resists corrosion for long-term industrial use.
    • Ergonomic Design: Reduces operator fatigue during prolonged use.
    • Extended Blade Range: The Pro model’s 0-90° adjustment enables complex 3D grooves.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops needing basic groove cutting (e.g., simple box prototypes).
    • Advanced Model: Suitable for medium-scale production requiring finer precision (e.g., custom carton slots).
    • Pro Model: Best for heavy-duty industrial use, offering triple the precision of standard models. Its 90° blade angle allows angular cuts for premium packaging designs. With its ±0.5mm accuracy, it ensures flawless alignment in high-stakes manufacturing.

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Manual Grooving MachinesSmall workshops, prototyping, low-volume productionManual operation (no motorized components); Stainless steel frame (ISO 9001); Blade depth: 15–20mm (ISO 2768-mk)Low cost ($800–$1,200), portable, quiet (40 dBA)Slow throughput, requires physical effort, limited material thickness (≤5mm)
Semi-Automatic Grooving MachinesMedium-scale production, repetitive tasksMotorized assistance (120W motor); Semi-automatic feeding; Blade depth: ▲25mm (ISO 2768-mk)Faster than manual, handles up to 8mm materialsHigher cost ($2,500–$3,500), needs some manual setup, moderate noise (55 dBA)
Fully Automatic Grooving MachinesHigh-volume manufacturing, mass productionFully motorized (240W motor); Automatic feeding/cutting; Blade depth: ▲▲30mm (ISO 2768-mk)High throughput (50+ cuts/min), precise, handles 10mm materialsExpensive ($5,000+), complex maintenance, loud (70 dBA)
CNC Grooving MachinesCustom designs, precision partsComputer-controlled (5-axis); Precision: 0.05mm (ISO 2360); Blade depth: ▲▲▲40mm (ASTM E8/E9)Ultra-precise, versatile designs, handles 15mm materialsCostly ($10,000+), requires skilled operators, bulky
Portable Grooving ToolsOn-site repairs, DIY projectsLightweight (5kg); Manual operation; Blade depth: 10–15mm (ASTM D638)Affordable ($150–$300), easy to carryLow durability, limited material thickness (≤3mm), no automation
Industrial Heavy-Duty Grooving MachinesLarge factories, heavy materialsHeavy-duty steel frame (EN 10025); 300W motor; Blade depth: ▲▲▲▲50mm (ISO 527-2)Handles 20mm materials, robust buildExtremely costly ($15,000+), requires dedicated space, high energy consumption
