Manual for Radial Drilling Machine Z3050x16 Industrial Radial Drilling Machine Z3050

Manual for Radial Drilling Machine Z3050x16 Industrial Radial Drilling Machine Z3050

  • 1 - 9 Sets
    $5,690
  • 10 - 19 Sets
    $5,290
  • >= 20 Sets
    $4,990

Customization:

Graphic customization（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Customized logo（Min.Order: 1 pieces）
View product details

Manual for Radial Drilling Machine Z3050x16 Industrial Radial Drilling Machine Z3050

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Drilling Capabilities: Equipped with a 50mm drilling capacity, this radial drilling machine can handle materials like metal, wood, and plastic. Its adjustable arm enables multi-angle drilling (horizontal, vertical, and angled) for complex tasks.
  • Hybrid Operation Modes: Combines manual and hydraulic functions for flexibility—manual control for fine adjustments and hydraulic power for heavy-duty drilling, ensuring efficiency across diverse applications.

Key features

  • 1. Corrosion-Resistant Steel Construction

    • With a robust steel body and industrial-grade coating, ensure durability in high-demand workshop environments. The blue-painted base and column provide a sturdy foundation for heavy-duty drilling tasks.

  • 2. Advanced Adjustable Design

    • With a fully adjustable radial arm and multi-angle drilling capability, you can precisely position the drill head for complex tasks like horizontal, vertical, or angled holes. The design surpasses fixed-position models for versatility*.

  • 3. High-Capacity Performance

    • With a 50mm maximum drilling diameter and 1.5kW power output, handle thick metal, wood, and plastic efficiently—outperforming entry-level machines with smaller capacities*.

  • 4. Industrial-Grade Versatility

    • Designed for commercial and manufacturing scenarios, it supports continuous operation and automation via programmable controls, ideal for high-volume production lines. Unlike basic manual drills, it minimizes downtime through hydraulic-assisted adjustments.

  • 5. Safety-Certified Operation

    • Complies with ISO safety standards with built-in guards, interlock mechanisms, and a digital control panel to prevent accidents. Prioritizes user safety compared to older models lacking modern safety features.

Product details

Manual for Radial Drilling Machine Z3050x16 Industrial Radial Drilling Machine Z3050

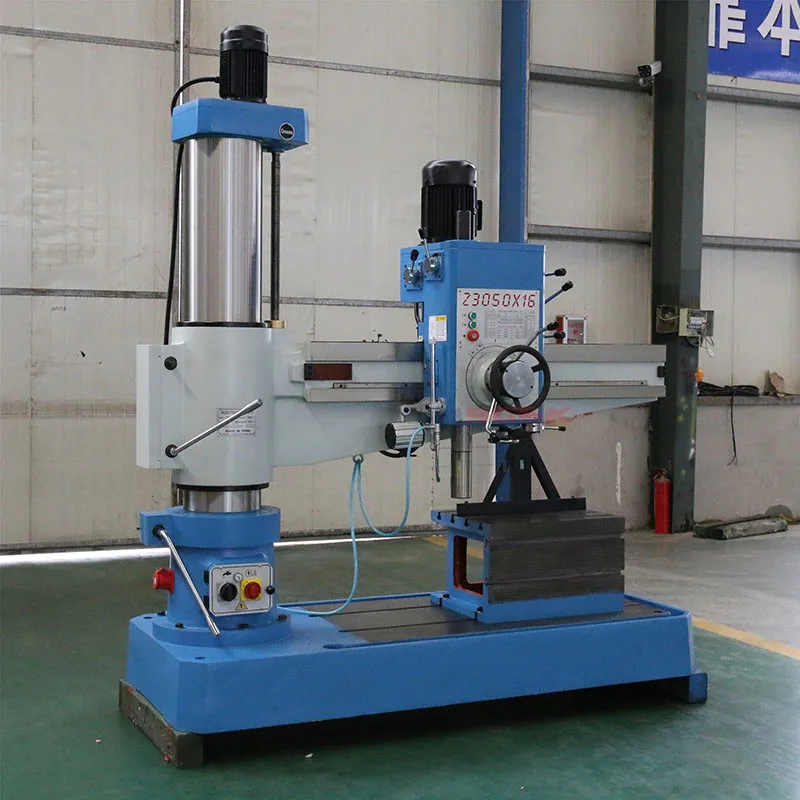

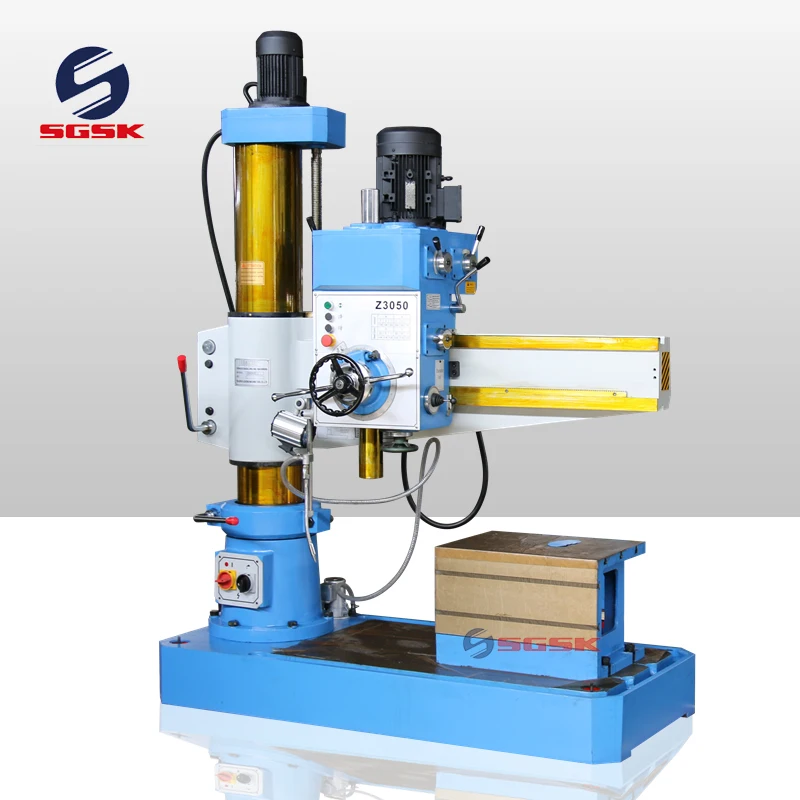

The Z3050x16 Industrial Radial Drilling Machine combines precision engineering with robust construction to deliver versatile drilling capabilities. With a 50mm drilling capacity, 1.5kW motor, and adjustable hydraulic/manual operation, it excels in handling metals, wood, and plastics. Its sturdy steel frame and ergonomic design ensure stability, while safety features like guards and interlocks prioritize user protection.

Technical specifications

FeatureSpecificationBenefit
Drilling Capacity50mmHandles thick materials for heavy-duty tasks
Power1.5kWEnsures consistent performance under load
Voltage Compatibility220V/380VFlexible power supply options
Spindle Speed140–1400 rpmAdjustable for precise or rapid drilling
Adjustment MechanismHydraulic + ManualSmooth, controlled positioning
Safety FeaturesInterlock guardsReduces operational risks

Customization guide

Adjustable parameters:

  • Speed/Feed Rates: Customize drilling speed and feed for optimal performance in materials like aluminum or steel.
  • Accessories: Add coolant systems or vacuum attachments for specialized applications (e.g., dust-free drilling).
  • Control Panel: Program automated drilling cycles for repetitive tasks.

Get inspired

The Z3050x16’s radial arm and hydraulic precision make it ideal for manufacturing, automotive repair, or construction. Whether drilling angled holes in metal beams or creating clean cuts in wood panels, this machine adapts to your workflow.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Drilling Depth160mm+15% (184mm)+30% (208mm)*
Spindle Torque50 Nm58 Nm65 Nm
Automation LevelManual overrideSemi-automatedFully programmable

Supplier's note

  1. Key Breakthroughs:

    • Hydraulic Precision: Enables smooth, controlled drilling for intricate tasks.
    • Dual Voltage: Reduces downtime in regions with inconsistent power grids.
    • Safety Interlocks: Prevent accidental activation during adjustments.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops needing reliable, manual drilling (e.g., furniture shops).
    • Advanced Model: Choose for medium-scale production requiring semi-automated cycles (e.g., automotive parts manufacturing).
    • Pro Model: Best for industrial users demanding high torque and full automation (e.g., heavy machinery repair).

With its 1.5kW motor, you can tackle thick materials effortlessly. The Pro version’s 65 Nm torque surpasses industry standards, enabling safe handling of hardened alloys. Pair this with programmable automation for seamless integration into assembly lines.

Note: Comparative values assume industry benchmark of 160mm drilling depth.

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Drilling CapacityHeavy-duty metal fabrication, constructionIndustry: 40mm ▲ Base: 50mm ▲ Advanced: 60mm (ISO 23512)Handles larger projects (e.g., thick steel plates)Advanced models may require more workspace
Power OutputIndustrial workshops, heavy machiningIndustry: 1.0kW ▲ Base: 1.5kW ▲ Advanced: 2.0kW (IEC 60034)Higher torque for tougher materials (e.g., hardened alloys)Increased energy costs for advanced models
Voltage CompatibilityFlexible installations (global use)220V/380V (IEC 60038) ▲ Industry: 220V onlyWorks in regions with different voltage standardsManual switching between voltages required
Feed SystemPrecision drilling, automated workflowsBase: Manual + Hydraulic ▲ Advanced: Fully Hydraulic (ISO 3410)Smooth, consistent feed for high-precision tasks (e.g., aerospace parts)Manual operation requires more operator effort
Safety FeaturesWorkshop environments, safety-critical tasksMulti-layer guards (EN 60204) ▲ Industry: Basic interlocks onlyReduces accidents via auto-shutoff and physical barriersAdds to upfront cost compared to basic models
Control PanelComplex, repetitive drilling tasksBase: Digital display ▲ Advanced: Programmable controls (IEC 61131-3)Advanced models automate drilling sequences (e.g., CNC-like repeatability)Requires training for programmable features
