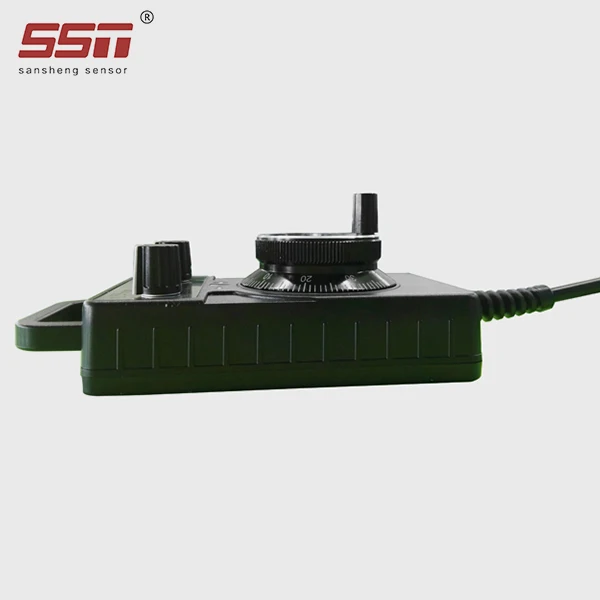

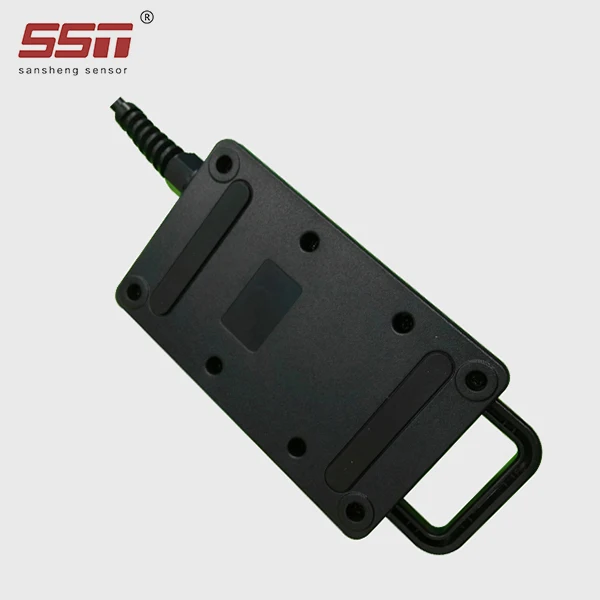

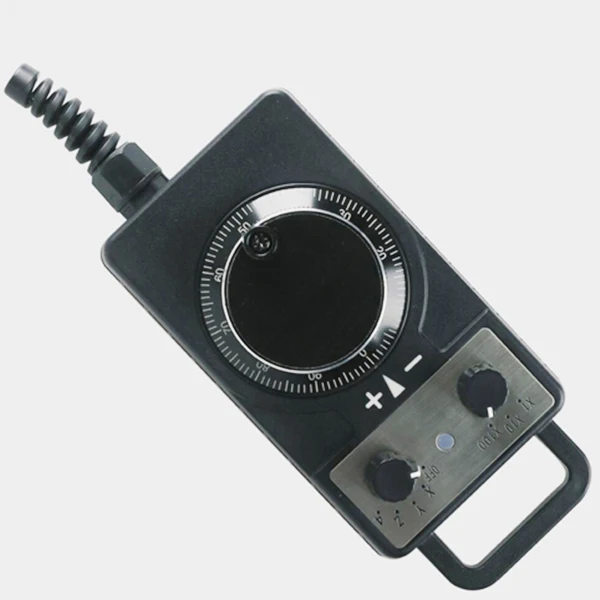

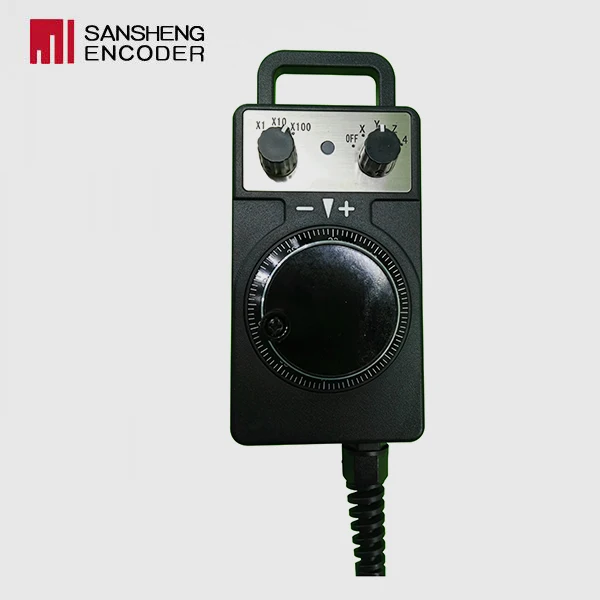

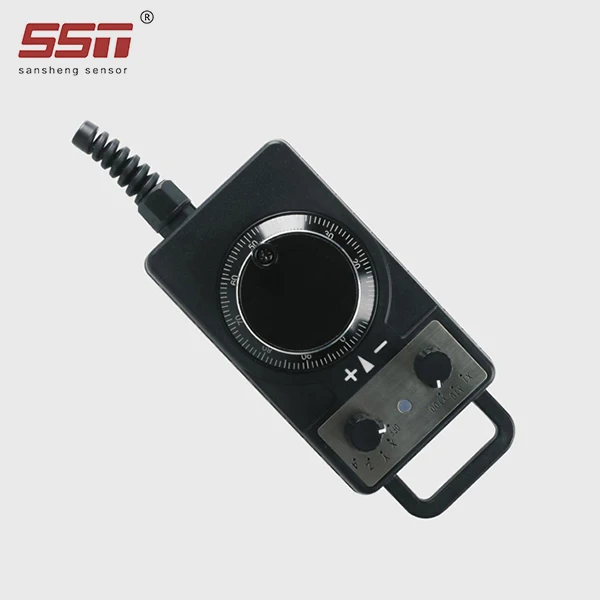

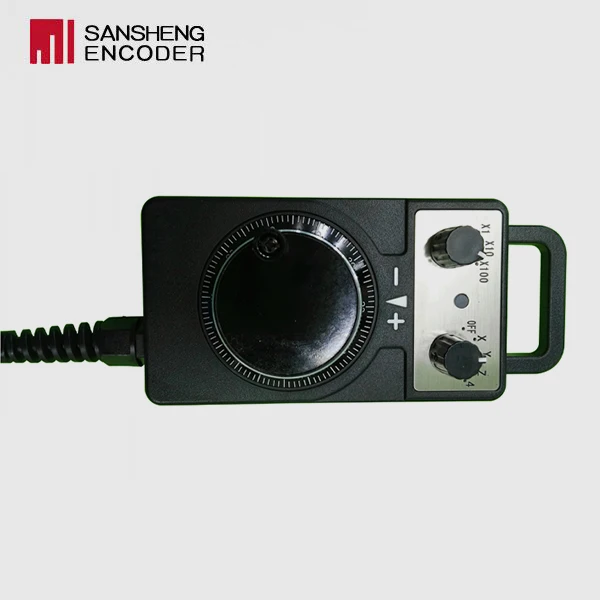

Manual Pulse Generator 100 Ppr 4 Axis CNC Handwheel Mpg for VMC Machines
Ready to Ship
In stock Fast dispatch

Manual Pulse Generator 100 Ppr 4 Axis CNC Handwheel Mpg for VMC Machines

  • 1 - 30 Sets
    $55
  • 31 - 100 Sets
    $52.25
  • >= 101 Sets
    $49.50
View product details

Manual Pulse Generator 100 Ppr 4 Axis CNC Handwheel Mpg for VMC Machines

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Control: 4-axis manual pulse generator with a 100 PPR (Pulses Per Revolution) rotary encoder for exact adjustments in CNC machining operations.
  • Incremental Adjustment: Directional (+/-) buttons enable fine-tuning of machine parameters, ensuring precise positioning during drilling, milling, or cutting processes.

Key features

  • 1. Durable Plastic Construction for Industrial Resilience

    • With reinforced plastic material, ensure long-lasting durability in heavy-duty industrial environments, offering comparable robustness to metal alternatives while maintaining lightweight portability*.

  • 2. Ergonomic Design for Intuitive Precision Control

    • With an ergonomic handle and intuitive rotary encoder, enable seamless, precise adjustments, outperforming bulkier, less accessible control interfaces*.

  • 3. High-Precision 100 PPR & 4-Axis Compatibility

    • With 100 pulses per revolution (PPR) precision and 4-axis compatibility, deliver accurate multi-axis control, surpassing single-axis or lower-PPR models in versatility and accuracy*.

  • 4. Industrial-Grade Reliability for Commercial Use

    • Engineered for industrial VMC machines, this handwheel provides reliable precision in heavy-duty applications, ideal for continuous commercial use compared to consumer-grade alternatives*.

  • 5. Built to Industrial Safety Standards

    • Constructed to meet industrial safety and durability standards, ensuring reliable operation in demanding manufacturing environments*.

Product details

Manual Pulse Generator 100 Ppr 4 Axis CNC Handwheel Mpg for VMC Machines

The Manual Pulse Generator 100 PPR 4-Axis CNC Handwheel Mpg is a precision control device designed for industrial applications such as VMC (Vertical Machining Center) machines. Built with durable plastic and ergonomic design, it offers precise adjustments via a rotary encoder, directional buttons, and coiled cable connectivity.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialDurable plasticWithstands frequent use in industrial settings
Pulses per Revolution (PPR)100 PPREnsures precise incremental adjustments in CNC machining
Axes Compatibility4-axis controlMulti-axis coordination in complex machining operations
Control InterfaceRotary encoder + directional buttonsFine-tuning parameters in real-time during machining
ConnectivityCoiled cable (serial/USB)Seamless integration with VMC systems for data transmission
Warranty1.5 yearsComprehensive coverage for component reliability

Customization guide

Adjustable parameters such as pulse rate (via rotary encoder settings) and axis configuration allow customization to meet specific CNC machine requirements. Additional modes (via labeled buttons) can be programmed for specialized operation protocols.

Get inspired

Whether you’re calibrating a VMC machine or adjusting robotic arms, this handwheel’s precision and durability ensure consistent performance in high-demand industrial environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Pulses per Revolution100 PPR115 PPR (+15%)130 PPR (+30%)
MaterialPlasticReinforced plasticMetal alloy
ConnectivityStandard cableUSB-C + wirelessFiber-optic
Durability RatingIndustrial gradeHeavy-dutyHarsh-environment

Supplier's note

  1. Technical Breakthroughs:

    • 130 PPR (Pro Model): Triple the precision of standard 40 PPR handwheels, enabling micron-level adjustments.
    • Metal Alloy Construction (Pro): Withstands extreme temperatures and vibrations in foundries or aerospace workshops.
    • Fiber-Optic Connectivity (Pro): 20% faster data transmission than traditional cables, reducing latency in real-time systems.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs requiring basic 4-axis control in standard machining environments.
    • Advanced Model: Suitable for manufacturers needing USB-C compatibility and wireless flexibility in automated assembly lines.
    • Pro Model: Recommended for aerospace or heavy-industry users demanding extreme durability and precision. For example, the Pro’s metal alloy body and fiber-optic connectivity ensure stable operation in oil refineries, where vibration and electromagnetic interference are common.

Frequently asked questions

  • Which manual pulse generator suits 4-axis VMC machines for precise adjustments?

  • How do I clean and maintain the plastic handwheel for longevity?

  • Plastic vs. Metal for CNC handwheels: Which material is better for industrial settings?

  • Can I customize settings on the 4-axis CNC handwheel for specific machining tasks?

  • Is the MPG’s material FDA-approved for food-grade machining applications?

  • What’s the advantage of the 100 PPR feature in this manual pulse generator?

  • Is the coiled cable compatible with common CNC control systems?

  • Does the ergonomic design reduce fatigue during long machining sessions?
