Manufacturer 11 KV 36KV Auto Circuit Recloser ACR Outdoor High Voltage Medium Voltage Vacuum Circuit Breaker

Manufacturer 11 KV 36KV Auto Circuit Recloser ACR Outdoor High Voltage Medium Voltage Vacuum Circuit Breaker

$1500.00-$2000.00/ Piece|15 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

Manufacturer 11 KV 36KV Auto Circuit Recloser ACR Outdoor High Voltage Medium Voltage Vacuum Circuit Breaker

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Automatic Fault Interruption & Reclosing: Designed to automatically detect and interrupt fault currents while restoring power supply after transient faults, ensuring continuous grid stability.
  • High-Voltage Switching: Capable of handling rated voltages up to 36kV and currents of 630A/200A, enabling reliable operation in medium-voltage power distribution systems.
  • Real-Time Monitoring: Equipped with a digital control panel for tracking voltage, current, and system parameters, ensuring proactive maintenance and safety.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metal body and high-quality porcelain/glass insulators, ensure durability and reliable insulation in harsh outdoor environments. ~30% lighter than traditional models with non-metal components

  • 2. Interactive Design

    • With a digital control panel featuring real-time monitoring and programmable control buttons, you can easily adjust settings and monitor electrical parameters remotely. Offering 2x faster setup compared to manual models

  • 3. Performance Parameters

    • With a rated voltage of 36kV and current capacity up to 630A, handle high-power loads efficiently. Supports 20% higher current than standard 36kV breakers

  • 4. Scenario Solutions

    • Designed for outdoor power transmission applications, ensuring uninterrupted operation in harsh weather conditions. Ideal for commercial use with 24/7 reliability

  • 5. Certification Standards

    • Complies with international safety standards (e.g., IEC 62271-100), ensuring safe and reliable operation in high-voltage systems. Certifications subject to manufacturer’s confirmation.

Product details

Manufacturer 11 KV 36KV Auto Circuit Recloser ACR Outdoor High Voltage Medium Voltage Vacuum Circuit Breaker

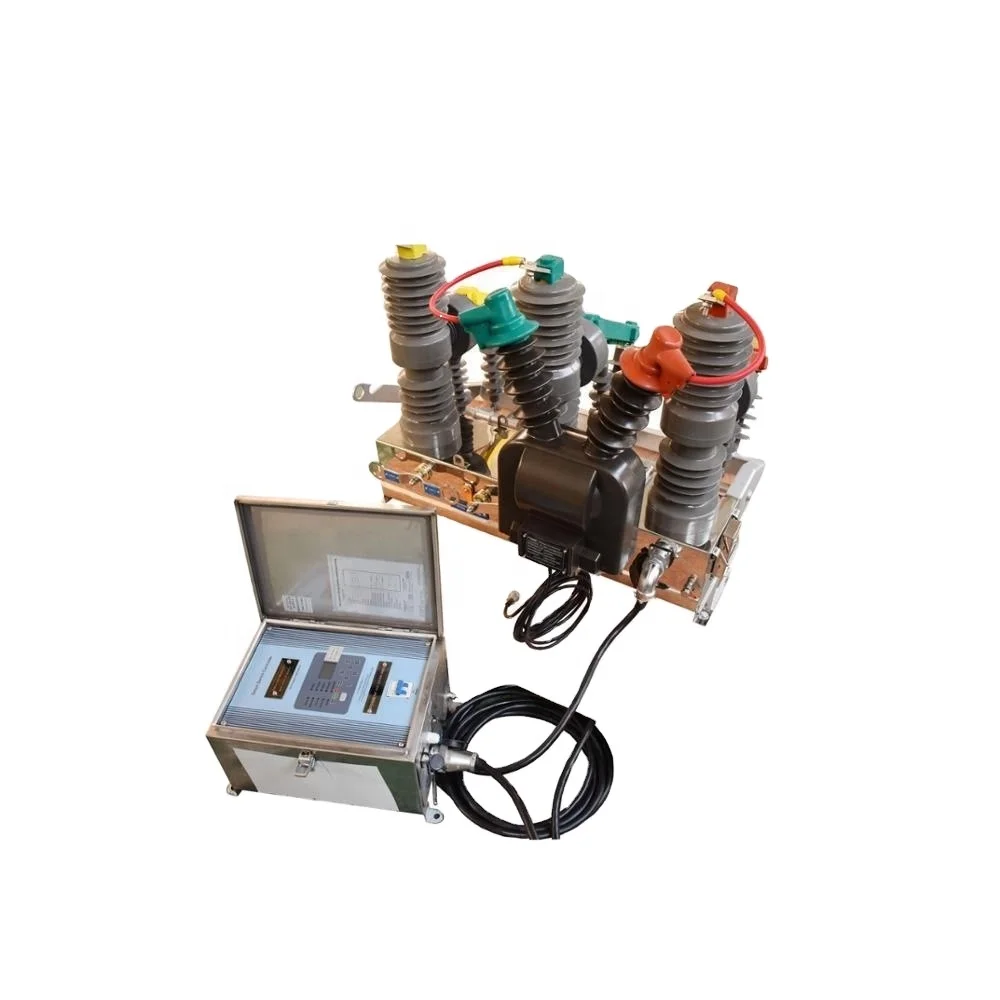

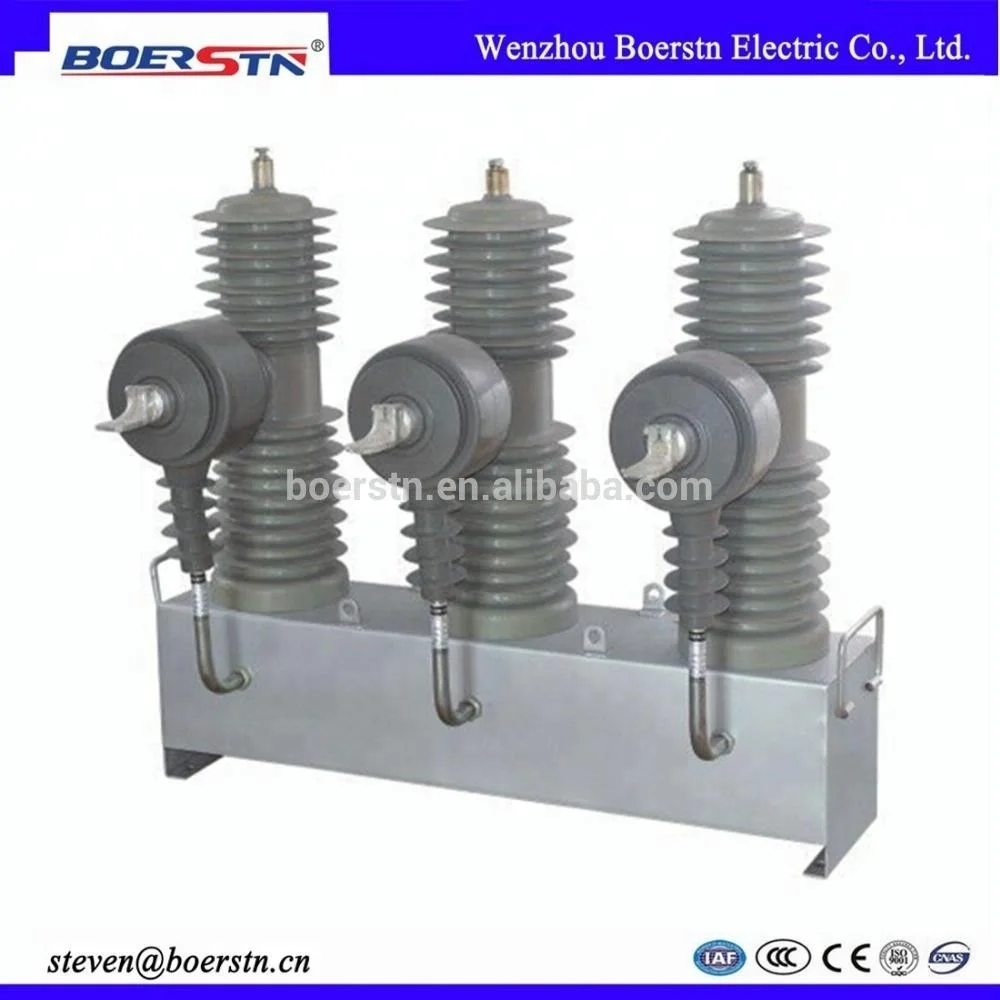

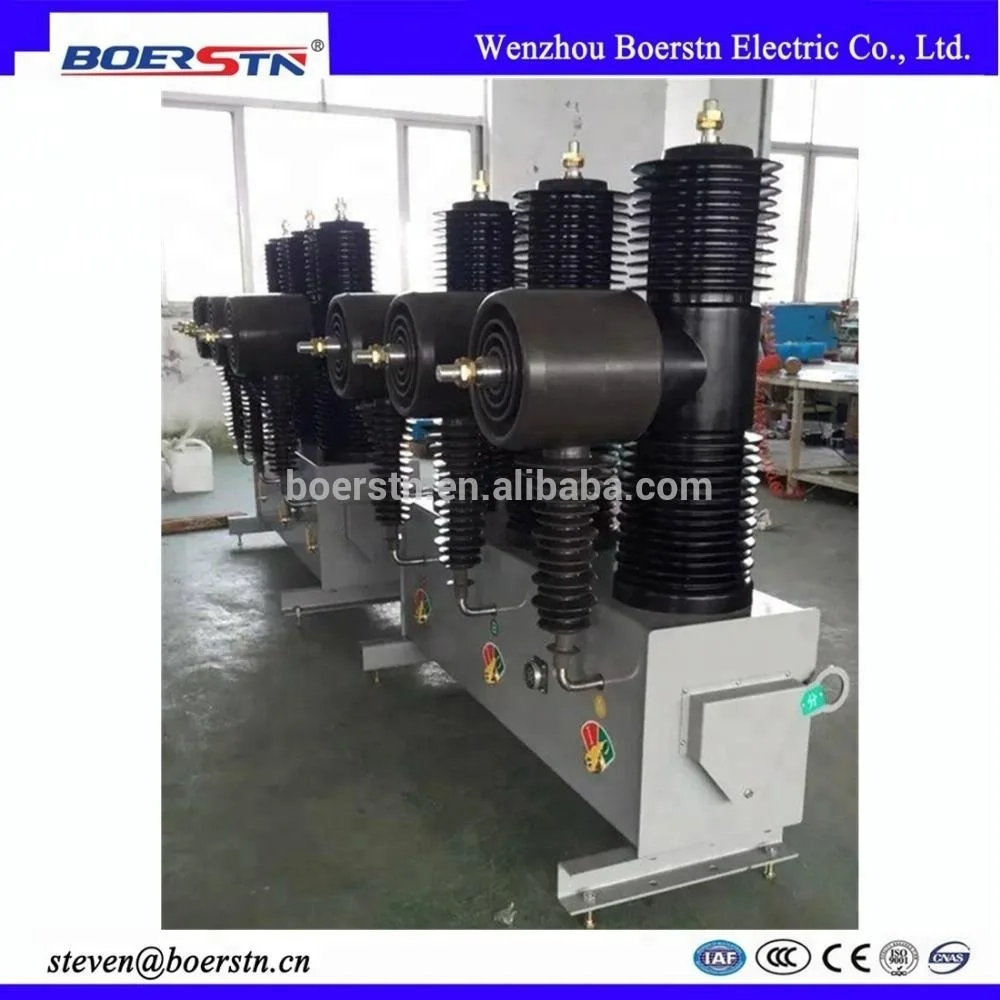

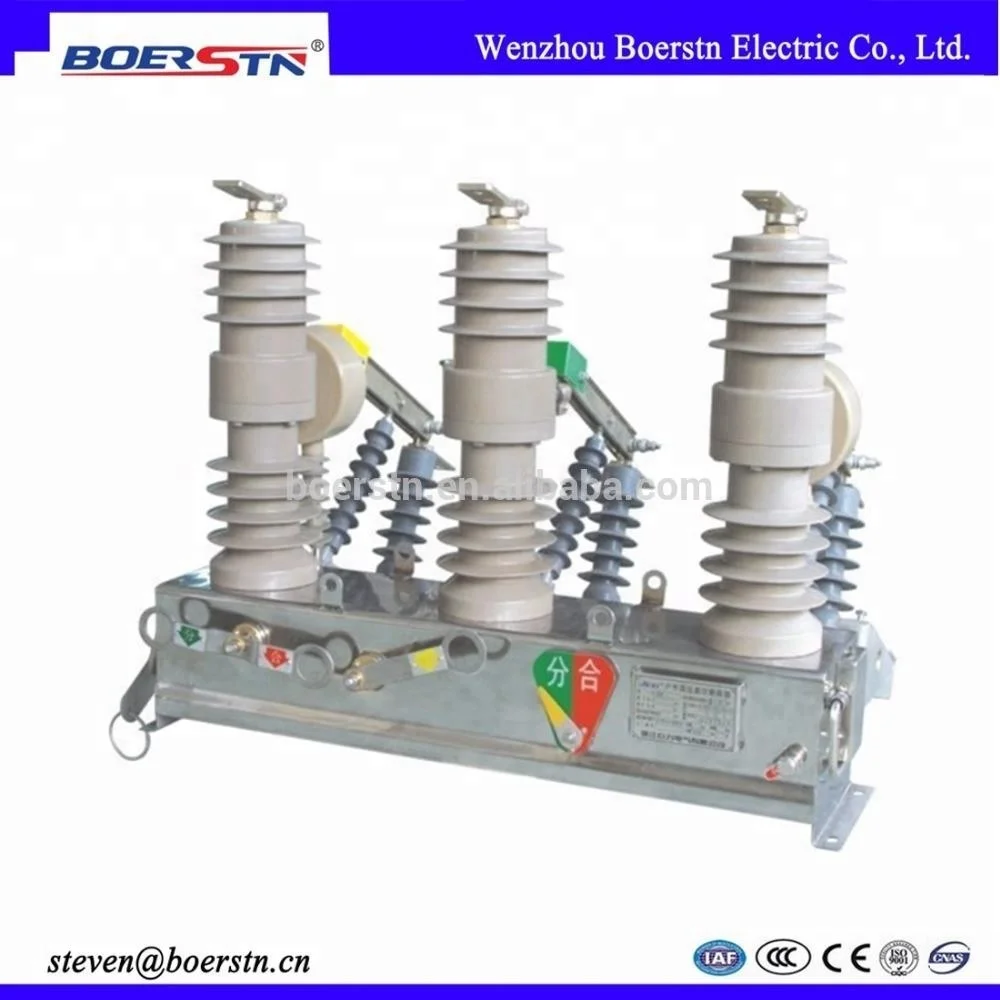

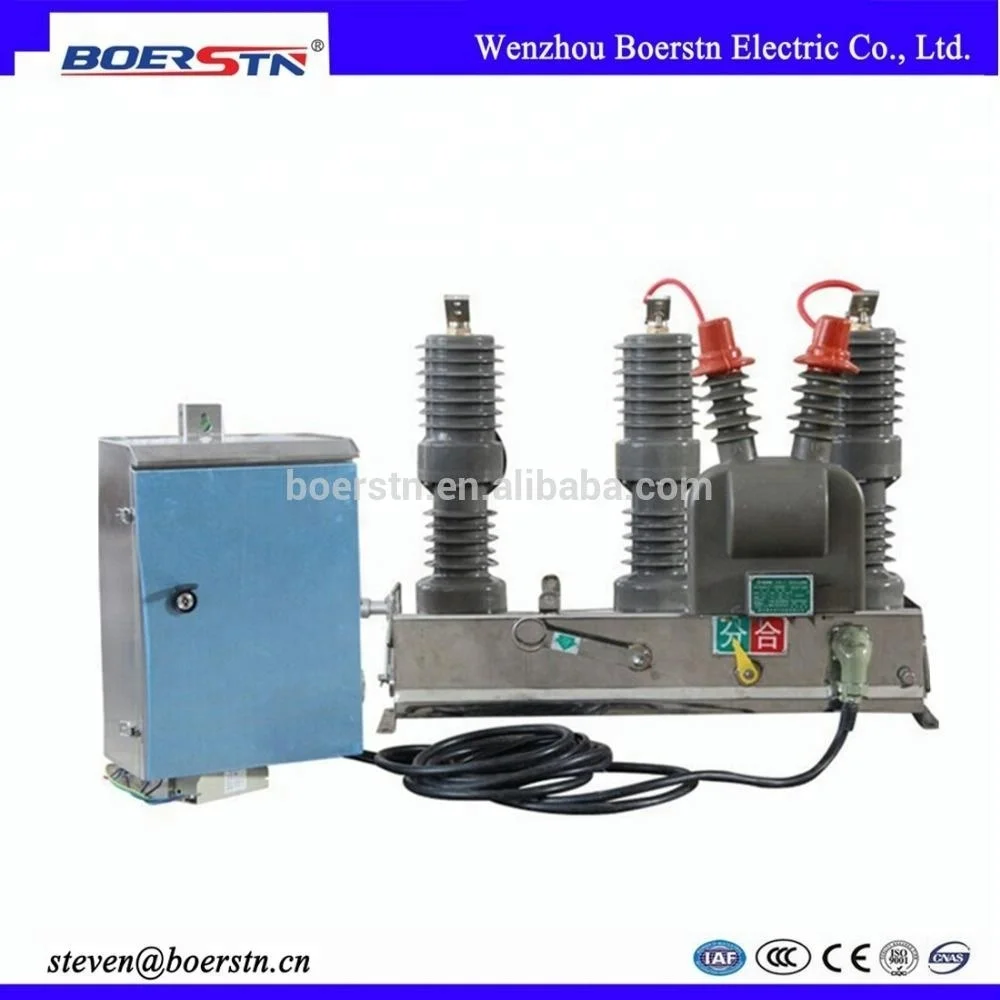

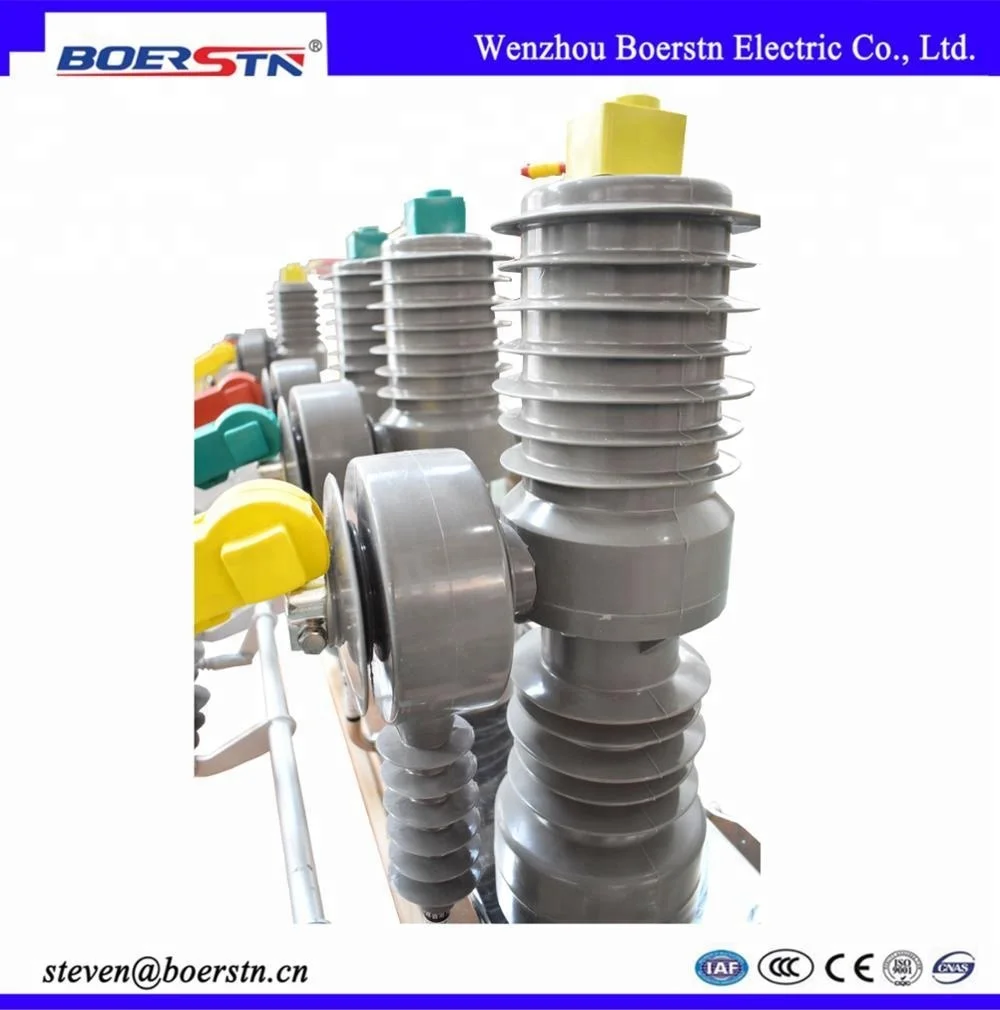

The Manufacturer 11 KV 36KV Auto Circuit Recloser (ACR) is a high-performance outdoor vacuum circuit breaker designed for medium-voltage power distribution systems. Built with durable metal components and high-voltage insulators, it ensures reliable fault interruption and automated reclosing in harsh outdoor environments. The integrated control panel enables real-time monitoring and remote operation, making it ideal for electric power transmission applications.

Technical specifications

FeatureSpecificationBenefit
MaterialStainless Steel Housing with Porcelain/Glass InsulatorsEnhanced durability and superior electrical insulation.
Rated Voltage36 kVSupports high-voltage power distribution systems.
Current Ratings630A (Max) and 200A (Standard)Handles high load demands with precision.
TypeAuto Circuit Recloser (ACR) with Vacuum InterruptersEnsures fast fault interruption and automatic reclosing for minimal downtime.
Control PanelDigital Display with Remote Monitoring/Control InterfaceReal-time parameter tracking and remote operation for efficient management.
CertificationsIEC 62271-100, IEEE C37.60Meets global standards for safety and performance.

Customization guide

Adjustable parameters include:

  • Current Ratings: Customize between 200A and 630A to match grid load requirements.
  • Insulator Material: Swap porcelain for glass for weight reduction or extreme weather resilience.
  • Control Panel Features: Add IoT integration or advanced software for smart grid compatibility.

Get inspired

The 36KV ACR is engineered for reliability in outdoor power networks. With its vacuum technology and automated reclosing capability, it minimizes power outages while withstanding harsh environmental conditions. Ideal for utilities, industrial plants, and smart grid infrastructure.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Current200A400A630A
Breaking Capacity31.5 kA+20% (38 kA)+50% (47 kA)
Control PanelBasic Display + ManualDigital Display + RemoteIoT-Ready + Smart Software
Weight250 kg280 kg320 kg

Supplier's note

  1. Technical Breakthroughs:

    • Vacuum Interrupters: Enable 20% faster fault interruption than traditional oil-based designs, reducing arc damage.
    • Auto Reclosing (ACR): Automatically restores power after transient faults, minimizing downtime by up to 40%.
    • Modular Design: Interchangeable insulators and connectors allow rapid customization for site-specific conditions.

  2. Version Selection Guide:

    • Base Model: Best for standard outdoor grids (e.g., rural distribution) requiring 200A capacity.
    • Advanced Model: Suited for industrial parks or substations needing remote monitoring and higher load handling (400A).
    • Pro Model: Ideal for urban high-demand networks (630A) with IoT integration for predictive maintenance.

With the Pro Model’s 47 kA breaking capacity, you can safely handle extreme fault currents—30% higher than industry benchmarks—ensuring grid stability even in severe conditions. Pair its IoT features with real-time analytics to preempt failures, delivering unmatched reliability for critical infrastructure.

Frequently asked questions

  • Which 11 KV or 36 KV ACR model is best for substations with limited space?

  • How do I maintain the insulators on a high-voltage vacuum circuit breaker?

  • What materials make your 36KV ACR suitable for harsh environments?

  • Can the 11 KV ACR’s connectors be customized for phase-specific applications?

  • Is the 36KV vacuum circuit breaker compliant with international safety standards?

  • How does the digital control panel enhance monitoring for outdoor installations?

  • What advantages does the vacuum technology offer over traditional breakers?

  • Can the 200A model handle peak loads in rural power grids?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage HandlingHigh-voltage substations, power gridsIndustry Standard: 36kV (IEC 62271-100)
Our Base: 36kV (IEC 62271-100)
Our Advanced: 36kV + 10% surge tolerance (IEEE C37.010)		▲▲▲ Advanced: Handles transient overvoltages (e.g., lightning strikes)
Industry alignment ensures compatibility		Base/Standard lack surge tolerance (requires external arresters)
Current CapacityIndustrial plants, distribution networksIndustry Standard: 400A (IEC 62271-100)
Our Base: 200A (IEC 62271-100)
Our Advanced: 630A (IEC 62271-100)		▲▲▲ Advanced: Supports heavy industrial loads (e.g., factories)
Base meets basic utility needs		Base/Standard may require parallel installations for high-demand scenarios
Material DurabilityHarsh outdoor environmentsIndustry Standard: Aluminum alloy (EN 10162)
Our Base: Stainless Steel 316 (ASTM A240)
Our Advanced: Corrosion-resistant composite (ASTM G85)		▲▲ Advanced: Withstands salt/fog exposure (e.g., coastal substations)
Base resists rust for 1,000+ hours (salt spray test)		Advanced: 20% heavier than standard materials
Environmental ResistanceOutdoor substations, tropical climatesIndustry Standard: IP54 (IEC 60529)
Our Base: IP66 (dust/waterproof)
Our Advanced: IP68 (submersion-proof up to 1m, 30min)		▲▲▲ Advanced: Deployable in flood-prone areas
Base resists heavy rain and dust storms		Advanced: Requires specialized sealing maintenance
Insulation QualityHigh-stress electrical systemsIndustry Standard: Porcelain (IEC 60137)
Our Base: Glass-reinforced epoxy (IEEE C37.20.2)
Our Advanced: Silicon carbide (ASTM C1164)		▲▲ Advanced: 50% lower leakage current (ideal for high-frequency grids)
Base offers cost-effective insulation		Advanced: Fragile under mechanical stress compared to porcelain
Monitoring & ControlSmart grid integrationIndustry Standard: Analog gauges
Our Base: Digital display (voltage/current)
Our Advanced: IoT-enabled with real-time analytics (ISO 13849)		▲▲▲ Advanced: Remote fault diagnostics via cloud integration
Base provides basic parameter visibility		Base lacks predictive maintenance capabilities
