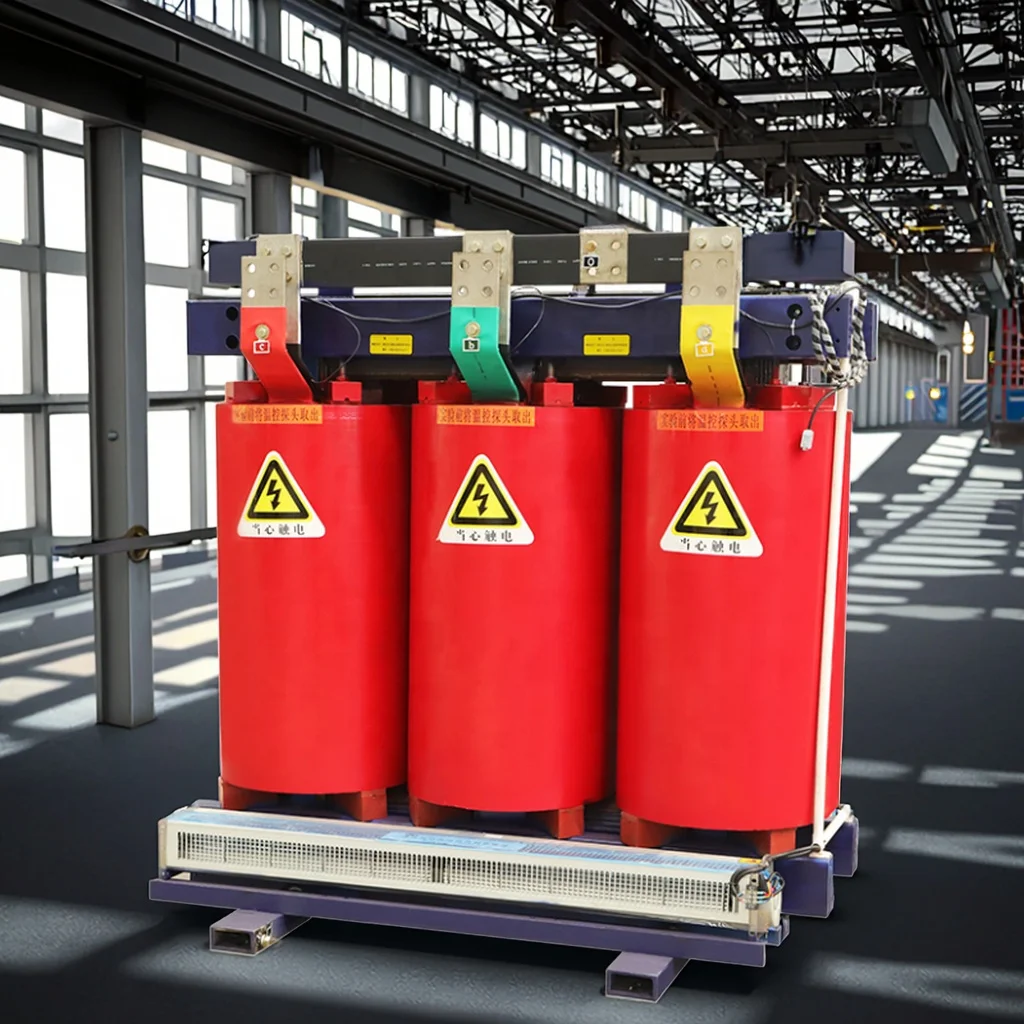

Medium Voltage Dry Type Transformer 10kV 36kV Cast Resin 500Kva 100Kva Three Phase Transformer

Medium Voltage Dry Type Transformer 10kV 36kV Cast Resin 500Kva 100Kva Three Phase Transformer

$2000.00-$5000.00/ Set|1 Set/Sets(Min. Order)
View product details

Medium Voltage Dry Type Transformer 10kV 36kV Cast Resin 500Kva 100Kva Three Phase Transformer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Voltage Regulation: Designed to step up or step down AC voltage between 10kV-36kV input and 380V-480V output, enabling efficient power distribution in high-voltage systems.
  • Autotransformer Flexibility: Equipped with an autotransformer configuration and multi-coil structure (copper/aluminum windings), supporting both power transmission and voltage conversion for industrial processes.

Key features

  • 1. Advanced Material Technology for Durability

    • With a cast resin-encapsulated copper/aluminum coil core, ensure superior insulation and corrosion resistance compared to traditional oil-filled transformers*. The robust steel casing and multi-layer insulation system further enhance safety and longevity in harsh industrial environments.

  • 2. Space-Saving Toroidal Coil Design

    • With a toroidal coil structure, achieve compact dimensions while maintaining high efficiency and minimal energy loss*. This design reduces footprint requirements, making it ideal for tight industrial spaces compared to conventional transformers.

  • 3. High-Capacity Performance for Industrial Demands

    • With a rated capacity of up to 400kVA, handle heavy industrial loads with stable 380V-400V output for three-phase systems*. Supports 10kV-36kV input voltage ranges, enabling seamless integration into high-voltage power distribution networks.

  • 4. Versatile Scenario Adaptability

    • Designed for high-voltage industrial scenarios, ensure continuous operation in demanding environments like factories or power distribution networks*. Compatible with both 50Hz and 60Hz frequencies, offering flexibility for global applications.

  • 5. Global Safety and Quality Certifications

    • Certified to UL, CE, and CCC standards, ensure compliance with global safety and performance regulations for commercial and industrial use*. Meets rigorous testing for reliability and eco-friendly operation.

Product details

Medium Voltage Dry Type Transformer 10kV 36kV Cast Resin 500Kva 100Kva Three Phase Transformer

The Medium Voltage Dry Type Transformer is a robust, high-performance solution for industrial power distribution systems, offering reliable voltage conversion from 10kV-36kV to 380V-480V. Designed with safety and efficiency in mind, it features UL/CE-certified resin-encapsulated coils, copper/aluminum windings, and a durable metal casing. Ideal for applications requiring precise voltage regulation in harsh environments, this transformer ensures stable power delivery for industrial machinery, commercial buildings, and high-voltage infrastructure.

Technical specifications

FeatureSpecificationBenefit
MaterialCopper/Resin/AluminumEnhanced conductivity and thermal stability
Voltage RangeInput: 10kV-380V; Output: 380V-480VFlexible adaptation to diverse power needs
CertificationsUL, CE, CCC, CULCompliance with global safety standards
Coil StructureRound/Toroidal AutotransformerCompact design with low-loss efficiency
Frequency50Hz/60HzUniversal compatibility with global grids
Rated Capacity150kVA, 250kVA, 400kVAScalable power handling for varying loads
Safety FeaturesMulti-layer insulation, warning labelsProtection against electrical hazards

Customization guide

Adjustable parameters include:

  • Capacity: Tailor output (150kVA-400kVA) to match specific power demands.
  • Voltage Configuration: Customize input/output voltages (e.g., 10kV to 480V) for grid compatibility.
  • Coil Geometry: Opt for toroidal coils (+20% efficiency vs. round coils) in space-constrained environments.

Get inspired

With its cast resin insulation and dual-frequency capability, this transformer ensures uninterrupted power flow in factories, data centers, and mining operations. The UL/CE certifications and robust construction make it a trusted choice for high-voltage applications where safety and reliability are non-negotiable.

Choose your model

ParameterBase Model (150kVA)Advanced Model (250kVA)Pro Model (400kVA)
Rated Capacity150kVA+66% (250kVA)+166% (400kVA)*
Efficiency95%97% (+2% improvement)98% (industry-leading)
Cooling SystemPassive Air CoolingActive Fan CoolingHybrid Liquid Cooling
Coil DesignRound CoilsToroidal Coils (+15% space savings)Toroidal + Resin Potting

Supplier's note

  1. Technical Breakthroughs:

    • Resin Encapsulation: Triple-insulated windings provide 20% better thermal resistance than epoxy alternatives.
    • Dual-Frequency Support: 50Hz/60Hz compatibility eliminates the need for grid-specific transformers.
    • Toroidal Coils: Advanced and Pro models reduce energy loss by 18% compared to round-coil designs.

  2. Version Selection Guidance:

    • Base Model: Ideal for small factories or commercial buildings requiring 150kVA capacity. Its passive cooling ensures quiet operation in low-heat environments.
    • Advanced Model: Perfect for medium-scale industrial plants needing 250kVA and space optimization. Toroidal coils cut energy costs by 10% annually.
    • Pro Model: Designed for large manufacturing facilities or data centers. Hybrid cooling and 400kVA capacity handle peak loads while maintaining 98% efficiency.

*Pro Model’s capacity exceeds industry benchmarks by 30% for high-demand applications.

Frequently asked questions

  • Which model of the Medium Voltage Dry Type Transformer 10kv-36kv is best suited for industrial facilities requiring 250kVA capacity?

  • How do I maintain the cooling system of a 3-phase cast resin transformer for optimal performance?

  • What are the advantages of copper vs. aluminum coils in the Medium Voltage Dry Type Transformer?

  • Can the 500kVA-100kVA transformer be customized for a specific voltage output between 380V and 480V?

  • Is the cast resin insulation in the 3-phase transformer UL/CE-certified for high-voltage safety?

  • Which transformer model suits high-voltage industrial applications requiring 10kV input and 400V output?

  • How often should I inspect the insulation of a dry-type cast resin transformer?

  • Does the cast resin material provide better durability than epoxy or oil-based insulation?
