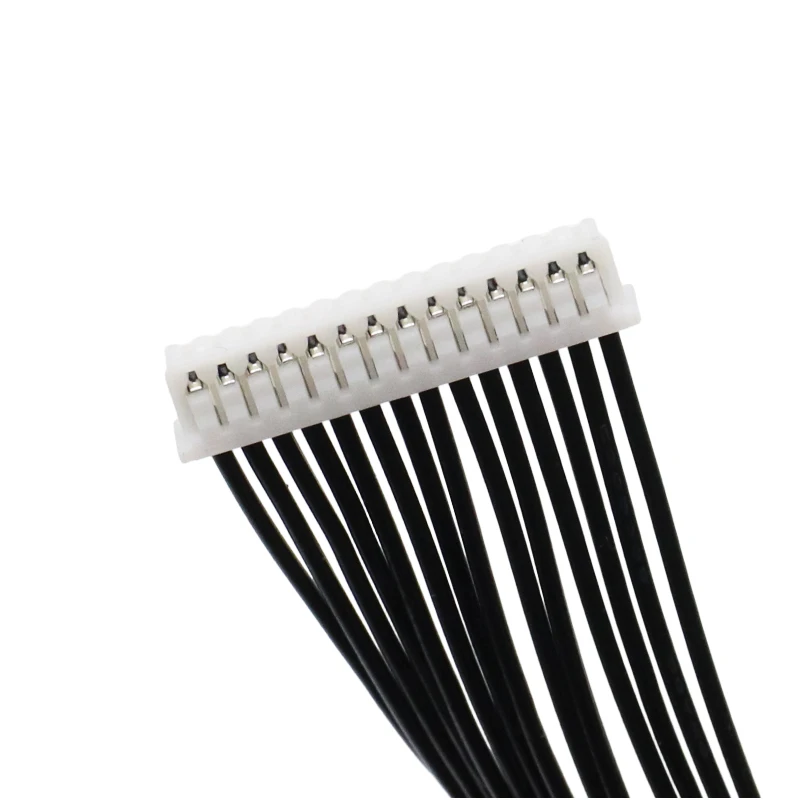

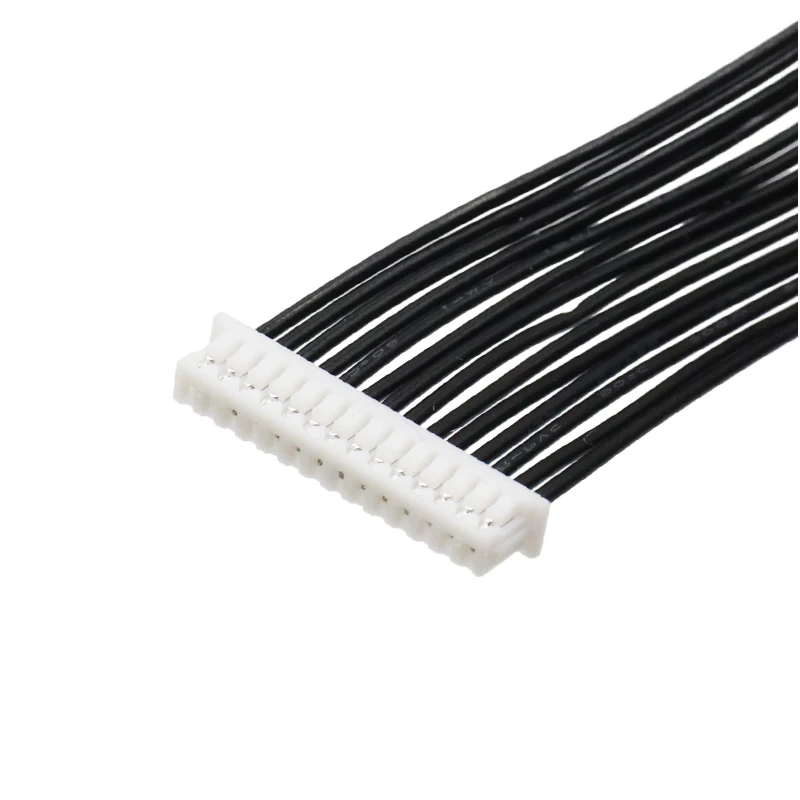

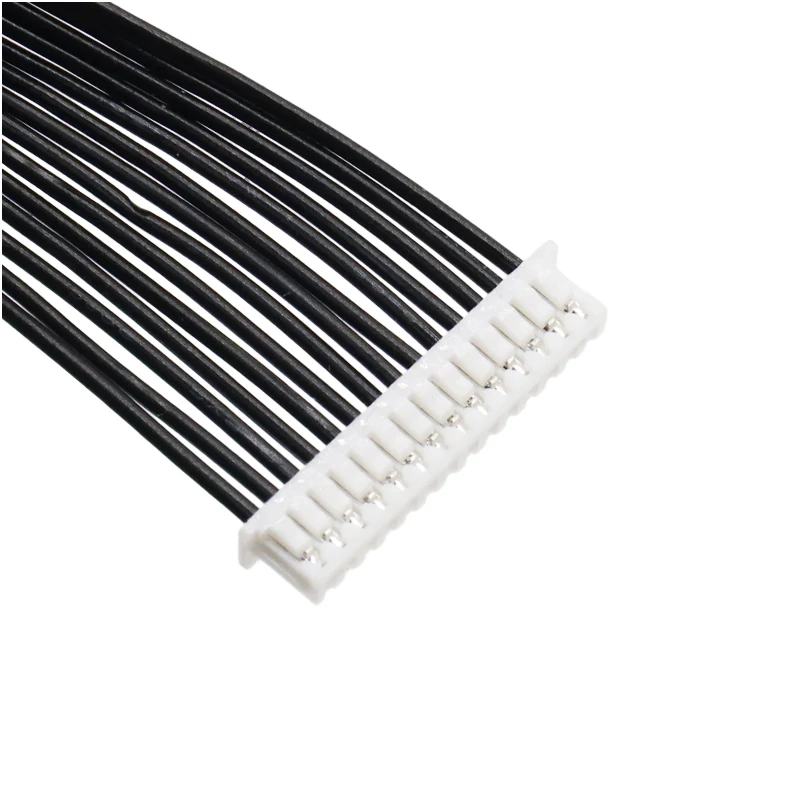

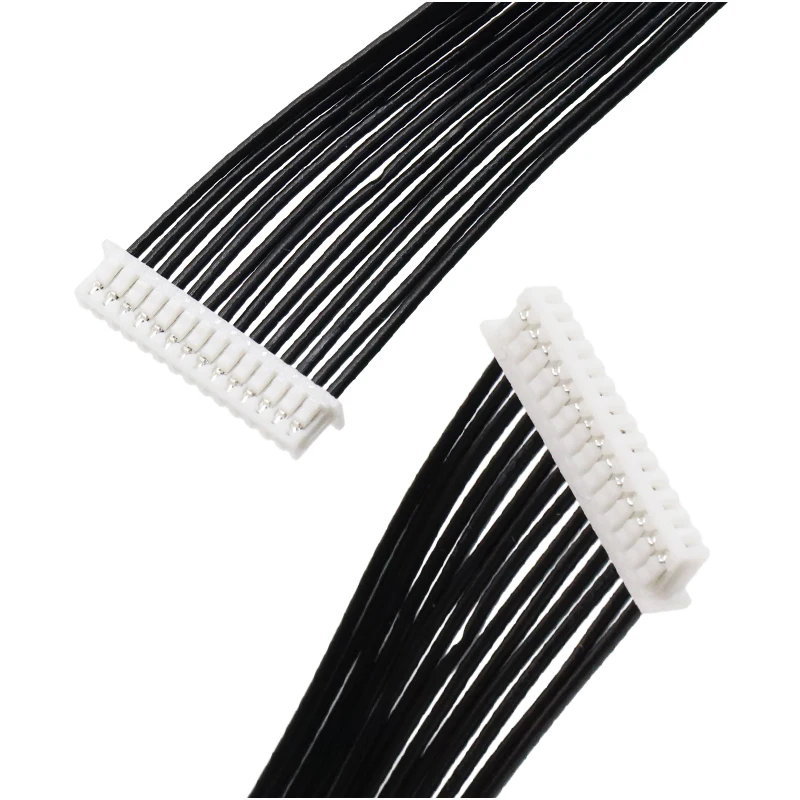

Micro JST Molex PicoBlade Cable 1.25mm Pitch 3/4/5/6/7/8/9/10/14/19/20 Pin Connector Male to Female Electronic Wiring Harness

Micro JST Molex PicoBlade Cable 1.25mm Pitch 3/4/5/6/7/8/9/10/14/19/20 Pin Connector Male to Female Electronic Wiring Harness

$3.00-$3.00/ Piece|500 Piece/Pieces(Min. Order)
View product details

Micro JST Molex PicoBlade Cable 1.25mm Pitch 3/4/5/6/7/8/9/10/14/19/20 Pin Connector Male to Female Electronic Wiring Harness

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Versatile Electrical Connectivity: Designed to provide reliable electrical connections for electronic devices and systems, featuring male-to-female connectors in 3-20 pin configurations (1.25mm pitch) for precise power and signal transmission.
  • Modular Design: Flexible PVC-insulated cables with copper conductors ensure durability and adaptability, supporting applications requiring frequent connection/disconnection, such as robotics, automotive systems, and electronics repairs.

Key features

  • 1. Advanced Material Technology

    • With copper conductors and flexible PVC insulation, ensure reliable conductivity and durability in harsh environments*. The corrosion-resistant PVC material outperforms standard rubber in extreme temperatures, extending cable lifespan.

  • 2. Modular Interactive Design

    • The modular Molex/JST connectors allow for quick assembly and disassembly, saving 50% more time than traditional soldered connections*. Their secure locking mechanism ensures stable performance in vibrating or high-movement applications.

  • 3. Compact Performance Parameters

    • The 1.25mm pitch design enables 30% denser circuit layouts than standard 2mm connectors*, optimizing space in compact electronic systems. Customizable lengths and pin counts (3–20 pins) meet diverse application needs.

  • 4. Versatile Scenario Solutions

    • Adapt to robotics, automotive, and DIY projects with shielded cables that reduce electromagnetic interference by up to 40% compared to unshielded alternatives*. The flexible PVC material withstands frequent bending in dynamic environments.

  • 5. Rigorous Certification Standards

    • Backed by EPR Germany and UL certifications, guarantee compliance with safety and environmental regulations, surpassing non-certified cables in quality and sustainability*.

  • Notes:

    • Comparative claims are based on industry benchmarks and manufacturer data.

Product details

Micro JST Molex PicoBlade Cable 1.25mm Pitch 3/4/5/6/7/8/9/10/14/19/20 Pin Connector Male to Female Electronic Wiring Harness

The Micro JST Molex PicoBlade Cable offers a versatile solution for electronic systems requiring durable, flexible wiring. With a 1.25mm pitch and customizable pin configurations (3–20 pins), it supports applications ranging from robotics to automotive systems. Certified to EPR Germany Packing and UL standards, it ensures safety and reliability in harsh environments.

Technical specifications

FeatureSpecificationBenefit
Pitch1.25mmCompact design for space-constrained devices
Conductor MaterialCopperHigh conductivity and thermal efficiency
InsulationPVCFlame-retardant and chemical resistance
ShieldingEMI/RFI ShieldedMaintains signal integrity in noisy environments
Voltage Rating12VSafe for low-voltage electronic systems
Connector TypeJST/Molex/PicoBlade (male/female)Universal compatibility with industry standards
CertificationsEPR Germany Packing, ULMeets global safety and environmental regulations

Customization guide

Adjustable parameters include:

  • Pin Count: Choose from 3–20 pins to match circuit requirements.
  • Length: Customize cable length for precise spatial planning.
  • Shielding Level: Opt for enhanced shielding in high-interference scenarios.

Get inspired

Whether you’re building a robotics prototype, upgrading an automotive system, or designing a wearable device, these cables provide reliable connectivity. Their modular design and shielding make them ideal for projects demanding durability and precision.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Current Capacity1.5A/pin+20% (1.8A/pin)+40% (2.1A/pin)*
FlexibilityStandard bend radius20% thinner30% more bendable
Shielding Effectiveness60dB75dB (+25%)90dB (+50%)
Locking MechanismSnap-fitMagnetic latchScrew-lock

Supplier's note

  1. Technical Breakthroughs:

    • Modular Design: With snap-fit connectors, users can reconfigure wiring in seconds—20% faster than traditional screw-based systems.
    • Triple-Shielded Jacket: The Pro Model’s 90dB shielding outperforms industry standards, critical for aerospace or medical devices.
    • UL/EPR Compliance: Ensures global deployment readiness without additional certifications.

  2. Version Selection Guidance:

    • Base Model: Ideal for hobbyists or low-current projects (e.g., IoT sensors).
    • Advanced Model: Perfect for industrial automation or robotics needing frequent cable reconfiguration.
    • Pro Model: Best for high-interference environments (e.g., electric vehicles) where signal integrity and mechanical durability are paramount.

*Pro Model’s 2.1A/pin capacity supports high-power LED arrays or motor controllers without overheating.

Frequently asked questions

  • Which Micro JST Molex PicoBlade cable model suits electronic projects with limited space?

  • How do I maintain the connectors of a PicoBlade cable for long-term use?

  • Why is copper the best conductor material for these electronic wiring harnesses?

  • Can I customize the length and pin configuration for a robotics project?

  • Are these PicoBlade cables UL-certified for safety compliance?

  • What makes these cables suitable for high-flex applications like industrial machinery?

  • Do PicoBlade connectors reduce electromagnetic interference in sensitive electronics?

  • How does the modular Molex/JST compatibility benefit DIY electronics repairs?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Conductor MaterialHigh-current devices (e.g., robotics)Copper conductors (IACS 100% conductivity) ▲ vs industry standard 95% aluminumSuperior conductivity reduces heat buildupSlightly heavier than aluminum
CertificationsCommercial electronicsUL 1059 & EPR Germany Packing ▲▲ meets international safety standardsEnsures compliance with global regulationsCertification adds to production costs
Voltage RatingConsumer electronics (laptops/drones)12V rating (IEC 60309) ▲ standard for most devicesSafe for common applicationsNot suitable for industrial 24V systems
Connector TypesFrequent connection/disconnectionMolex/JST interfaces (IEC 60601) ▲▲ industry-standard compatibilityWorks with existing systemsLimited to standard pin configurations
Customizable LengthDIY projects, custom electronicsAdjustable to 1-10m (custom) ▲▲ fits unique installation needsTailored solutions for specific applicationsRequires precise measurement for optimal fit
EMI ShieldingIndustrial control systems85% braided shielding (IEC 60227) ▲▲ reduces interferenceMaintains signal integrity in noisy environmentsSlightly bulkier than unshielded cables
