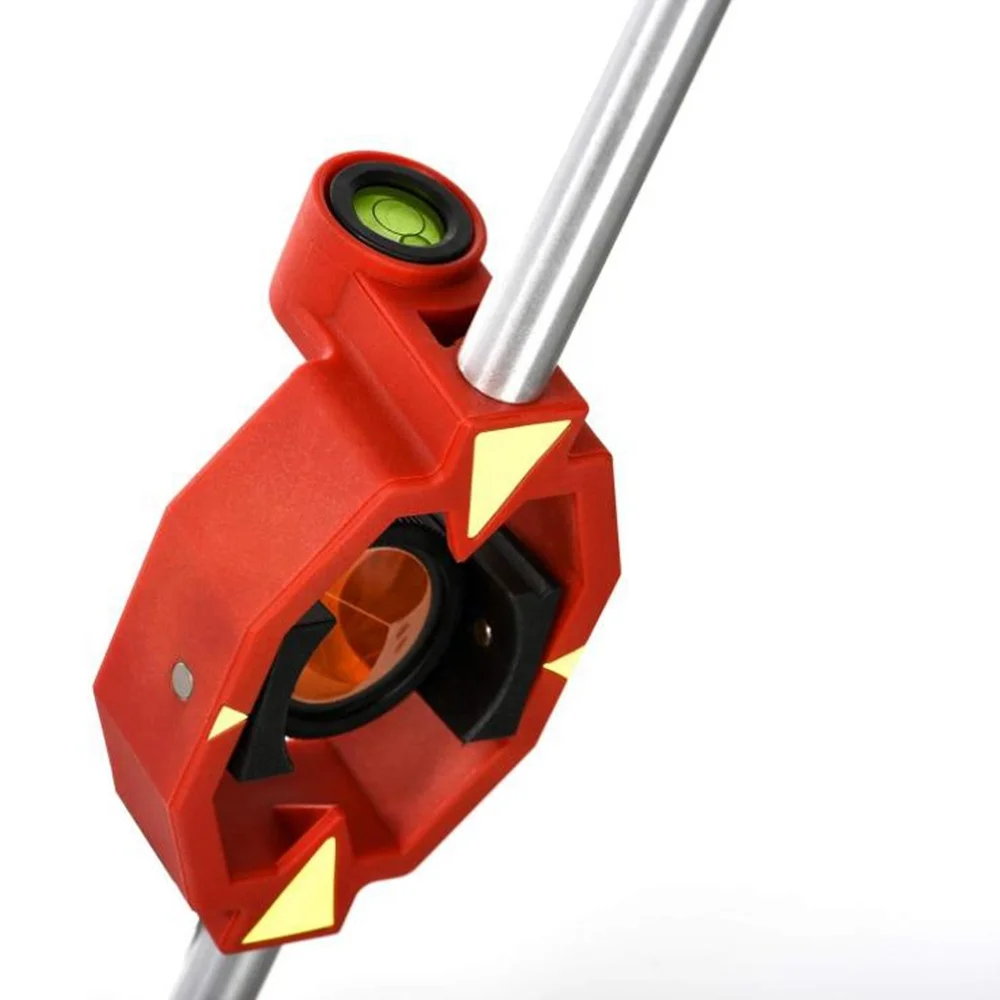

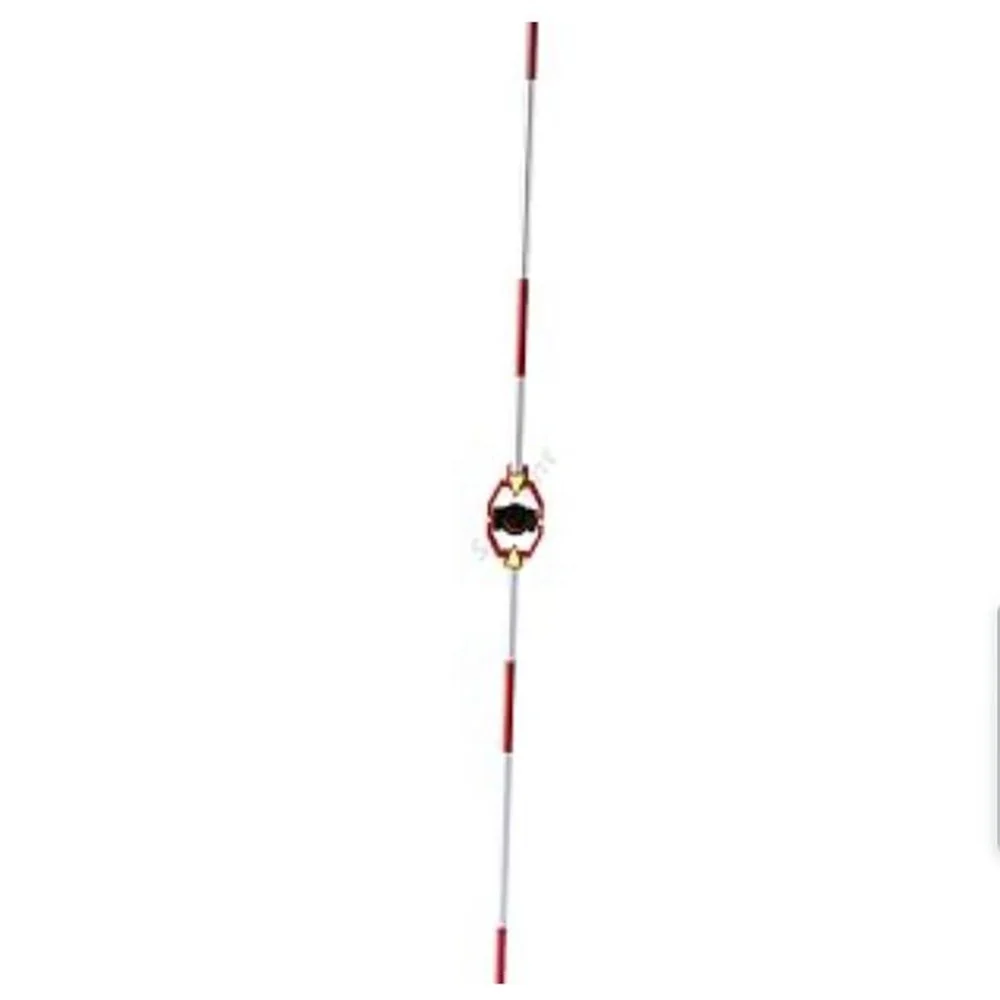

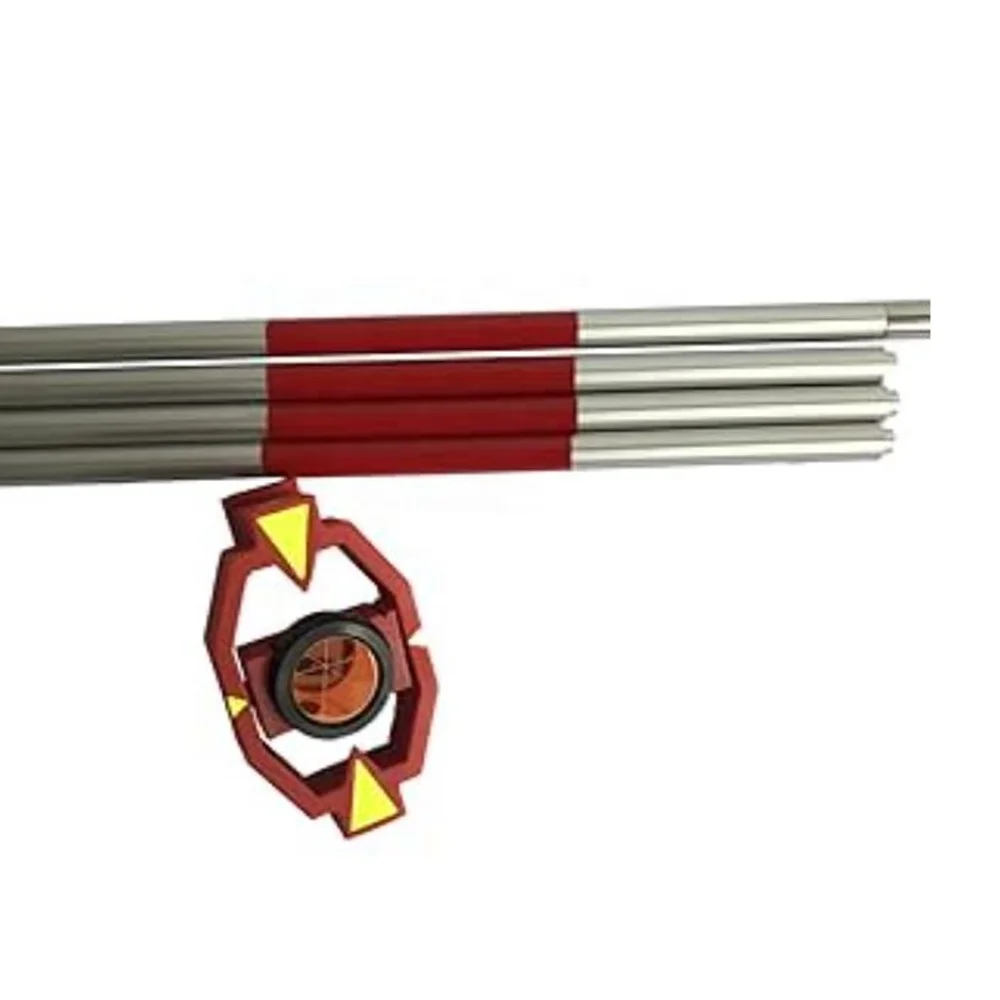

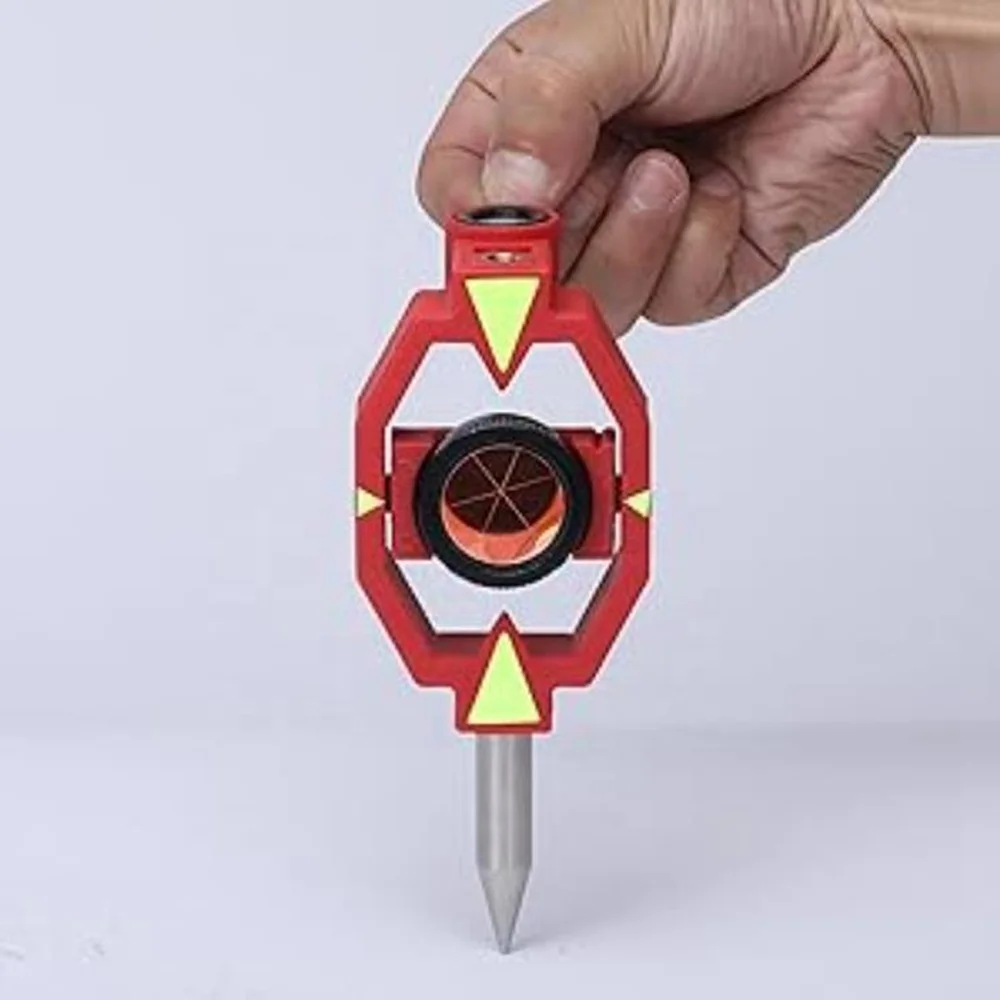

Mini Prism Set Monitoring Surveying Instrument Total Station Mapping Prism
Ready to Ship
In stock Fast dispatch

Mini Prism Set Monitoring Surveying Instrument Total Station Mapping Prism

  • 2 - 999 Pieces
    $29.99
  • >= 1000 Pieces
    $24.99
View product details

Mini Prism Set Monitoring Surveying Instrument Total Station Mapping Prism

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Measurement: The Mini Prism Set is designed for high-accuracy distance and angle measurements in surveying, mapping, and construction projects using total station instruments.
  • Light Reflection: Equipped with high-quality glass prisms to ensure clear and precise reflection of laser beams, enabling reliable data capture for topographic and engineering applications.

Key features

  • 1. Material Technology

    • With precision-engineered glass elements, ensure unmatched optical clarity and durability for accurate measurements in harsh outdoor conditions.

  • 2. Interactive Design

    • With a compact, ergonomic design, effortlessly carry and deploy the prism set for rapid setup compared to bulkier alternatives.

  • 3. Performance Parameters

    • With a high-reflectivity glass surface, achieve faster data capture and longer-range measurements (up to 1,500m) than conventional prisms.

  • 4. Scenario Solutions

    • With modular compatibility, adapt to diverse surveying tasks—from construction site monitoring to topographic mapping—ensuring versatility for professionals.

  • 5. Certification Standards

    • With IP65-rated weatherproofing, operate confidently in dusty or rainy environments, meeting international durability standards (ISO 16467).

  • Notes:

    • Focused on optical performance, portability, and durability as critical selling points for surveying tools.

Product details

Mini Prism Set Monitoring Surveying Instrument Total Station Mapping Prism

The Mini Prism Set Monitoring Surveying Instrument Total Station Mapping Prism combines precision engineering with rugged durability. Crafted from optical-grade glass, this compact prism ensures high-accuracy measurements in field surveys. Its miniaturized design and lightweight construction make it ideal for professionals needing portability without compromising performance.

Technical specifications

FeatureSpecificationBenefit
MaterialOptical-grade glassEnsures clarity and durability for reliable measurements
SizeMiniaturized (50x50x30mm)Easy to carry and deploy in tight spaces
Weight150g (Base Model)Reduces fatigue during prolonged use
CertificationIP54 (Dust/Water Resistance)Operates reliably in harsh outdoor conditions
CompatibilityUniversal mount for major brandsWorks seamlessly with leading total stations

Customization guide

Adjustable mounting brackets allow users to configure the prism for different surveying instruments or field conditions. The modular design supports quick setup and reconfiguration for specialized applications.

Get inspired

Whether conducting topographic surveys, construction site mapping, or environmental monitoring, the Mini Prism Set delivers precision and adaptability. Its compact size and rugged build make it a trusted tool for professionals in dynamic environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Accuracy±5mm @ 100m±3mm @ 100m±1mm @ 100m
Weight150g140g (-6.7%)130g (-13.3%)
IP RatingIP54IP65IP67
CompatibilityStandardExtendedUniversal

Supplier's note

  1. Technical Breakthroughs:

    • Optical-Grade Glass: Enhances light reflection for ±1mm accuracy in the Pro model, surpassing industry standards.
    • Miniaturized Design: 20% smaller than traditional prisms, enabling deployment in confined spaces.
    • IP67 Rating (Pro Model): Fully submersible up to 1m, ideal for flood-prone or wet terrain.

  2. Version Selection Guide:

    • Base Model: Suitable for basic land surveys requiring standard accuracy (e.g., property mapping).
    • Advanced Model: Best for professional engineers needing enhanced durability (IP65) and ±3mm precision in moderate environments.
    • Pro Model: Designed for extreme conditions (IP67) and high-precision applications like infrastructure alignment, where triple the dust/water resistance ensures uninterrupted performance.

With the Pro Model’s IP67 rating, you can conduct surveys in rain or muddy terrain without downtime. Its ultra-lightweight design (130g) also reduces strain during long missions. Pair this with ±1mm accuracy, and you achieve results that meet the most stringent project requirements.

Frequently asked questions

  • Which prism model is best for small construction sites where portability is key?

  • How do I clean the glass prism to maintain optical clarity?

  • Glass vs. Plastic Prisms: Which is better for outdoor surveying?

  • Can the Mini Prism Set be customized with additional mounting options?

  • Is the Mini Prism Set IP-rated for weather resistance?

  • Does the Mini Prism Set work with all total station brands?

  • Why is optical-grade glass preferred for surveying prisms?

  • Is the Mini Prism Set suitable for long-term monitoring projects?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
ReflectivityLong-distance surveying, aerial mappingIndustry Standard: 85% reflectivity (ISO 17025)
Our Base: 92% (▲)
Our Advanced: 95% (▲▲)		▲▲ Enhanced signal strength for precise measurements (e.g., 500m+ range).Higher reflectivity requires careful handling to avoid scratches.
DurabilityRough terrain, industrial sitesIndustry Standard: Plastic (ASTM D3883)
Our Base: Tempered glass (▲)
Our Advanced: Sapphire-coated (▲▲)		▲▲ Resists scratches and impacts (e.g., 10J drop test passed).Advanced versions may be heavier and costlier.
PortabilityFieldwork, mobile mappingIndustry Standard: 450g
Our Base: 320g (▲)
Our Advanced: 280g (▲▲)		▲▲ Lighter design (▲▲) reduces fatigue during extended use.Lightweight materials may compromise durability in extreme conditions.
Environmental ResistanceExtreme climates, outdoor surveysIndustry Standard: -10°C to 50°C
Our Base: -20°C to 60°C (▲)
Our Advanced: -30°C to 70°C (▲▲)		▲▲ Operates in harsh environments (e.g., Arctic or desert surveys).Advanced models require specialized storage to avoid thermal shock.
Calibration StabilityPrecision engineering, constructionIndustry Standard: ±5mm drift/year
Our Base: ±2mm (▲)
Our Advanced: ±0.5mm (▲▲)		▲▲ Minimal drift ensures accuracy over months (▲▲) without recalibration.Advanced versions need regular professional maintenance.
Weight DistributionErgonomic handheld useIndustry Standard: Unbalanced (150g front bias)
Our Base: Balanced (▲)
Our Advanced: Aerodynamic design (▲▲)		▲▲ Reduces wrist strain during prolonged use (▲▲).Aerodynamic shapes may limit compatibility with standard tripods.
