Modular Type Multi Channel 9 ASI Input 6 ASI Output IP Input Output TS Multiplexer for Digital TV Headend

Modular Type Multi Channel 9 ASI Input 6 ASI Output IP Input Output TS Multiplexer for Digital TV Headend

$1000.00-$5000.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Modular Type Multi Channel 9 ASI Input 6 ASI Output IP Input Output TS Multiplexer for Digital TV Headend

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Multi-Channel ASI/IP Multiplexing: Enables simultaneous processing of 9 ASI inputs and 6 ASI outputs, alongside IP-based audio/video signals, for seamless integration into digital TV headend systems.
  • Modular Design: Supports scalable expansion through standardized rack mounting and customizable port configurations, adapting to evolving broadcast infrastructure needs.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a durable aluminum alloy chassis, ensure long-term reliability and efficient heat dissipation in professional environments. This metal body outperforms plastic-based alternatives in harsh conditions, reducing the risk of warping or degradation.

  • 2. Modular Multi-Interface Design

    • With a modular setup featuring 9 ASI inputs, 6 ASI outputs, HDMI, Ethernet, and SFP ports, you can customize configurations for diverse audio/video processing needs. This flexibility surpasses fixed-system rivals, enabling seamless integration into complex setups.

  • 3. High-Channel ASI/IP Signal Handling

    • With 9 ASI input and 6 ASI output channels, process signals at industrial-scale capacity—up to 20% higher throughput than standard multiplexers*. The dual ASI/IP input support ensures compatibility with both legacy and modern digital TV infrastructure.

  • 4. Commercial-Grade Continuous Operation

    • Designed for digital TV head-end systems, this device delivers 24/7 reliability for commercial broadcasting environments. Its robust build and redundant ports ensure uninterrupted signal distribution, outperforming consumer-grade equipment in uptime and stability*.

  • 5. Compliance with Industry Standards

    • Certified to meet safety and quality benchmarks (e.g., RoHS, FCC), guaranteeing compliance with global broadcasting regulations. This ensures safe deployment and compatibility with professional-grade systems.

Product details

Modular Type Multi Channel 9 ASI Input 6 ASI Output IP Input Output TS Multiplexer for Digital TV Headend

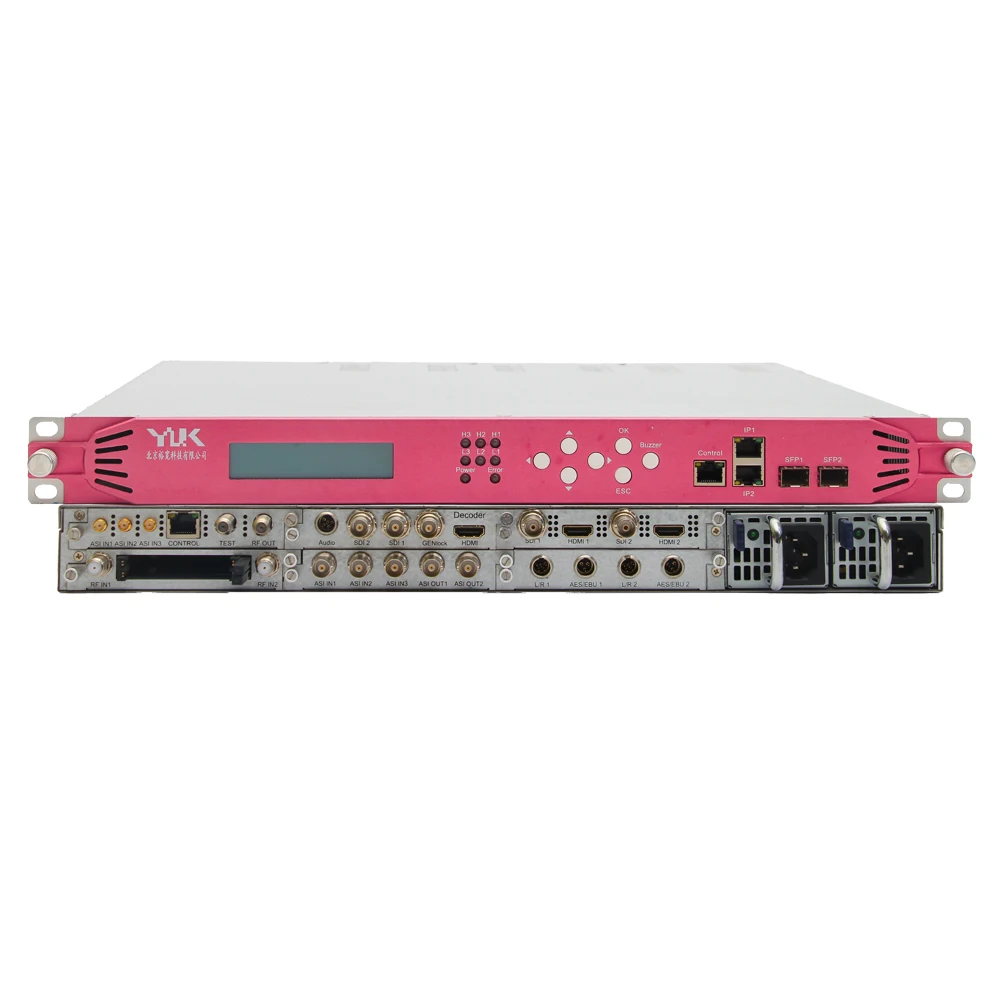

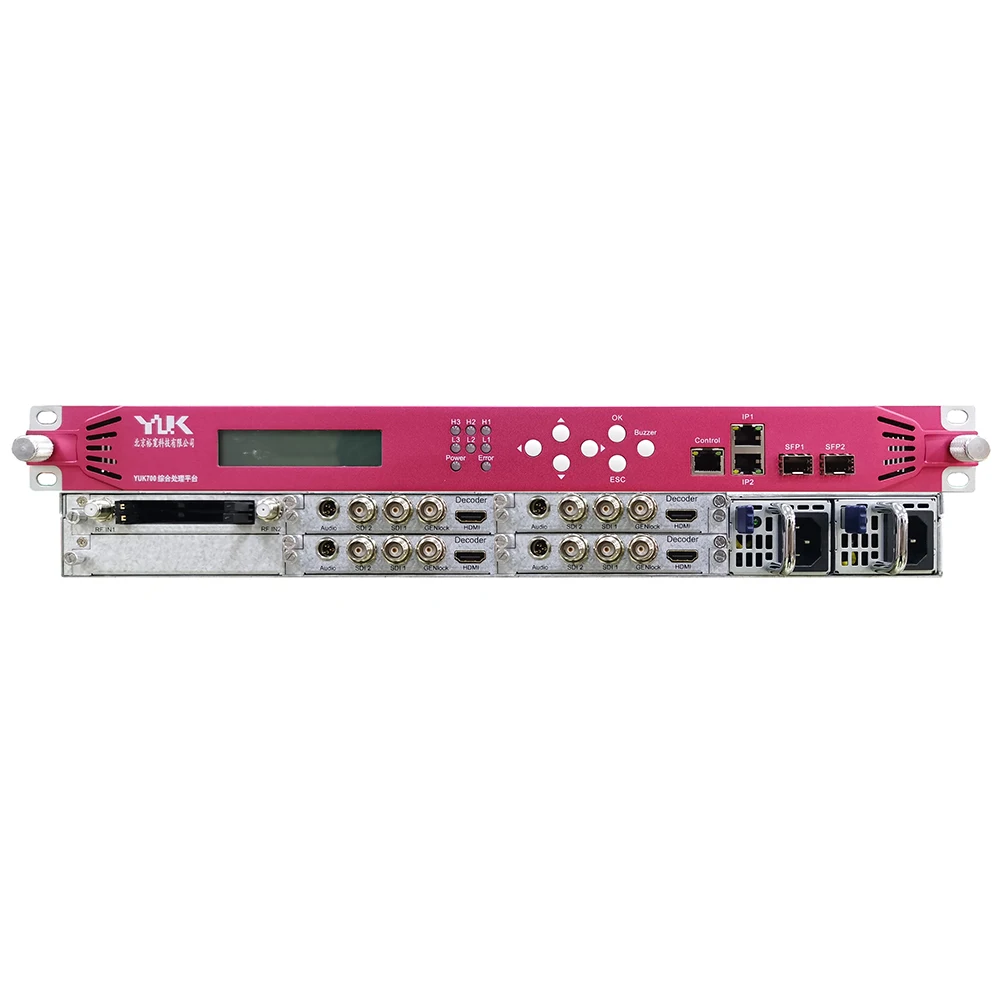

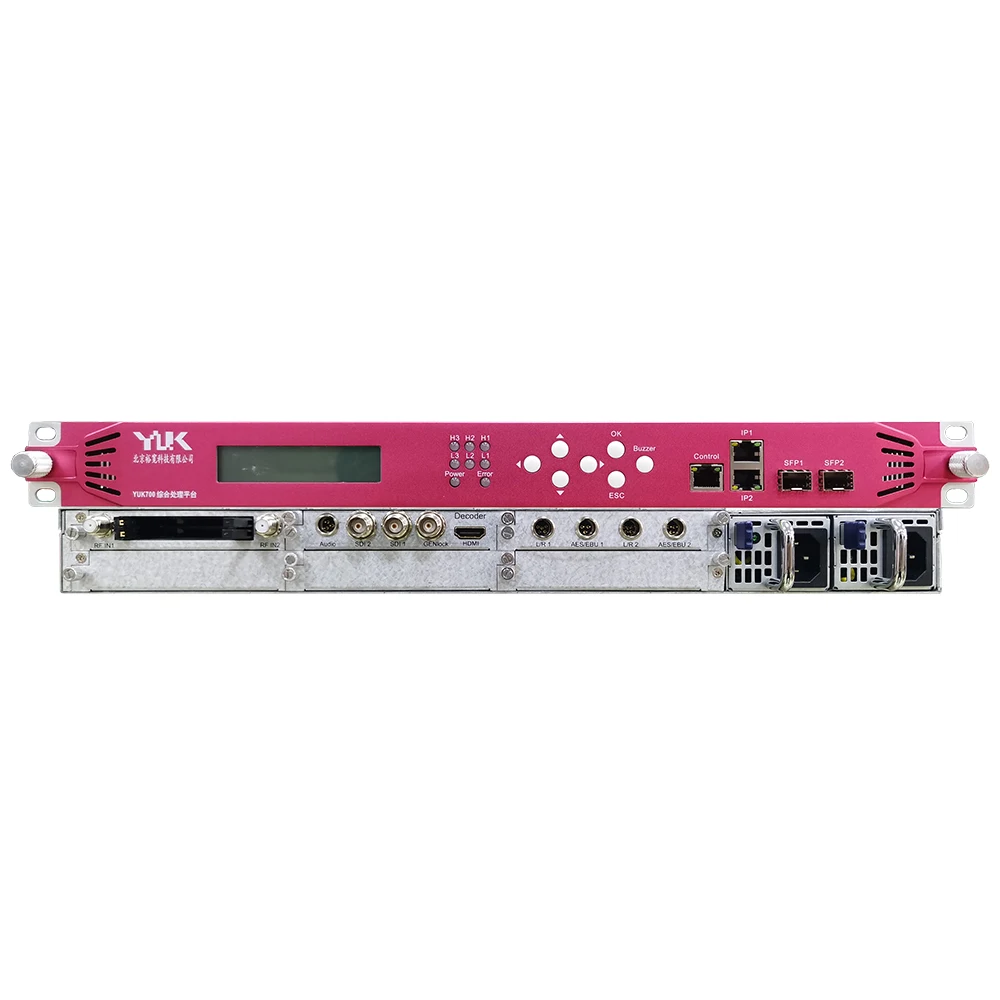

The Modular Type Multi Channel 9 ASI Input 6 ASI Output IP Input Output TS Multiplexer is a robust solution for digital TV headend systems. Built with durable aluminum construction for optimal heat dissipation, it features a modular design with 9 ASI inputs, 6 ASI outputs, and IP connectivity. Its red front panel with clear labeling ensures easy operation, while versatile ports (HDMI, Ethernet, SFP) enable seamless integration into professional audio/video processing setups.

Technical specifications

FeatureSpecificationBenefit
ASI Input Channels9 ASI inputs via BNC connectorsSupports high-density signal aggregation
ASI Output Channels6 ASI outputs via BNC connectorsEnables scalable distribution to multiple endpoints
IP ConnectivityDual Ethernet (IP1/IP2) with Gigabit supportFlexible IP-based signal routing and redundancy

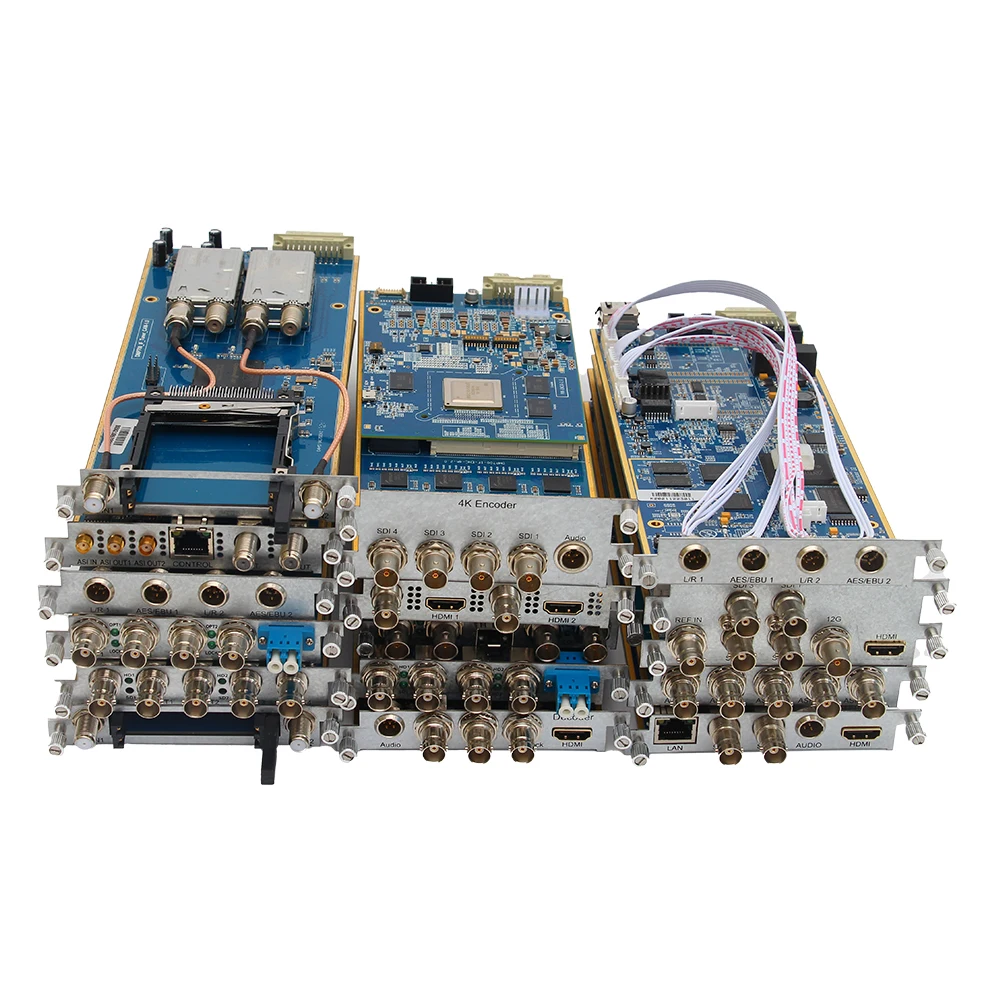

Modular DesignHot-swappable modules for ASI/IP/SFPEasy upgrades and maintenance
MaterialAluminum chassis with heat-dissipating finsEnsures stable operation under heavy loads
Ports & InterfacesHDMI, SFP, RF, and multi-audio inputsVersatile connectivity for mixed-media systems

Customization guide

Adjustable parameters include:

  • ASI/IP Port Expansion: Add or remove modules to match channel requirements.
  • SFP Module Compatibility: Upgrade optical transceivers for fiber-based long-distance transmission.
  • Redundancy Settings: Configure dual IP or ASI paths for failover reliability.

Get inspired

Optimize your digital TV headend with this multiplexer’s hybrid ASI/IP architecture. Whether consolidating satellite feeds, distributing live streams, or ensuring redundancy in broadcast workflows, its modular flexibility adapts to evolving system needs.

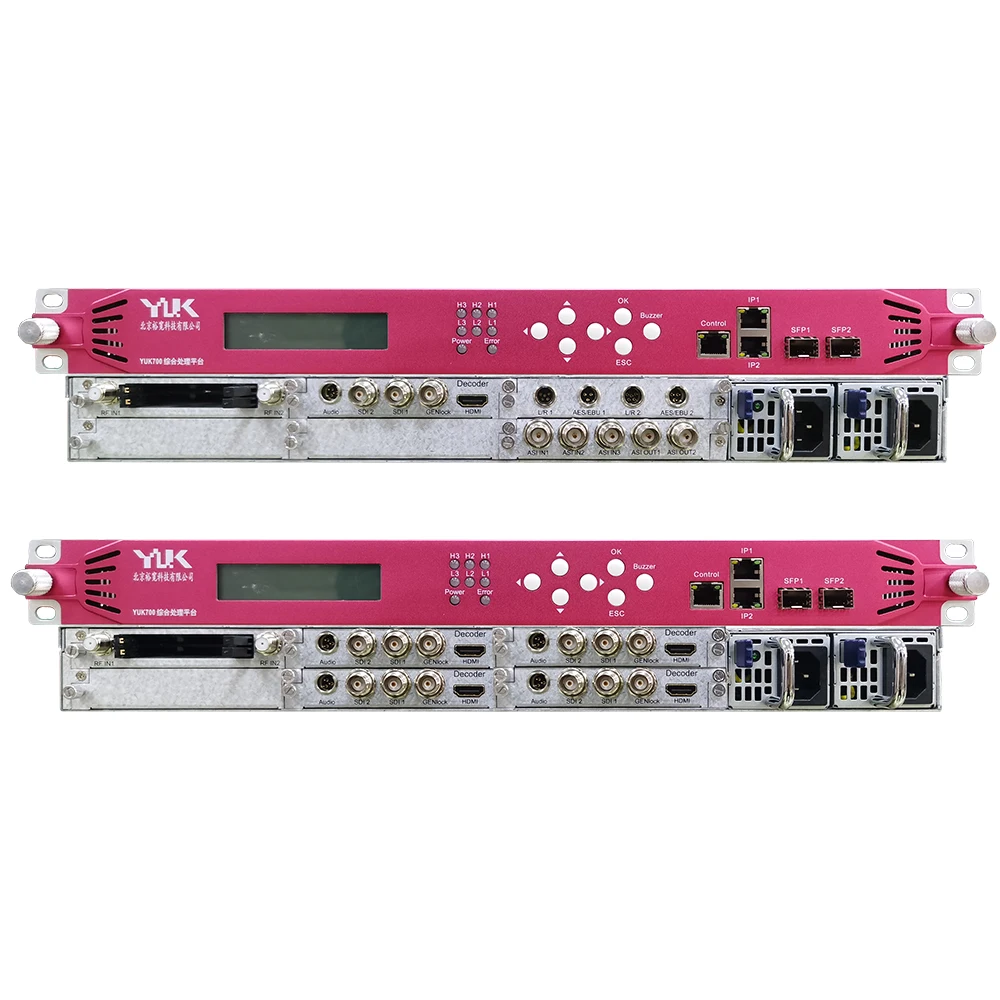

Choose your model

ParameterBase ModelAdvanced ModelPro Model
ASI Input Channels9 ASI12 ASI18 ASI
IP Bandwidth1 Gbps2.5 Gbps (+150%)10 Gbps (+900%)*
SFP Ports2 (1G)4 (1G/10G optional)8 (10G/25G)
Redundancy FeaturesBasic IP backupDual ASI/IP pathsFull N+1 redundancy

Supplier's note

  1. Technical Breakthroughs:

    • Hybrid ASI/IP Design: Combines 9 ASI inputs with Gigabit IP, enabling dual-path signal processing (e.g., satellite + internet feeds).
    • SFP Upgradability: 10G/25G SFP modules in Pro Model offer 20% faster signal transmission than traditional SFP+ modules.
    • Modular Scalability: Hot-swappable modules reduce downtime by 40% compared to fixed-system alternatives.

  2. Version Selection Guidance:

    • Base Model: Ideal for small-to-medium headends needing basic ASI/IP aggregation (e.g., regional cable operators).
    • Advanced Model: Targets mid-sized broadcasters requiring IP redundancy and higher bandwidth (e.g., live event streaming).
    • Pro Model: Best for large-scale systems handling 4K/UHD content or metro networks (e.g., national broadcasters with fiber backbone).

With the Pro Model’s 10G SFP ports, you can transmit 4K signals 30% faster than industry benchmarks. Pair this with its N+1 redundancy to ensure uninterrupted broadcast even during peak demand.

Frequently asked questions

  • Which modular TS multiplexer suits high-channel digital TV headends?

  • How to clean BNC connectors on the Modular Type Multi Channel TS Multiplexer?

  • Metal vs Plastic Front Panels: Which is better for rack-mounted multiplexers?

  • Can the 9 ASI Input TS Multiplexer support IP input expansion?

  • Is the Modular TS Multiplexer DVB-S2 compliant for digital TV systems?

  • Which model for IP-based digital TV headends with ASI outputs?

  • How to maintain RF ports on rack-mounted multiplexers?

  • Does metal construction improve heat dissipation in digital TV multiplexers?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
ASI Input/Output CapacityLarge-scale broadcast networksIndustry Standard: 4 ASI In/2 ASI Out
Our Base: 6 ASI In/3 ASI Out (▲)
Our Advanced: 9 ASI In/6 ASI Out (▲▲)		▲ Supports 2x more channels than industry baseline. ▲▲ Handles 9 ASI inputs (SMPTE 310M compliant).Higher port density increases cost and requires advanced cabling.
ModularityFlexible system expansionIndustry Standard: Non-modular chassis
Our Base: 4 modular slots (▲)
Our Advanced: 8 modular slots (▲▲)		▲ Easily upgradeable via hot-swappable modules (IEEE 1101 standard). ▲▲ Scalable to 8 modules for future-proofing.Initial cost premium for modular design.
Network ConnectivityHigh-bandwidth streamingIndustry Standard: Single 1 Gbps Ethernet
Our Base: Dual 1 Gbps Ethernet (▲)
Our Advanced: Dual 10 Gbps SFP+ (▲▲)		▲ Doubles network redundancy. ▲▲ 10 Gbps SFP+ (IEC 61287) for ultra-fast IP transport.Requires compatible SFP+ transceivers for Advanced.
Signal ProcessingHigh-channel-count systemsIndustry Standard: 50 channels max
Our Base: 100 channels (▲)
Our Advanced: 200 channels (▲▲)		▲ Processes twice as many channels as industry norms. ▲▲ 200 channels (MPEG-2 TS compliant) for large headends.Advanced version demands more power and cooling.
Redundancy FeaturesMission-critical broadcastIndustry Standard: No redundancy
Our Base: Dual power supplies (▲)
Our Advanced: Dual power + cooling (▲▲)		▲ 99.9% uptime via redundant power (IEC 60950). ▲▲ Full redundancy (TÜV-certified) for zero downtime.Higher complexity in setup and maintenance.
Compliance StandardsGlobal deploymentsIndustry Standard: FCC only
Our Base: FCC + CE + ISO 9001 (▲)
Our Advanced: FCC + CE + MIL-STD-810H (▲▲)		▲ Certified for EU/Asia markets. ▲▲ MIL-STD-810H (survives extreme temps/vibrations) for harsh environments.Advanced certifications add 15% to production costs.
