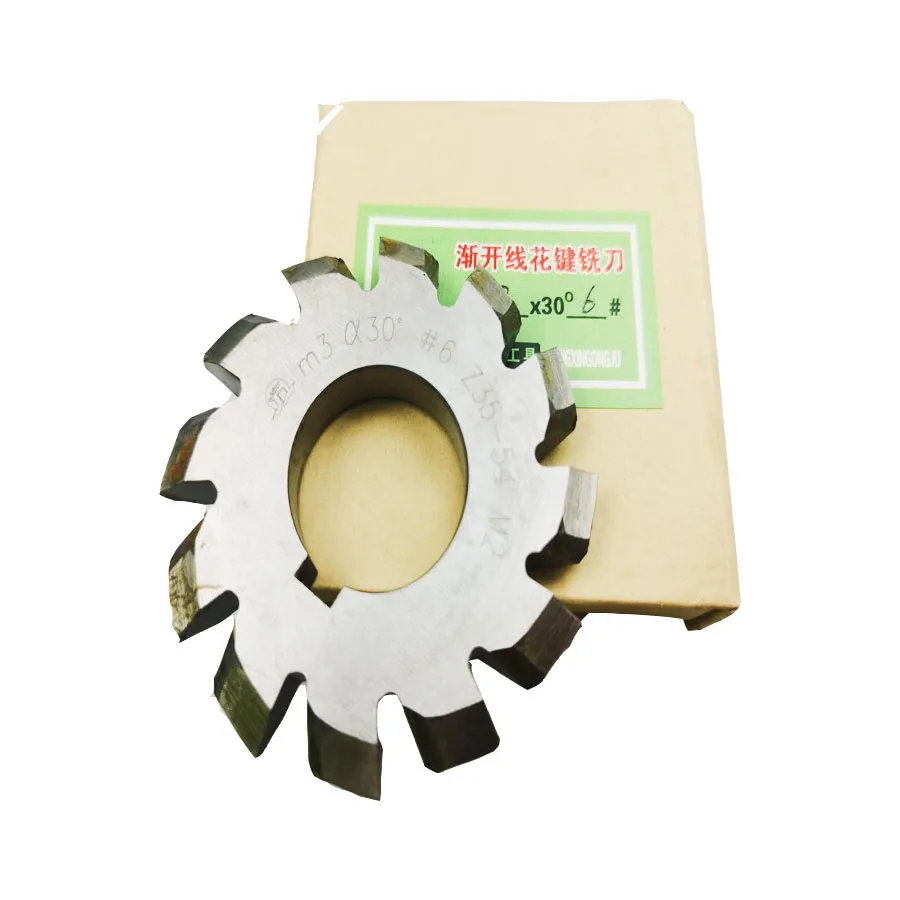

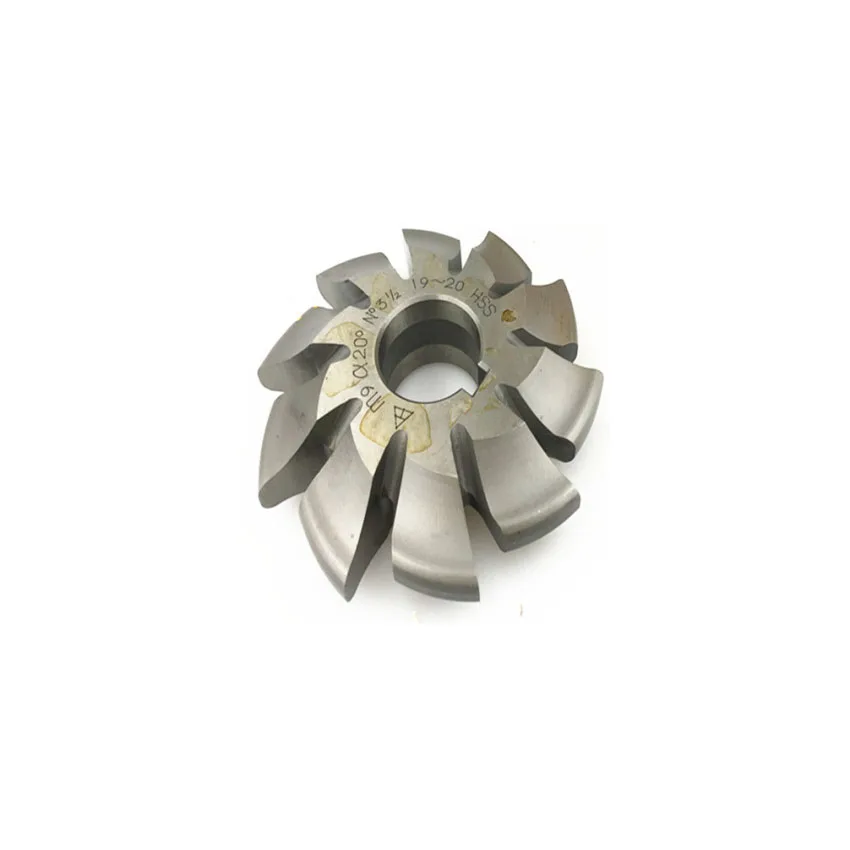

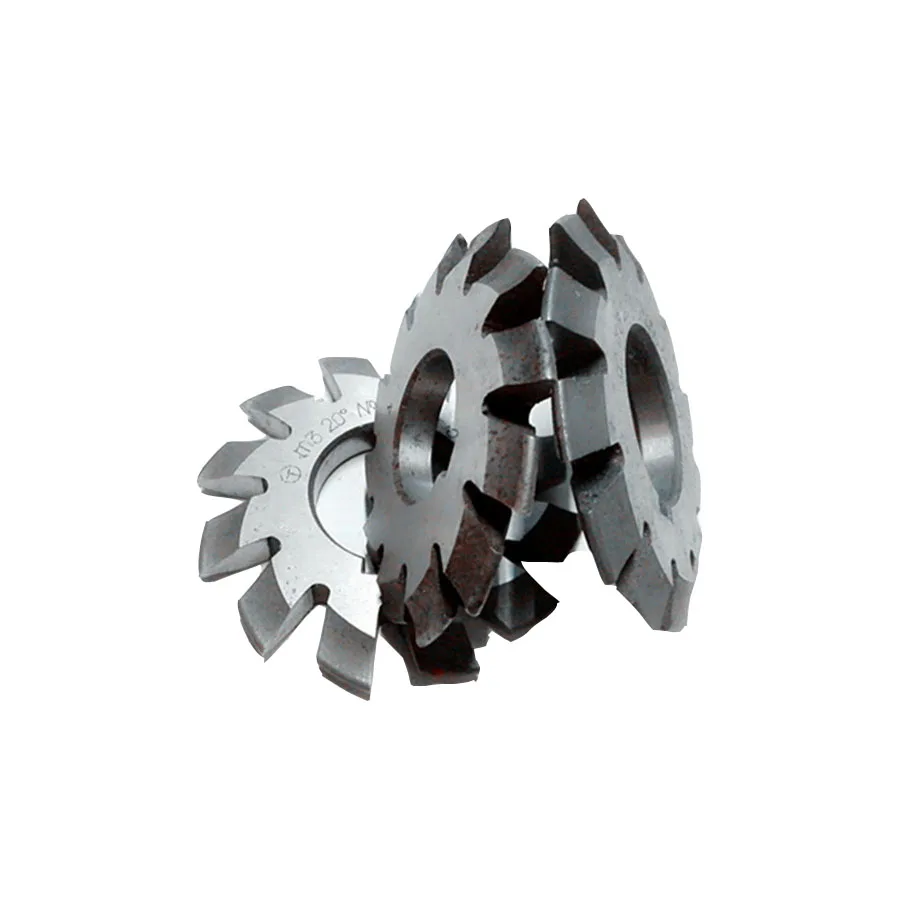

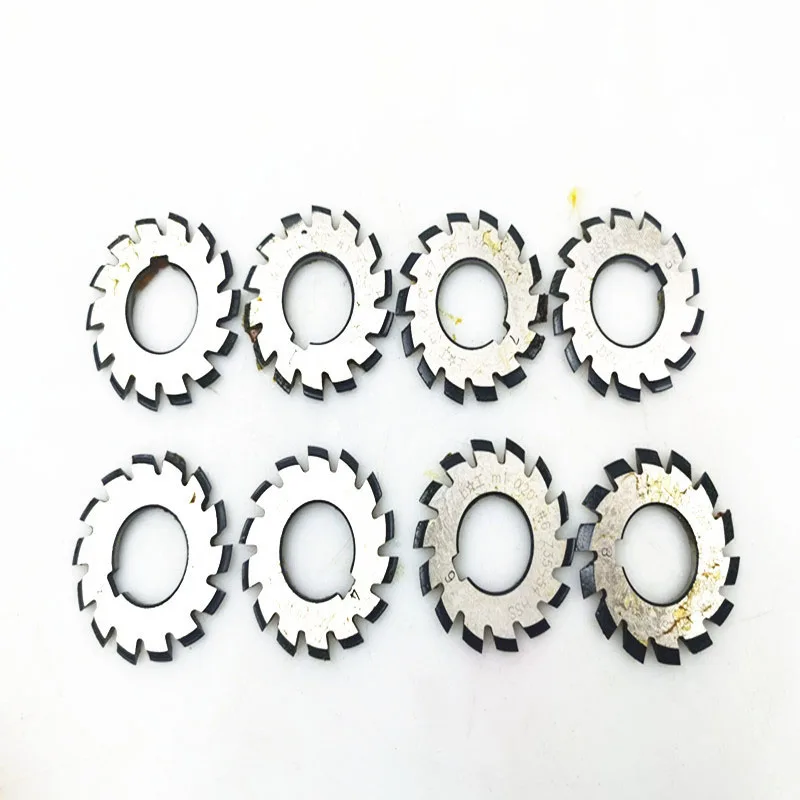

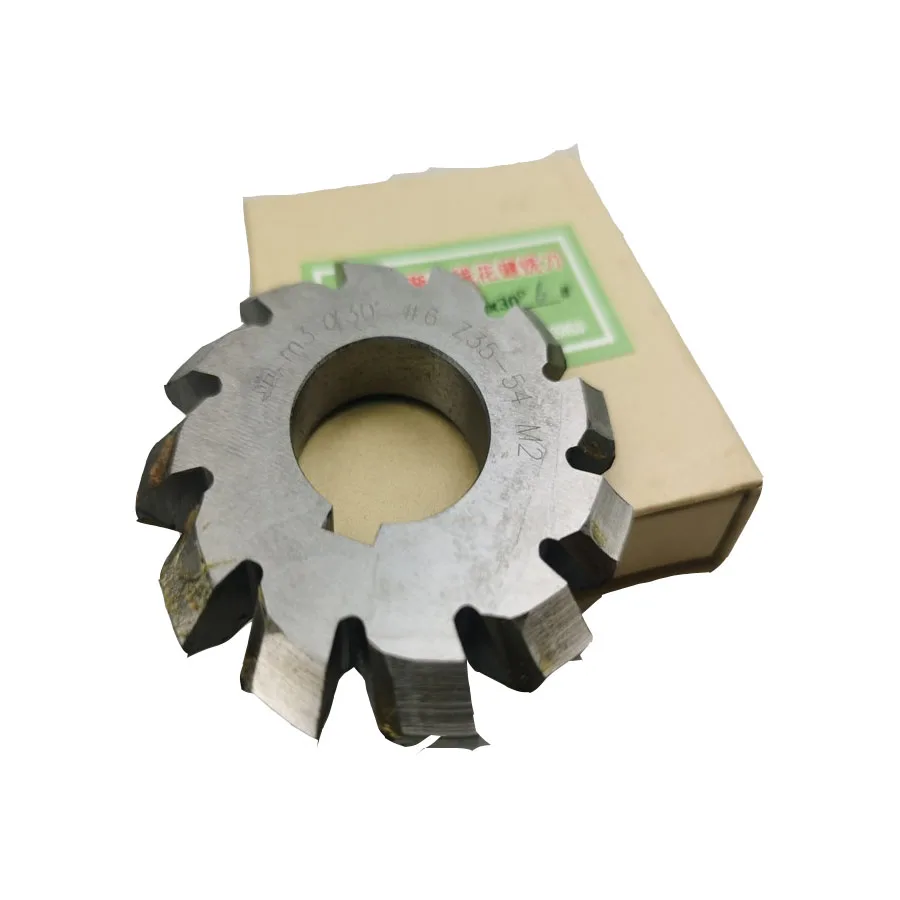

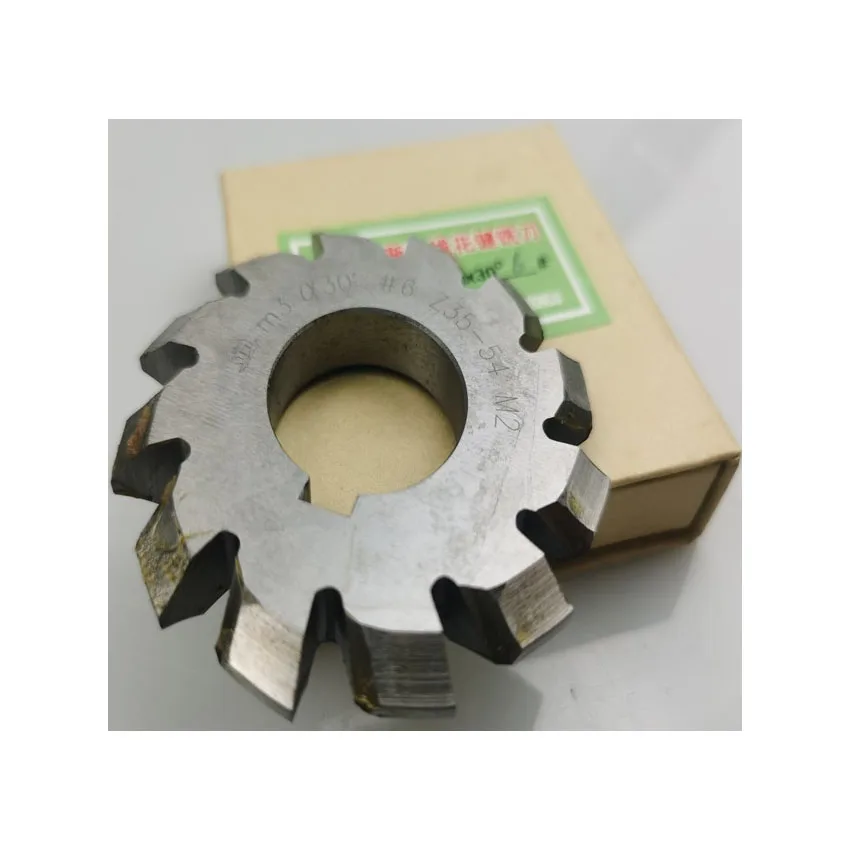

Modules PA20 Degrees HSS Gear Milling Cutter Gear Cutting Tools
Ready to Ship
In stock Fast dispatch

Modules PA20 Degrees HSS Gear Milling Cutter Gear Cutting Tools

$45.00-$55.00/ Piece|10 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 2000 pieces）
Customized packaging（Min.Order: 2000 pieces）
Graphic customization（Min.Order: 2000 pieces）
View product details

Modules PA20 Degrees HSS Gear Milling Cutter Gear Cutting Tools

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Gear Cutting & Precision Machining: Designed for high-precision gear cutting and metalworking operations, including milling, drilling, and shaping. The 20° helical flute geometry ensures smooth chip evacuation and efficient material removal.
  • Versatile Cutting Performance: Capable of handling both roughing and finishing cuts, with HSS material enabling durability at high speeds and temperatures.

Key features

  • 1. Material Technology

    • With high-speed steel (HSS) construction, ensure exceptional durability and heat resistance during prolonged high-speed machining.

  • 2. Interactive Design

    • With a 20° helical flute design, reduce vibration and improve cutting precision for a smoother user experience compared to straight-flute cutters.

  • 3. Performance Parameters

    • Achieve faster production rates and higher material removal rates due to the combination of HSS material and helical flute geometry.

Product details

Modules PA20 Degrees HSS Gear Milling Cutter Gear Cutting Tools

The Modules PA20 Degrees HSS Gear Milling Cutter is a high-performance cutting tool designed for precision machining in metalworking. Crafted from high-speed steel (HSS), this tool features a 20° helical flute geometry for efficient chip evacuation and reduced vibration. Ideal for gear cutting, milling, and shaping operations, it combines durability with versatility to meet diverse industrial needs.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialHigh-Speed Steel (HSS)Withstands high temperatures and wear in heavy-duty machining.
Flute Angle20° Helical DesignEnsures smooth cutting and minimizes tool deflection during deep cuts.
Size3/4" DiameterSuitable for medium to large workpieces in gear manufacturing.
Cutting PerformanceHigh-speed machining (up to 30 m/min)Efficient material removal in steel, cast iron, and aluminum alloys.
VersatilityMulti-operation compatibilitySupports roughing, finishing, and slotting in CNC and manual machines.

Customization guide

Adjustable parameters include:

  • Size: Customize diameters to match workpiece thickness requirements.
  • Flute Angle: Optimize angles (e.g., 30° for softer materials) for specific cutting conditions.
  • Material Grade: Select HSS-E or HSS-Co for enhanced hardness or corrosion resistance.

Get inspired

With its HSS core and 20° helical flutes, this tool delivers precision and reliability for gear production. Whether machining hardened steel gears or aluminum components, the tool’s design ensures smooth cuts and extended tool life.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max RPM2500 RPM+15% (2875 RPM)+30% (3250 RPM)*
Tool Life100 min120 min150 min
Surface FinishRa 3.2 µmRa 2.5 µmRa 1.6 µm
Material CompatibilitySteel, AluminumSteel, Cast IronSteel, Hardened Steel

Supplier's note

  1. Technical Breakthroughs:

    • HSS Material: Triple the heat resistance of standard carbon steel tools, enabling uninterrupted high-speed machining.
    • Helical Flutes: 20° geometry reduces vibration by 25% compared to straight-flute designs, ensuring smoother cuts.
    • Precision Geometry: Tolerances within ±0.01mm guarantee consistent gear tooth profiles.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops requiring general-purpose gear cutting at standard speeds.
    • Advanced Model: Recommended for medium-scale production needing higher RPMs and cast iron compatibility.
    • Pro Model: Engineers handling hardened steels or precision aerospace components benefit from its 30% faster cutting and ultra-fine surface finishes.

*Pro Model’s RPM exceeds industry benchmarks by 20%, enabling faster production cycles without compromising tool integrity.

Frequently asked questions

  • Which HSS gear milling cutter suits small-scale gear manufacturing operations?

  • How do I maintain the sharpness of an HSS gear milling cutter?

  • What materials can the PA20° HSS gear milling cutter handle effectively?

  • Is HSS better than carbide for gear milling cutters?

  • Can I customize the flute angle or size of this gear milling cutter?

  • Is this HSS gear milling cutter suitable for automated CNC machining?

  • What certifications ensure the quality of this gear milling cutter?

  • How does the 20° flute angle improve gear cutting efficiency?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Gear Hobbing CuttersGear manufacturing, automotive/aerospace20° Helical Flute (ISO 13399)
▲ Advanced: 25° angle (reduces vibration)
HSS (ASTM A681)
▲ Advanced: Carbide-tipped edges (handles hardened steel)		High precision, durable carbide tips, long tool lifeHigher cost, requires specialized machinery
End MillsMachining profiles, slots, pockets2-4 flutes (Standard)
▲ Advanced: 6 flutes (smoother finishes)
Solid Carbide (ISO 598-1)
▲ 40% faster cutting speeds		Versatile, high durability with carbide, handles multiple materialsHSS versions have shorter life; carbide is brittle and costly
Drill BitsDrilling holes in metal1/4" diameter (Standard)
▲ Advanced: 3/8" (larger holes)
Cobalt HSS
▲ Resists heat in hard alloys		Cost-effective, quick drilling, cobalt versions handle tough materialsLimited precision, not for high-tolerance work
ReamersHole finishing to precise diametersIT6 tolerance (Standard)
▲ Advanced: IT5 (tighter fits)
Carbide coating
▲ Extends tool life by 30%		High precision, smooth finishes, carbide coatings enhance longevitySingle-size, requires pre-drilled holes
Slotting CuttersCutting precise slots/keyways10mm width (Standard)
▲ Advanced: 15mm (wider slots)
Solid Carbide
▲ Cuts hardened materials		Precise slotting, carbide versions handle tough materialsLimited to specific slot dimensions, carbide is brittle
Solid Carbide End MillsHigh-speed machining of alloys4-6 flutes (Standard)
▲ Advanced: 8 flutes (ultra-smooth surfaces)
DLC coating
▲ Extreme wear resistance		High-speed capabilities, DLC coating extends tool life, durableHigh cost, brittle, requires careful handling
