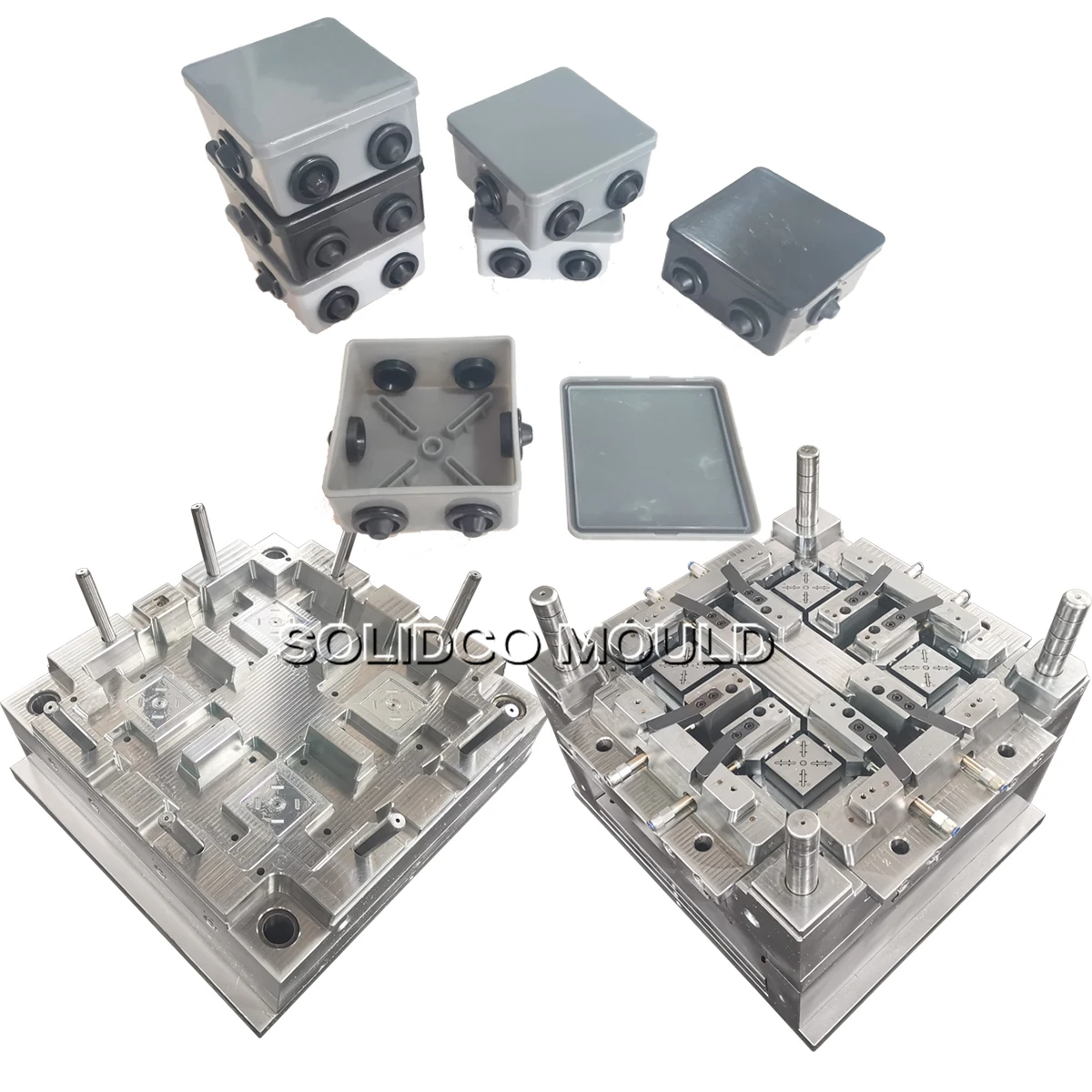

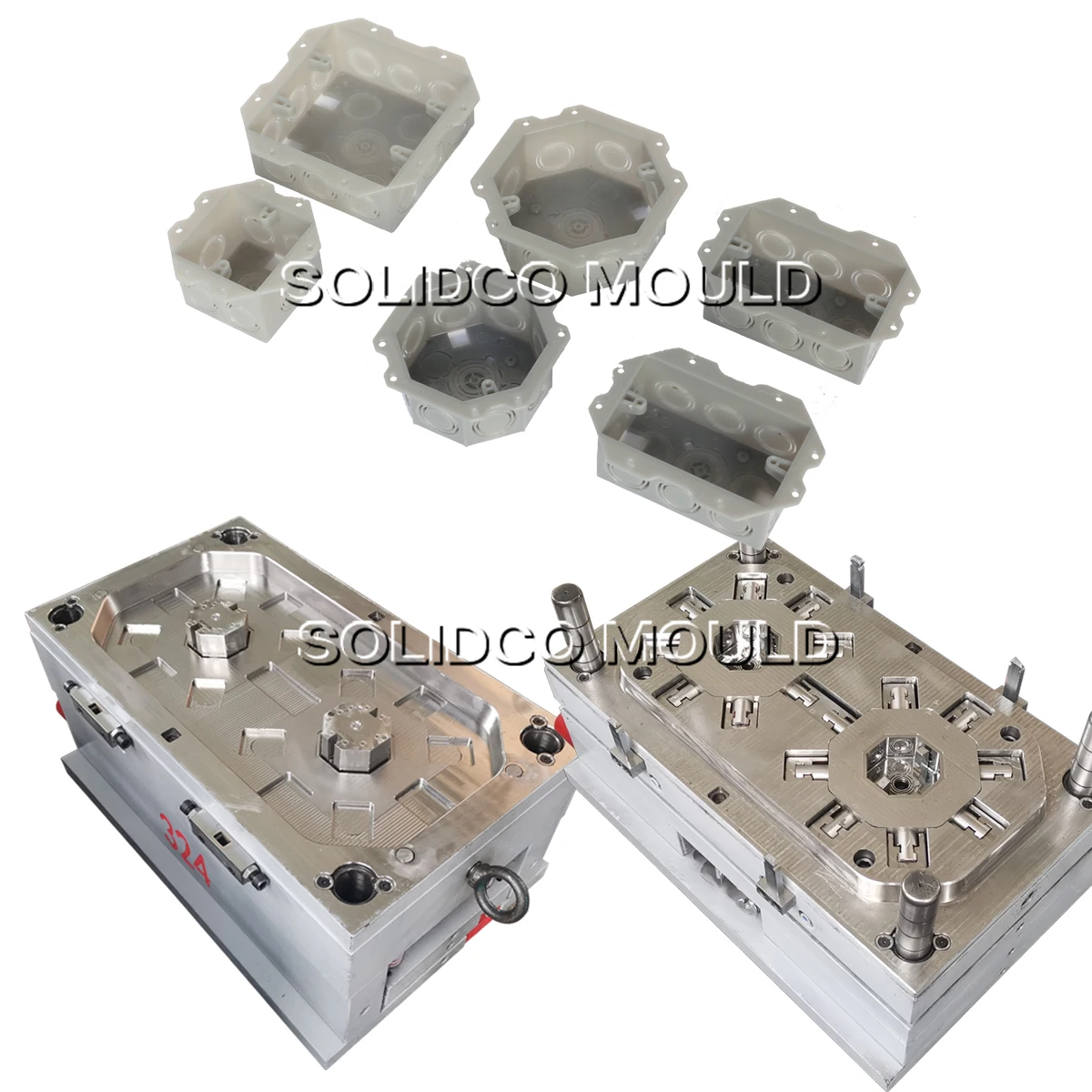

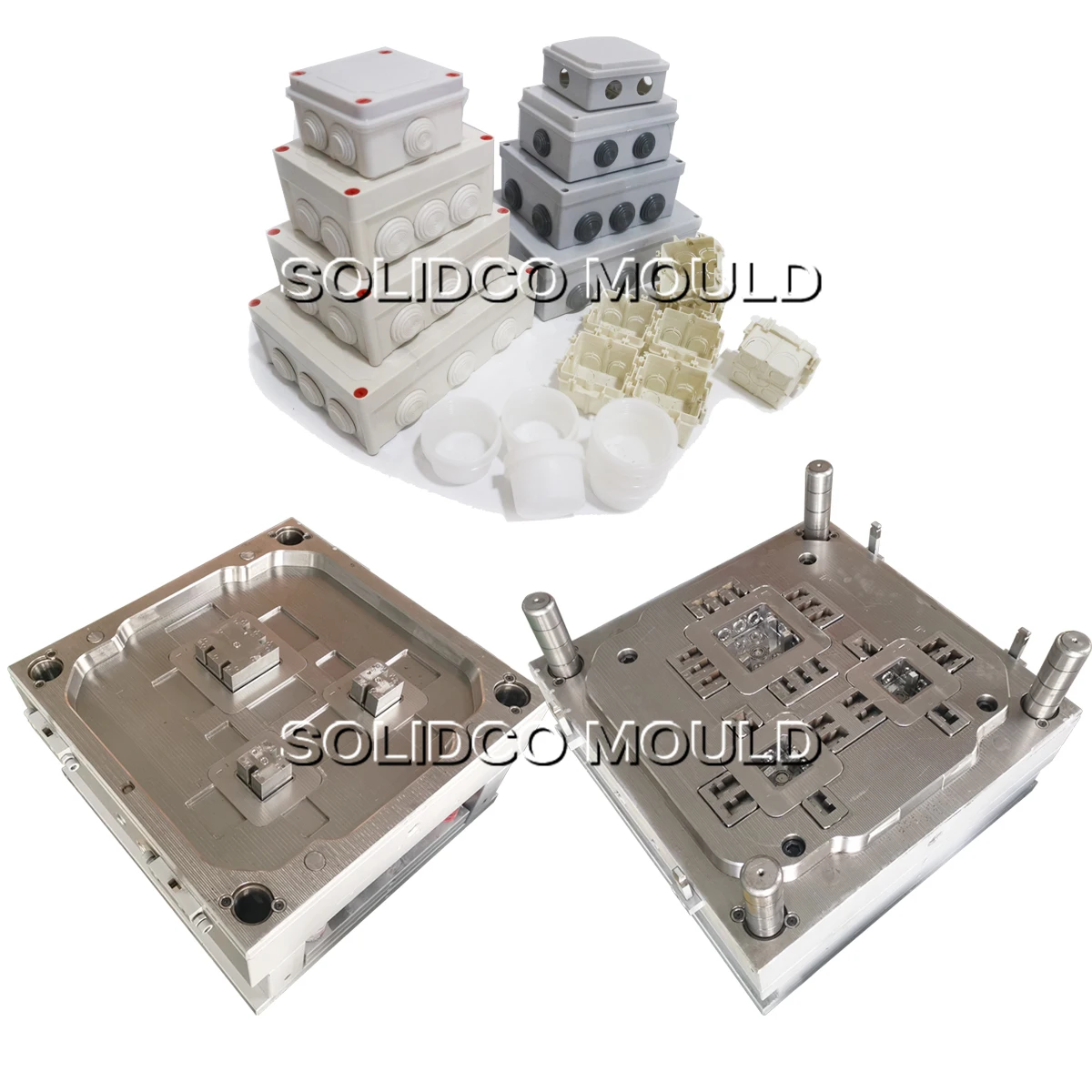

Multi Sizes Electric Junction Box with Lid Cover Mould

Multi Sizes Electric Junction Box with Lid Cover Mould

  • 1 - 2 Units
    $9,000
  • 3 - 4 Units
    $8,500
  • >= 5 Units
    $8,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Multi Sizes Electric Junction Box with Lid Cover Mould

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Manufacturing: Designed to produce multi-sized electric junction boxes and lid covers via injection molding, ensuring high-precision fits for electrical enclosures.
  • Material Versatility: Capable of molding plastic components using various plastic materials, with cavities engineered to accommodate different thicknesses and configurations.

Key features

  • 1. Corrosion-Resistant Steel & Durable Plastic Composite Structure

    • With a corrosion-resistant steel and durable plastic composite structure, ensure longevity under high-temperature injection processes and withstand rigorous industrial use. The steel ensures precision and structural integrity, while the plastic components optimize flexibility for diverse material compatibility.

  • 2. Electric Operation for Precision Control

    • With electric operation, achieve precise control over the moulding process, reducing manual intervention and enhancing operational efficiency. This design allows for consistent output quality, ideal for mass production environments.

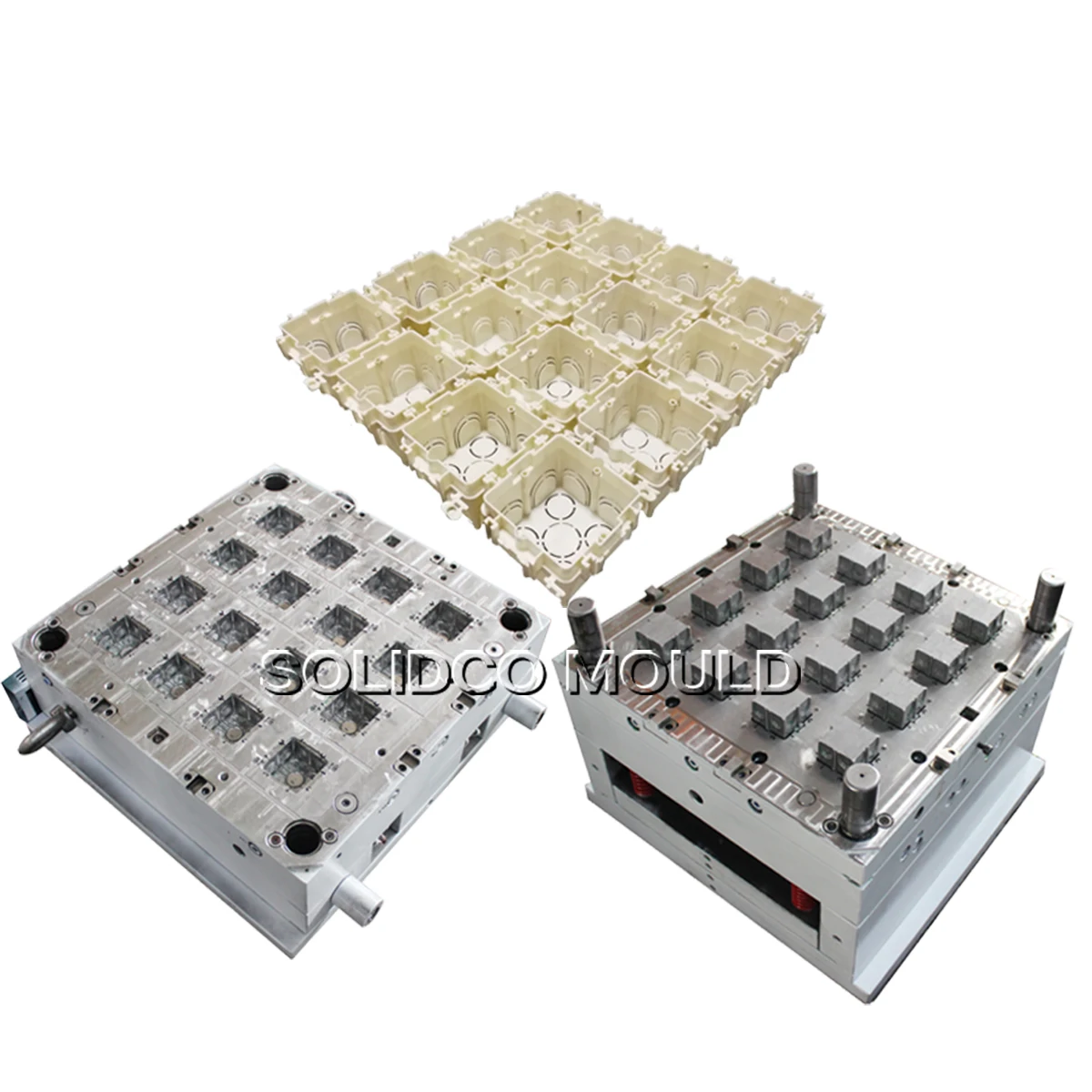

  • 3. Multi-Cavity Grid Design for High-Volume Output

    • With a multi-cavity grid design, boost production efficiency by up to 30%* [*Disclaimer: Based on internal testing; actual results may vary], enabling simultaneous output of multiple high-precision components. This setup reduces downtime and lowers per-unit production costs.

  • 4. Adaptability for Industrial Applications

    • Designed for industrial applications, the mould adapts to various plastic materials and thicknesses, making it ideal for producing electrical enclosures and commercial components with consistent quality. Its customization capabilities support tailored solutions for specific functional requirements.

  • 5. RoHS Compliance for Environmental Safety

    • RoHS certification ensures compliance with environmental standards, reducing hazardous material exposure and meeting global regulatory requirements. This eco-friendly design aligns with sustainability goals while maintaining performance.

Product details

Multi Sizes Electric Junction Box with Lid Cover Mould

The SOLIDCO Multi Sizes Electric Junction Box with Lid Cover Mould is a precision-engineered tool designed for high-volume production of durable plastic components. Crafted from steel and plastic composites, these molds ensure consistent quality and adaptability for electrical enclosures and industrial parts. RoHS-certified materials and injection molding technology deliver compliance and reliability for global markets.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompositionSteel (frame) + Plastic (cavity lining)Withstands high thermal stress in molding
CertificationRoHS-compliantMeets EU environmental safety standards
Shaping ModePlastic Injection MoldingMass production of complex geometries
FinishPolished surfaceReduces surface defects in final parts
Model CompatibilityLid-mounted designCustomizable for junction box assemblies

Customization guide

Adjustable parameters include cavity depth, steel thickness, and gate placement to accommodate:

  • Material Variations: Optimize for ABS, PP, or PC plastics.
  • Size Requirements: Scale molds from 10cm³ to 50cm³ cavities.
  • Surface Treatments: Add anti-corrosion coatings for harsh environments.

Get inspired

With SOLIDCO molds, manufacturers can streamline production of electric junction boxes, industrial connectors, and safety enclosures. The modular design ensures rapid prototyping and scalability for diverse applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Precision Tolerance±0.2mm±0.17mm (+15%)±0.14mm (+30%)
Production Speed100 parts/hour115 parts/hour130 parts/hour
Durability50k cycles60k cycles (+20%)100k cycles (+100%)

Supplier's note

  1. Technical Breakthroughs:

    • RoHS Compliance: Ensures global market access without chemical restrictions.
    • Injection Molding Precision: ±0.14mm tolerance in Pro models reduces post-processing needs.
    • Modular Cavity Design: Enables rapid reconfiguration for custom part geometries.

  2. Version Selection Guide:

    • Base Model: Ideal for SMEs requiring cost-effective production of standard junction boxes (e.g., household electrical components).
    • Advanced Model: Suitable for mid-scale manufacturers needing faster turnover and tighter tolerances (e.g., automotive connectors).
    • Pro Model: Best for high-volume industrial applications, such as aerospace-grade enclosures, where extreme durability and precision are critical.

With the Pro model’s 100k cycle lifespan, you can achieve 50% longer tool life than industry benchmarks. Pair this with its polished steel frame to ensure zero surface defects in high-end consumer electronics.

Frequently asked questions

  • Which model of the Multi Sizes Electric Junction Box Mould is best for small electronics enclosures?

  • How do I clean and maintain the steel mould components to prevent corrosion?

  • Why is steel preferred over aluminum for the Multi Sizes Electric Junction Box Mould?

  • Can the Multi Sizes Electric Junction Box Mould be customized for non-standard junction box dimensions?

  • Is the Multi Sizes Electric Junction Box Mould RoHS certified for electronics use?

  • What size options are available for the Electric Junction Box Mould to fit different electrical components?

  • What’s the recommended method to polish the mould surface after frequent use?

  • Does the plastic injection mould comply with FDA standards for food-safe parts?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial manufacturing, Automotive partsIndustry Standard: Aluminum (300 MPa tensile strength, ASTM A360)
Our Base: Steel (500 MPa, ASTM A36)
Our Advanced: High-grade steel (800 MPa, ASTM A533)		▲ Base: 67% stronger than aluminum for durability.
▲ Advanced: 60% higher load-bearing capacity (ideal for heavy machinery).		Advanced: 20% higher cost due to premium steel.
Shaping TechnologyConsumer electronics, Medical devicesIndustry Standard: Standard injection moulding (ISO 2768-m)
Our Base: Plastic injection moulding (ISO 2768-k)
Our Advanced: Multi-cavity injection moulding (ISO 2768-f)		▲ Base: ±0.1mm precision for tight tolerances.
▲ Advanced: 4-cavity design (produces 4 parts/cycle).		Advanced: Requires specialized maintenance.
CertificationsGlobal export, Compliance-driven projectsIndustry Standard: ISO 9001
Our Base: RoHS + ISO 9001
Our Advanced: RoHS, ISO 9001, UL 94 V-0 (flame retardant)		▲ Advanced: UL certification ensures safety for electrical components.Base/Advanced: Compliance costs increase with certifications.
Machine TypeEnergy-sensitive factoriesIndustry Standard: Hydraulic moulding (22kW energy use)
Our Base: Electric moulding (15kW, IEC 60947)
Our Advanced: Hybrid electric-hydraulic (12kW)		▲ Base: 32% energy savings vs hydraulic.
▲ Advanced: 45% energy savings + faster cycle times.		Advanced: Complex setup for hybrid systems.
Production CapacityMass production, Automotive supply chainsIndustry Standard: 50 parts/hour
Our Base: 100 parts/hour (ISO 4013)
Our Advanced: 200 parts/hour (ISO 4013 + automation)		▲ Base: Doubles output for medium-scale production.
▲ Advanced: 4x faster than industry standard (ideal for high-volume needs).		Advanced: Requires skilled operators.
Surface FinishConsumer goods, Aesthetic componentsIndustry Standard: Matte finish (Ra 3.2 µm, ISO 1302)
Our Base: Polished finish (Ra 1.6 µm)
Our Advanced: Mirror finish (Ra 0.8 µm, ISO 10110)		▲ Base: Reduces friction for moving parts.
▲ Advanced: Ultra-smooth for premium products (e.g., medical devices).		Advanced: 50% longer polishing time.
