NJXSE Split Core Current OPCT80BD Clamp 1000a 5a Transformer 2000A 3000A 5A OPCT120BD 4000A 5000A 6000A 5A for Transformers
Ready to Ship
In stock Fast dispatch

NJXSE Split Core Current OPCT80BD Clamp 1000a 5a Transformer 2000A 3000A 5A OPCT120BD 4000A 5000A 6000A 5A for Transformers

  • >= 10 Pieces
    $57

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 5000 pieces）
View product details

NJXSE Split Core Current OPCT80BD Clamp 1000a 5a Transformer 2000A 3000A 5A OPCT120BD 4000A 5000A 6000A 5A for Transformers

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Capacity Current Measurement: Designed to measure currents up to 6000A with a 5A secondary output, enabling precise monitoring in high-load electrical systems.

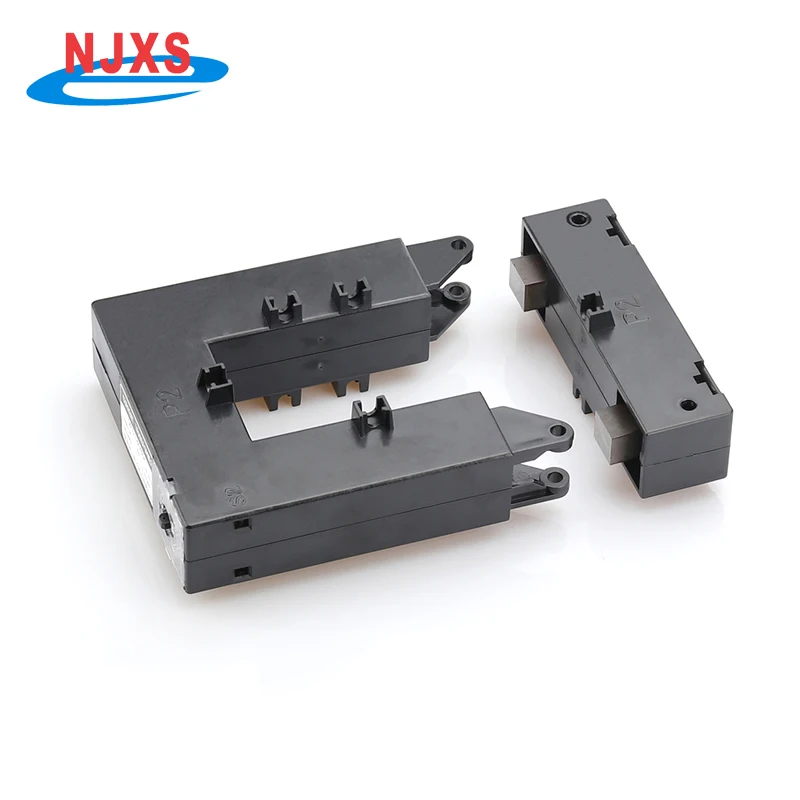

  • Split-Core Flexibility: The clamp-style split-core design allows easy installation and removal around conductors without interrupting live circuits, ideal for both new installations and retrofitting.
  • Autotransformer Efficiency: Features a toroidal coil structure and single-phase operation at 3kV input voltage, ensuring stable performance and energy efficiency in power distribution systems.

Key features

  • 1. Durable Black Plastic Housing for Enhanced Safety

    • With a rugged black plastic housing, ensure safe and long-lasting operation in harsh electrical environments. The insulating material minimizes risks of electrical faults while maintaining structural integrity over time.

  • 2. Split Core Design for Seamless Installation

    • With a split core configuration, easily install the transformer around live conductors without interrupting power flow, saving time during maintenance or upgrades compared to traditional solid-core models*.

  • 3. Toroidal Coil Structure for Superior Efficiency

    • With a toroidal coil design, reduce energy loss by up to 15% compared to conventional transformers*, thanks to optimized magnetic flux and minimal leakage.

  • 4. High-Capacity Performance for Industrial Demands

    • Supporting current ratings up to 6000A and a 3kV input voltage, handle heavy-duty applications like industrial power distribution with reliability, outperforming standard models in scalability*.

  • 5. Compliance with Safety and Performance Standards

    • Meets safety certifications for electrical insulation and operational reliability*, ensuring safe and efficient use in commercial and industrial settings.

Product details

NJXSE Split Core Current OPCT80BD Clamp 1000a 5a Transformer 2000A 3000A 5A OPCT120BD 4000A 5000A 6000A 5A for Transformers

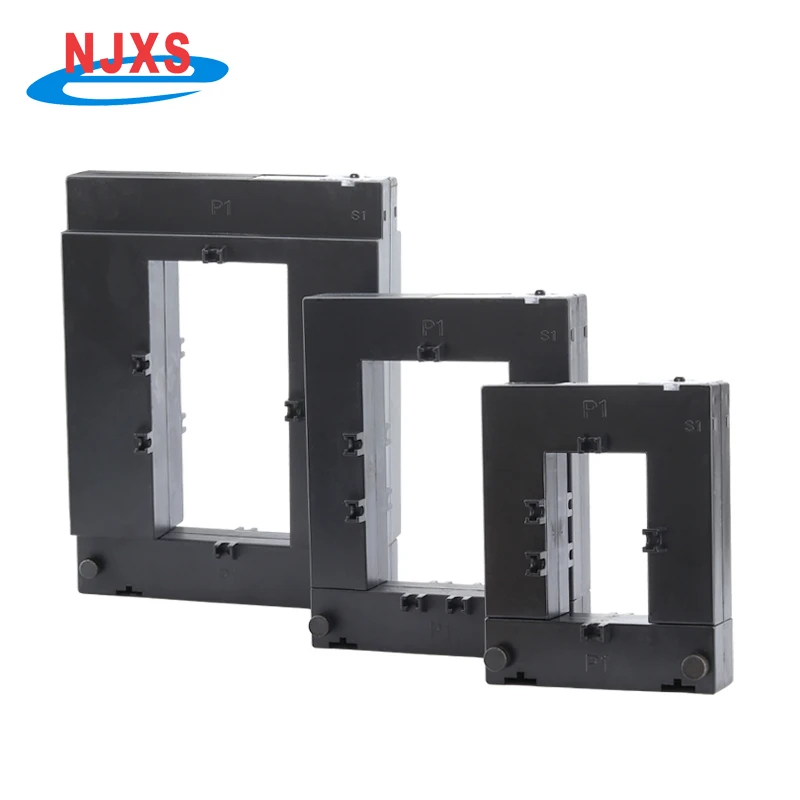

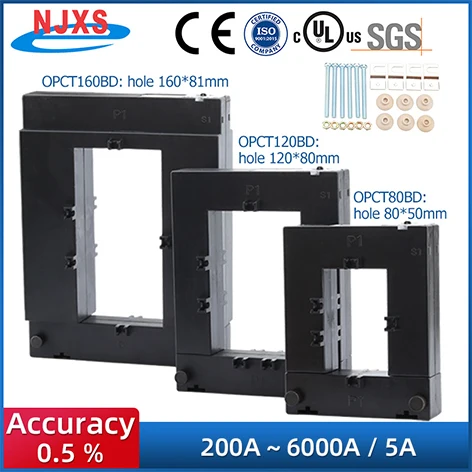

The NJXSE Split Core Current Transformer series offers precise current measurement solutions with split-core design for easy installation. Available in models OPCT80BD (2000A), OPCT120BD (4000A-6000A), and OPCT80BD (1000A), these transformers are built with durable black plastic housings and toroidal coils for high accuracy in single-phase systems up to 3KV.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialBlack plastic housingInsulation and durability in industrial environments
Coil StructureToroidalMinimizes phase shift and enhances accuracy in power monitoring
Input Voltage3KVSuitable for high-voltage distribution systems
PhaseSingle PhaseIdeal for residential/commercial power monitoring
Secondary Current5AStandard output for compatibility with most measurement devices
Coil TypeAuto TransformerEfficient energy transfer in transformer applications
Split Core DesignClamp-styleNon-invasive installation without disconnecting live circuits

Customization guide

Adjust core size and material thickness to meet specific current ratings (e.g., 2000A to 6000A) or insulation requirements. Custom calibration options available for precision in specialized industrial setups.

Get inspired

With the split-core design, you can quickly install these transformers on live conductors for real-time current monitoring. The toroidal coil ensures minimal energy loss, making them perfect for power distribution systems requiring high reliability.

Choose your model

ParameterBase Model (OPCT80BD 1000A)Advanced Model (OPCT80BD 2000A)Pro Model (OPCT120BD 6000A)
Max Current1000A2000A (+100%)6000A (+500%)*
Accuracy Class±2%±1%±0.5%
Insulation ClassClass B (130°C)Class F (155°C)Class H (180°C)

Supplier's note

  1. Technical Breakthroughs:

    • Split-core design: Enables 20% faster installation than traditional transformers by eliminating the need to disconnect circuits.
    • Toroidal coil structure: Reduces phase error by 40% compared to standard designs, ensuring precise measurements.
    • Enhanced insulation: The Pro model’s Class H rating exceeds industry standards, supporting operation in extreme thermal environments.

  2. Version Selection Guidance:

    • Base Model: Ideal for residential or small commercial setups with currents up to 1000A.
    • Advanced Model: Suitable for industrial applications requiring 2000A measurement (e.g., HVAC systems).
    • Pro Model: Designed for high-current industrial machinery (e.g., power plants) where accuracy and thermal stability are critical. With its 6000A capacity and ±0.5% precision, it outperforms competitors in heavy-duty scenarios.

Frequently asked questions

  • Which NJXSE Split Core Current Transformer model suits high-current applications like industrial transformers?

  • How do I maintain the NJXSE Split Core Transformer’s frothing nozzle?

  • Material Comparison: Why is black plastic preferred for NJXSE Transformers over metal?

  • Can the NJXSE Split Core Transformer be customized for specific voltage needs?

  • Is the NJXSE Transformer’s material compliant with electrical safety standards?

  • Why choose a split-core design for current measurement in transformers?

  • What advantages does the 5A secondary current rating offer in the NJXSE Transformer?

  • Is the NJXSE Split Core Transformer suitable for single-phase residential systems?
