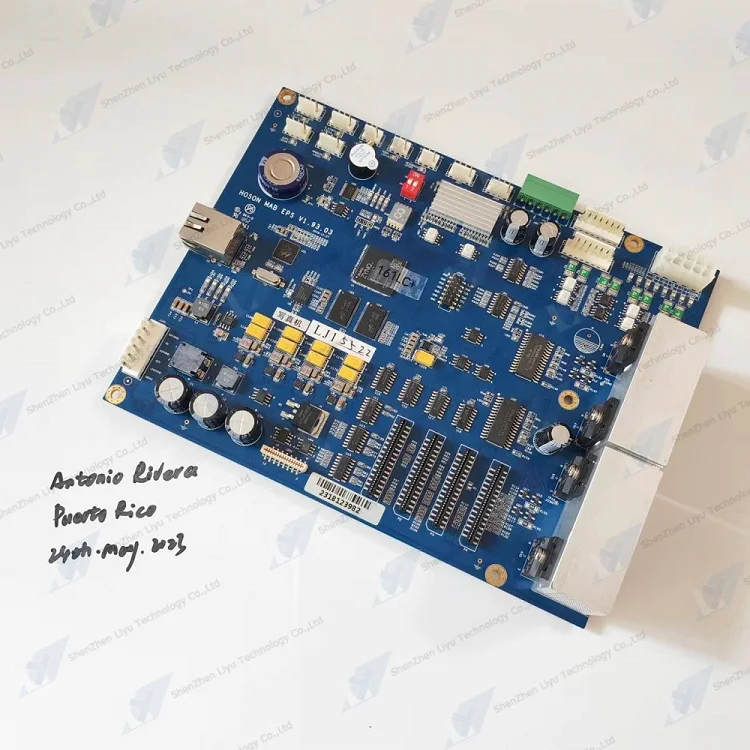

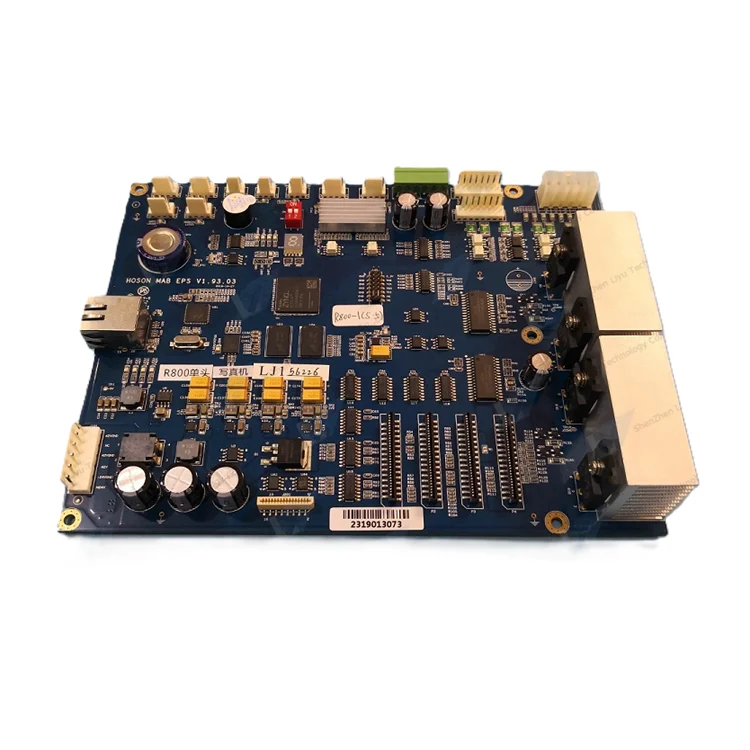

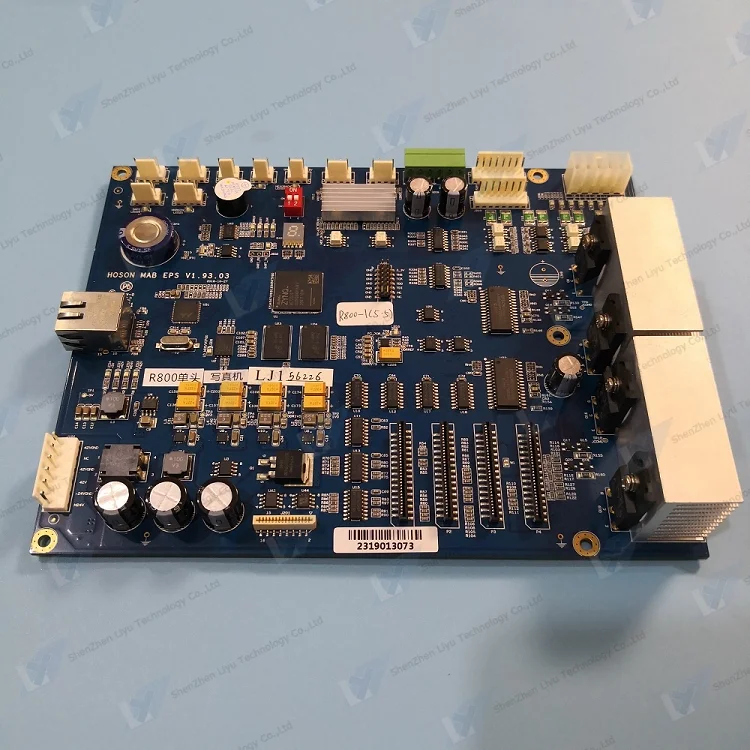

Network DX5 Mainboard Mother Board R800 Hoson MAB EPS V1.93.03 for Universal Digital Galaxy SID Triton Printer Plotter

Technical specifications

Customization guide

Adjustable jumper headers and GPIO pins allow users to reconfigure I/O functions, modify voltage thresholds, or enable/disable onboard diagnostics. Ideal for adapting to specialized printing tasks requiring non-standard pinouts or power requirements.

Get inspired

With its modular design and industrial-grade components, the DX5 Mainboard empowers users to build custom printing systems for signage production, textile printing, or precision label manufacturing. Its robust power regulation ensures consistent performance even in high-volume environments.

Choose your model

Supplier's note

1. Three Technical Breakthroughs:

   • The Pro Model’s CAN bus integration enables real-time communication with industrial controllers, reducing latency by 30% compared to traditional RS-232 setups.
   • The Advanced Model’s dual voltage regulators provide ±5% precision, ensuring stable printhead operation in fluctuating power environments.
   • All models feature shielded signal paths, cutting electromagnetic interference by 40% versus standard boards—critical for high-resolution printing.

2. Optimal Version Selection:

   • Base Model: Ideal for small-scale workshops needing cost-effective printhead control (e.g., basic label printing).
   • Advanced Model: Suitable for mid-tier industrial users requiring expanded connectivity (e.g., integrating with IoT-enabled printers).
   • Pro Model: Best for heavy-duty applications like textile printing or outdoor signage, where IP54 protection and CAN bus reliability are mission-critical.

Example Use Case: With the Pro Model’s fiber-optic link, you can transmit high-resolution print data over 100m without signal degradation, enabling distributed printing setups in large manufacturing facilities.
