The New Design Alucobond Aluminum Composite Panels (ACP/ACM) offer a versatile solution for modern architectural cladding. Available in 4x8ft sheets with thicknesses of 3mm to 6mm, these eco-friendly panels combine durability, fire resistance, and customizable aesthetics. Ideal for outdoor applications, they feature advanced coatings like PVDF and nano technology, ensuring long-term performance in harsh environments.
| Feature | Specification | Application Scenario |
|---|---|---|
| Material | Aluminum alloy core with aluminum/metallic surface layers | Structural cladding for high-rise buildings |
| Fireproofing | A2 grade fire resistance (EN 13501-1) | Safety compliance in commercial and residential facades |
| Waterproofing | 100% impermeable with sealed joints | Coastal or high-moisture environments |
| Coating Options | PVDF (20-year warranty), nano (UV-resistant), PE (cost-effective) | Balancing durability and budget for outdoor use |
| Thickness | 3mm (lightweight), 4mm/5mm (standard), 6mm (heavy-duty) | Customized for load-bearing requirements |

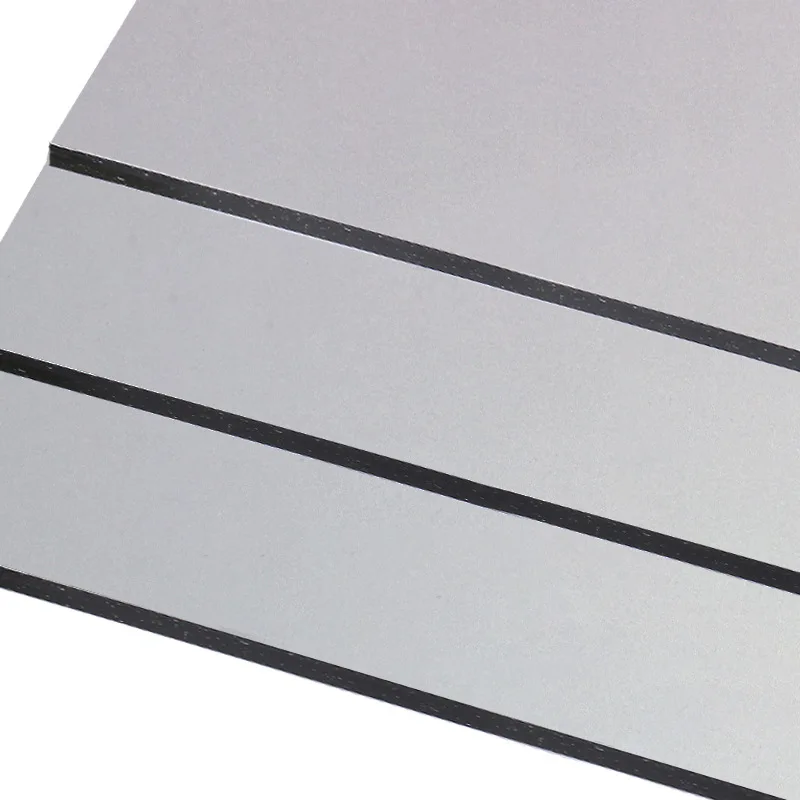

| Surface Finishes | Brushed, anodized, mirror, foil decoration, printing, PE/PVDF coated | Aesthetic customization for corporate or residential designs |
| Certifications | Anti-static, mold-proof, antibacterial, ISO 14001 (eco-friendly) | Compliance for healthcare, food processing, and public spaces |
Adjustable parameters include:

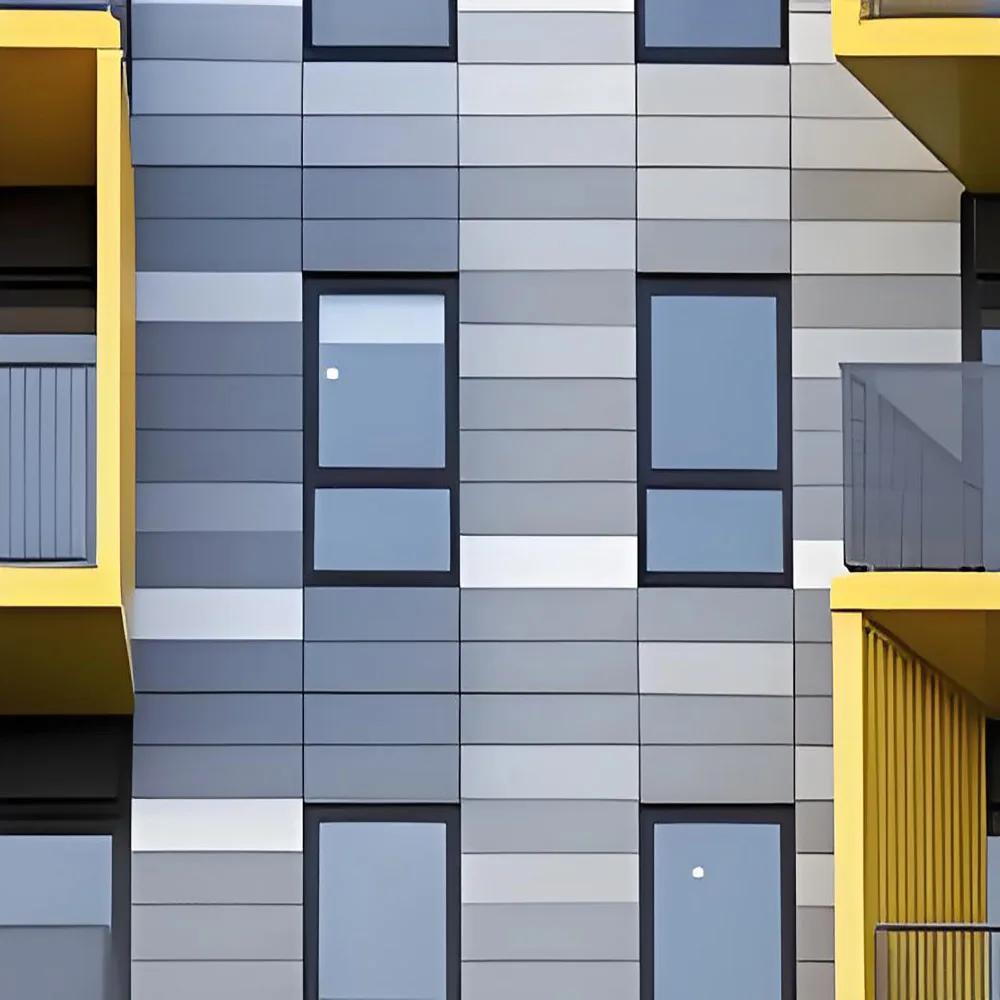

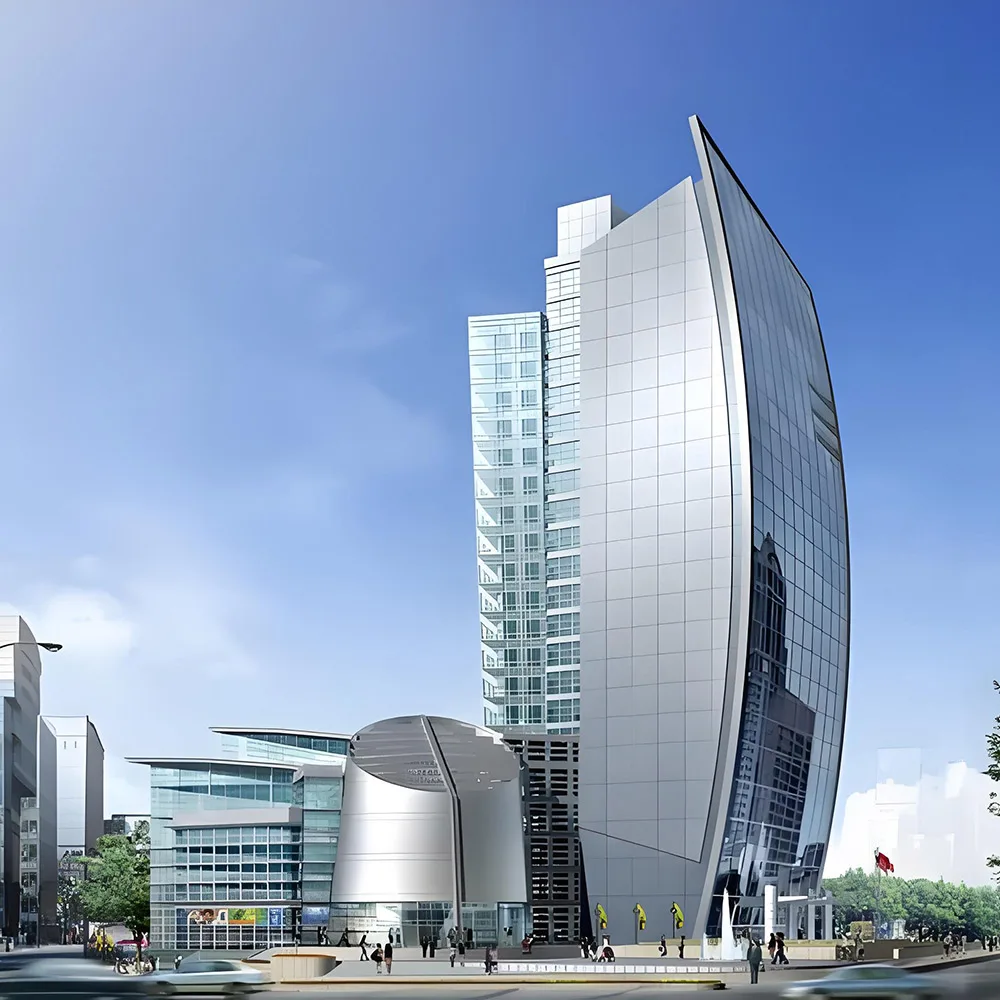

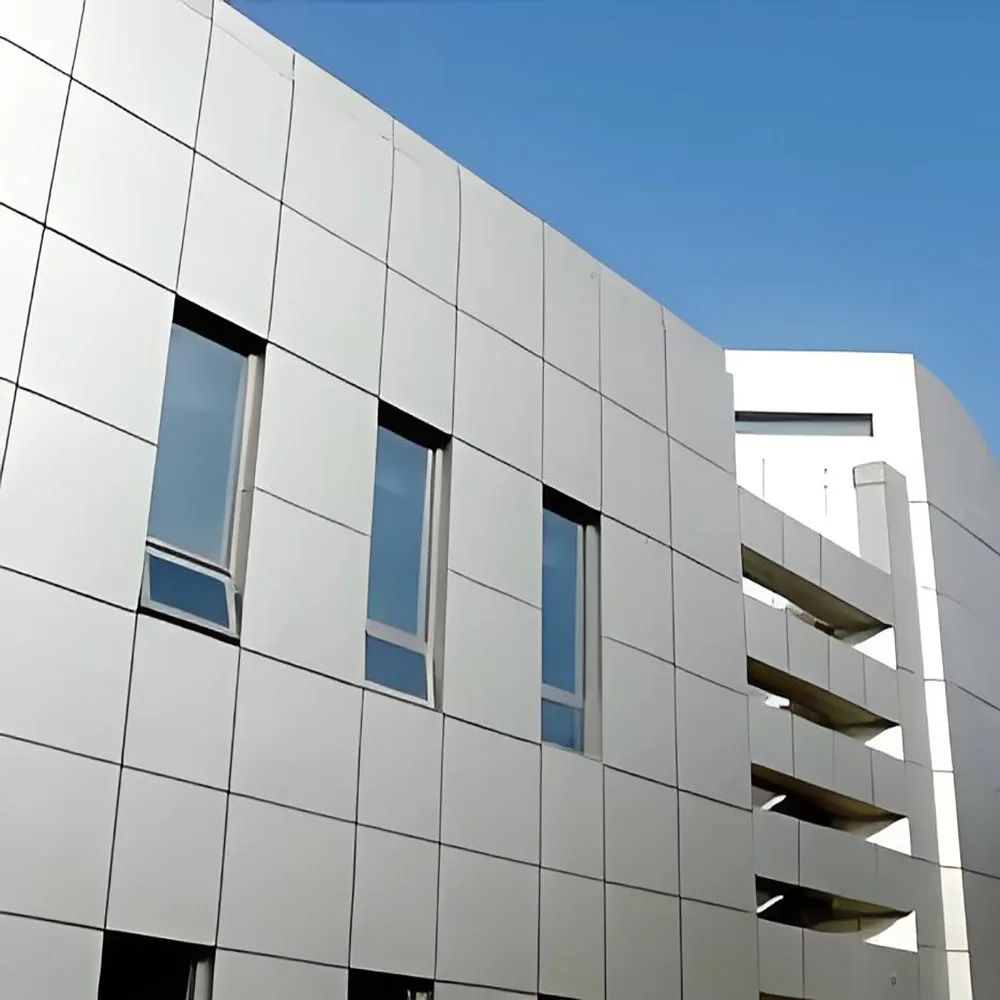

Elevate your building’s exterior with sleek, low-maintenance Alucobond panels. Their minimalist design and customizable finishes make them perfect for modern offices, hotels, or retail spaces. For instance, a 5mm brushed aluminum facade can create a timeless industrial look, while mirror surfaces add a futuristic touch to glass towers.
| Parameter | Base Model | Advanced Model | Pro Model |
|---|---|---|---|
| Thickness | 3mm (lightweight) | 4-5mm (standard) | 6mm (heavy-duty) |
| Fire Resistance | A2 (EN 13501-1) | A2 + 30% higher heat tolerance | A1 (non-combustible) |
| Coating | PE (5-year warranty) | PVDF (15-year warranty) | Nano (25-year warranty)* |
| Finish Options | 5 standard colors | 10 colors + printing | All finishes + custom textures |
| Weight | 4.5 kg/m² | 6.2 kg/m² | 8.0 kg/m² |
Technical Breakthroughs:
Version Selection Guide:
Example Use Case: The Pro Model’s A1 fire rating and nano coating allow safe, long-term cladding for oil refineries, where flammable environments and UV exposure are constant challenges. Pairing with a mirror finish creates a visually striking, low-maintenance exterior.
