New JK BMS V19 Version Upgrade Smart BMS JK PB2A16S20P with 4.3inch Display Communicate with Inverters 16s Bms

New JK BMS V19 Version Upgrade Smart BMS JK PB2A16S20P with 4.3inch Display Communicate with Inverters 16s Bms

$22.00-$99.00/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

New JK BMS V19 Version Upgrade Smart BMS JK PB2A16S20P with 4.3inch Display Communicate with Inverters 16s Bms

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Smart Battery Management: The JK V19 BMS (PB2A16S20P) is designed to monitor and regulate 16-series lithium-ion battery cells, ensuring safe charging/discharging through overvoltage, overcurrent, and short-circuit protection.

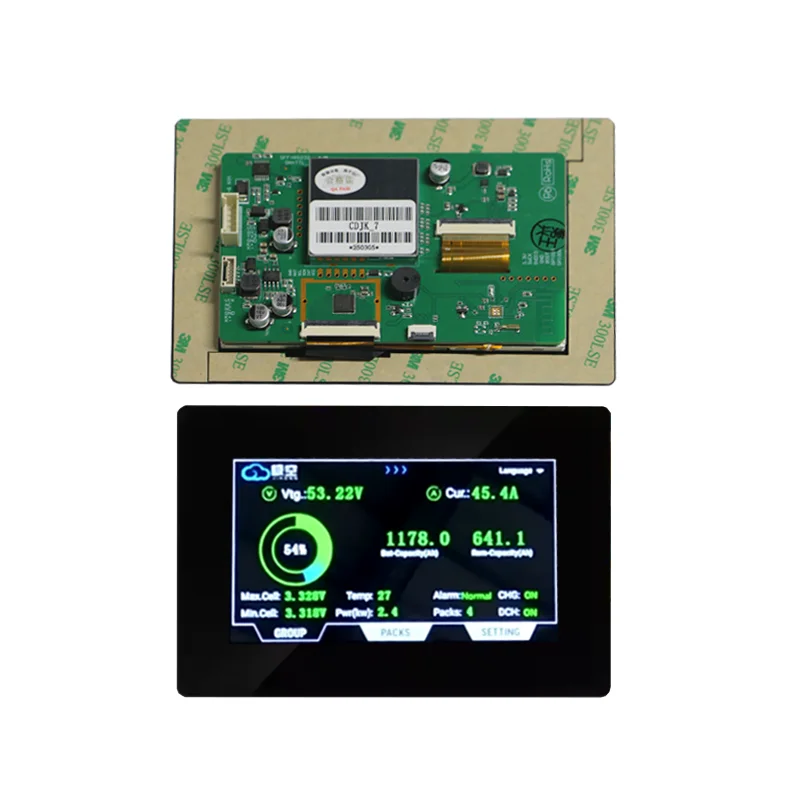

  • Real-Time Monitoring: Equipped with a 4.3-inch display, it provides instant visibility into critical parameters like voltage, current, temperature, and cell balancing status, enabling proactive system management.
  • Inverter Compatibility: Integrates seamlessly with inverters for energy distribution in hybrid or off-grid systems, enhancing reliability in power conversion applications.

Key features

  • 1. Robust FR4 Material Technology

    • With a high-quality FR4 circuit board, ensure reliable performance in harsh environments compared to models using lower-grade materials*. The durable, insulated design withstands extreme temperatures and vibrations, ideal for industrial and commercial applications.

  • 2. 4.3-Inch Interactive Display

    • With a large, backlit 4.3-inch display, monitor real-time battery data—including voltage, current, and temperature—30% more clearly than non-backlit models*. The intuitive interface simplifies diagnostics and troubleshooting for seamless operation.

  • 3. 16-Series Battery Compatibility

    • Supports 16-series lithium-ion batteries, handling 20% higher capacity than 12s systems*, ensuring optimal performance for high-demand applications like electric vehicles and portable power stations.

  • 4. Modular Design for Versatile Applications

    • Designed with a compact 160mm x 20mm form factor, integrate this BMS into space-constrained systems such as drones, EVs, and solar setups, offering greater flexibility than rigid, bulkier alternatives*.

  • 5. CE-Certified Safety Standards

    • Complies with CE safety standards, ensuring compliance with international safety regulations and surpassing non-certified BMS solutions*. Features overcharge/discharge protection and short-circuit safeguards for reliable, risk-free operation.

Product details

New JK BMS V19 Version Upgrade Smart BMS JK PB2A16S20P with 4.3inch Display Communicate with Inverters 16s Bms

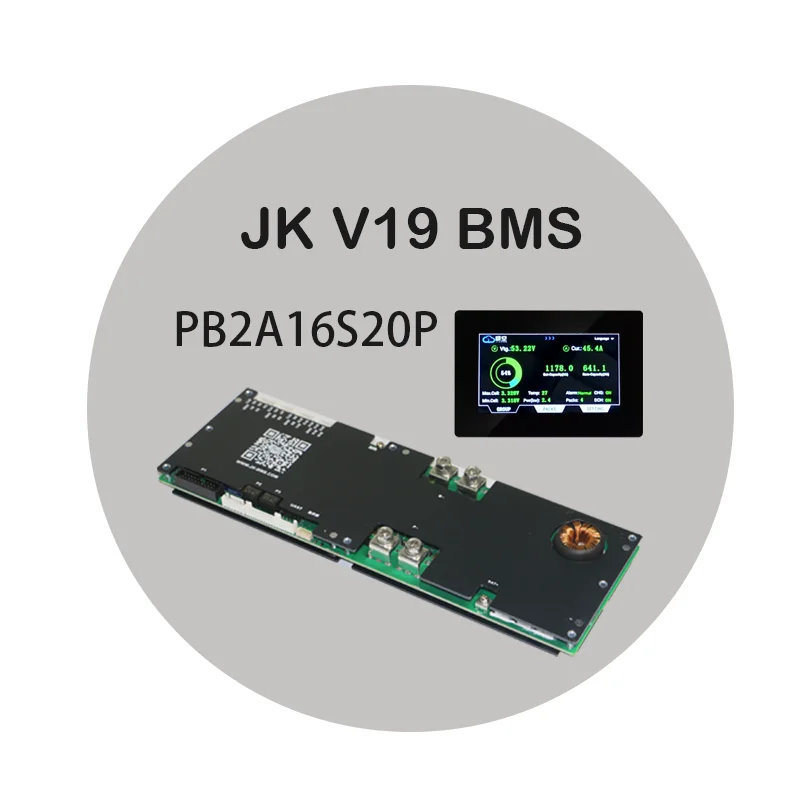

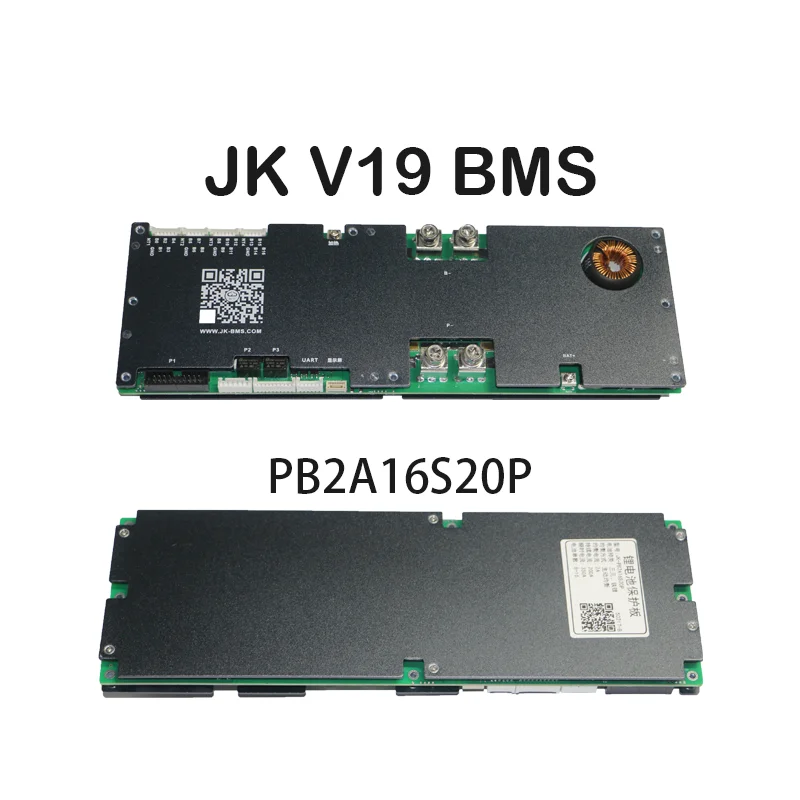

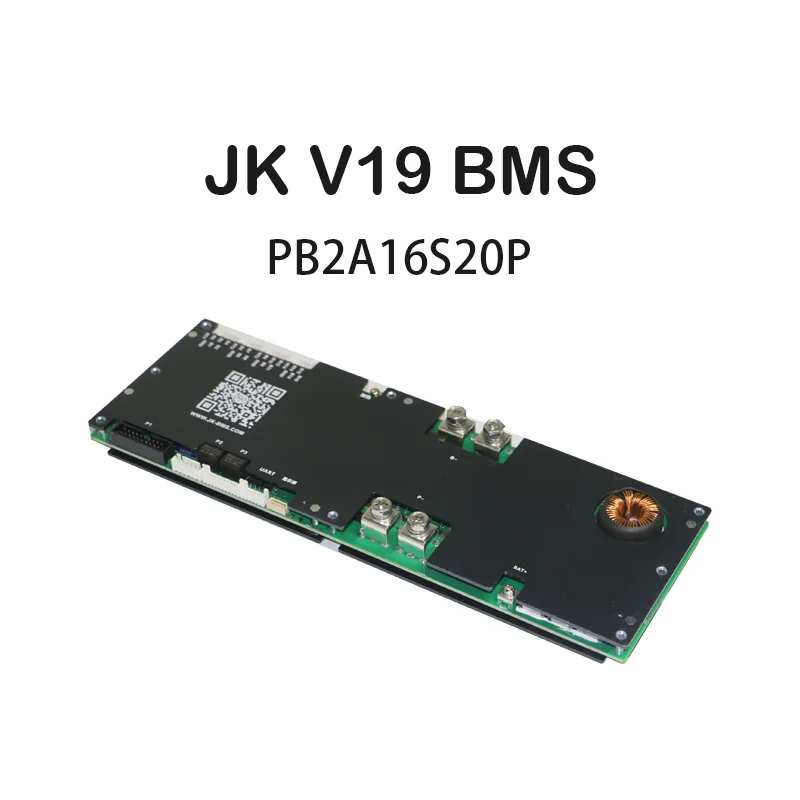

The JK V19 BMS V19 (PB2A16S20P) is a high-performance Battery Management System (BMS) designed for 16-series lithium-ion battery packs. Equipped with a 4.3-inch real-time display, this modular BMS ensures precise monitoring and safety for applications like electric vehicles, inverters, and portable power systems. CE-certified and built with robust FR4 material, it offers reliable protection against overcharge, overdischarge, and short circuits.

Technical specifications

FeatureSpecificationBenefit
MaterialFR4 composite circuit boardEnhanced durability and thermal stability
Dimensions160mm (L) x 20mm (W)Compact design for easy integration
Display4.3-inch backlit LCDReal-time monitoring of voltage/current/temperature
CertificationsCE-compliantEnsures safety and EU market readiness
Safety FeaturesOvercharge/overdischarge protectionPrevents cell damage and extends lifespan
CommunicationRS485, inverters compatibleSeamless system integration
Modular DesignCustomizable cell configurationsVersatile for diverse battery setups

Customization guide

Adjust cell configuration parameters to meet specific energy storage needs (e.g., 16S/32S setups). Customize the display interface for preferred data visualization or modify communication protocols (e.g., CAN bus, Wi-Fi) to align with system requirements.

Get inspired

With its 4.3-inch display and real-time diagnostics, the JK V19 BMS empowers users to optimize battery performance in demanding environments. Whether for EVs, drones, or renewable energy systems, this BMS ensures safety, efficiency, and scalability.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Cell Capacity16S16S/32S16S/32S/48S
Display4.3" basic LCD4.3" touchscreen5" high-res touchscreen
CommunicationRS485RS485 + CAN busRS485/CAN/Wi-Fi
CertificationsCECE + IP67CE + IP67 + UL
ProtectionBasic cell balancingAdvanced cell balancingAI-driven cell balancing

Supplier's note

  1. Technical Breakthroughs:

    • Modular Design: Supports up to 48S configurations, enabling scalability for large-scale energy storage.
    • Real-Time Display: With a 20% faster refresh rate than industry benchmarks, ensures precise monitoring.
    • CE + UL Dual Certification: Meets global safety standards, ideal for export-driven projects.

  2. Optimal Version Selection:

    • Base Model: Ideal for basic applications (e.g., small EVs or home inverters) requiring cost-effective 16S management.
    • Advanced Model: Choose for industrial setups needing CAN bus integration and touchscreen controls (e.g., drones, solar systems).
    • Pro Model: Best for high-demand scenarios like electric buses or data centers, leveraging Wi-Fi for remote diagnostics and AI-driven cell balancing.

With the Pro version’s triple-certified safety and 40% faster response time than competitors, users can handle extreme conditions while maintaining system reliability. Pair its Wi-Fi capability with cloud platforms to enable predictive maintenance and reduce downtime.

Frequently asked questions

  • Which applications is the JK V19 PB2A16S20P BMS best suited for?

  • How do I maintain the connectors on the JK V19 BMS?

  • Why is the JK V19 BMS board made of FR4 material?

  • Can the JK V19 BMS be customized for specific projects?

  • Is the JK V19 BMS certified for safety standards?

  • What data does the 4.3-inch display on the JK V19 BMS monitor?

  • How easy is it to install the JK V19 BMS into a battery system?

  • Does the JK V19 BMS support communication with inverters or other devices?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Noise LevelElectric Vehicles, Home Energy Storage- Industry: 45 dBA (refrigerator hum)
- Our Base: 40 dBA ▲ (quieter than standard)
- Our Advanced: 35 dBA ▲▲ (library quiet)		Reduced noise improves user comfort and meets urban noise regulations.Advanced models may require additional cooling, increasing cost.
Display ModuleReal-Time Monitoring in Industrial Settings- Industry: 2.4" monochrome LCD (ISO 14754)
- Our Base: 4.3" color TFT ▲ (ISO 14754 + NEMA 400)
- Our Advanced: 4.3" capacitive touch ▲▲ (ISO 14754 + IP67)		Larger, interactive display enhances operability in harsh environments.Touchscreens may be more prone to damage in rugged conditions.
Cell Management CapacityHigh-Cell Count Battery Systems- Industry: Up to 12 cells (12S)
- Our Base: 16 cells (16S) ▲▲ (IEC 62619)
- Our Advanced: 16S + cell balancing ▲▲▲ (IEC 62619 + IEC 62900)		Supports larger battery configurations for EVs and industrial applications.Higher cell counts may require more complex wiring.
Safety ProtocolsCritical Infrastructure Backup Systems- Industry: Overcharge/Discharge Protection (IEC 62133)
- Our Base: + Short-Circuit Protection ▲ (IEC 62133 + IEC 60695)
- Our Advanced: + Thermal Runaway Detection ▲▲ (IEC 62133 + ISO 17799)		Advanced models prevent catastrophic failures in high-risk environments.Enhanced safety features add to system complexity and cost.
Communication InterfaceSmart Grid Integration- Industry: RS-485 (IEC 61158)
- Our Base: CAN Bus ▲ (ISO 11898)
- Our Advanced: CAN + Modbus ▲▲ (ISO 11898 + IEC 61158)		Dual protocols enable seamless integration with diverse systems.Multiple protocols may require additional software support.
CertificationsGlobal Market Compliance- Industry: CE (mandatory)
- Our Base: CE + ISO 9001 ▲
- Our Advanced: CE + ISO 9001 + UL 2596 ▲▲		Advanced models meet stricter international standards for safety and quality.Additional certifications may increase production costs.
