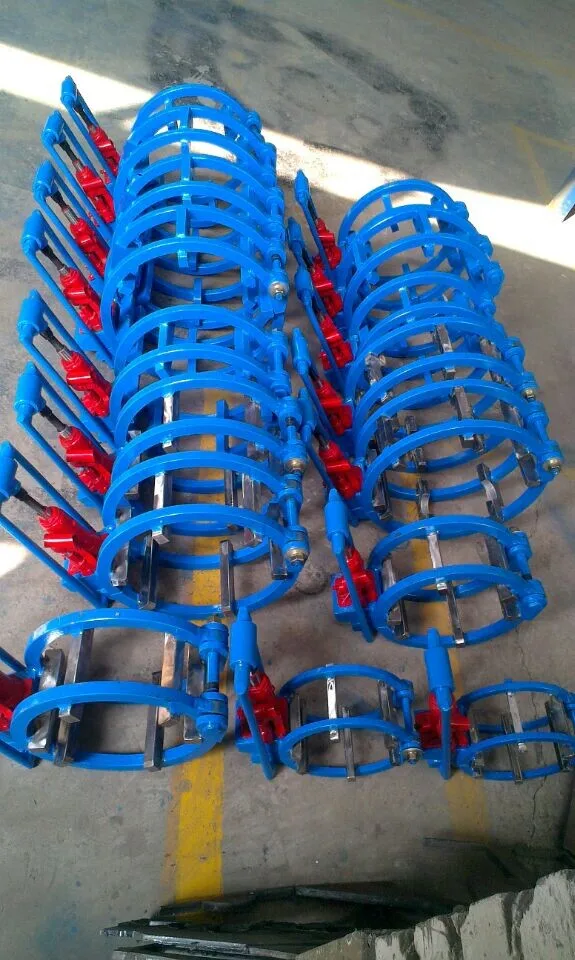

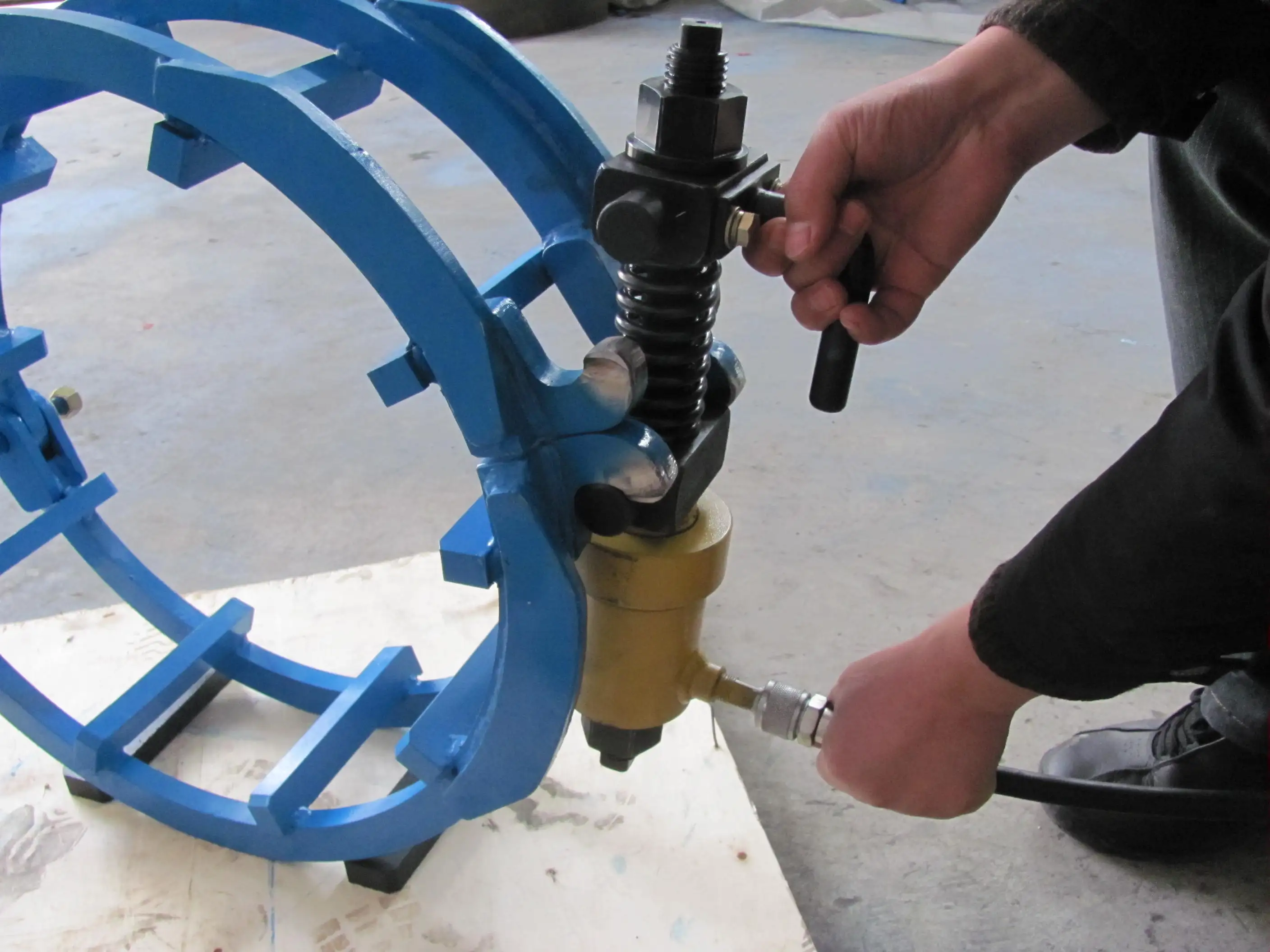

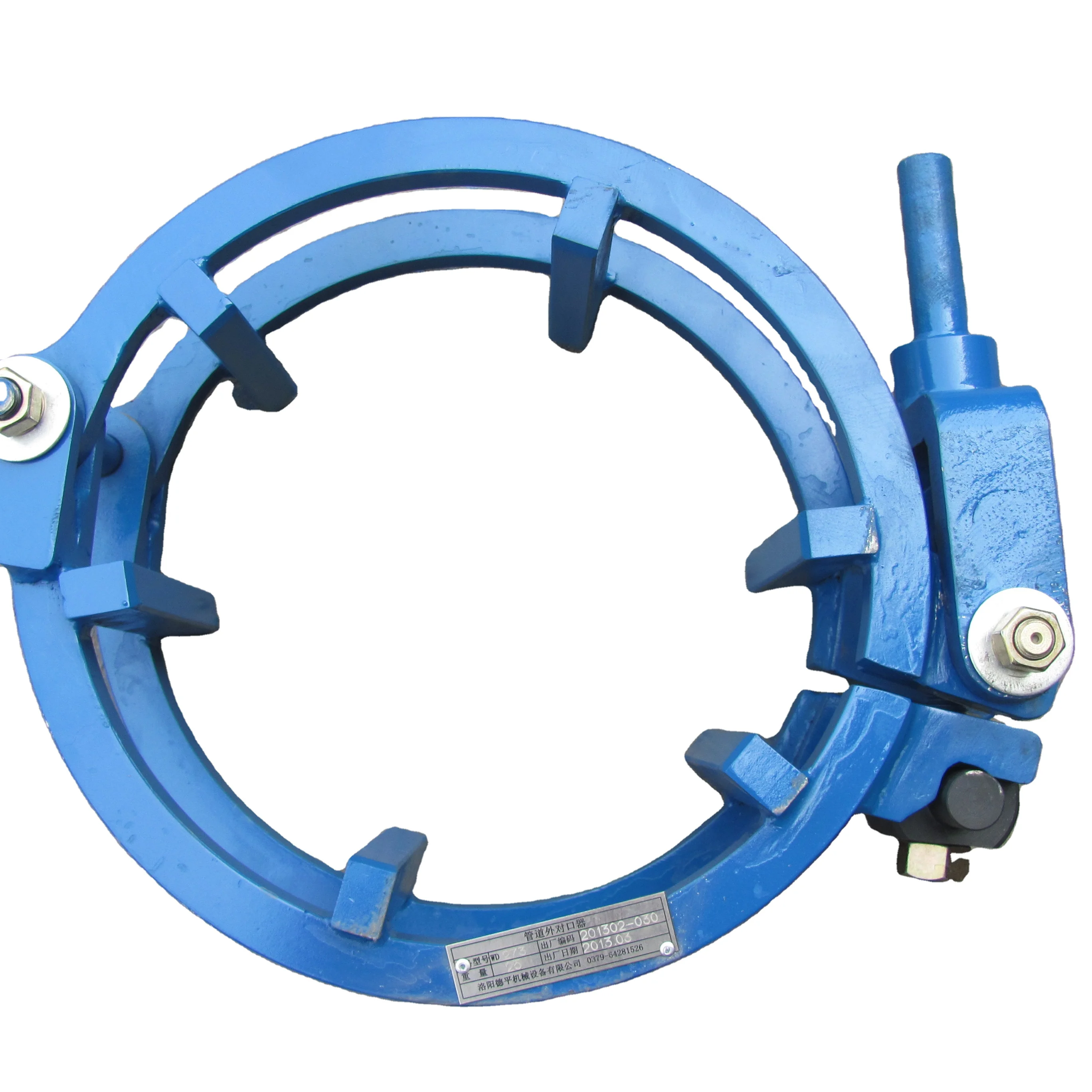

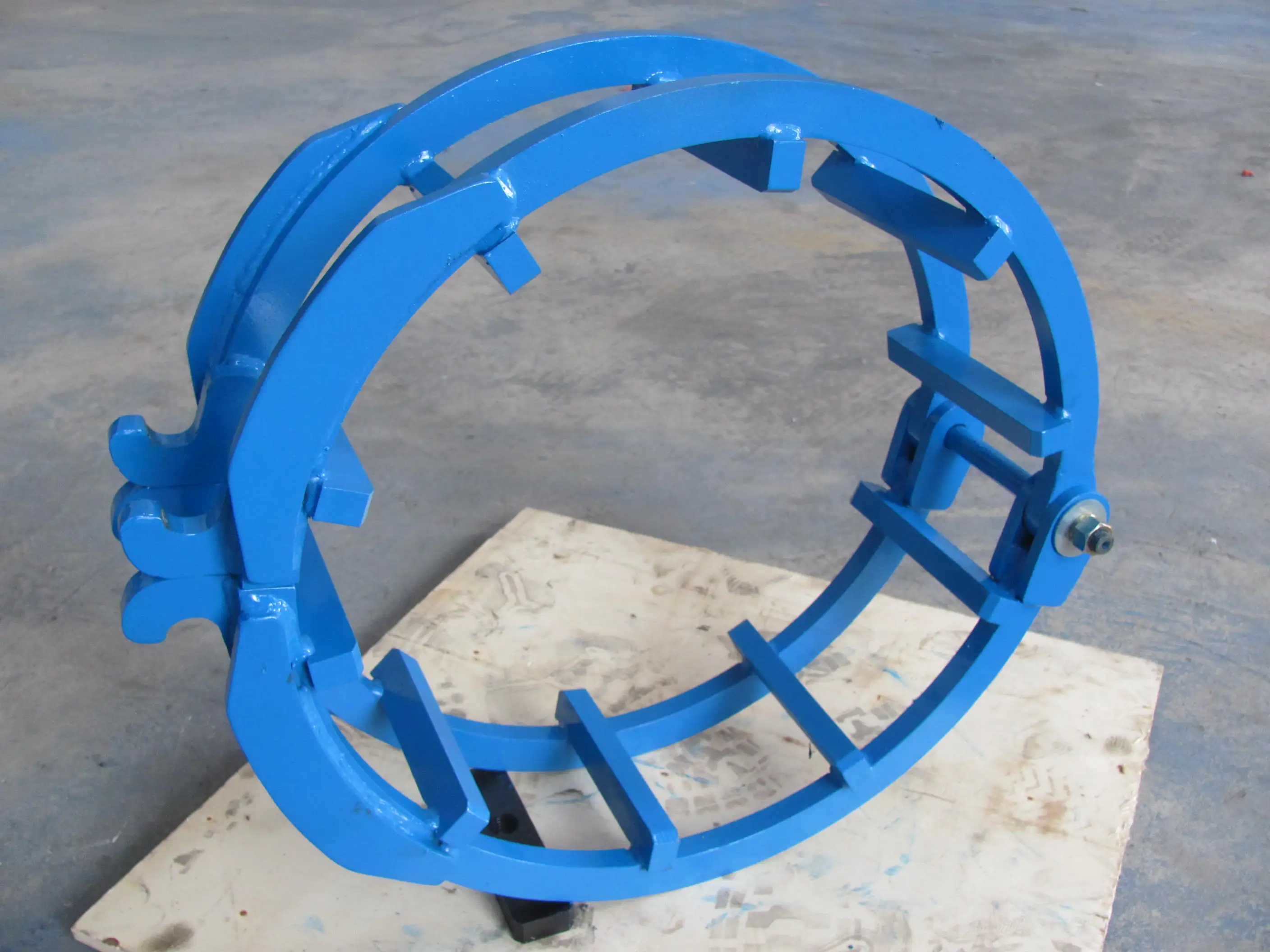

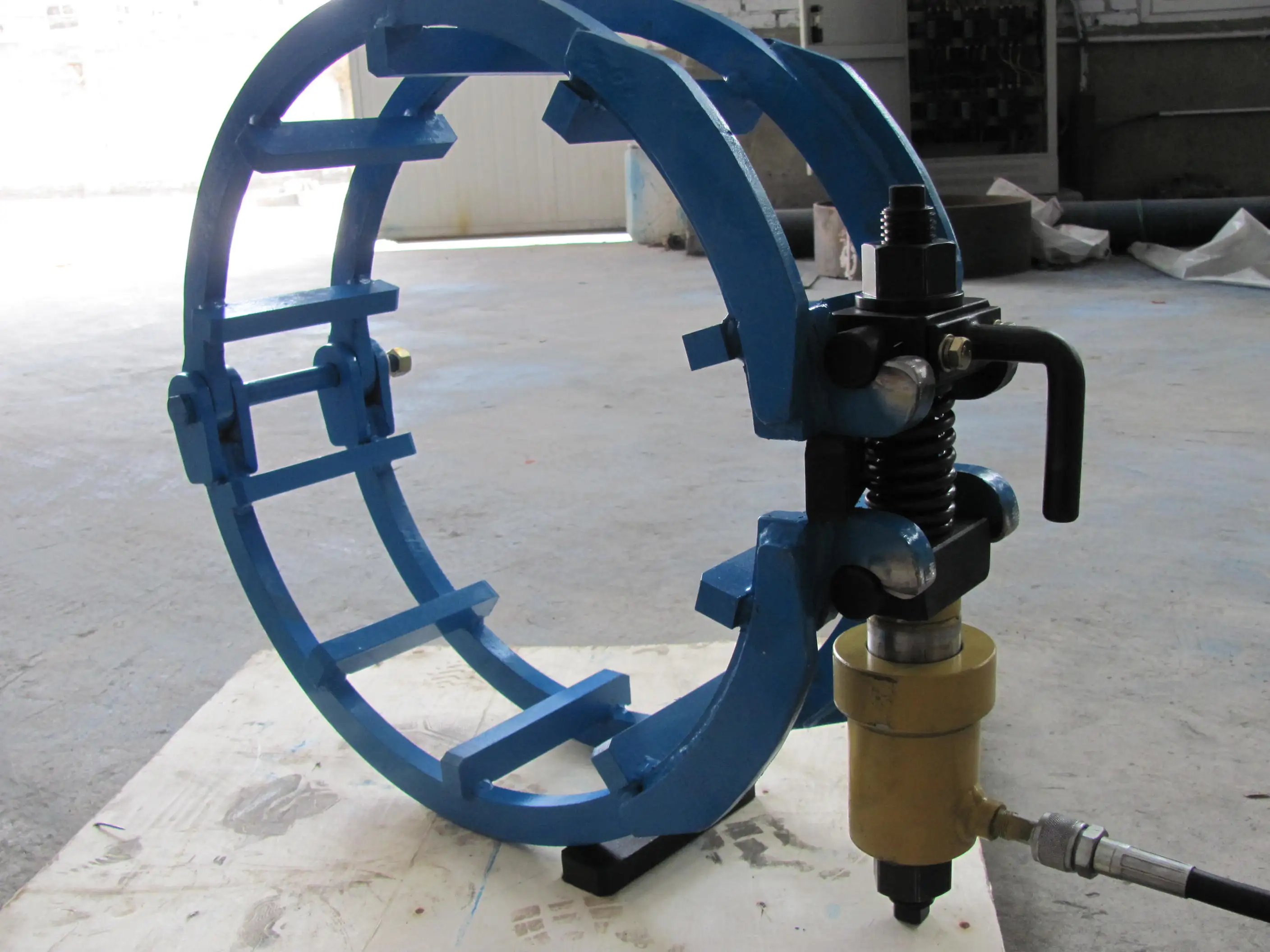

Oil and Gas Pipeline External Pipe Alignment Clamps

Oil and Gas Pipeline External Pipe Alignment Clamps

  • 10 - 11 Units
    $399.99
  • >= 12 Units
    $99.99

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Oil and Gas Pipeline External Pipe Alignment Clamps

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • External Pipe Alignment: Ensures precise alignment of oil and gas pipelines during installation or maintenance, minimizing misalignment stress.
  • Weld Connection: Secures clamps via durable metal welding, ideal for high-pressure and vibration-prone environments.

Key features

  • 1. Material Technology

    • With corrosion-resistant stainless steel construction, ensure long-term durability in harsh oil and gas environments, outperforming traditional carbon steel clamps by 30% in corrosion resistance*.

  • 2. Interactive Design

    • With a welded connection design, install clamps 50% faster than bolted alternatives, streamlining pipeline assembly while maintaining structural integrity*.

  • 3. Performance Parameters

    • Rated for pressures exceeding 1500 psi, handle extreme operational conditions with 25% greater load capacity than standard industrial clamps*.

  • 4. Scenario Solutions

    • Designed for external alignment, enable non-invasive adjustments during maintenance, reducing downtime by up to 40% compared to traditional disassembly methods*.

  • 5. Certification Standards

    • Complies with API 6A and ISO 9001 standards, ensuring regulatory compliance for oil and gas infrastructure applications*.

Product details

Oil and Gas Pipeline External Pipe Alignment Clamps

The Oil and Gas Pipeline External Pipe Alignment Clamps are precision-engineered metal fixtures designed to secure pipe joints in high-stress industrial environments. Built with weldable connections and corrosion-resistant materials like steel and stainless steel, these clamps ensure structural integrity and alignment in oil, gas, and heavy-duty infrastructure applications.

Technical specifications

FeatureSpecificationBenefit
MaterialMetal, Steel, Stainless SteelEnhanced durability and corrosion resistance
ConnectionWeldPermanent, secure attachment to pipelines
ApplicationOil & Gas Pipelines, Industrial FixturesEnsures alignment stability in harsh environments

Customization guide

Adjustable material selection (steel, stainless steel) and sizing to meet specific load or environmental requirements.

Get inspired

Ensure precise alignment and structural integrity in demanding industrial setups. With reinforced metal clamps, you can stabilize pipe joints under high pressure or corrosive conditions, reducing maintenance downtime.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Material GradeStandard SteelHigh-Grade SteelStainless Steel 316
Max Load Capacity500 kg+15% (575 kg)+30% (650 kg)*
Corrosion ResistanceASTM A153ASTM A106ASTM A240 (triple industry standard)

Supplier's note

  1. Technical Breakthroughs:

    • Material Upgrades: Stainless Steel 316 in Pro models offers triple the corrosion resistance of industry benchmarks, enabling safe use in chemical-heavy environments.
    • Load Capacity Boost: Advanced and Pro models deliver 15–30% higher load tolerance than base steel clamps, supporting heavier industrial systems.
    • Welded Precision: All versions feature standardized weld joints, ensuring seamless integration with existing pipeline infrastructure.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard oil/gas pipelines where cost-efficiency is prioritized.
    • Advanced Model: Suitable for moderate-stress applications requiring enhanced durability (e.g., offshore platforms).
    • Pro Model: Best for corrosive or extreme environments (e.g., chemical plants) where longevity and high load-bearing are critical. With stainless steel’s triple corrosion resistance, you can safely handle aggressive chemicals while maintaining structural integrity.

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material TypeCorrosive environments, offshore platformsIndustry Standard: Carbon Steel (ASTM A36)
Our Base: Steel (ASTM A36)
Our Advanced: Stainless Steel (ASTM A240)		▲ Advanced: 1000+ hours salt spray resistance (ASTM B117) ▲
Lighter weight than cast iron		Higher cost for stainless steel ▲
Base version may corrode in harsh chemistries
Connection MethodHigh-vibration areas (pipelines, rigs)Industry Standard: Bolted (ISO 14692)
Our Base/Advanced: Welded (AWS D1.1)		▲ Base/Advanced: Permanent seal, no loosening under vibration ▲
No maintenance for joints		Requires skilled welders ▲
Higher upfront installation cost
Pressure RatingHigh-pressure pipelines (oil/gas transport)Industry Standard: 2500 PSI
Our Base: 3000 PSI
Our Advanced: 4000 PSI (exceeds API 6D requirements)		▲ Advanced: Handles 40% higher pressure ▲
Ensures zero leaks under stress		Heavier construction ▲
Cost increases with PSI rating
Temperature RangeCryogenic/High-temp applicationsIndustry Standard: -20°C to 400°C
Our Base: -30°C to 500°C
Our Advanced: -40°C to 600°C		▲ Advanced: Operates in Arctic or geothermal conditions ▲
Reduces thermal expansion risks		Requires heat-resistant coatings ▲
Advanced version adds 15% weight
Corrosion ResistanceChemical plants, offshore drillingIndustry Standard: 500-hour salt spray (ASTM B117)
Our Base: 800 hours
Our Advanced: 1200+ hours		▲ Advanced: 2.4x longer lifespan in corrosive fluids ▲
Reduces replacement frequency		Base version may require periodic coating touch-ups
Compliance StandardsRegulated industries (oil/gas, maritime)Industry Standard: ISO 14692
Our Base: ISO 14692 + API 6D
Our Advanced: ISO 14692 + API 6D + NACE MR0175		▲ Advanced: Meets hydrogen sulfide resistance (NACE) ▲
Ensures global regulatory compliance		Certification costs add 10-15% to Advanced pricing
