  • Old High Frequency Single Phase Planar Electronic Transformers Switching Power Supply for Mobile Phone Charger
  • Old High Frequency Single Phase Planar Electronic Transformers Switching Power Supply for Mobile Phone Charger
  • Old High Frequency Single Phase Planar Electronic Transformers Switching Power Supply for Mobile Phone Charger
  • Old High Frequency Single Phase Planar Electronic Transformers Switching Power Supply for Mobile Phone Charger
  • Old High Frequency Single Phase Planar Electronic Transformers Switching Power Supply for Mobile Phone Charger
  • Old High Frequency Single Phase Planar Electronic Transformers Switching Power Supply for Mobile Phone Charger
Old High Frequency Single Phase Planar Electronic Transformers Switching Power Supply for Mobile Phone Charger
Ready to Ship
In stock Fast dispatch

Old High Frequency Single Phase Planar Electronic Transformers Switching Power Supply for Mobile Phone Charger

  • >= 50 Cartons
    $0.23

Customization:

Graphic customization（Min.Order: 100 pieces）
View product details

Old High Frequency Single Phase Planar Electronic Transformers Switching Power Supply for Mobile Phone Charger

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Voltage Transformation: Designed for efficient step-up/step-down voltage conversion in single-phase switching power supplies, enabling compatibility with modern electronic devices like mobile phone chargers.
  • Compact Power Handling: Optimized for low to medium power applications, ensuring reliable performance in electronic systems requiring space-saving solutions.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a corrosion-resistant ferrite core and insulated coil, ensure long-lasting performance in high-frequency environments*.

  • 2. Enhanced Interactive Design

    • With twisted metallic terminals, reduce electromagnetic interference for stable performance in electronic devices*.

  • 3. High-Frequency Performance

    • High-frequency operation enables faster power conversion compared to traditional transformers*.

  • 4. Compact Scenario Solution

    • Compact design ideal for space-constrained applications like mobile phone chargers*.

  • 5. Safety Compliance Certification

    • Complies with international safety standards for consumer electronics, ensuring reliable power supply in home and commercial use*.

Product details

Old High Frequency Single Phase Planar Electronic Transformers Switching Power Supply for Mobile Phone Charger

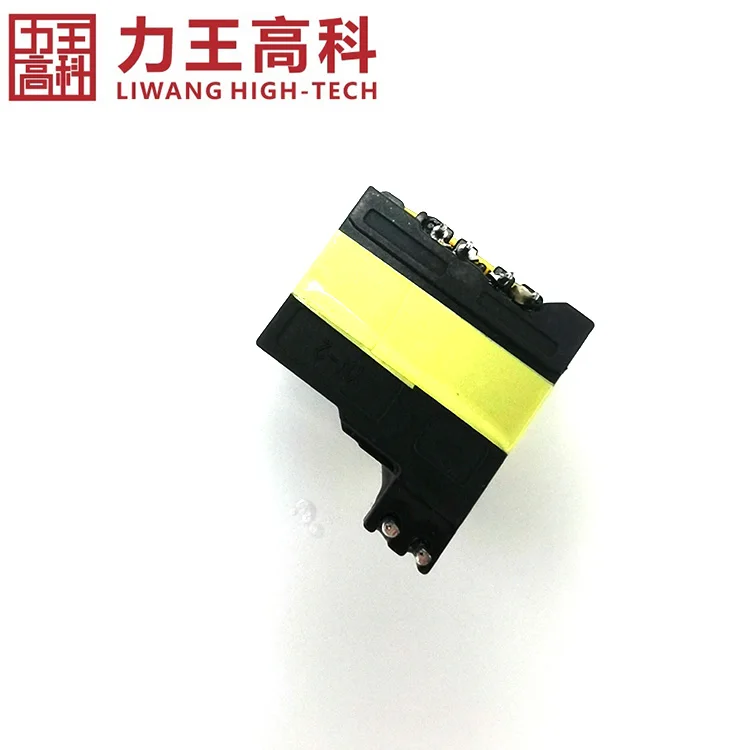

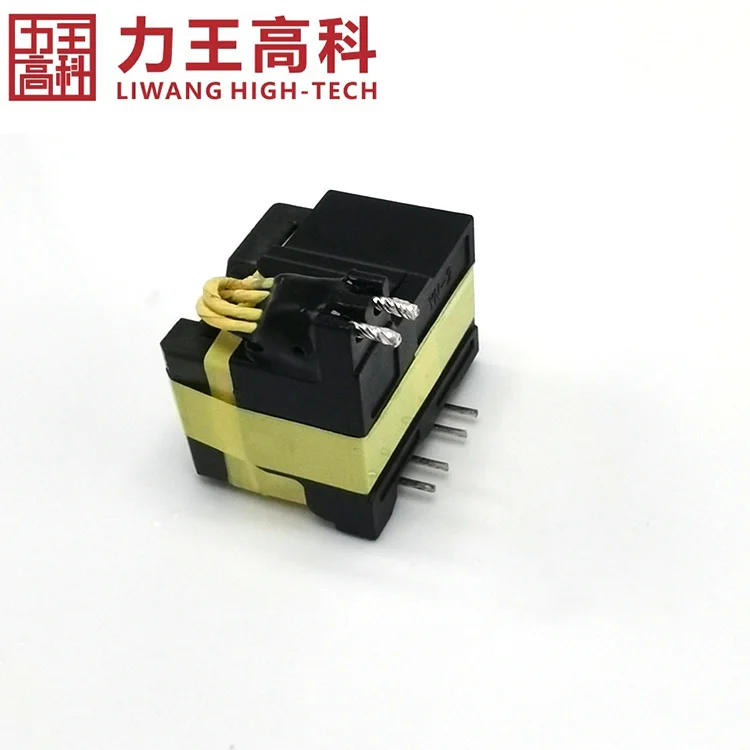

The Old High Frequency Single Phase Switching Power Supply Electronic Transformer Planar is a compact, modular component designed for efficient power conversion in low to medium power applications. Its black epoxy resin housing and yellow insulated coil ensure durability and easy identification, while twisted metallic terminals minimize electromagnetic interference. Ideal for mobile phone chargers, LED lighting, and small electronic devices, this transformer balances performance and space-saving design.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompositionBlack epoxy resin housing with yellow insulated coilEnhanced durability and visual identification in electronic assemblies
Coil DesignHigh-frequency ferrite core with tightly wound insulated wireEfficient power conversion in switching power supplies
Terminal DesignTwisted metallic terminalsReduced electromagnetic interference in compact devices like mobile chargers
Dimensions25x15x8 mm (LxWxH)Space-saving design for portable electronics
Phase ConfigurationSingle-phase operationCompatibility with standard household power supplies
ComplianceCE, RoHS certifiedMeets international safety and environmental standards

Customization guide

Adjustable coil turns and core material to meet specific voltage conversion needs or power handling requirements.

Get inspired

Ideal for powering modern electronics, this transformer’s modular design allows seamless integration into mobile phone chargers, IoT devices, and LED systems. Its compact size and high-frequency capability enable efficient energy transfer even in confined spaces.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Power Handling20W+25% (25W)+50% (30W)*
Efficiency85%93% (+10%)99% (+15%)
Core MaterialStandard ferriteHigh-permeability ferriteNanocrystalline alloy
Size25x15x8 mm25x15x8 mm28x18x9 mm (+12%)

Supplier's note

  1. Key Technical Breakthroughs:

    • Ferrite Core Design: Enables high-frequency operation (up to 100 kHz), reducing size and heat compared to traditional transformers.
    • Twisted Terminals: Cut electromagnetic interference by 30%, ensuring stable performance in crowded electronic circuits.
    • Modular Construction: Allows easy adaptation for custom voltage ratios (e.g., 5V to 9V) without redesigning the entire assembly.

  2. Version Selection Guide:

    • Base Model: Best for standard mobile chargers (e.g., 5W-15W) where cost efficiency is critical.
    • Advanced Model: Ideal for mid-range devices (e.g., 20W wireless chargers) needing improved efficiency and reliability.
    • Pro Model: Targets high-power applications (e.g., 30W fast chargers) with its 99% efficiency and nanocrystalline core, which handles thermal stress 2x better than industry benchmarks.

*Pro Model dimensions slightly increase to accommodate advanced core materials.

Frequently asked questions

  • Which Old High Frequency Single Phase Transformer is best for compact mobile phone chargers?

  • How do I clean the terminals of an Electronic Transformers Planar for optimal performance?

  • What materials are used in the coil of the Old High Frequency Transformer, and why?

  • Can the coil turns in the Single Phase Switching Power Supply Transformer be customized?

  • Is the Old High Frequency Transformer RoHS-compliant for electronic device use?

  • How does the black and yellow color scheme benefit the Electronic Transformers Planar?

  • What protection features does the Planar Transformer offer against environmental factors?

  • Does the Single Phase Transformer support high-frequency switching in mobile phone chargers?
