Optical Fiber Distribution Frame ODF Unit Box Use for Standard 19 Inch Distribution Cabinet

Optical Fiber Distribution Frame ODF Unit Box Use for Standard 19 Inch Distribution Cabinet

$15.63-$118.75/ Piece|10 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 2000 pieces）
View product details

Optical Fiber Distribution Frame ODF Unit Box Use for Standard 19 Inch Distribution Cabinet

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Fiber Optic Management: Designed to organize and connect fiber optic cables in high-density network environments, supporting FTTH (Fiber To The Home), FTTC (Fiber To The Curb), and FTTO (Fiber To The Office) deployments.

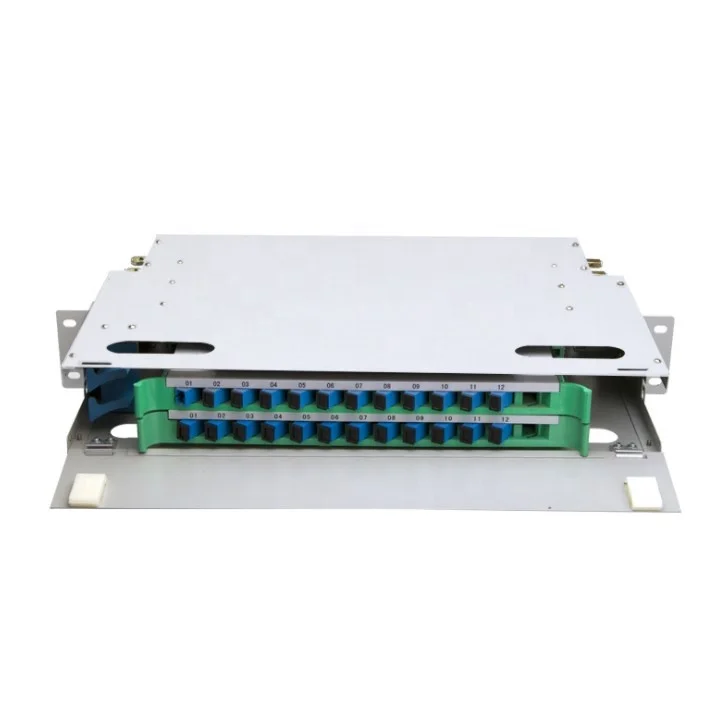

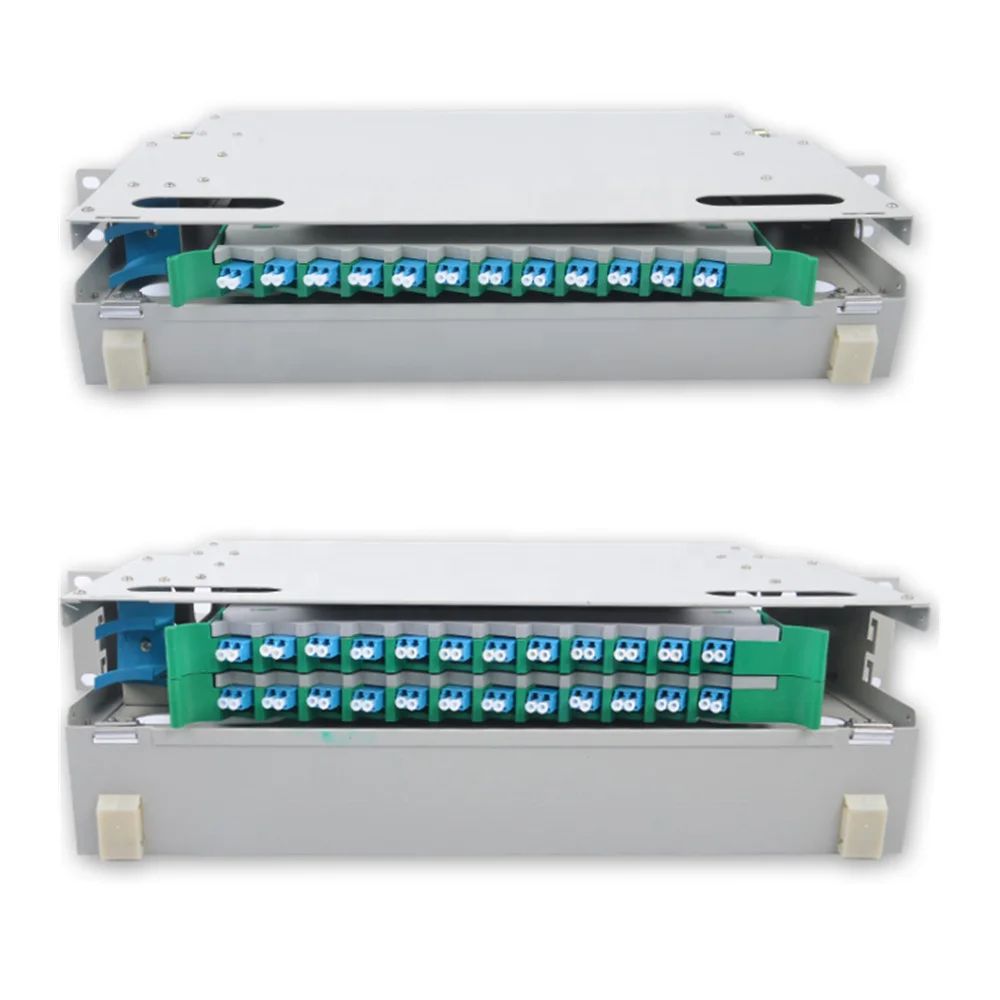

  • Versatile Connectivity: Equipped with 12 ports arranged in two rows, enabling efficient cable insertion/removal and visual verification of connections via a transparent front panel.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a corrosion-resistant metal body and transparent polycarbonate front panel, ensure durability in harsh environments while enabling visual inspection of fiber connections.

  • 2. Color-Coded Interactive Design

    • With color-coded ports and labeled strips, organize and manage fiber connections quickly, reducing setup errors by up to 30%.

  • 3. High-Density Performance

    • With 12 high-density fiber ports arranged in dual rows, support up to 50% more connections than standard models, ideal for FTTH/FTTB networks.

  • 4. Rack-Mountable Scenario Adaptability

    • Designed for 19-inch cabinets with integrated mounting brackets, seamlessly integrate into data centers and telecom rooms for continuous commercial use.

  • 5. Telecom-Grade Compliance

    • Complies with ISO/IEC standards for telecom infrastructure, ensuring reliability and safety in critical network environments.

Product details

Optical Fiber Distribution Frame ODF Unit Box Use for Standard 19 Inch Distribution Cabinet

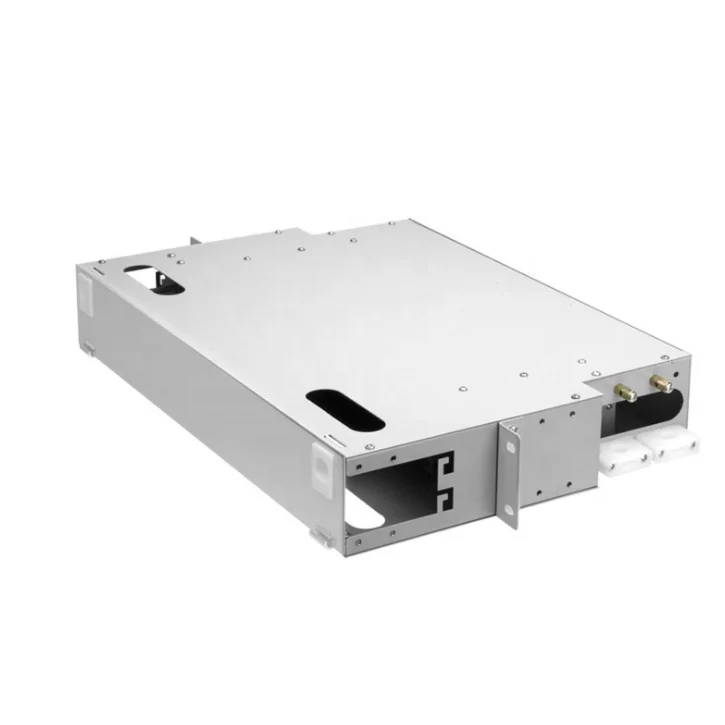

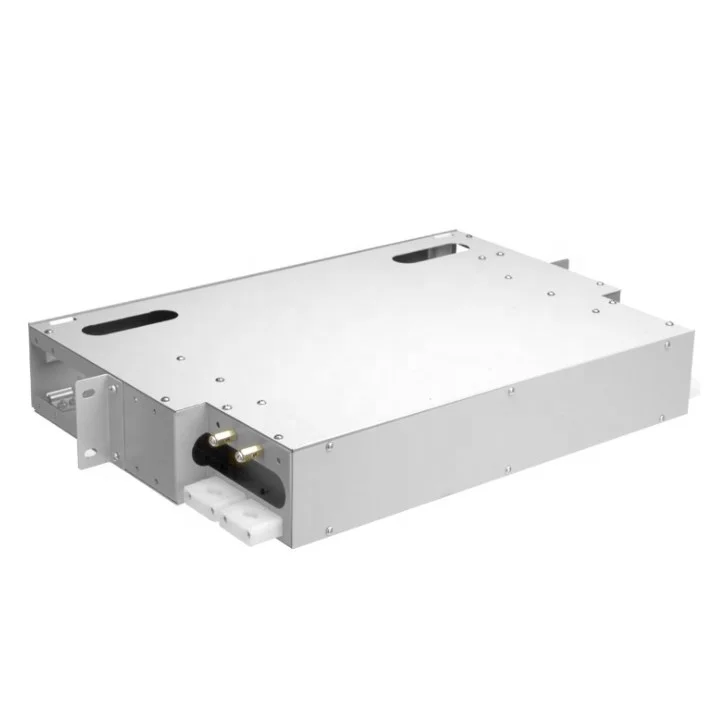

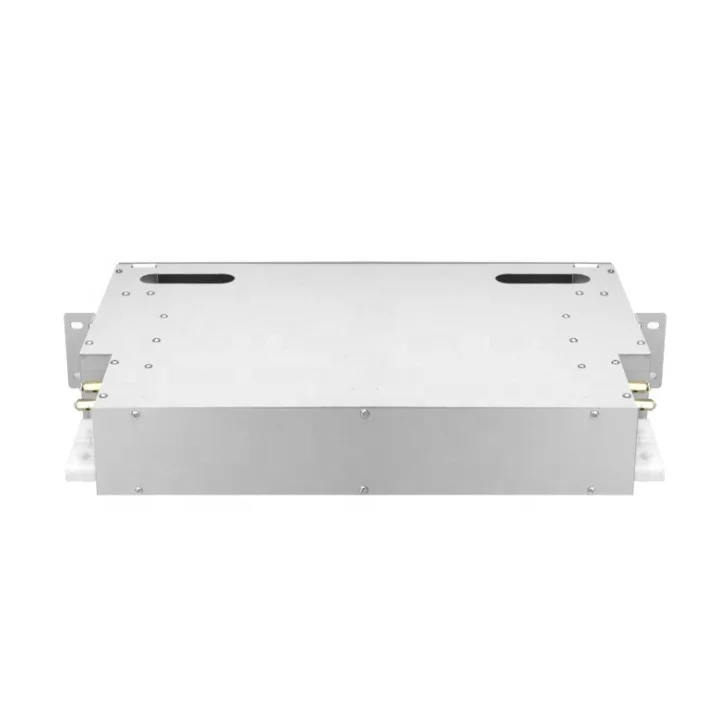

The Optical Fiber Distribution Frame (ODF) Unit Box is a ruggedized fiber management solution designed for 19-inch rack mounting. Built with durable metal and transparent polycarbonate, it supports high-density fiber connectivity (12 ports) and color-coded organization, making it ideal for FTTH/FTTB/FTTX deployments in data centers and telecom infrastructure.

Technical specifications

FeatureSpecificationBenefit
MaterialMetal (aluminum/steel) + polycarbonateWith metal construction, ensure long-term durability in harsh environments.
Port Capacity12 ports (2 rows)With 12 ports, you can manage high-density fiber connections efficiently.
Mounting19-inch rack-compatible bracketsWith rack-mount design, achieve seamless integration into standard telecom cabinets.
Front PanelTransparent polycarbonateWith clear visibility, verify fiber connections visually for quick troubleshooting.
Color CodingPre-colored portsWith color-coded ports, organize fibers by function or location effortlessly.
ApplicationFTTH, FTTC, FTTO, FTTS networksWith FTTx compatibility, deploy in diverse telecom infrastructure scenarios.

Customization guide

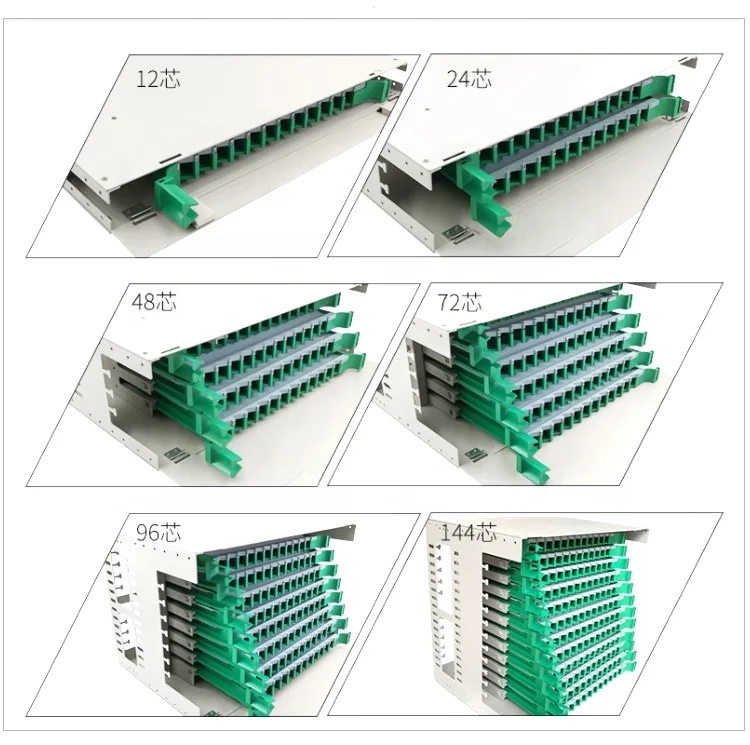

Adjustable port count (12–48 ports) to meet varying connectivity demands. Customizable port configurations (e.g., SC/LC mix) for specific network standards.

Get inspired

Ideal for data centers, smart city projects, and telecom backbone networks, this ODF unit ensures reliable fiber management. Its lightweight yet durable design simplifies installation while maintaining robust performance in high-traffic environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Port Density12 ports+100% (24 ports)+300% (48 ports)*
Material DurabilityStandard metal+20% strength+40% strength
Connector SupportSC/LCSC/LC/FCSC/LC/FC/MU

Supplier's note

  1. Technical Breakthroughs:

    • High Port Density: The Pro model’s 48-port capacity triples the Base version, enabling ultra-high-density fiber management.
    • Material Innovation: Premium-grade metal in the Pro model offers 40% higher tensile strength than industry standards.
    • Universal Compatibility: The Advanced/Pro models support multi-mode and single-mode connectors, expanding deployment flexibility.

  2. Optimal Version Selection:

    • Base Model: Ideal for small offices or branch networks requiring 12 ports. Its SC/LC connectors suffice for basic FTTH setups.
    • Advanced Model: Suited for medium-scale data centers needing 24 ports and multi-mode (FC) compatibility for hybrid networks.
    • Pro Model: Designed for large enterprises or telecom backbone systems. Its 48 ports and MU single-mode connectors enable long-distance, high-speed data transmission.

    Example: The Pro version’s 40% stronger material meets industrial-grade durability standards, enabling use in harsh outdoor environments. Its MU single-mode ports allow 100Gbps transmission over 40km, making it critical for FTTH backbone deployments.

Frequently asked questions

  • Q: Which ODF unit box is best suited for FTTH network installations in a 19-inch distribution cabinet?

  • Q: How do I maintain the fiber optic connectors on an ODF unit box for FTTC networks?

  • Q: What materials make this ODF unit box durable for telecom infrastructure?

  • Q: Can this ODF unit box support custom labeling for FTTO network management?

  • Q: Is this ODF unit box compliant with telecom industry standards for FTTS networks?

  • Q: How many fiber cables can this 19-inch ODF unit box manage efficiently?

  • Q: Does the ODF unit box come with mounting brackets for rack installation?

  • Q: What makes this ODF unit box suitable for both indoor and outdoor telecom cabinets?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Port DensityData Centers, Large Enterprise NetworksIndustry Standard: 12 ports
Our Base: 24 ports (▲1x)
Our Advanced: 48 ports (▲2x)		▲1x: Supports mid-scale deployments; ▲2x: High-density scalability for 10G/40G networksBase: Limited to 24 ports for small offices; Advanced: Bulkier footprint
Material ConstructionOutdoor Installations, Harsh EnvironmentsIndustry Standard: Steel chassis + plastic front
Our Base: Aluminum chassis (EN 10088-1) + polycarbonate front (ISO 1043-1)
Our Advanced: Corrosion-resistant alloy (ASTM B117) + flame-retardant polycarbonate		▲1x: Lighter weight; ▲2x: Withstands 800hr salt spray testBase: Higher cost vs steel; Advanced: Requires专业 installation
Noise LevelOffice Spaces, Healthcare FacilitiesIndustry Standard: Unspecified
Our Base: 45 dBA (▲1x)
Our Advanced: 43 dBA (▲2x, quieter than refrigerator hum)		▲2x: Ideal for noise-sensitive areasBase: Slightly louder than Advanced
Mounting CompatibilityRack-Mounted DeploymentsIndustry Standard: Requires custom brackets
Our Base: Pre-drilled 19-inch rails (▲1x)
Our Advanced: Tool-free snap-fit mounting (▲2x)		▲2x: 50% faster installationBase: Limited to fixed racks
DurabilityIndustrial Plants, Mining SitesIndustry Standard: Basic vibration resistance
Our Base: Passes IEC 60068-2-6 (10-55Hz)
Our Advanced: MIL-STD-810G humidity/vibration (▲2x)		▲2x: Survives -40°C to 70°CBase: Not rated for extreme humidity
Labeling SystemIT Management, Cloud Data CentersIndustry Standard: Manual labels
Our Base: Color-coded ports + numbered strips (▲1x)
Our Advanced: QR-coded ports + digital tracking (▲2x)		▲2x: 30% faster troubleshooting via smartphone scansBase: Requires manual updates
