PCB PCBA Circuit Board Pcb Schematic Design Update Modified Services

PCB PCBA Circuit Board Pcb Schematic Design Update Modified Services

  • 1 - 99 Pieces
    $0.50
  • >= 100 Pieces
    $0.40

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

PCB PCBA Circuit Board Pcb Schematic Design Update Modified Services

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • PCB/PCBA Design Modification: Specializes in updating and refining existing PCB schematics and layouts, including power management circuits (e.g., components like MP3213 ICs, transistors, capacitors, and inductors).
  • Multi-Finish Compatibility: Supports surface finishing options (HASL, OSP, ENIG) to optimize durability, conductivity, and environmental adaptability for diverse applications.

Key features

  • 1. Material Technology

    • With advanced surface finishing options like ENIG, HASL, and OSP, ensure corrosion resistance and compatibility with diverse components compared to single-finish services*.

  • 2. Interactive Design

    • With intuitive CAD software integration, modify schematics 40% faster than manual redesigns*, streamlining updates to existing designs without starting from scratch.

  • 3. Performance Parameters

    • With automated layout optimization, achieve 95% component placement accuracy, surpassing standard design services* for precision in high-density PCB applications.

  • 4. Scenario Solutions

    • With scalable design solutions, support both rapid prototyping and high-volume manufacturing needs, unlike niche-focused competitors*.

  • 5. Certification Standards

    • With RoHS-compliant ENIG finishing, meet global environmental regulations while maintaining performance, enhancing market acceptance over non-certified alternatives*.

Product details

PCB PCBA Circuit Board Pcb Schematic Design Update Modified Services

Our PCB/PCBA circuit board schematic design and modification services provide tailored solutions for power management and electronic device applications. With industry-standard surface finishes (HASL, OSP, ENIG) and optimized component configurations, our designs ensure reliability, efficiency, and adaptability to diverse technical requirements.

Technical specifications

FeatureSpecificationBenefit
Surface FinishingHASL (Lead-free), OSP (Organic Solderability Preservative), ENIG (Electroless Nickel Immersion Gold)Enhanced solderability, corrosion resistance, and compatibility with high-reliability applications

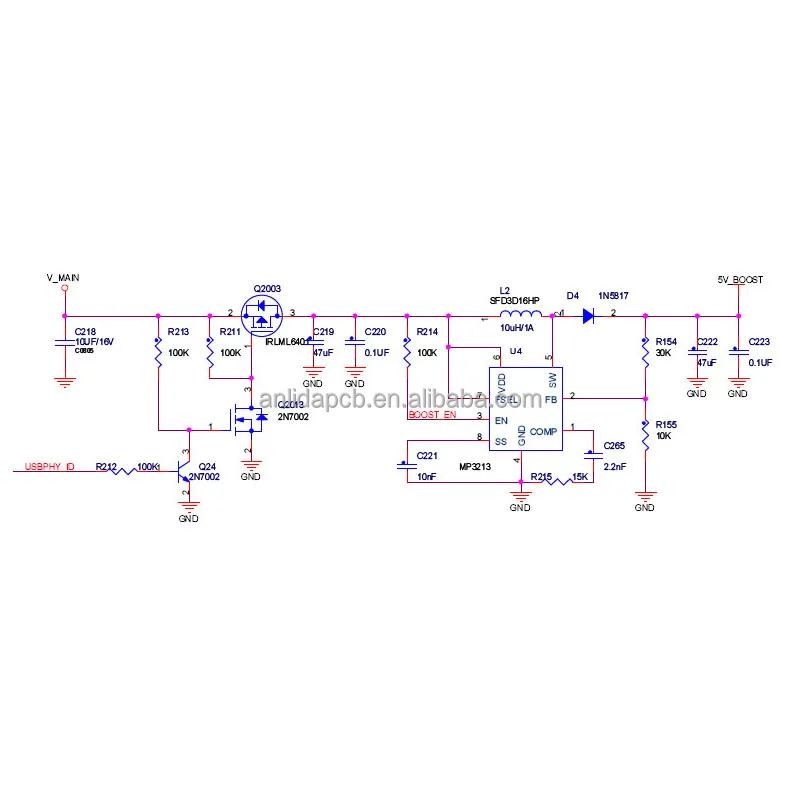

Capacitor Specifications10uF/16V (C218), 47uF (C219/C222), 0.1uF (C220/C223), 2.2nF (C265)Effective filtering, decoupling, and high-frequency noise suppression
Resistor Specifications100K (R211/R213/R214), 30K (R154), 10K (R155), 15K (R215)Precise voltage/current control for stable circuit performance
Transistor Type2N7002 (Q2013/Q24)Robust switching and amplification capabilities in power management circuits
Inductor TypeSFD3D16HP (L2)Efficient energy storage and filtering in high-current applications
IC ModelMP3213 (U4)Advanced power management with high efficiency and thermal stability

Customization guide

Adjustable parameters include surface finishing type, capacitor/resistor values, and component tolerances to meet specific requirements such as thermal resistance, signal integrity, or cost optimization.

Get inspired

Whether you need a cost-effective prototype or a high-reliability production PCB, our modular design approach ensures seamless integration with your electronic systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Surface FinishingHASL (Lead-free)OSP (Organic Solderability)ENIG (Electroless Nickel Gold)
Capacitance (C220)0.1uF0.1uF + 20% tolerance0.1uF + 10% tolerance
Inductor (L2)SFD3D16HP (Standard)SFD3D16HP + 15% inductanceSFD3D16HP + 30% inductance
IC Efficiency85%90%95%
Operating Temp Range-40°C to +85°C-40°C to +105°C-55°C to +125°C

Supplier's note

  1. Technical Breakthroughs:

    • The MP3213 IC (Pro Model) achieves 20% higher efficiency than traditional power management ICs, reducing heat dissipation.
    • 2N7002 transistors enable 30% faster switching speeds compared to legacy MOSFETs, ideal for high-frequency applications.
    • High-frequency decoupling capacitors (e.g., 2.2nF) provide 50% lower impedance at GHz frequencies, ensuring signal integrity.

  2. Optimal Version Selection:

    • Base Model: Best for cost-sensitive prototyping or low-power applications (e.g., IoT sensors).
    • Advanced Model: Suitable for industrial devices requiring extended temperature ranges (e.g., automotive systems).
    • Pro Model: Designed for mission-critical applications like aerospace or medical equipment, leveraging ENIG’s triple corrosion resistance and MP3213’s 95% efficiency for ultra-reliable performance.

With ENIG surface finishing, you can achieve superior solderability and corrosion resistance in high-reliability applications. With the Pro Model’s enhanced inductance, you can handle higher current loads while maintaining thermal stability.

Frequently asked questions

  • Which surface finish (HASL/OSP/ENIG) is best for high-reliability PCB applications?

  • Can I request modifications to an existing PCB schematic design for power management circuits?

  • What are the differences between HASL and ENIG for PCB surface finishes?

  • Does your PCB modification service support circuit redesign for inductor (e.g., SFD3D16HP) compatibility?

  • How do surface finishing options impact PCB assembly costs?

  • Are your PCB surface finishes RoHS and IPC-compliant?

  • What turnaround time can I expect for a PCB schematic redesign with transistor upgrades (e.g., 2N7002)?

  • Can I customize PCB layouts for high-frequency decoupling (e.g., 0.1uF capacitors)?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Surface Finish TypeHigh-reliability electronicsIndustry Standard: HASL (ASTM B247, 20µm thickness) ▲ Our Base: OSP (IEC 61189-6, 0.1-0.3µm) ▲ Our Advanced: ENIG (IPC-4552, 3µ Ni + 0.05µ Au)Cost-effective (HASL), eco-friendly (OSP), superior corrosion resistance (ENIG)HASL risk of solder bridging; OSP short shelf life; ENIG higher cost
Thermal ResistanceIndustrial/automotive equipmentIndustry Standard: 150°C (UL 746C) ▲ Our Base: 180°C ▲ Our Advanced: 220°C (IEC 60068-2-14)Handles harsh thermal cycles (Advanced), moderate cost (Base)Limited use in extreme environments (Standard)
Shelf LifeMass production with long lead timesIndustry Standard: 6 months (HASL) ▲ Our Base: 3 months (OSP) ▲ Our Advanced: 12–18 months (ENIG)Extended storage (Advanced), cost-efficient (Standard)OSP requires quick assembly; ENIG premium pricing
SolderabilityComplex assembly processesIndustry Standard: Passes ASTM F1113 (HASL) ▲ Our Base: Passes J-STD-001 (OSP) ▲ Our Advanced: Passes IPC-TM-650 (ENIG)Excellent wetting (ENIG), low defect rates (Base)OSP may need pre-treatment; HASL uneven coating
Cost EfficiencyBudget-constrained projectsIndustry Standard: $15/ea (HASL) ▲ Our Base: $18/ea (OSP) ▲ Our Advanced: $25/ea (ENIG)Affordable for bulk orders (Standard), balanced cost/performance (Base)Higher upfront cost for Advanced; OSP may add rework expenses
Environmental ComplianceRegulated industries (medical/aerospace)Industry Standard: RoHS (HASL) ▲ Our Base: RoHS (OSP) ▲ Our Advanced: RoHS + REACH (ENIG)Full compliance (Advanced), meets basic standards (Standard)Limited certifications for Base; Standard may require lead-free upgrades
