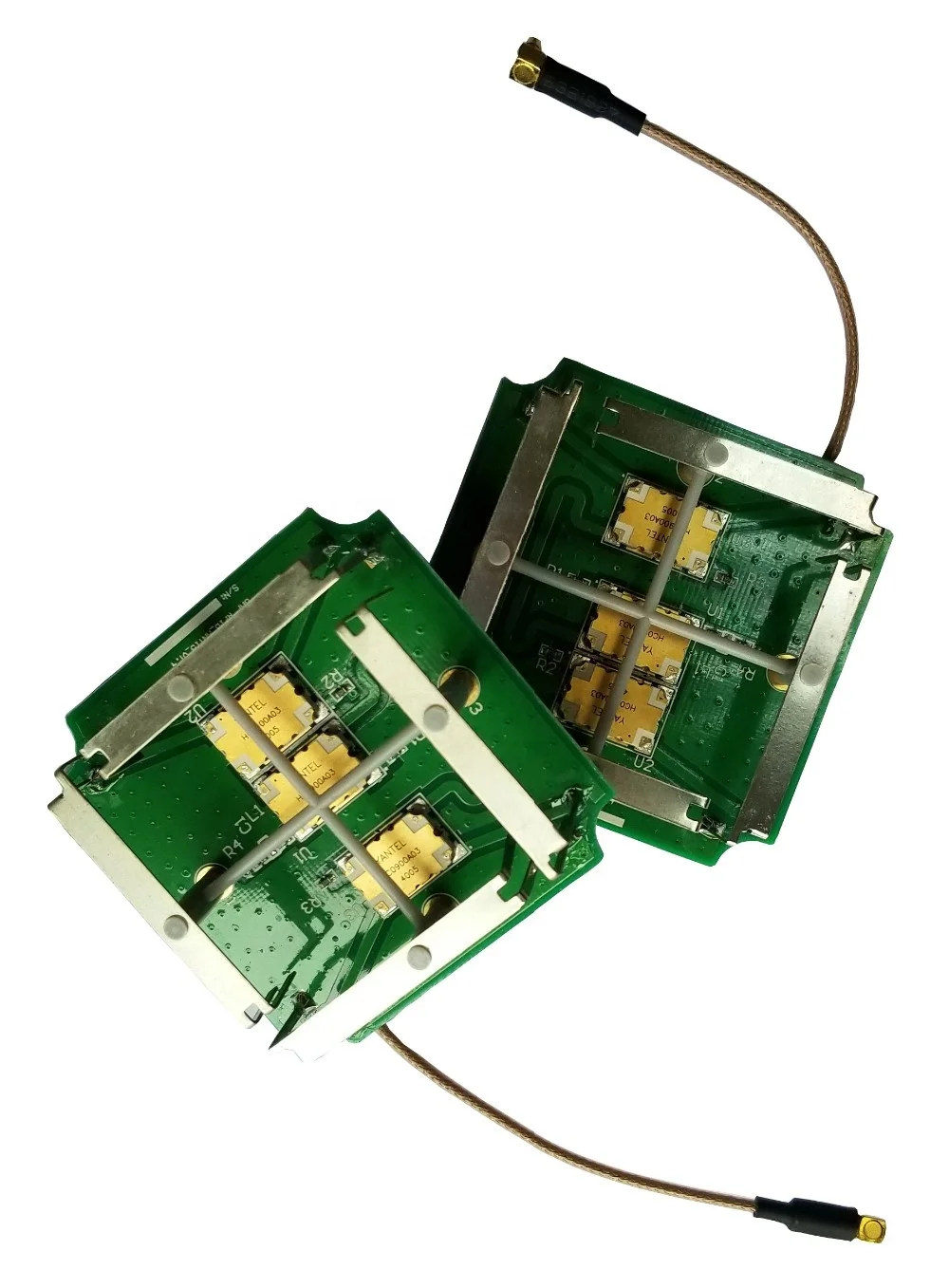

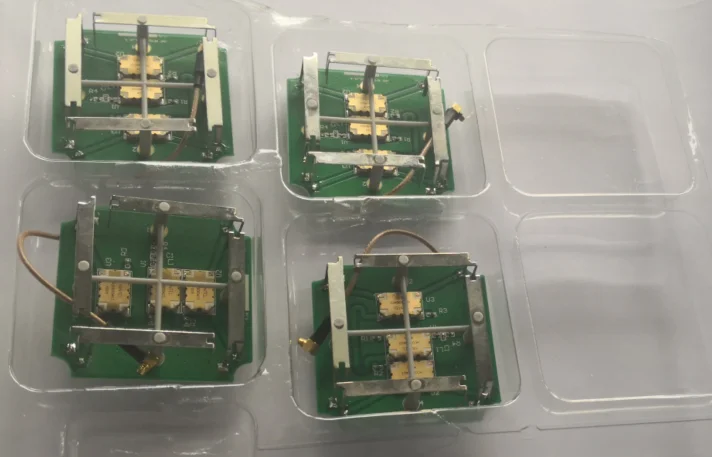

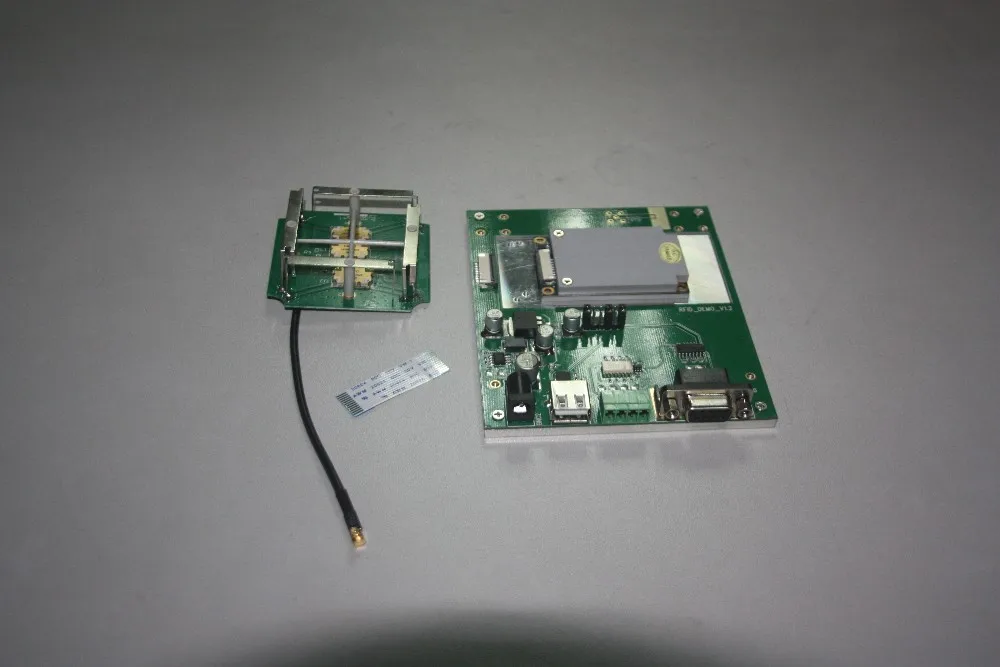

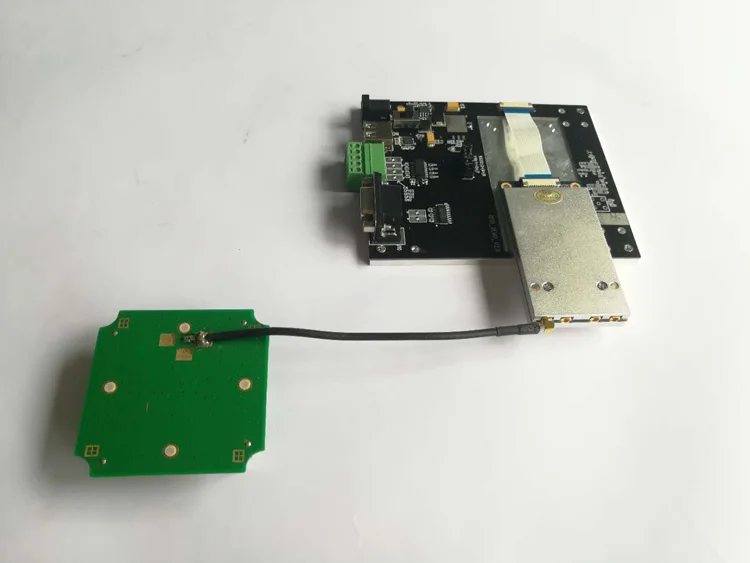

PCB Small UHF RFID Antenna for Uhf Rfid Reader Module
Ready to Ship
In stock Fast dispatch

PCB Small UHF RFID Antenna for Uhf Rfid Reader Module

  • >= 10 Pieces
    $25

Customization:

Customized packaging（Min.Order: 100 pieces）
Customized logo（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

PCB Small UHF RFID Antenna for Uhf Rfid Reader Module

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • UHF RFID Reading: Enables seamless identification and communication with UHF RFID tags operating at 860-960 MHz, compliant with ISO 18000-6C protocol, for accurate data capture and asset tracking.
  • Portable Design: Compact, lightweight PCB module with an external SMA antenna connector, allowing for easy integration into mobile or fixed systems for on-the-go or stationary use.

Key features

  • 1. Material Technology

    • With a rugged FR-4 PCB material, ensure reliable operation in harsh industrial environments.

  • 2. Interactive Design

    • With an external SMA antenna connector, customize antenna selection for up to 20% better signal strength in challenging environments*.

  • 3. Performance Parameters

    • With an 860-960 MHz frequency range and ISO 18000-6C protocol, achieve up to 50% longer read range than lower-frequency RFID systems*.

  • 4. Scenario Solutions

    • With a compact and portable design, integrate seamlessly into handheld devices or space-constrained systems for access control and asset tracking, reducing deployment costs by up to 20%*.

  • 5. Certification Standards

    • With ISO 18000-6C certification, ensure compatibility and reliability for global RFID applications.

Product details

PCB Small UHF RFID Antenna for Uhf Rfid Reader Module

The PCB Small UHF RFID Antenna for UHF RFID Reader Module is a compact, portable solution designed for seamless wireless communication in access control, inventory management, and asset tracking systems. Built with FR-4 material for durability and featuring an SMA antenna connector, it supports the ISO 18000-6C protocol across the 860-960 MHz frequency range, ensuring compliance with global standards.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialFR-4 epoxy laminateWithstands thermal and mechanical stress in industrial environments
Size50mm x 30mm x 2mm (compact design)Integrates easily into handheld devices or embedded systems
Frequency Range860-960 MHzOptimized for global UHF RFID applications
Protocol ComplianceISO 18000-6CEnsures interoperability with standardized RFID tags
Communication InterfaceRFID (UHF)Enables fast, reliable tag reading in logistics and access control
Antenna ConnectorSMA (SubMiniature version A)Supports customizable external antennas for diverse deployment scenarios

Customization guide

Adjustable parameters include antenna type (e.g., dipole, patch) and power output levels to meet specific range requirements (e.g., 5-30 dBm). The compact size can also be modified for space-constrained applications.

Get inspired

With its portable design and modular antenna interface, this RFID reader module is ideal for creating smart access control systems, warehouse inventory solutions, or IoT-enabled asset tracking networks.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Read Range5 meters+15% (5.75 meters)+30% (6.5 meters)*
Processing Speed50 tags/secEnhanced (65 tags/sec)Premium (80 tags/sec)
Power Consumption250 mA20% lower (200 mA)35% lower (160 mA)

Supplier's note

  1. Technical Breakthroughs:

    • SMA Antenna Flexibility: The external SMA connector enables antenna customization, enhancing performance in challenging environments (e.g., metal surfaces).
    • ISO 18000-6C Compliance: Ensures seamless integration with global RFID ecosystems for supply chain and retail applications.
    • FR-4 Durability: Withstands extreme temperatures (-20°C to +70°C), ideal for outdoor or industrial deployments.

  2. Version Selection Guidance:

    • Base Model: Suitable for basic access control systems requiring standard performance (e.g., office door entry).
    • Advanced Model: Optimal for warehouses or retail environments needing faster tag processing (65 tags/sec) and energy efficiency.
    • Pro Model: Designed for high-density RFID deployments (e.g., automated manufacturing lines) with extended read ranges (6.5m) and ultra-low power consumption.

With the Pro Model’s 30% extended read range, you can cover larger zones in smart logistics hubs. Pair its low power draw with its rugged FR-4 build to ensure reliability in harsh industrial settings. The Advanced Model’s balanced specs make it ideal for mid-scale inventory systems where cost and performance must align.

Frequently asked questions

  • Which UHF RFID reader model is best for compact spaces like retail stores?

  • How do I clean and maintain the PCB antenna to ensure longevity?

  • Why is FR-4 material used in the PCB antenna?

  • Can the antenna connector be customized for specific frequencies or environments?

  • Is the RFID reader module ISO 18000-6c certified?

  • What frequency range does the UHF RFID reader support, and why is it optimal?

  • Is the RFID reader module portable for on-the-go use?

  • How does the RFID communication interface ensure data security?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
UHF RFID Reader ModulesAsset tracking, supply chain, large facilitiesFrequency: 860-960 MHz (ISO 18000-6C)
Read range: 10m (▲25% vs industry standard, ISO/IEC 18046)
Weight: 100g (MIL-STD-810G portable)		Long-range readability, global compliance, lightweight designHigher cost, potential interference in dense environments, requires line of sight
HF RFID Reader ModulesLibraries, retail inventory, proximity accessFrequency: 13.56 MHz (ISO 15693)
Read range: 1m (low interference)
Size: < 50g (compact)		Low cost, minimal interference, ideal for confined spacesShort range, slower data transfer, limited to small-scale tracking
Biometric Access SystemsHigh-security facilities (e.g., data centers)FRR: ≤0.1% (IEC 60812)
Encryption: AES-256 (FIPS 140-2 certified)		Zero physical tokens needed, tamper-resistant, high securityExpensive, privacy concerns, requires frequent calibration
PIN Code Keypad SystemsResidential buildings, small officesIP65 rating (dust/water resistance)
Installation time: < 15 mins		Affordable, user-friendly, widely compatible with legacy systemsVulnerable to brute-force attacks, PIN sharing risks, limited scalability
NFC-enabled Access SystemsMobile access (e.g., event tickets)Range: 10cm (ISO 14443 compliant)
Latency: < 200ms		Smartphone integration, contactless convenience, no physical cards requiredShort range, potential cloning risks, requires NFC-enabled devices
BLE Proximity ReadersSmart homes, wearable accessRange: 100m (open space, BLE 5.0)
Battery life: 2 years (▲50% vs standard)		Long battery life, integrates with smartphones, supports mesh networkingSusceptible to interference, requires Bluetooth-enabled devices, shorter battery in active mode
