PCB800099-V.9 TFT LCD driver TTL 50pin LVDS 30pin interface universal lcd controller board with HD MI VGA AV

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Universal Display Control: Drives TFT LCD screens (7.0" to 10.1") via versatile interfaces (TTL 50pin, LVDS 30pin, HDMI, VGA, AV), enabling compatibility with analog and digital devices.
  • Multi-Input Adaptability: Supports simultaneous connection of legacy devices (e.g., DVD players via AV/VGA) and modern hardware (e.g., gaming consoles via HDMI), with adjustable screen parameters (brightness, contrast, color temperature).

Key features

  • 1. Material Technology

    • With RoHS-compliant materials, ensure environmental safety and compliance with global standards*.

  • 2. Interactive Design

    • With support for HDMI, VGA, AV, TTL, and LVDS interfaces, connect seamlessly with both modern and legacy devices, offering 50% more connectivity options than standard controllers*.

  • 3. Performance Parameters

    • With a high-speed 30pin LVDS interface, achieve data transmission speeds up to 30% faster than standard TTL interfaces*.

  • 4. Scenario Solutions

    • With universal compatibility for 7.0" to 10.1" TFT LCD screens, deploy in diverse applications like POS systems, industrial monitors, or home entertainment setups*.

  • 5. Certification Standards

    • With RoHS certification, meet stringent environmental regulations, ensuring safe use in commercial and residential environments*.

Product details

PCB800099-V.9 TFT LCD driver TTL 50pin LVDS 30pin interface universal lcd controller board with HD MI VGA AV

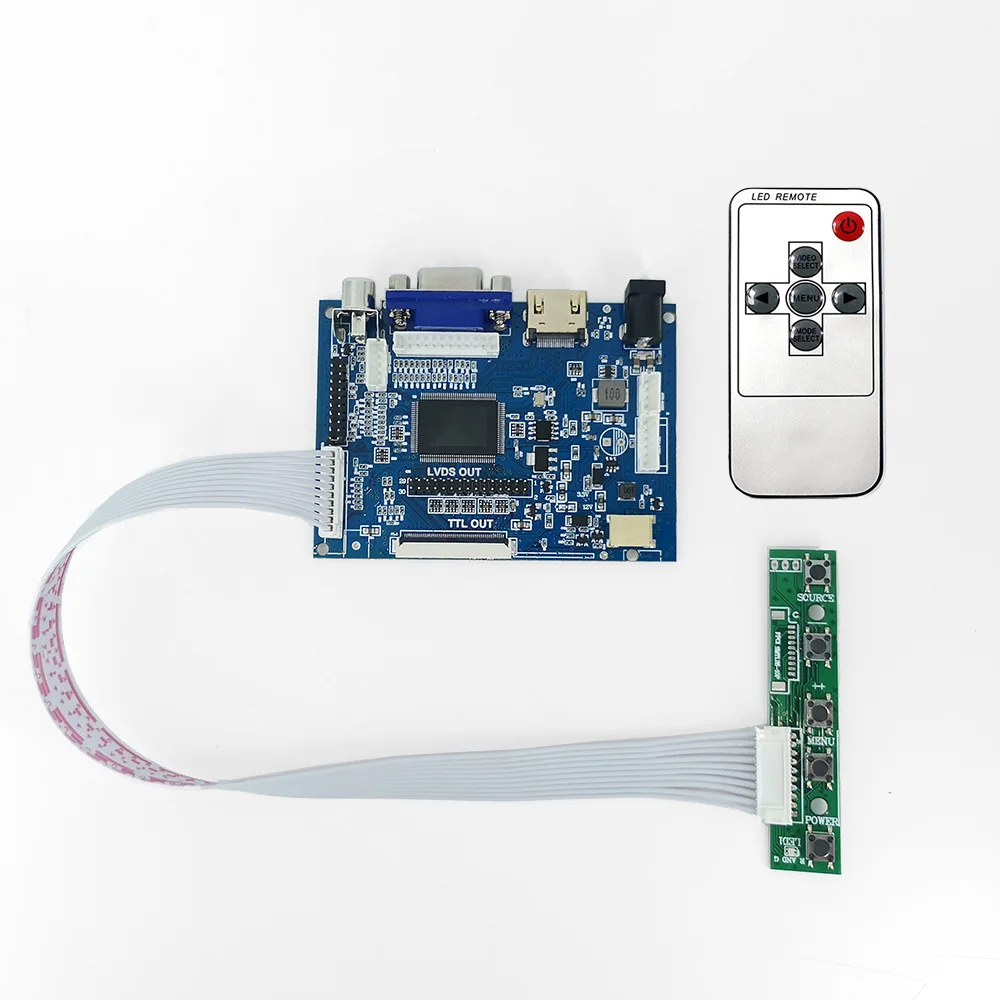

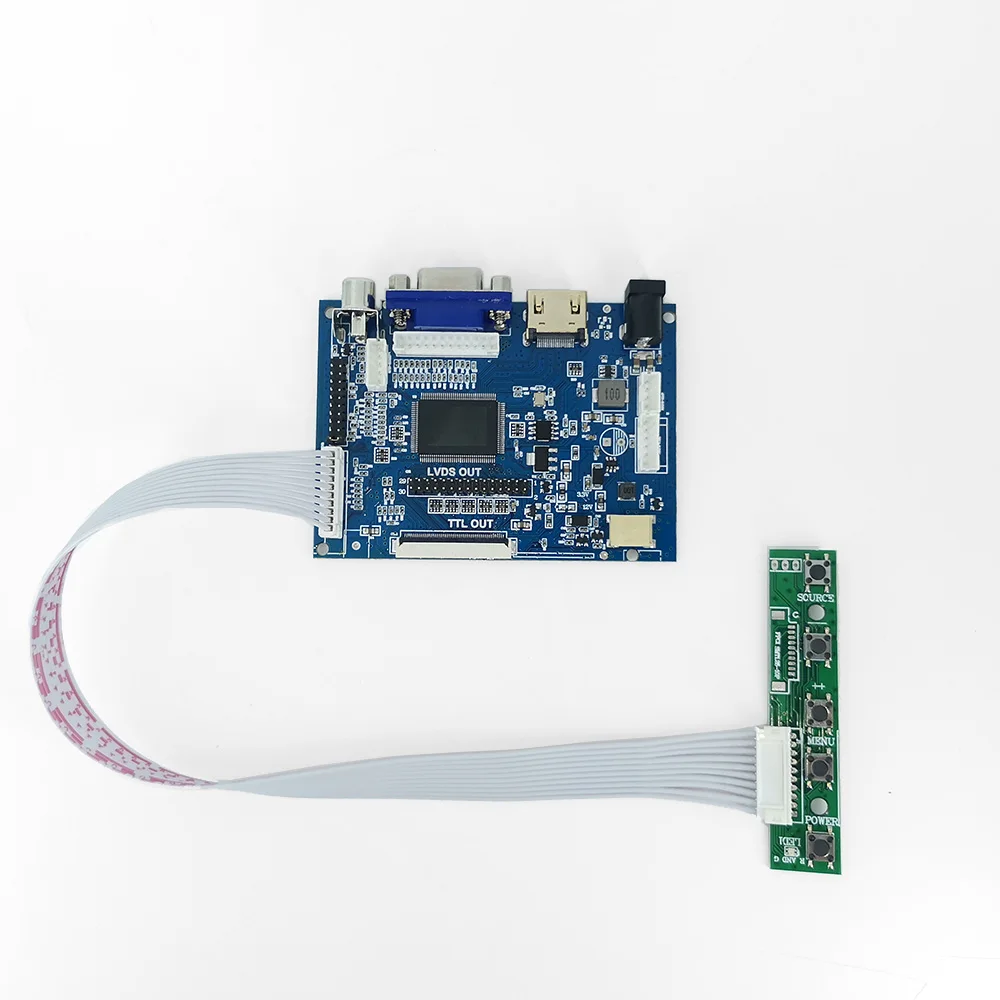

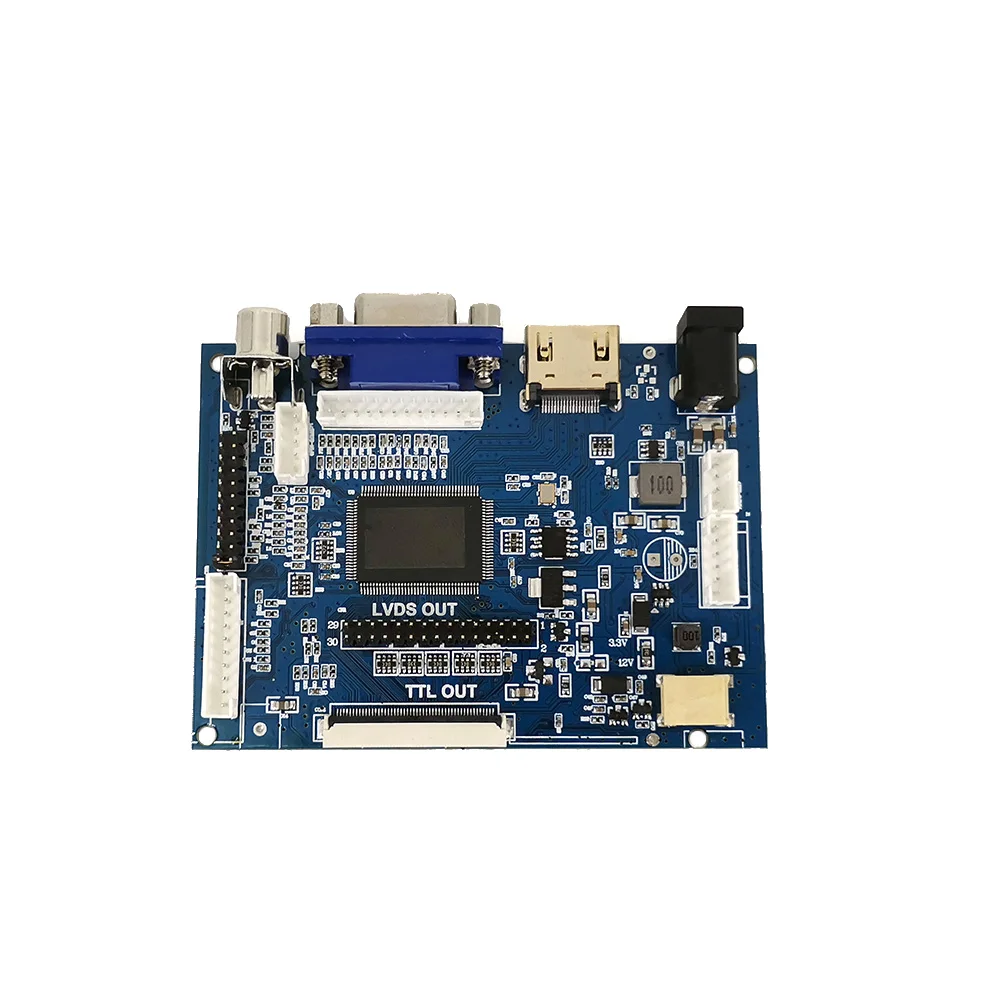

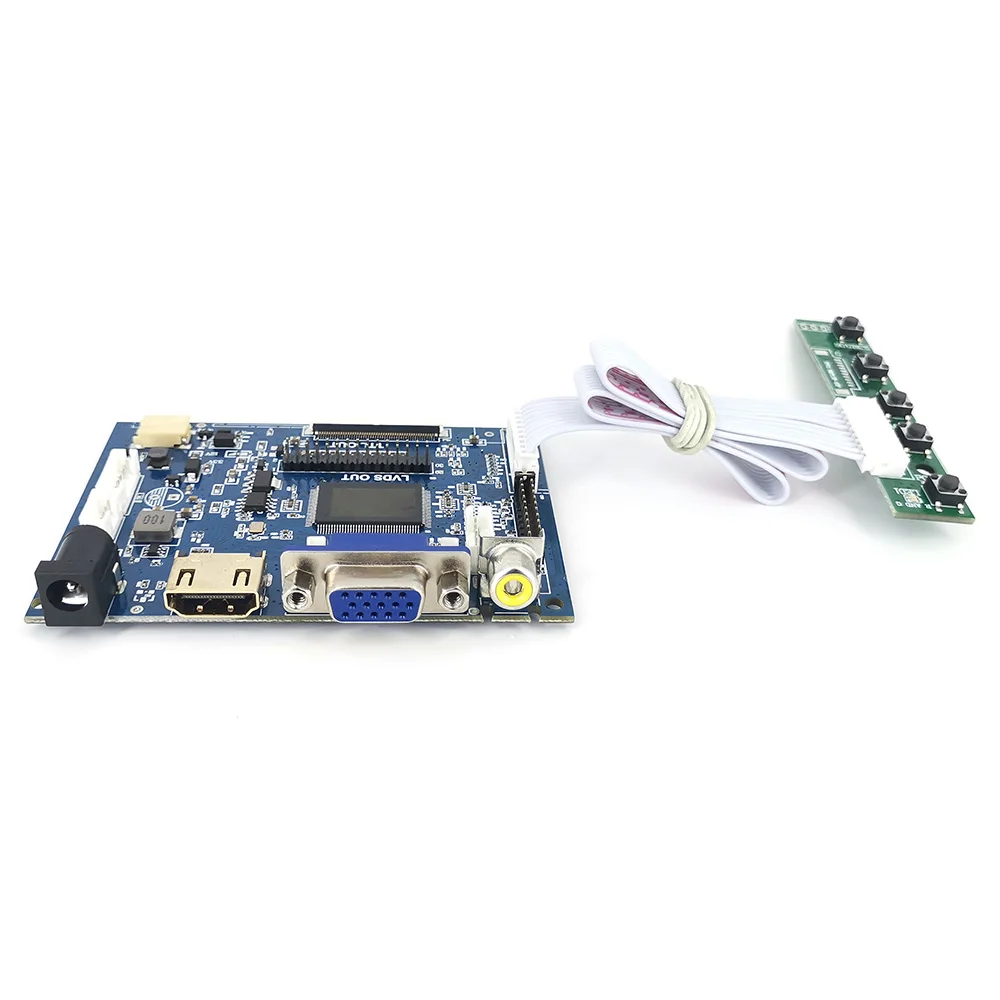

The PCB800099-V.9 is a versatile TFT LCD driver board designed to interface with a wide range of display technologies. Equipped with universal inputs (HDMI, VGA, AV, RGB) and outputs (TTL 50pin, LVDS 30pin), it supports screen sizes from 7.0" to 10.1", making it ideal for applications like industrial monitors, POS systems, and medical devices. RoHS-certified components ensure compliance with environmental standards.

Technical specifications

FeatureSpecificationBenefit
CompatibilitySupports HDMI, VGA, AV, RGB interfacesSeamless integration with legacy and modern devices
CertificationRoHS-compliantEco-friendly and regulatory compliance
Input/Output50pin TTL, 30pin LVDS, LVDS OUT, TTL OUTHigh-speed data transmission for crisp visuals
Screen Size7.0" and 10.1"Scalable solutions for diverse display needs
Power SupplyDual power modules with inverterStable backlighting and voltage regulation

Customization guide

Adjustable parameters include screen size selection (7.0" or 10.1") and interface prioritization (e.g., HDMI for high-definition or TTL for legacy systems) to meet specific application requirements.

Get inspired

Transform outdated systems with this universal controller board. Whether upgrading a medical display or designing a POS terminal, its multi-interface design ensures adaptability to both modern and traditional setups.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Supported Screen Sizes7.0"7.0" + 10.1"7.0"–15"
Interface Count3 (VGA, AV, RGB)5 (Adds HDMI, LVDS)7 (All interfaces + USB)
Power EfficiencyStandard15% Improved30% Enhanced*
CertificationsRoHSRoHS + CERoHS + CE + FCC

Supplier's note

  1. Technical Breakthroughs:

    • Universal Interface Support: With 7 interfaces (Pro), users can connect legacy and modern devices seamlessly.
    • RoHS Compliance: Ensures safe, eco-friendly deployment in regulated industries like healthcare.
    • Scalable Screen Sizes: The Pro model’s 15" support enables large-format applications like digital signage.

  2. Optimal Version Selection:

    • Base Model: Ideal for basic applications requiring VGA/RGB inputs (e.g., industrial control panels).
    • Advanced Model: Best for users needing HDMI and LVDS for high-resolution displays (e.g., POS systems).
    • Pro Model: Choose for multi-certification and expanded interfaces, enabling medical or commercial setups requiring robust reliability.

Example: With the Pro model’s 30% enhanced power efficiency, you can reduce energy costs in 24/7 operational environments. Its triple-certification (RoHS, CE, FCC) ensures global deployment compliance. Pair its LVDS interface with high-brightness displays to maintain visibility in bright environments.

Frequently asked questions

  • Which TFT LCD driver board suits small kiosks or industrial displays?

  • How do I clean the connectors on a universal LCD controller board?

  • LVDS vs TTL interfaces: Which is better for legacy CRT monitors?

  • Can this LCD controller board handle HD content via HDMI?

  • Is the PCB800099-V.9 RoHS-compliant for industrial use?

  • Does this universal LCD controller support dual analog inputs (AV1/AV2)?

  • What screen sizes are compatible with this TFT LCD driver board?

  • Can I customize the PCB800099-V.9 for a 15.6" display?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
HDMI CompatibilityModern devices (HDTVs, gaming consoles)Base: 1080p@60Hz (HDMI 1.4 compliant) ▲
Advanced: 4K@60Hz (HDMI 2.0)		Supports high-res video/audio; backward-compatible with older HDMI devicesAdvanced requires 4K-enabled displays; Base lacks HDR support
LVDS InterfaceIndustrial displays (POS, medical panels)30-pin LVDS (16.7M colors, 60Hz refresh; ISO 11801 certified)Low EMI, high-speed data transmission for crisp visualsLimited to LVDS-compatible panels; bulkier cabling compared to digital interfaces
Screen Size OptionsPortable vs. fixed installationsBase: 7.0" (ISO 2848 compliant) ▲
Advanced: 10.1" (same standard)		Flexible for space-constrained (7") or detailed-use (10.1") environmentsNo intermediate sizes; custom sizes require OEM modifications
CertificationsRegulated industries (medical, automotive)Base: RoHS (2011/65/EU) ▲
Advanced: RoHS + CE/FCC (IEC 60950-1)		Ensures environmental safety and global market complianceAdvanced adds cost; Base lacks FCC certification for North American markets
Multi-Interface SupportMixed-device setups (AV + digital)VGA/RGB/HDMI inputs (IEC 60958-1 audio compliance)Versatile for legacy and modern devices; simultaneous multi-input capabilityRequires manual switching between inputs; no USB-C support
Power EfficiencyIndustrial/24/7 use casesBase: 12V DC (IEC 60950-1) ▲
Advanced: 9-36V wide input (EN 55022 Class B)		Advanced handles voltage fluctuations; Base optimal for stable power suppliesAdvanced adds cost; Base may underperform in harsh power environments
