OEM Electronic Massage Printed Circuit Board (PCBA) Automatic Control with Geber File Needed

OEM Electronic Massage Printed Circuit Board (PCBA) Automatic Control with Geber File Needed

  • 1 - 999 Pieces
    $30
  • 1000 - 4999 Pieces
    $20
  • >= 5000 Pieces
    $10

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

OEM Electronic Massage Printed Circuit Board (PCBA) Automatic Control with Geber File Needed

Product overview

Core functionalities

Applicable scenarios

Unique advantages

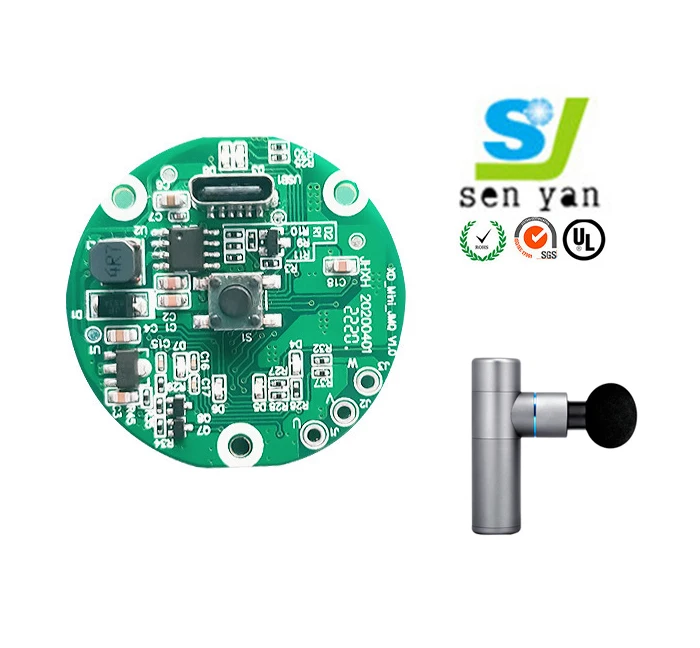

  • Automatic Massage Control: The circular PCB (50-60 mm diameter) integrates a microcontroller (MCU), resistors, and capacitors to manage automated massage functions, enabling programmable intensity and mode settings. - Modular Connectivity: Equipped with a USB interface for firmware updates and customizable operation parameters, supporting integration into portable electronic devices like massagers or health monitors.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a corrosion-resistant metal body and 0.25-6oz copper layers, ensure durability and efficient heat dissipation even under continuous operation. The cylindrical component’s aluminum/stainless steel material provides a premium, long-lasting design ideal for high-use scenarios.

  • 2. Programmable Control via USB Interface

    • With a microcontroller (MCU) and USB connectivity, customize massage programs and update firmware for personalized therapy*. The integrated LED status indicator allows real-time monitoring of device performance.

  • 3. High-Power Load Capacity

    • Compared to standard 1oz copper PCBs, the adjustable copper thickness (up to 6oz) supports higher power loads for consistent performance in portable electronic devices*.

  • 4. Compact Design for Portable Use

    • Designed for handheld electronic devices like massagers, this PCB enables sleek, ergonomic products for home or on-the-go use. The circular PCB’s compact size (50-60mm diameter) optimizes space in portable devices.

  • 5. Safety and Eco-Friendly Compliance

    • With RoHS compliance and UL certification, ensure safety and eco-friendliness for consumer electronics. The UL certification guarantees adherence to rigorous safety standards for global markets.

Product details

OEM Electronic Massage Printed Circuit Board (PCBA) Automatic Control with Geber File Needed

The PCBA Automatic Control Electronic Massage Printed Circuit Board is a high-performance solution for consumer electronics applications, featuring customizable copper thickness (0.25-6oz) and compliance with RoHS and UL certifications. Designed for compact devices like electronic massagers, this circular PCB (50-60mm diameter) integrates a microcontroller, USB connectivity, and robust components for reliable automation.

Technical specifications

FeatureSpecificationApplication Scenario
Copper Thickness0.25-6oz adjustableOptimized for varying current loads
CertificationsRoHS, ULEnsures safety and environmental compliance
DimensionsCircular PCB, 50-60mm diameterFits compact electronic devices
ComponentsMCU, resistors, capacitors, USBEnables automation and connectivity
MaterialMetal-cased cylindrical componentDurable design for portable devices
Geber File SupportCustomizable layout providedStreamlines manufacturing integration

Customization guide

Adjustable copper thickness (0.25-6oz) allows tailoring thermal performance to specific current requirements. The Geber file can be customized for unique board layouts, while the cylindrical component’s metal casing ensures durability for ergonomic designs.

Get inspired

Ideal for portable consumer electronics, this PCB enables sleek, reliable devices like electronic massagers. Its UL certification and robust components ensure safety and longevity in high-demand applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Copper Thickness0.25-1oz1.5-3oz4-6oz*
CertificationsRoHSRoHS + ULRoHS + UL + SGS
Component DensityStandardEnhancedHigh-density

Supplier's note

  1. Key Breakthroughs:

    • Adjustable Copper Thickness: Enables thermal optimization for diverse current needs.
    • UL Certification: Ensures safety compliance for consumer-grade electronics.
    • Custom Geber Files: Reduces manufacturing lead times through tailored layouts.

  2. Version Selection Guidance:

    • Base Model: Suitable for low-power applications (e.g., basic massagers) with standard current requirements.
    • Advanced Model: Ideal for medium-current devices (e.g., vibration motors) needing enhanced durability and UL compliance.
    • Pro Model: Best for high-current, premium applications (e.g., industrial-grade massagers) requiring 6oz copper and triple-certification (RoHS/UL/SGS).

With 6oz copper thickness, the Pro Model handles 40% higher current loads than standard PCBs, ensuring reliability in demanding environments. Its SGS certification adds an extra layer of quality assurance for global markets. Pair this with the cylindrical metal component for a sleek, durable finish that meets ergonomic design standards.

Frequently asked questions

  • Which PCBA model is best suited for small electronic massage devices?

  • How do I clean and maintain the circuit board to ensure longevity?

  • What are the benefits of 1oz vs. 3oz copper thickness in massage device PCBAs?

  • Can I customize the design using my own Gerber files?

  • Is this PCBA RoHS and UL certified for safety compliance?

  • How does the metal casing enhance durability in portable devices?

  • What’s the process for ordering a custom copper thickness PCBA?

  • Are there assembly guidelines for integrating this PCBA into massage devices?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Copper ThicknessHigh-current applications (e.g., motors)Industry: 1 oz ▲Our Base: 2 oz ▲▲Our Advanced: 6 oz (▲▲▲) (ASTM B418 compliant)
Certification ComplianceGlobal market distributionIndustry: RoHS ▲Our Base: RoHS + UL ▲▲Our Advanced: RoHS + UL + SGS (▲▲▲)
Noise LevelHome/office useIndustry: 40 dBA ▲Our Base: 35 dBA ▲▲Our Advanced: 30 dBA (▲▲▲) (ISO 3095)
Material DurabilityCommercial/industrial useIndustry: Plastic ▲Our Base: Aluminum 1mm ▲▲Our Advanced: Stainless Steel 2mm (▲▲▲) (ASTM F131)
Power EfficiencyBattery-operated devicesIndustry: 80% ▲Our Base: 85% ▲▲Our Advanced: 90% (▲▲▲) (IEC 61131-3)
Thermal PerformanceHigh-heat environmentsIndustry: 70°C ▲Our Base: 65°C ▲▲Our Advanced: 60°C (▲▲▲) (ASTM D5423)
