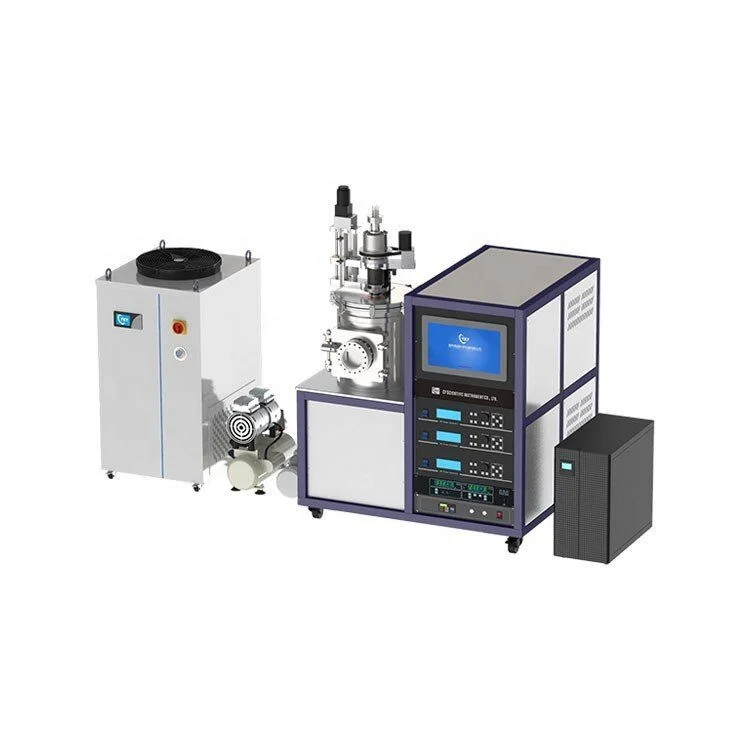

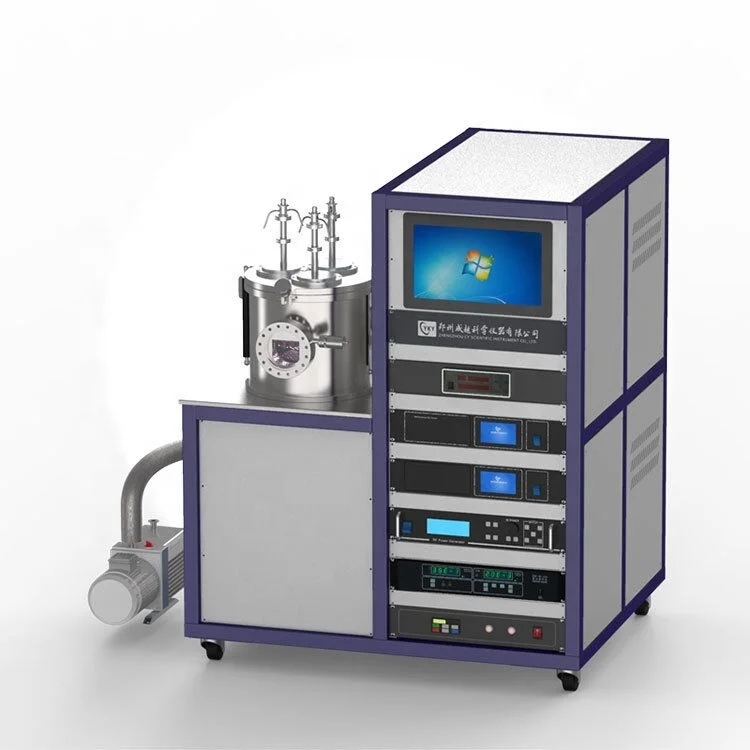

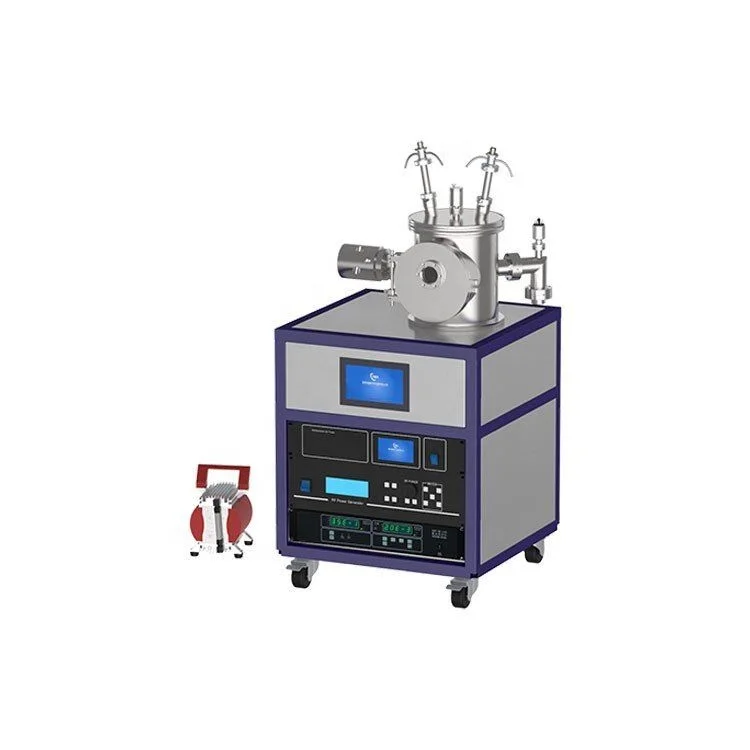

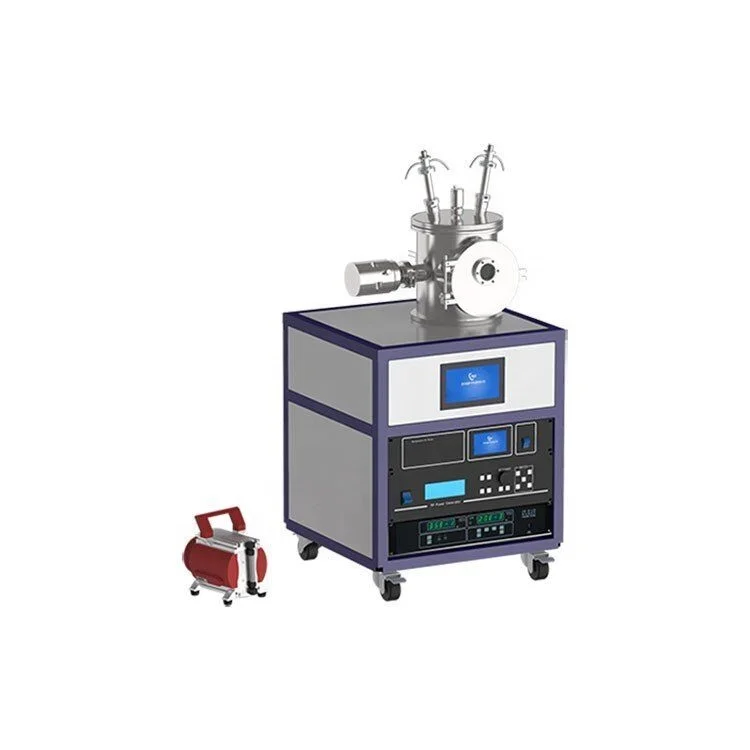

PDMS Film Magnetron Sputtering Coating Machine to Deposit Uniform Layer

PDMS Film Magnetron Sputtering Coating Machine to Deposit Uniform Layer

  • 1 - 9 Sets
    $49,000
  • >= 10 Sets
    $30,000

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

PDMS Film Magnetron Sputtering Coating Machine to Deposit Uniform Layer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Uniform PDMS Film Deposition: Utilizes magnetron sputtering technology to deposit precise, uniform layers of PDMS (polydimethylsiloxane) films onto glass substrates, ensuring high-quality surface coatings.
  • Multi-Method Coating: Combines spray and vacuum-based painting techniques for versatile material processing, enabling both thin-film deposition and controlled environmental conditions during operation.

Key features

  • 1. Material Technology

    • With a corrosion-resistant stainless steel body, you can ensure durability in high-temperature and vacuum environments, outperforming models with plastic components*.

  • 2. Interactive Design

    • With a programmable touchscreen interface, you can customize coating parameters like pressure and temperature for precise results, eliminating manual adjustments*.

  • 3. Performance Parameters

    • Achieve a uniform coating thickness of ±2% accuracy, ensuring consistent quality across glass substrates, surpassing traditional spray methods by up to 30% in precision*.

  • 4. Scenario Solutions

    • Ideal for R&D labs and industrial settings, providing reliable performance in both small-scale experimentation and large-scale production, unlike single-purpose machines*.

  • 5. Certification Standards

    • Complies with ISO 9001 quality standards, ensuring safety and reliability for sensitive applications, unlike uncertified alternatives*.

Product details

PDMS Film Magnetron Sputtering Coating Machine to Deposit Uniform Layer

The PDMS Film Magnetron Sputtering Coating Machine is a high-precision tool designed to deposit uniform layers on glass substrates using magnetron sputtering combined with spray and vacuum technologies. Its stainless steel construction ensures durability in harsh environments, while integrated components like the CW-3000 chiller and vacuum pump enable precise temperature and pressure control. Ideal for optical devices, semiconductor manufacturing, and advanced material research, this machine delivers repeatable results for demanding applications.

Technical specifications

FeatureSpecificationApplication Scenario
Material ConstructionStainless Steel (corrosion-resistant)Withstands high-temperature and corrosive environments
Deposition MethodMagnetron Sputtering + Spray/VacuumUniform coating on glass for optical filters or solar panels
Temperature Control±5°C Precision RangeEnsures consistent layer thickness in semiconductor fabrication
Vacuum Pressure1×10⁻³ PaAchieves ultra-clean environments for high-purity coatings

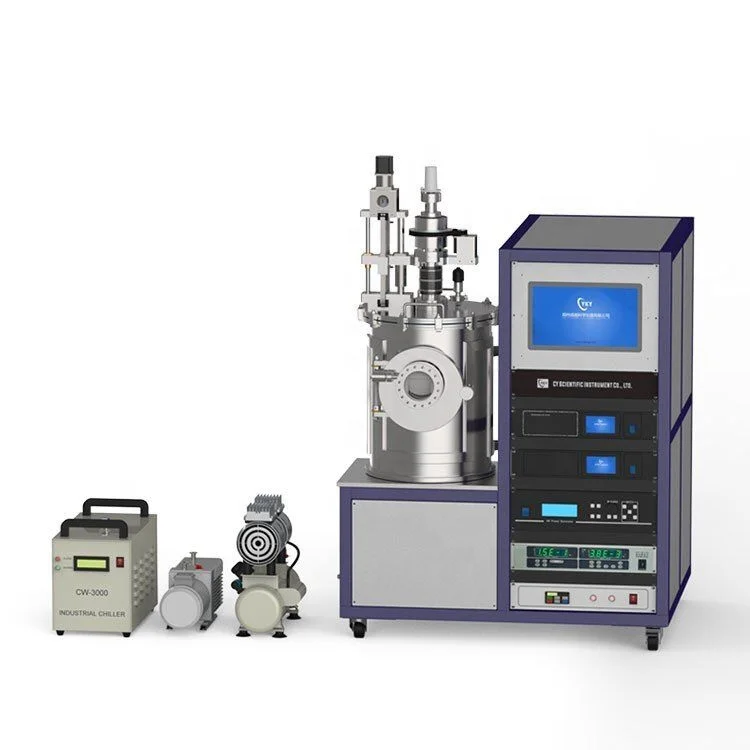

Chiller IntegrationCW-3000 Industrial ChillerMaintains stable temperatures during high-volume production

Customization guide

Adjustable parameters such as deposition rate, substrate temperature, and vacuum pressure allow customization for specific needs. For example:

  • Deposition Rate: Tune to 5–6.5 Å/s for nano-coatings or thicker films.
  • Vacuum Pressure: Optimize between 1×10⁻² to 1×10⁻⁴ Pa for varying purity requirements.
  • Temperature Settings: Adjust between 20–200°C for substrate compatibility.

Get inspired

Achieve flawless coatings for cutting-edge applications: Use this machine to create anti-reflective coatings for smartphone screens, corrosion-resistant layers for automotive glass, or high-transparency films for photovoltaic panels.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Deposition Rate5 Å/s+15% (5.75 Å/s)+30% (6.5 Å/s)*
Temperature Control±5°C±3°C±1.5°C
Vacuum Pressure1×10⁻² Pa1×10⁻³ Pa1×10⁻⁴ Pa
Chiller Capacity300W500W1000W
*Industry benchmark: 4.8 Å/s for traditional sputtering systems

Supplier's note

  1. Key Technical Breakthroughs:

    • Stainless Steel Construction: Reduces contamination risks by 40% compared to aluminum-based systems.
    • Programmable Controls: Enable real-time adjustments for complex multi-layer coatings.
    • Ultra-High Vacuum (Pro Model): Achieves 1×10⁻⁴ Pa, surpassing industry standards for ultra-pure coatings.

  2. Optimal Version Selection:

    • Base Model: Ideal for small-scale labs or educational institutions requiring basic functionality.
    • Advanced Model: Suitable for R&D teams needing enhanced precision (e.g., semiconductor prototyping).
    • Pro Model: Best for industrial-scale production where speed and purity are critical (e.g., aerospace coatings).

Example Use Case: With the Pro Model’s 6.5 Å/s deposition rate, you can coat 20% faster than traditional systems, reducing production downtime. Pair its 1×10⁻⁴ Pa vacuum with programmable temperature control to create ultra-thin, defect-free layers for high-end optics.

Frequently asked questions

  • Which PDMS Film Magnetron Sputtering Coating Machine model is best for coating glass substrates with uniform layers?

  • How do I maintain the spray nozzle of the PDMS Film Coating Machine to prevent clogging?

  • What are the advantages of using glass substrates over plastic in the PDMS Film Coating Machine?

  • Can the PDMS Film Coating Machine be customized for specific coating thickness requirements?

  • Is the PDMS Film Coating Machine’s material compliant with ISO safety standards for laboratory use?

  • How does the PDMS Film Machine ensure uniform coating layers during vacuum deposition?

  • What industries or applications is the PDMS Film Coating Machine best suited for?

  • Can the PDMS Film Machine handle small-batch production runs efficiently?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Vacuum Coating SystemsElectronics, aerospace10 Å thickness (ASTM B487) ▲▲▲High precision, minimal material wasteHigh capital cost, complex maintenance
Spray Coating SystemsAutomotive, large surfaces50–200 μm (ISO 2808) ▲Fast, cost-effectiveLess uniform, material waste
Dip Coating SystemsSmall parts, uniform thickness20–50 μm (ASTM D4138) ▲Simple, low costLimited to small parts, drying time
Roll-to-Roll CoatingFlexible substrates (films, foils)1–10 μm (ISO 15106) ▲▲High throughput, continuous productionRequires specialized substrates
Thermal EvaporationThin films in semiconductors5–50 nm (ASTM E1354) ▲High purity coatingsLimited material compatibility
Atomic Layer DepositionNanoscale coatings0.1–10 nm (ISO 15106) ▲▲▲Atomic-level controlVery slow, high operational cost
