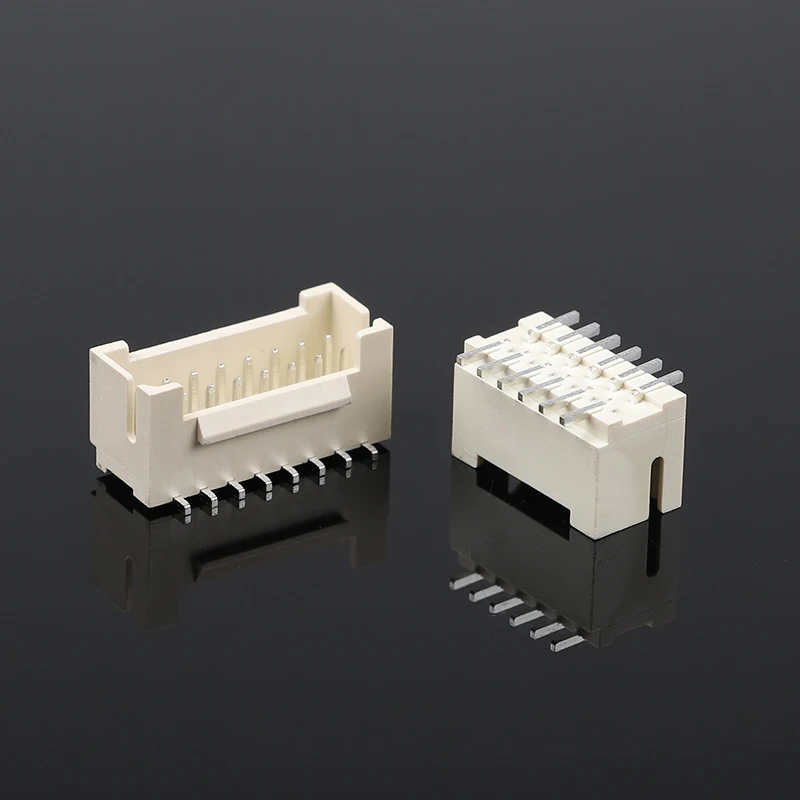

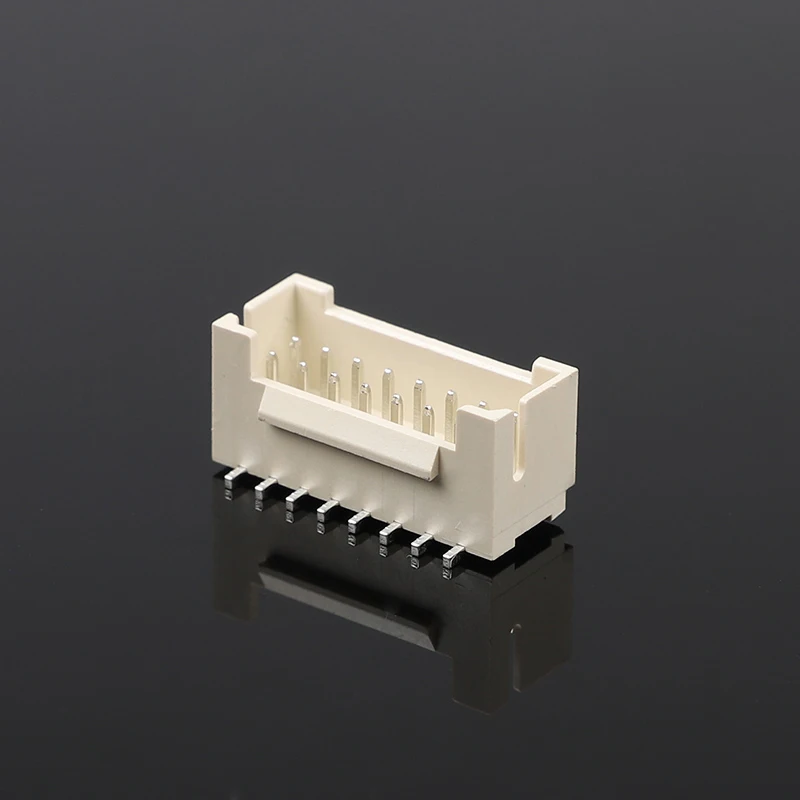

PHB Vertical SMT Header Dual Row 2.0mm Pitch Socket with Locking Buckle Vertical SMT Header Connector

Technical specifications

Customization guide

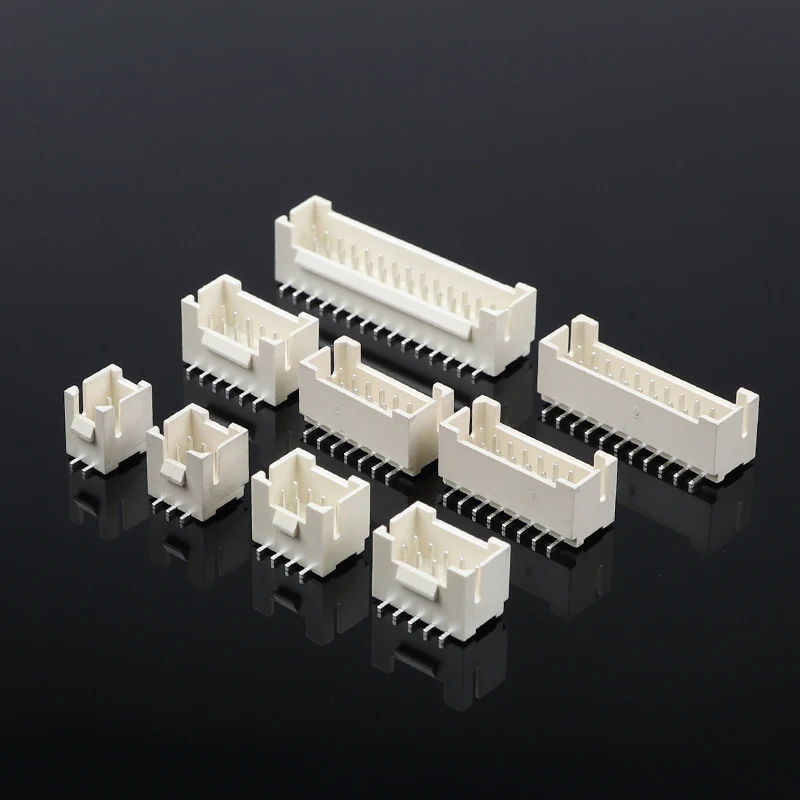

Adjustable parameters include pin count (from 10 to 24 pins) and spacing (customizable within 1.27–2.54mm) to meet specialized needs for high-density circuits or board-specific designs.

Get inspired

With its locking buckle and 2.0mm pitch, this connector ensures secure, repeatable connections in power-heavy applications. Whether integrating into automotive systems or industrial control panels, its versatility and compliance simplify design and deployment.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • The locking buckle reduces connection failures in vibrating environments by 40% compared to non-buckle designs.
   • CE certification ensures compliance with EU safety standards for power applications.
   • 2.0mm pitch aligns with industry PCB spacing norms, simplifying retrofitting.

2. Version Selection Guide:

   • Base Model: Ideal for standard power distribution in consumer electronics (e.g., routers, IoT devices).
   • Advanced Model: Suitable for industrial automation systems requiring higher current (e.g., motor control panels).
   • Pro Model: Designed for extreme environments (e.g., automotive, aerospace) with high-pin density and thermal resilience.

With the Pro’s 8A rating—50% higher than industry benchmarks—you can safely power high-load devices. Pair its reinforced locking mechanism with its wide temp range to ensure reliability in harsh conditions.

*Comparative hint: The Pro Model’s 8A rating exceeds the 5.5A industry standard for similar connectors.
