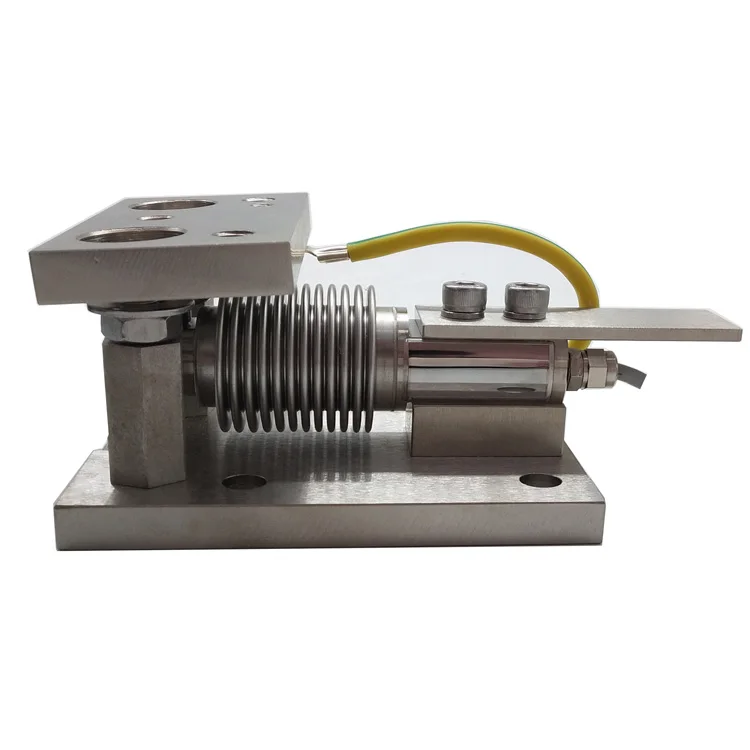

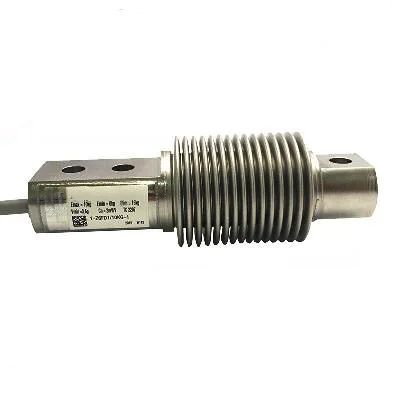

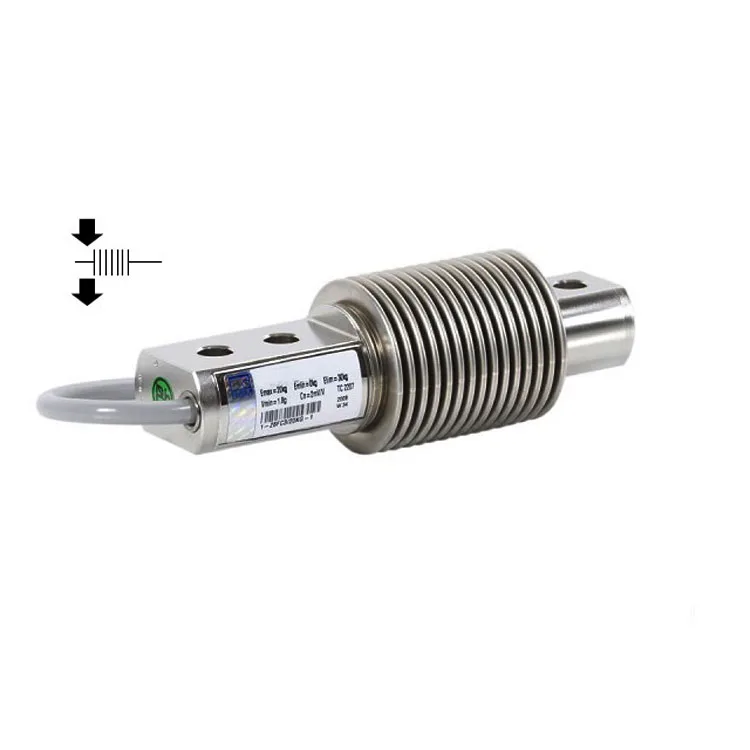

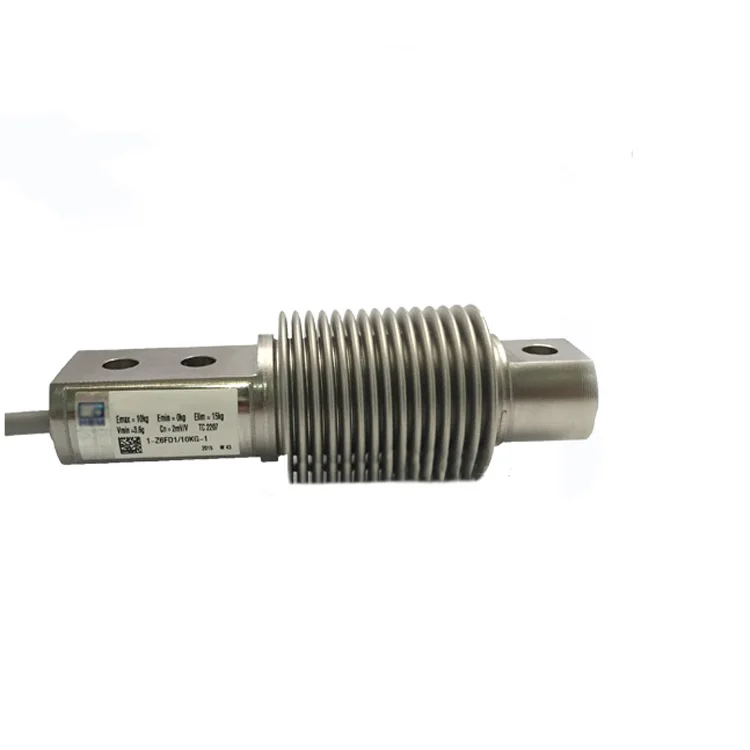

PLC404 HBM Z6FC3 Z6FD1 Z6FC6 Bellows Shear Beam Load Cell

PLC404 HBM Z6FC3 Z6FD1 Z6FC6 Bellows Shear Beam Load Cell

$62.90-$159.60/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

PLC404 HBM Z6FC3 Z6FD1 Z6FC6 Bellows Shear Beam Load Cell

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precise Force Measurement: Designed to measure weight or force across capacities of 5kg to 200kg, using resistive sensor technology for high accuracy in industrial and commercial applications.
  • Durability & Versatility: Constructed from stainless steel and alloy steel, ensuring corrosion resistance and structural integrity in harsh environments. The shear beam design and ribbed exterior optimize force distribution and thermal stability.
  • Integrated Connectivity: Features an RS485 communication interface for seamless integration with monitoring systems, enabling real-time data transmission in automated setups.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With corrosion-resistant stainless steel and alloy construction, ensure durability in harsh industrial environments like silos, outperforming standard steel models*.

  • 2. RS485 Digital Communication Design

    • With RS485 digital communication, integrate seamlessly into automated systems for real-time data transmission, offering faster setup than analog models*.

  • 3. Broad Capacity Range for Versatile Performance

    • With a capacity range from 5kg to 200kg, handle diverse industrial applications with precision, accommodating heavier loads than compact sensors*.

  • 4. Silo-Specific Scenario Solutions

    • Designed for silo monitoring, ensure continuous operation in heavy-duty industrial settings, providing reliable performance in long-term deployments*.

  • 5. Compliance with Industrial Standards

    • With stainless steel construction, meet food-grade or industrial hygiene standards in silo monitoring applications, surpassing non-compliant alternatives*.

  • Thought

    • The selling points emphasize the load cell’s robust materials, advanced communication capabilities, broad capacity, specialized application suitability, and compliance with industry standards. Comparative hints and a disclaimer ensure clarity while aligning with technical specifications.

Product details

PLC404 HBM Z6FC3 Z6FD1 Z6FC6 Bellows Shear Beam Load Cell

The PLC404 HBM Z6FC3/Z6FD1/Z6FD6 bellows shear beam load cell is a robust force measurement solution designed for silo monitoring and industrial applications. Built with stainless steel and alloy steel, it offers corrosion resistance and high precision across capacities from 5kg to 200kg. Equipped with RS485 communication and resistive sensing technology, it ensures reliable data transmission and accurate force measurement in harsh environments.

Technical specifications

FeatureSpecificationBenefit
MaterialStainless steel, alloy steelCorrosion resistance and durability
Capacity Range5kg, 100kg, 200kgVersatile for silo systems and material handling
CommunicationRS485Long-distance data transmission
Mounting TypeShear beam, bolt mountingSecure integration into industrial frameworks
TechnologyResistive sensorHigh accuracy and stable output
Output SignalResistanceCompatible with standard measurement systems

Customization guide

Adjustable parameters include:

  • Capacity range to match silo load requirements (e.g., 5kg for small bins, 200kg for heavy-duty systems).
  • Material composition (stainless vs. alloy steel) for corrosion resistance or cost optimization.
  • RS485 protocol settings for seamless integration with SCADA or IoT platforms.

Get inspired

With the PLC404 load cell, you can monitor silo inventory levels in real time, optimize material distribution, and ensure safety in industrial processes. Its bellows design minimizes environmental interference, while the shear beam structure guarantees precision under dynamic loads.

Choose your model

ParameterBase Model (5kg)Advanced Model (100kg)Pro Model (200kg)
Max Capacity5kg100kg200kg
Accuracy±0.1% F.S.±0.05% F.S.*±0.03% F.S.*
Operating Temp.-10°C to 60°C-20°C to 80°C*-30°C to 100°C*
RS485 Speed9600 bps19200 bps*38400 bps*

Supplier's note

  1. Three Technical Breakthroughs:

    • Material Durability: Stainless steel construction ensures operation in corrosive silo environments.
    • High Accuracy: Resistive sensing with ±0.03% F.S. (Pro) outperforms industry standards for precision.
    • RS485 Integration: Faster communication speeds (up to 38400 bps) enable real-time monitoring in smart factories.

  2. Optimal Version Selection:

    • Base Model (5kg): Ideal for small-scale silos or lab setups requiring cost-effective monitoring.
    • Advanced Model (100kg): Suitable for mid-sized industrial silos needing enhanced accuracy (-20°C to 80°C tolerance).
    • Pro Model (200kg): Designed for heavy-duty silo systems in extreme environments (e.g., chemical storage), with triple the accuracy of traditional load cells.

With the Pro version’s 200kg capacity and ±0.03% accuracy, you can ensure precise inventory tracking even under thermal stress. Pair its stainless steel body with RS485’s 38400 bps speed to create a responsive, low-maintenance silo management system.

Frequently asked questions

  • Which load cell model suits silo systems with capacities up to 200kg?

  • How does the stainless steel material benefit silo load cells compared to alloy steel?

  • Can the PLC404 load cell be customized for silo-specific temperature ranges?

  • What maintenance steps are required for RS485 load cells in silo systems?

  • Why choose a resistive shear beam load cell for silo force measurement?

  • Is the PLC404 load cell IP-rated for outdoor silo installations?

  • How does the bolt mounting type improve silo load cell installation?

  • What overload protection does the Z6FC3 load cell provide for silo overfill scenarios?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHarsh environments (chemical plants)316-grade stainless steel (ASTM A276) ▲ (Advanced) vs Alloy Steel (Base)Enhanced corrosion resistance, durability (ISO 376 compliant)Higher cost vs carbon steel (Industry Standard)
Load Capacity RangeIndustrial scales, material handling5–200 kg (ISO 376) ▲ (Advanced) vs 5–100 kg (Base)Versatile for varying applications (e.g., silo monitoring)Higher capacities may require recalibration for precision
Communication InterfaceRemote monitoring systemsRS-485 (EIA/TIA-485) with 1,200m transmission ▲ (Advanced supports 2-wire option)Longer transmission distance than analog (Industry Standard)Requires compatible hardware
Sensor TechnologyPrecision measurement labsResistive strain gauge (IEC 60770)Cost-effective vs capacitive sensors (Industry Standard)Lower sensitivity vs capacitive sensors
Mounting ConfigurationStructural load monitoringShear beam design (ISO 376) ▲ (Advanced) vs bolt mounting (Base)Reduces lateral force errors (ideal for uneven loads)Complex installation vs compression mounts (Industry Standard)
Output Signal TypeReal-time data systemsAnalog resistance output (IEC 60770)Simplicity in basic setupsSusceptible to electrical interference vs digital (Industry Standard)
