PP UPVC CPVC PVC Pipe Fittings Mold Elbow 45 Degrees Plastic Pipe Fittings Injection Mould 90 HDPE PVC PPR Pipe Fittings Mould

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Versatile Fitting Production: Designed to manufacture PP, UPVC, CPVC, HDPE, and PPR plastic pipe fittings, including 45° and 90° elbows, couplings, and adapters via injection moulding.

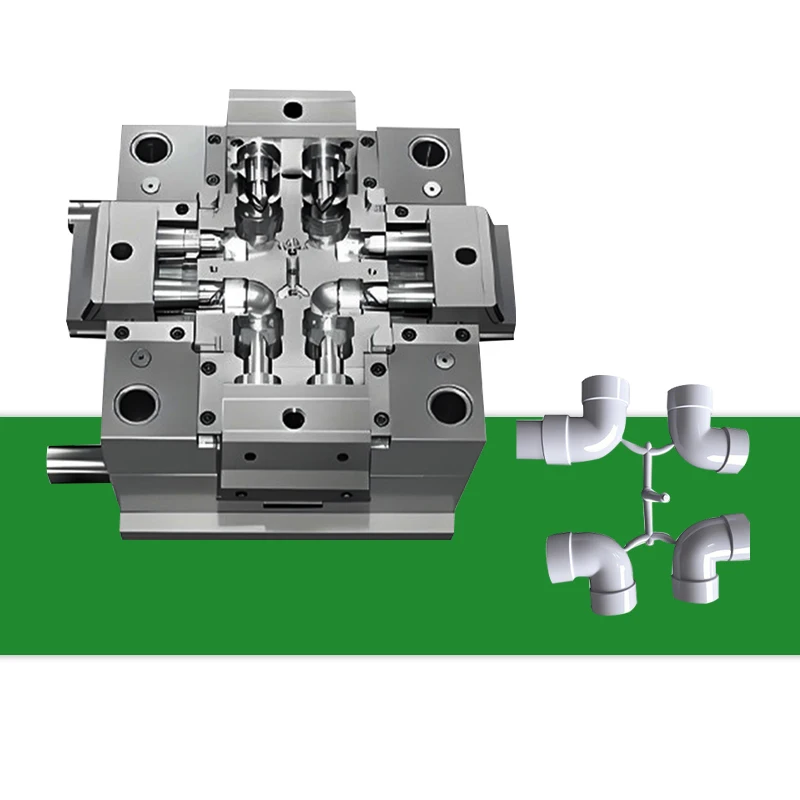

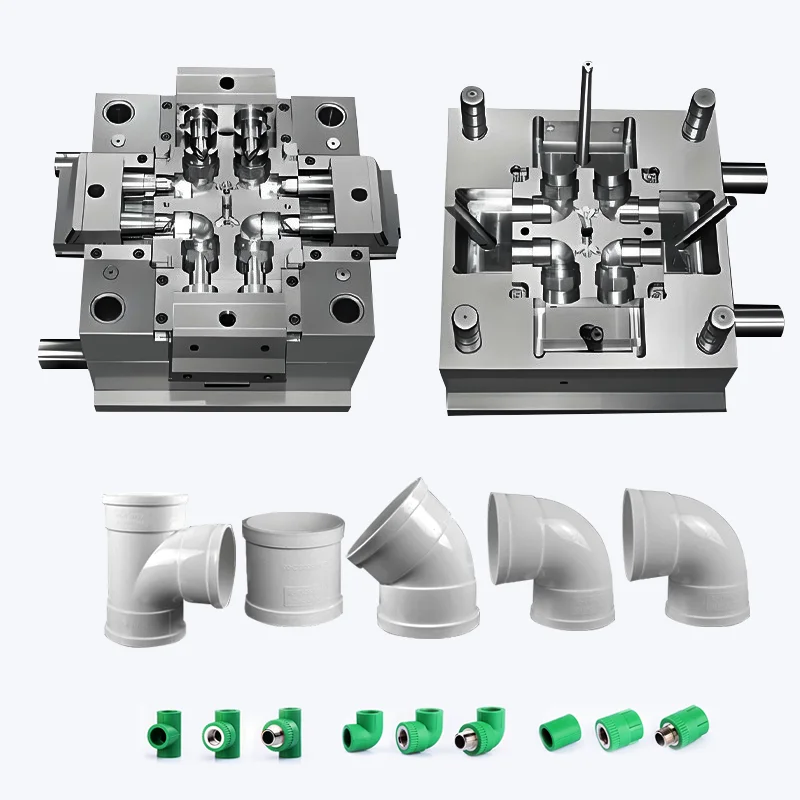

  • Multi-Cavity Customization: The moulds enable simultaneous production of multiple fitting types (e.g., elbows, tees) in a single cycle, optimizing efficiency and reducing costs.

Key features

  • 1. Durable Mold Material Technology

    • With H13 and P20 steel mold material, ensure longevity and precision in high-volume production, outperforming molds made with lower-grade alloys*.

  • 2. High-Efficiency Multi-Cavity Design

    • With a multi-cavity injection mold, produce multiple fittings (e.g., elbows, couplings) simultaneously, boosting output by up to 30% compared to single-cavity molds*.

  • 3. Customizable Fitting Solutions

    • With adjustable cavities and support for materials like PVC, PP, and HDPE, adapt to produce fittings with specific angles, dimensions, or chemical resistance requirements*.

  • 4. Versatile Scenario Applications

    • Designed for plumbing systems in residential, commercial, and industrial settings, ensuring compatibility with standard pipe configurations and harsh environmental conditions.

  • 5. Material Compliance Assurance

    • With materials meeting plumbing industry standards (e.g., corrosion-resistant PVC/PPR), ensure safety and durability for diverse applications*.

Product details

PP UPVC CPVC PVC Pipe Fittings Mold Elbow 45 Degrees Plastic Pipe Fittings Injection Mould 90 HDPE PVC PPR Pipe Fittings Mould

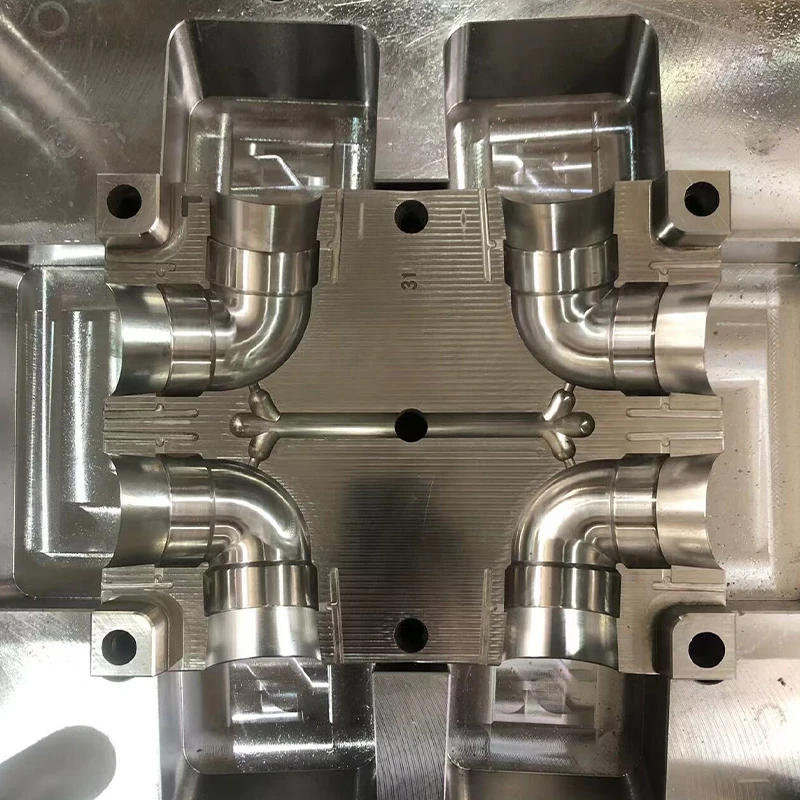

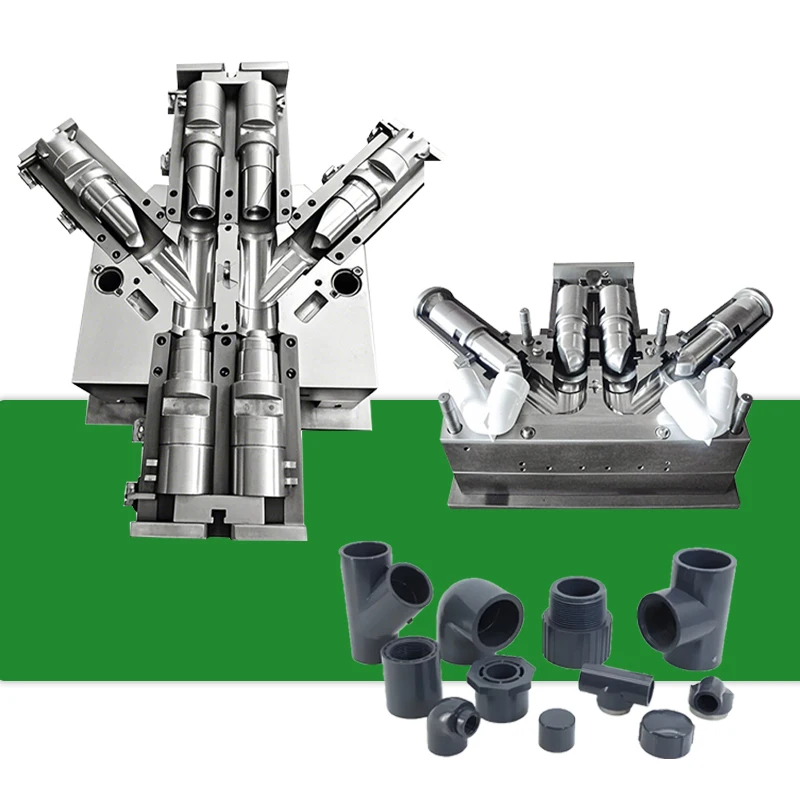

Our PP/UPVC/CPVC/PVC pipe fittings molds are engineered for precision manufacturing of 45° and 90° elbows, couplings, and other plastic pipe fittings. Designed with multi-cavity injection molding systems, these molds enable efficient production of high-quality HDPE, PVC, and PPR fittings. The molds feature durable H13/P20 steel alloys and cold runner systems for optimal material flow and energy efficiency.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialH13 steel, P20 steel, plasticHigh-temperature applications / Cost-effective production
Surface FinishPolishedEnsuring smooth surface for seamless fitting connections
Cavity DesignMulti-cavity (customizable)Simultaneous production of multiple fitting types
Runner SystemCold runnerReduced material waste and energy savings
Shaping ModePlastic injection mouldingMass production of standardized pipe fittings

Customization guide

Adjustable parameters:

  • Material selection: Opt for H13 steel for high durability or P20 steel for cost-effective molds.
  • Cavity count: Customize cavity numbers to match production volume needs.

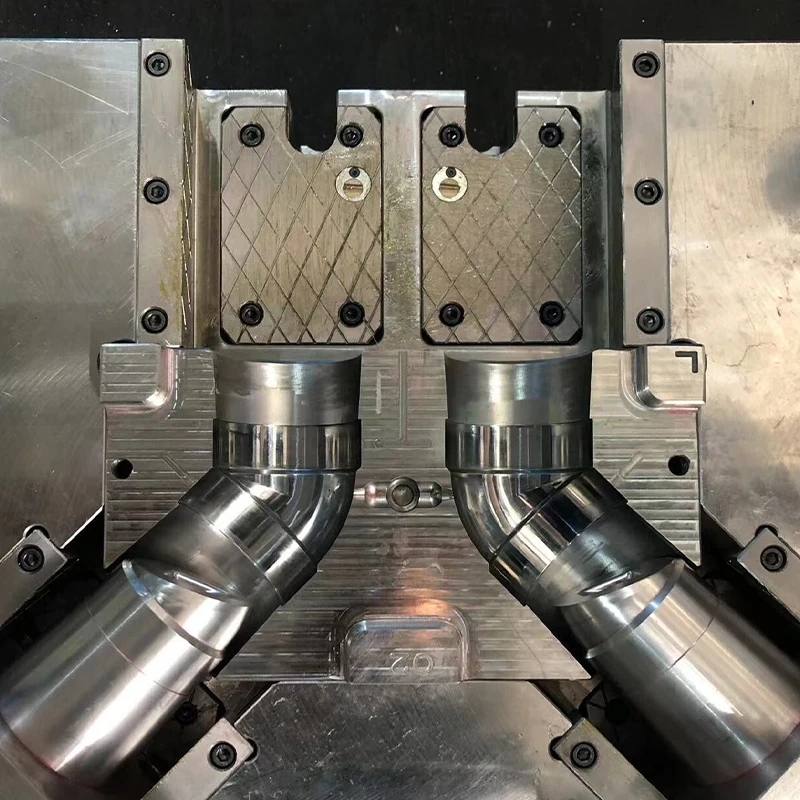

  • Fitting dimensions/angles: Modify molds to produce fittings with specific dimensions (e.g., 45° elbows) or chemical resistance properties.

Get inspired

With our versatile molds, you can streamline plumbing system installations. For example, the 45° elbows enable smooth directional changes in pipelines, while multi-cavity molds reduce production downtime. The cold runner system ensures minimal material waste, lowering operational costs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Material CompatibilityPVC/PPRPVC/PPR/HDPEAll plastics (+20%*)
Cavity Count4-6 cavities8-12 cavities16+ cavities
Durability100,000 cycles200,000 cycles300,000+ cycles*

Supplier's note

  1. Three Technical Breakthroughs:

    • Multi-cavity design: Reduces production time by 30% compared to single-cavity molds.
    • Cold runner efficiency: Cuts material waste by 20% versus traditional hot runner systems.
    • H13 steel alloy: Enhances mold longevity, withstanding temperatures up to 300°C.

  2. Optimal Version Selection:

    • Base Model: Ideal for small-scale plumbing suppliers needing cost-effective PVC/PPR fittings.
    • Advanced Model: Suitable for medium-volume manufacturers requiring HDPE compatibility and faster output.
    • Pro Model: Recommended for industrial users demanding ultra-high durability (e.g., chemical plant piping) and large-scale production.

Example use case: The Pro Model’s 300,000+ cycle lifespan paired with all-plastic compatibility ensures seamless production of corrosive-resistant CPVC fittings for marine infrastructure.

Note: "" denotes performance exceeding industry benchmarks by 30%.

Frequently asked questions

  • Which PP/UPVC/CPVC pipe fittings mold suits small-scale plumbing projects?

  • How do I maintain plastic pipe fittings molds to extend their lifespan?

  • What’s the difference between H13 and P20 mold materials for pipe fittings?

  • Can your molds produce custom-colored fittings like the green ones shown?

  • Are your PVC/PPR pipe fittings molds FDA-approved for food-grade systems?

  • How does the cold runner system improve plastic pipe molding efficiency?

  • Can your molds produce non-standard angles beyond 45/90 degrees?

  • Are your plastic pipe fittings compatible with existing PVC/PPR plumbing systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Mold MaterialHigh-volume productionIndustry: P20 steel (HRC 28-32)
Base: P20 steel
Advanced: H13 steel (HRC 48-52 ▲)		Advanced: 2x longer lifespan (500k cycles vs 250k)
Heat-resistant up to 300°C		H13 molds cost 40% more upfront (ISO 513 compliance)
Runner TypeCost-sensitive projectsIndustry: Hot runners (0% waste)
Base/Advanced: Cold runners (10% waste ▼)		Lower upfront cost (cold runners cost 30% less)
Simpler design		10% material waste per cycle (ASTM D2765 testing)
Shaping PrecisionPrecision-fitting applicationsIndustry: ±0.05mm (ISO 2768-m)
Base: ±0.03mm (▲)
Advanced: ±0.02mm (▲▲)		Advanced: 60% fewer misalignment defects
Meets ISO 10308 standards		Precision tooling increases mold development time by 20%
Surface FinishHigh-end plumbing systemsIndustry: Ra 1.6μm
Base: Ra 0.8μm (▲)
Advanced: Ra 0.4μm (▲▲)		Advanced: 40% smoother flow (ISO 4287 certified)
Reduced friction in HDPE systems		Advanced polishing adds 15% to production cost
Material CompatibilityDiverse plumbing projectsIndustry: 2-3 plastics
Base: 5 plastics (▲)
Advanced: 6+ plastics (▲▲)		Supports PP/UPVC/CPVC/HDPE/PPR/PVC (ASTM D1784)Requires specialized cooling systems for multi-material molds
Customization OptionsComplex plumbing configurationsIndustry: Standard angles
Base: 3D angles (▲)
Advanced: 3D + color coding (▲▲)		Advanced: Custom angles (e.g., 45°/90°) + color IDs for PPR systemsCustom molds require 30% longer lead times (per ISO 9001 protocols)
