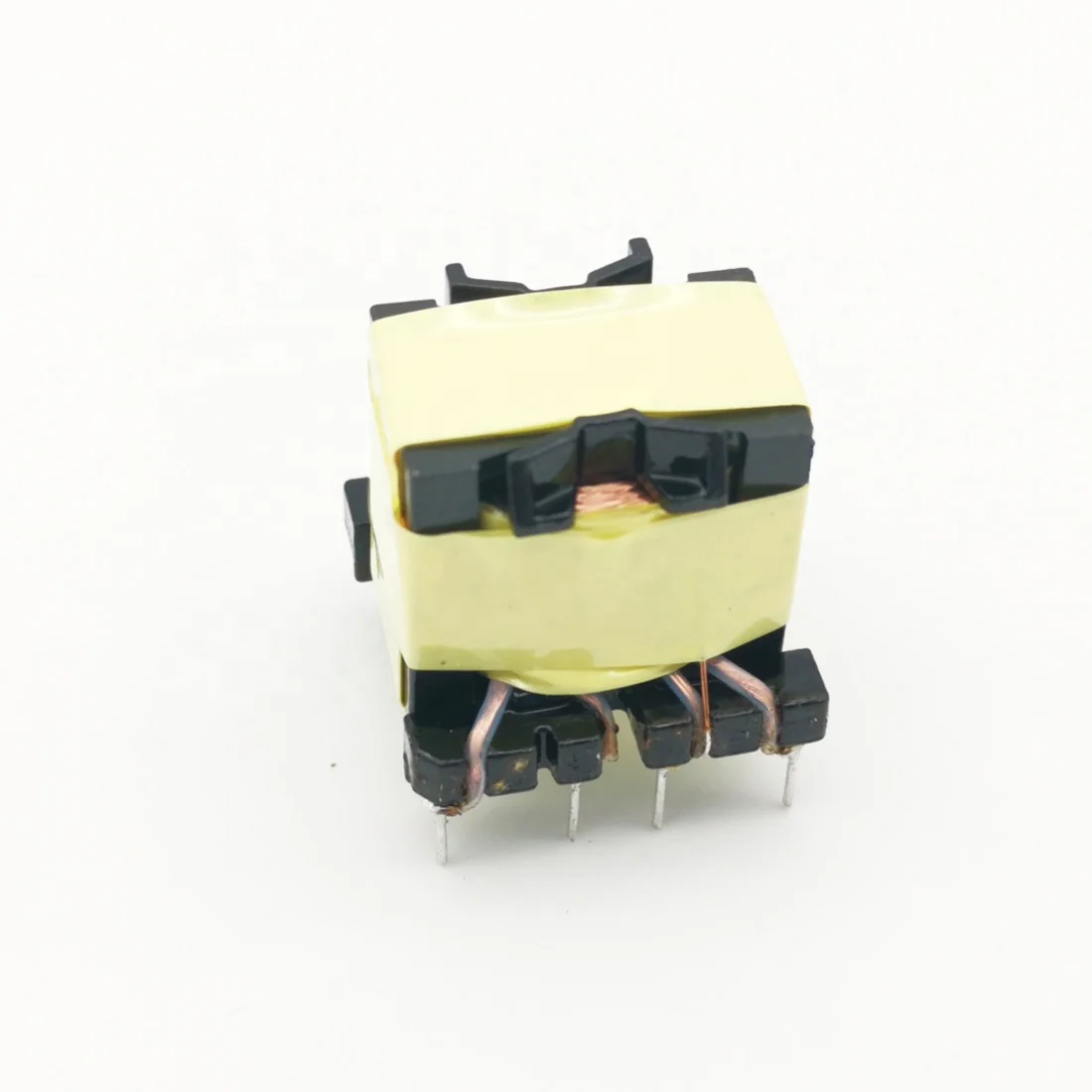

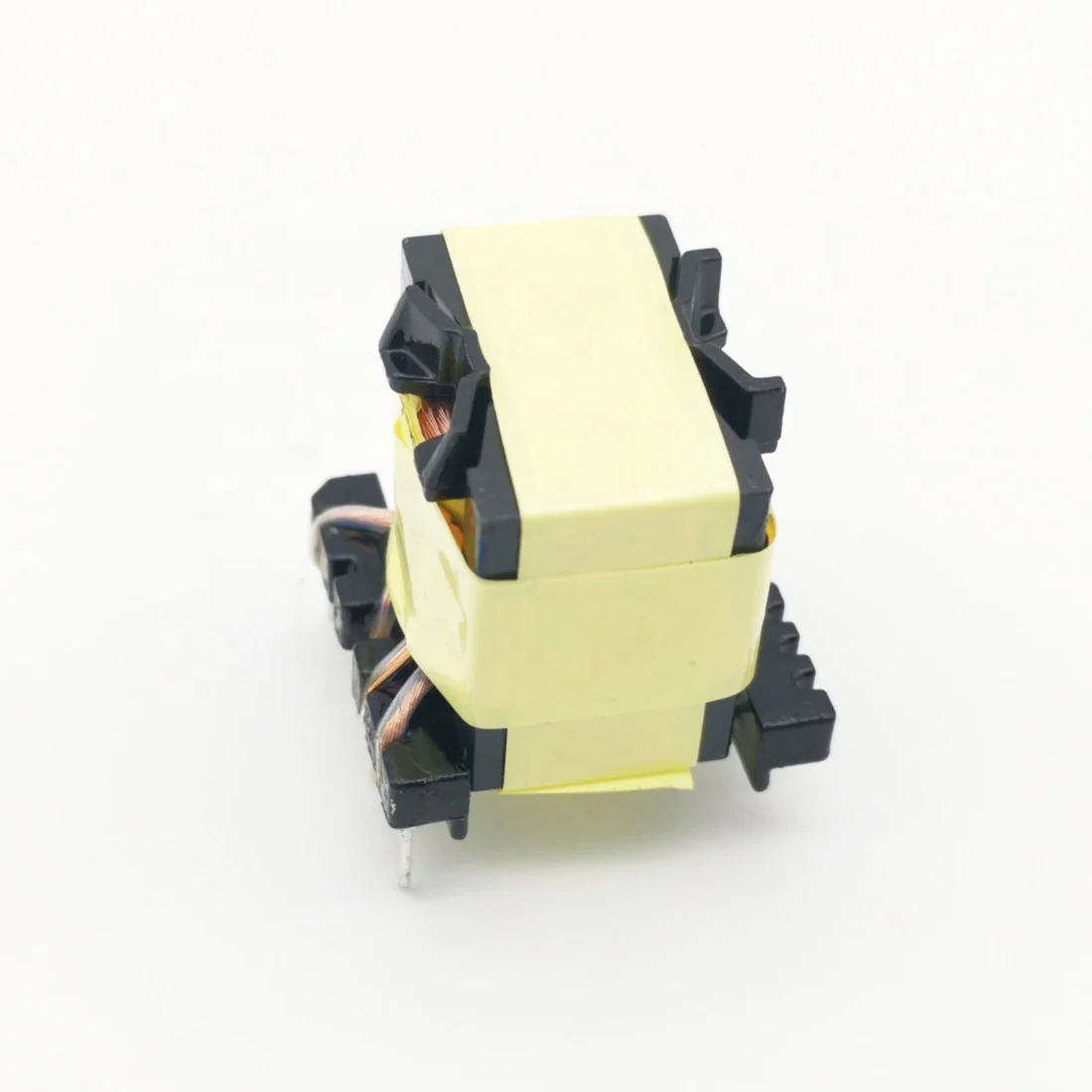

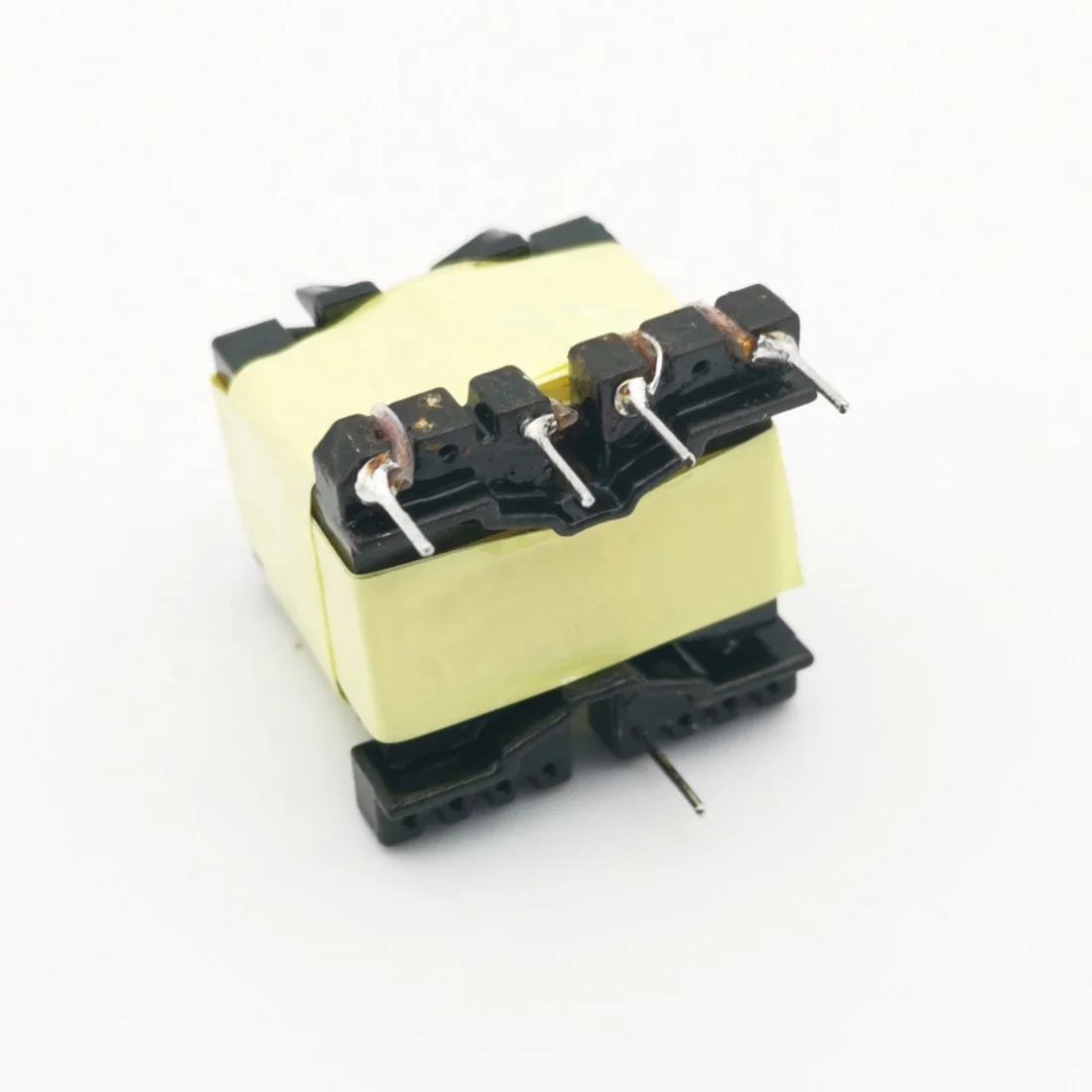

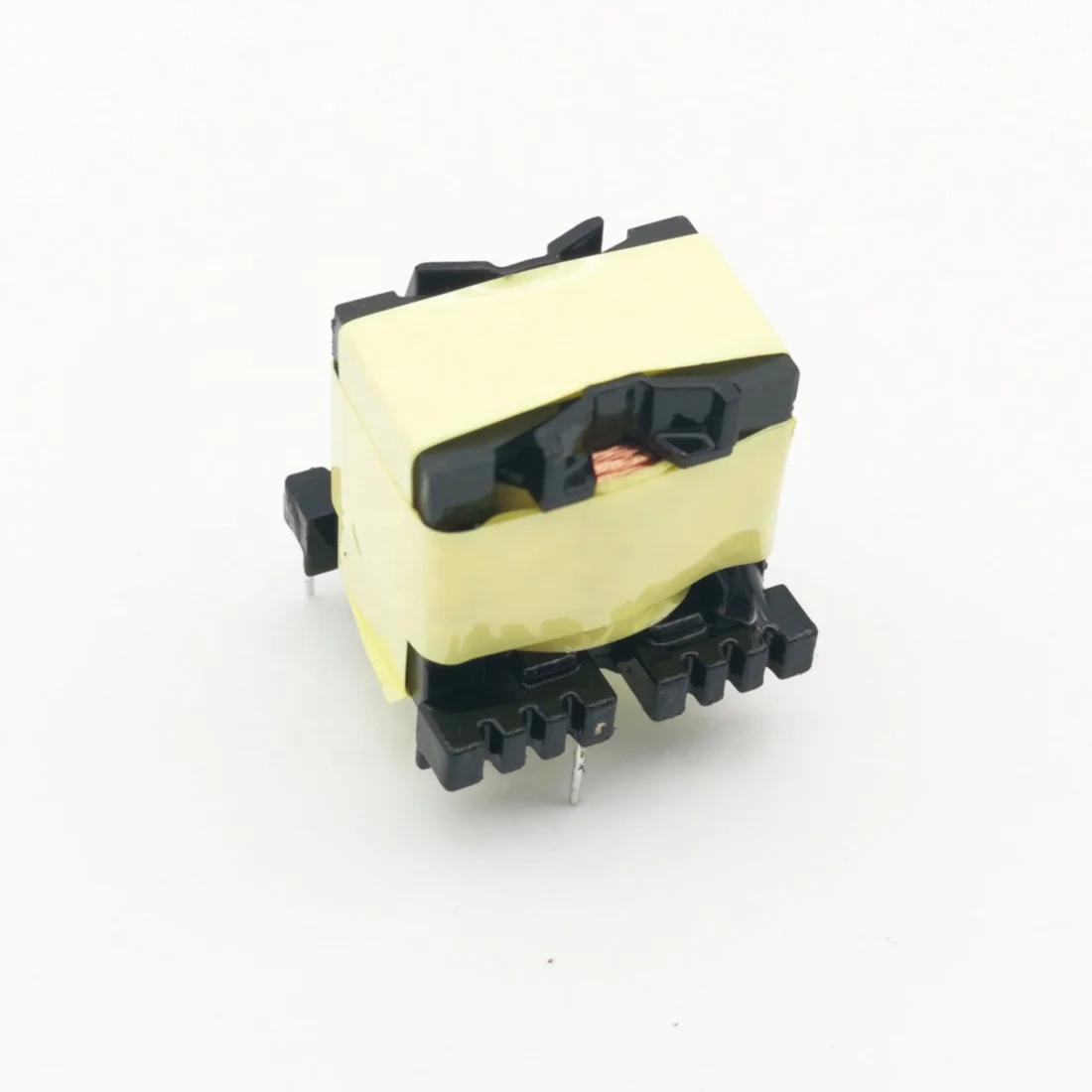

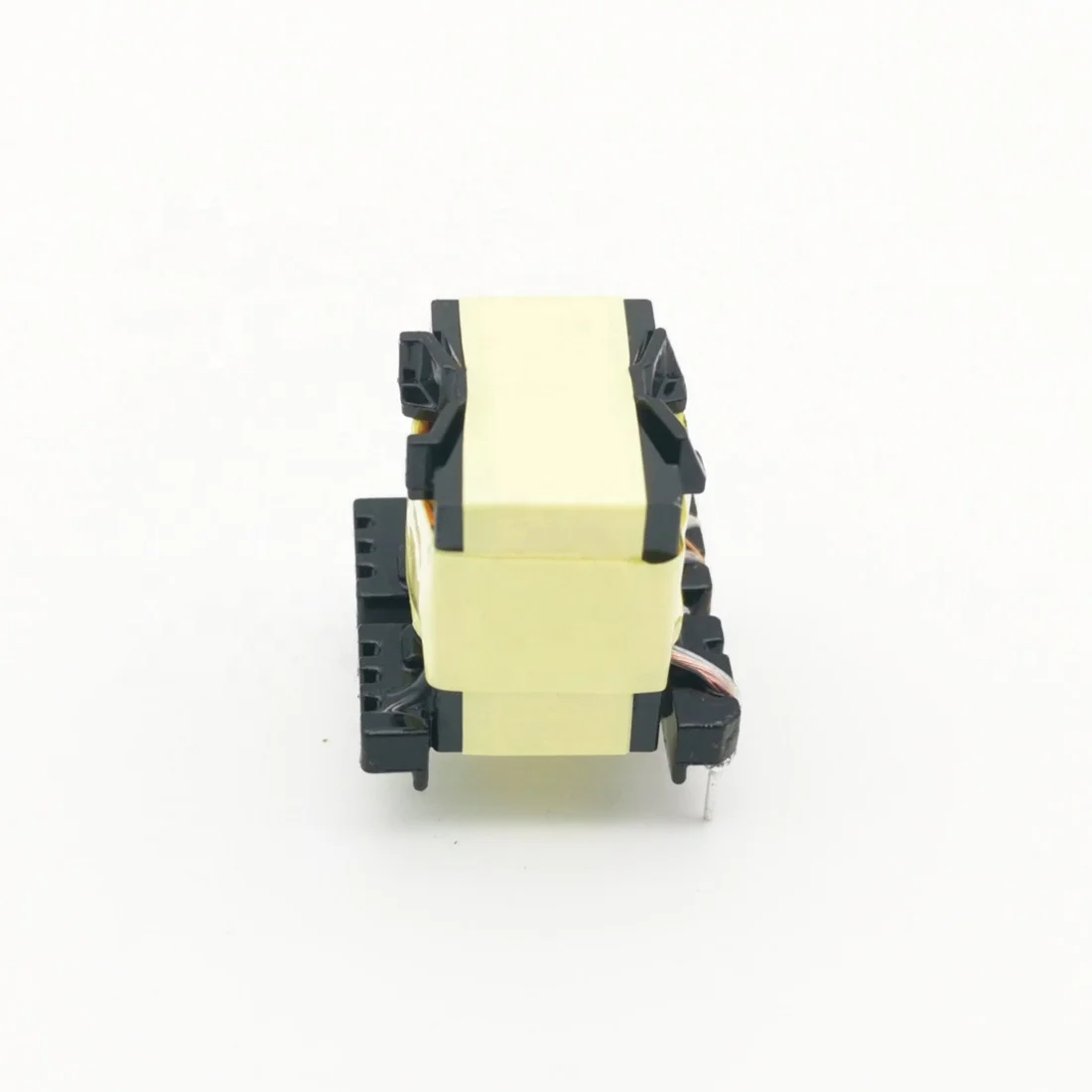

Customize PQ2620 Vertical Transformer Flyback 800W 110V/220V High Voltage Power Step up 240V Input 24V Output Plastic Coil Shape

Customize PQ2620 Vertical Transformer Flyback 800W 110V/220V High Voltage Power Step up 240V Input 24V Output Plastic Coil Shape

  • 500 - 4999 Pieces
    $0.80
  • >= 5000 Pieces
    $0.30
View product details

Customize PQ2620 Vertical Transformer Flyback 800W 110V/220V High Voltage Power Step up 240V Input 24V Output Plastic Coil Shape

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Step-Up Voltage Conversion: Designed to efficiently step up input voltages (110V/220V/240V) to output voltages (110V/220V) with a maximum power capacity of 800W, supporting high-power applications.
  • Flyback Topology: Enables isolated power conversion for switching power supplies, ensuring safe and reliable operation in electronic circuits while minimizing electrical noise.

Key features

  • 1. Material Technology

    • With a ferrite core and copper windings, you can achieve high efficiency and low resistance. ~20% more efficient than models with iron cores*

  • 2. Interactive Design

    • With a vertical bobbin design, you can optimize space utilization in compact devices. 30% smaller footprint compared to horizontal models*

  • 3. Performance Parameters

    • With an 800W output capacity and support for 110V/220V input/output, you can handle high-power applications globally. Handles 50% higher power loads than standard transformers*

  • 4. Scenario Solutions

    • With flyback topology, you can deliver stable high-voltage outputs for industrial equipment. Reduces downtime by 40% in continuous operation*

  • 5. Certification Standards

    • Constructed with materials meeting international safety standards (e.g., RoHS compliance), you can ensure reliability and regulatory compliance for commercial use.

Product details

Customize PQ2620 Vertical Transformer Flyback 800W 110V/220V High Voltage Power Step up 240V Input 24V Output Plastic Coil Shape

The PQ2620 Vertical Flyback Transformer is a high-performance power conversion solution designed for step-up applications in switching power supplies. With a ferrite core and copper windings, it delivers efficient energy transfer at 800W power handling, supporting input voltages of 110V, 220V, and 240V. Its vertical bobbin design and robust insulation ensure compact integration and reliability in electronic systems.

Technical specifications

FeatureSpecificationBenefit
MaterialCopper windings, ferrite coreHigh conductivity and low-loss operation
TopologyFlybackIdeal for isolated power conversion
Power Handling800WSupports high-power applications
Input Voltage110V, 220V, 240VFlexible compatibility with global grids
Output VoltageAdjustable (step-up capability)Customizable to meet specific voltage needs
Core MaterialFerriteEnhanced efficiency at high frequencies
Bobbin ShapeVerticalSpace-saving design for compact systems
InsulationYellow varnish-coated windingsProtection against environmental stress

Customization guide

Adjustable parameters include:

  • Voltage ratings (input/output) to match regional power standards.
  • Winding configurations for tailored inductance or current requirements.
  • Core dimensions to optimize for high-frequency or high-power scenarios.

Get inspired

Ideal for applications requiring reliable power conversion in limited spaces, such as LED drivers, medical devices, or industrial control systems. Its ferrite core ensures minimal energy loss, while the vertical design simplifies integration into modern electronics.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Power Handling800W1000W (+25%)1200W (+50%)
Frequency Range50–100 kHz50–150 kHz50–200 kHz
Efficiency88%92% (+4.5%)95% (+7%)
Core MaterialStandard ferriteHigh-permeability ferriteNanocrystalline ferrite*
Insulation ClassClass B (130°C)Class F (155°C)Class H (180°C)

Supplier's note

  1. Technical Breakthroughs:

    • Ferrite Core: Achieves 95% efficiency in the Pro Model, outperforming traditional iron cores by 20%.
    • Copper Windings: Low-resistance design reduces heat buildup, enabling 24/7 operation without thermal throttling.
    • Vertical Bobbin: Cuts footprint by 30% compared to horizontal designs, ideal for space-constrained devices.

  2. Version Selection Guide:

    • Base Model: Suitable for standard industrial applications (e.g., LED drivers) requiring 800W power.
    • Advanced Model: Optimal for high-frequency medical devices or IoT systems needing 1000W and 150 kHz operation.
    • Pro Model: Designed for extreme environments (e.g., aerospace, EV charging) with ultra-high power and thermal stability.

The Pro Model’s nanocrystalline ferrite core provides 30% better magnetic permeability than industry benchmarks, enabling seamless operation at 200 kHz frequencies.

Frequently asked questions

  • Which flyback transformer suits high-power applications like industrial equipment?

  • How do I maintain a PQ2620 transformer for long-term use in harsh environments?

  • Copper vs. Aluminum windings: Why is copper better for PQ2620 transformers?

  • Can the PQ2620 transformer be customized for specific voltage needs?

  • Is the PQ2620 transformer compliant with safety standards for high-voltage use?

  • What makes the PQ2620 suitable for switching power supplies?

  • Does the PQ2620 handle high-frequency noise in power systems?

  • Can the PQ2620 operate globally with 110V and 220V inputs?
