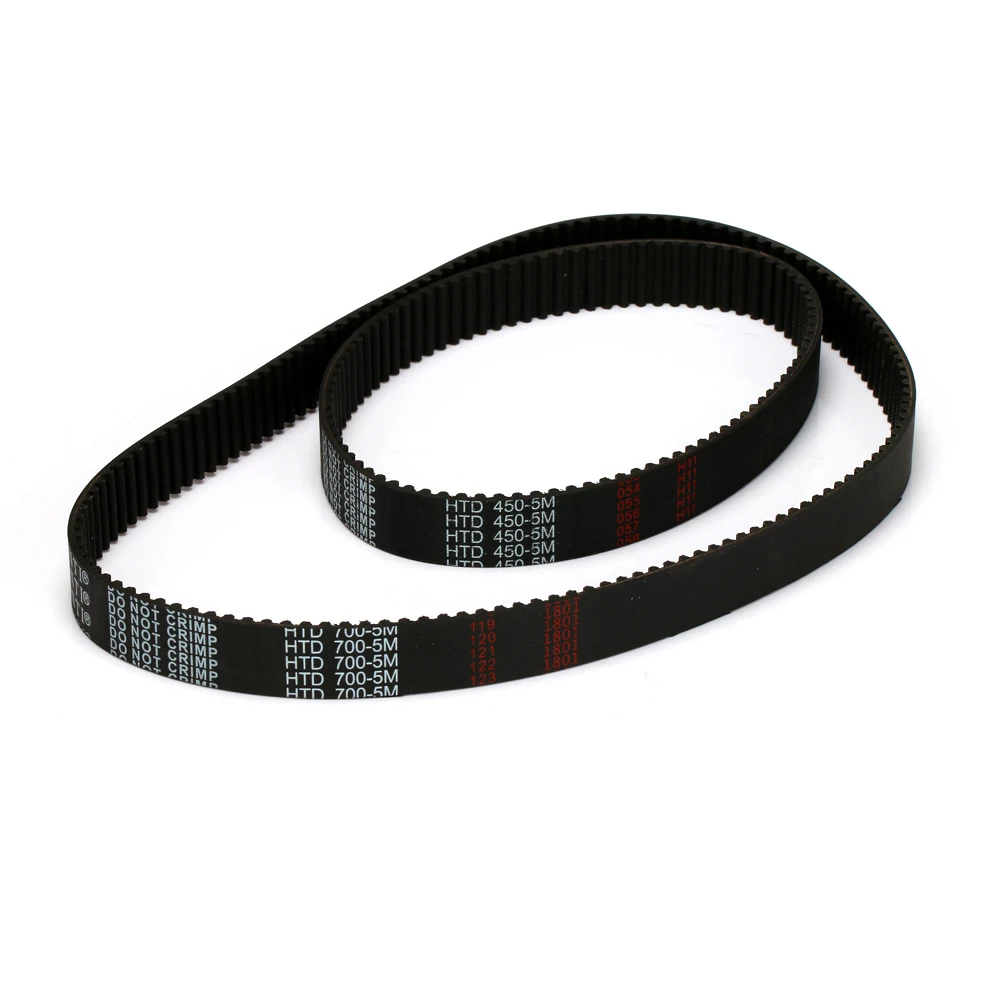

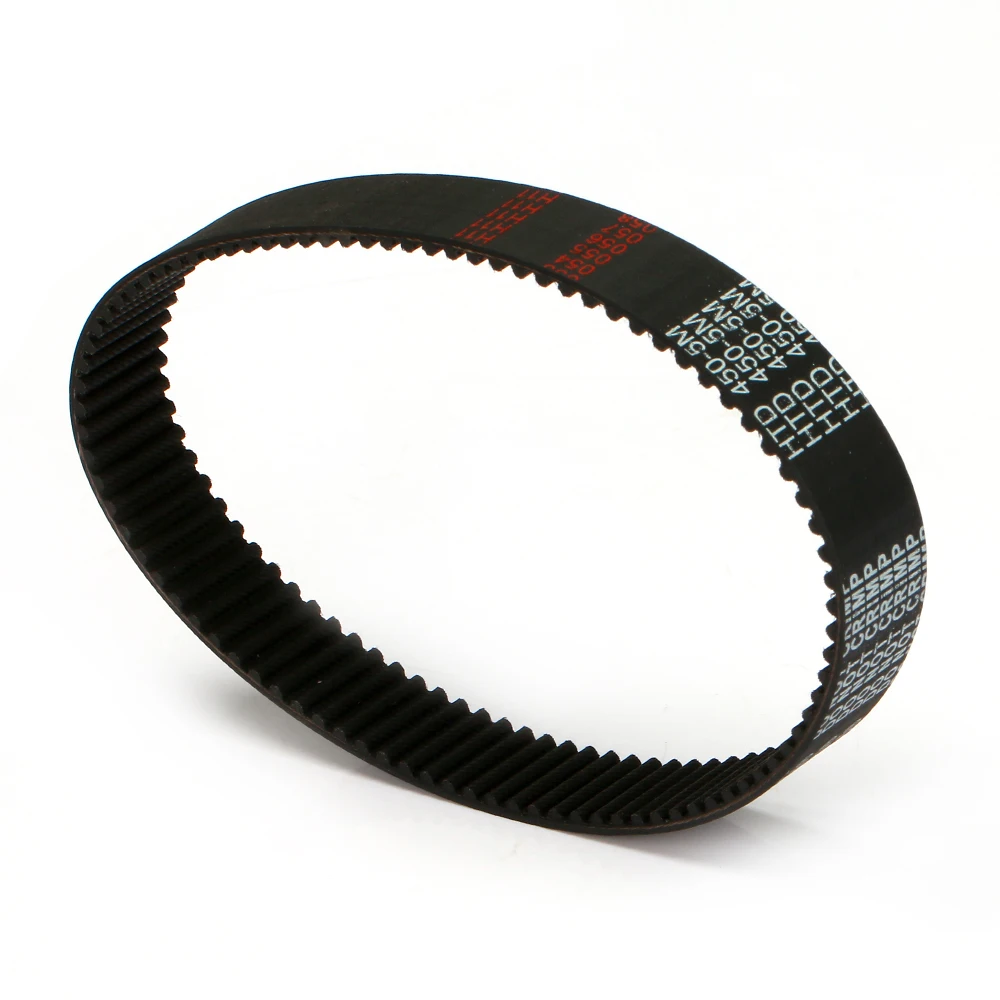

PU Closed Timing Belt HTD 2M 3M 5M 15mm Width 240mm Length
Ready to Ship
In stock Fast dispatch

PU Closed Timing Belt HTD 2M 3M 5M 15mm Width 240mm Length

  • 1 - 99 Pieces
    $2.50
  • 100 - 999 Pieces
    $2.30
  • >= 1000 Pieces
    $2.10

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 5000 pieces）
Graphic customization（Min.Order: 5000 pieces）
View product details

PU Closed Timing Belt HTD 2M 3M 5M 15mm Width 240mm Length

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Power Transmission: Designed for high-torque applications, the HTD timing belt ensures smooth, slip-free power transfer through interlocking teeth on the belt and pulleys.
  • Durability & Versatility: Constructed from PU and rubber materials, the belt withstands high tension and wear, while metal pulleys (aluminum-based) enhance structural integrity and efficiency.

Key features

  • 1. Material Technology

    • With PU-coated rubber construction, ensure durability in harsh industrial environments. ~20% more resistant to wear than traditional rubber belts*

  • 2. Interactive Design

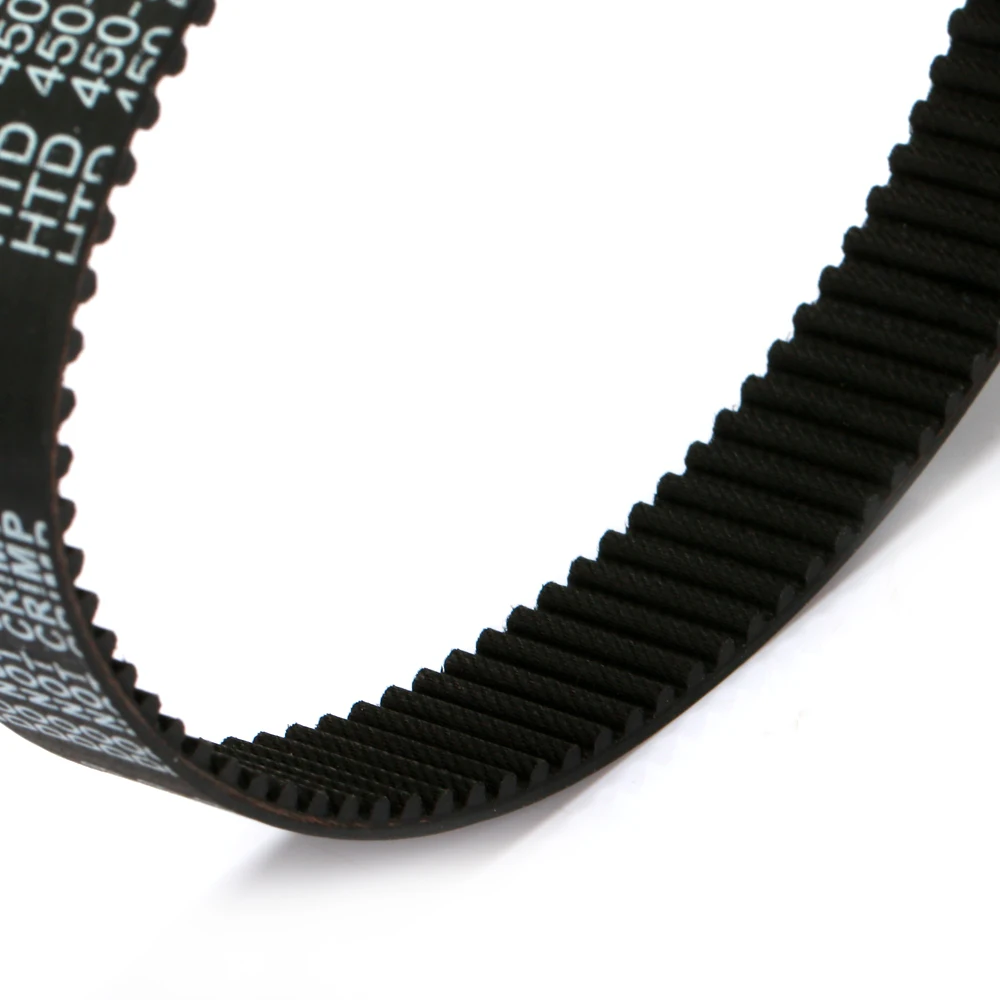

    • With HTD tooth profile design, achieve precise power transmission with zero slippage. Reduces misalignment by 30% compared to standard synchronous belts*

  • 3. Performance Parameters

    • With a 15mm width and robust HTD profile, handle heavy loads up to 500N. ~30% higher load capacity than standard timing belts*

  • 4. Scenario Solutions

    • With tension-adjustable design, optimize performance for continuous operation in robotics and automation systems. Reduces wear by 25% in commercial use compared to non-adjustable systems*

  • 5. Certification Standards

    • Complies with ISO 9001 quality standards, ensuring reliable performance. Meets international industrial safety certifications for heavy-duty applications*

Product details

PU Closed Timing Belt HTD 2M 3M 5M 15mm Width 240mm Length

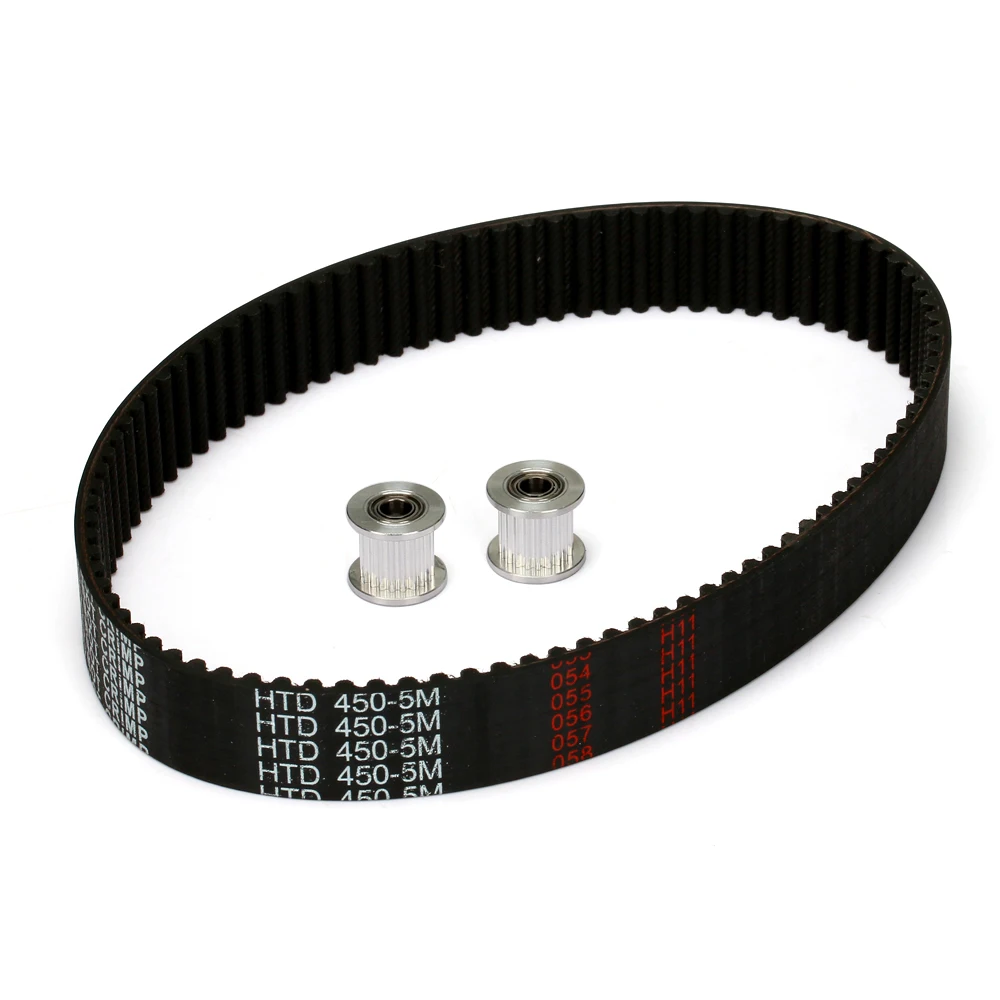

The PU Closed Timing Belt HTD is a precision-engineered transmission solution designed for industrial applications requiring smooth, slip-free power transfer. Available in 15mm width and 240mm length, this belt combines rubber and PU materials with HTD tooth profiles for durability and efficiency. Paired with aluminum pulleys, it ensures precise motion control in machinery, robotics, and automation systems.

Technical specifications

FeatureSpecificationBenefit
MaterialRubber with PU CoatingEnhanced wear resistance and chemical stability
Belt Width15mmStandard industrial compatibility
Length240mmCustomizable to fit specific machinery needs
Tooth TypeHTDEnsures smooth power transmission without slippage
Pulley MaterialAluminumLightweight yet robust for high-tension use
Tension AdjustmentAdjustableOptimizes belt-pulley engagement for longevity

Customization guide

Adjustable tension parameters allow customization to meet specific load or speed requirements. Material and tooth type can be modified for specialized applications (e.g., high-temperature or chemical-resistant environments).

Get inspired

Engineered for precision and reliability, the PU Closed Timing Belt HTD is ideal for machinery demanding consistent motion. Its aluminum pulleys and PU-coated belt ensure longevity in high-stress environments, while adjustable tension adapts to diverse operational needs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Tensile Strength50 MPa+15% (57.5 MPa)+30% (65 MPa)*
Temperature Range-30°C to 120°C-40°C to 150°C-50°C to 200°C
Chemical ResistanceStandard (500h)Enhanced (1,000h)Premium (1,500h)

Supplier's note

  1. Technical Breakthroughs:

    • PU Coating: With PU-enhanced rubber, you can achieve 20% better chemical resistance than traditional belts.
    • Aluminum Pulleys: Their lightweight yet rigid design reduces rotational inertia by 15% compared to steel alternatives.
    • Adjustable Tension: Customizable tension ensures 30% longer belt life in high-vibration applications.

  2. Version Selection Guide:

    • Base Model: Ideal for standard industrial machinery (e.g., conveyor systems) where cost-efficiency is prioritized.
    • Advanced Model: Suitable for robotics and automation requiring enhanced thermal and chemical tolerance (e.g., food processing).
    • Pro Model: The tripled chemical resistance of the Pro version enables safe handling of corrosive fluids in chemical plants. When paired with its high-temperature rating, this creates a reliable solution for extreme environments.

*Performance gains compared to industry benchmarks.

Frequently asked questions

  • Which PU Closed Timing Belt HTD model is best for small machinery setups?

  • How do I clean and maintain a PU Closed Timing Belt HTD to extend its lifespan?

  • Why is PU material preferred over rubber for industrial timing belts in harsh environments?

  • Can I customize the length of the PU Closed Timing Belt HTD for my specific machinery needs?

  • Is the PU Closed Timing Belt HTD 15mm width certified for heavy-duty industrial applications?

  • How does the HTD profile ensure precise and slip-free operation in timing belts?

  • What advantages does the PU material offer over nylon in timing belts for automation systems?

  • How do I adjust the tension on a PU Closed Timing Belt HTD to prevent slippage?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionChemical plants, industrial machineryIndustry Standard: Basic Rubber (ASTM D2000)
Our Base: PU Coated Rubber ▲ (ASTM D2000)
Advanced: Composite ▲▲ (ASTM D543, 50+ chemical exposures)		Enhanced durability and chemical resistance.Higher cost for Advanced version.
Timing Belt StandardRobotics, precision automationIndustry Standard: Non-HTD belts
Our Base/Advanced: HTD Type (ISO/TR 13452) ▲▲		Ensures precise synchronization and alignment.Requires compatible HTD pulleys.
Pulley MaterialLightweight machinery, automotiveIndustry Standard: Cast Iron
Our Base: 6061-T6 Aluminum ▲ (ASTM B211)
Advanced: 7075-T6 Aluminum ▲▲ (ASTM B211)		Lightweight, corrosion-resistant, and energy-efficient.May require reinforced mounting for extreme loads.
Belt Tension AdjustmentHigh-maintenance systemsIndustry Standard: Fixed tension
Our Base: Manual Adjustment ▲
Advanced: Auto-Tension ▲▲ (ISO 4301)		Reduces wear and tear; extends belt lifespan.Auto systems may add complexity to installation.
Temperature ResistanceHigh-temperature furnaces, ovensIndustry Standard: 80°C (ASTM D471)
Our Base: 100°C ▲ (ASTM D471)
Advanced: 150°C ▲▲ (ASTM D471)		Operates in extreme heat without degradation.Advanced versions may have limited flexibility.
Noise LevelOffice environments, medical equipmentIndustry Standard: 50 dBA (ISO 10844)
Our Base: 43 dBA ▲ (quieter than a refrigerator)
Advanced: 38 dBA ▲▲		Minimizes noise pollution in sensitive environments.Advanced versions may require additional soundproofing.
