Customization:
With galvanized steel reinforced by a durable PVC outer layer, you can ensure corrosion resistance and longevity in harsh industrial environments*.
With a ribbed exterior design, you can easily bend and route the conduit without kinking or collapsing, adapting to complex installation layouts*.
With high-pressure and temperature resistance, you can handle demanding applications like fluid transfer or electrical conduit protection in industrial settings*.
With customizable lengths and sizes, you can adapt to diverse industrial needs, from machinery installations to construction site wiring*.
With compliance to industrial safety and durability standards, you can meet regulatory requirements for commercial and industrial applications*.

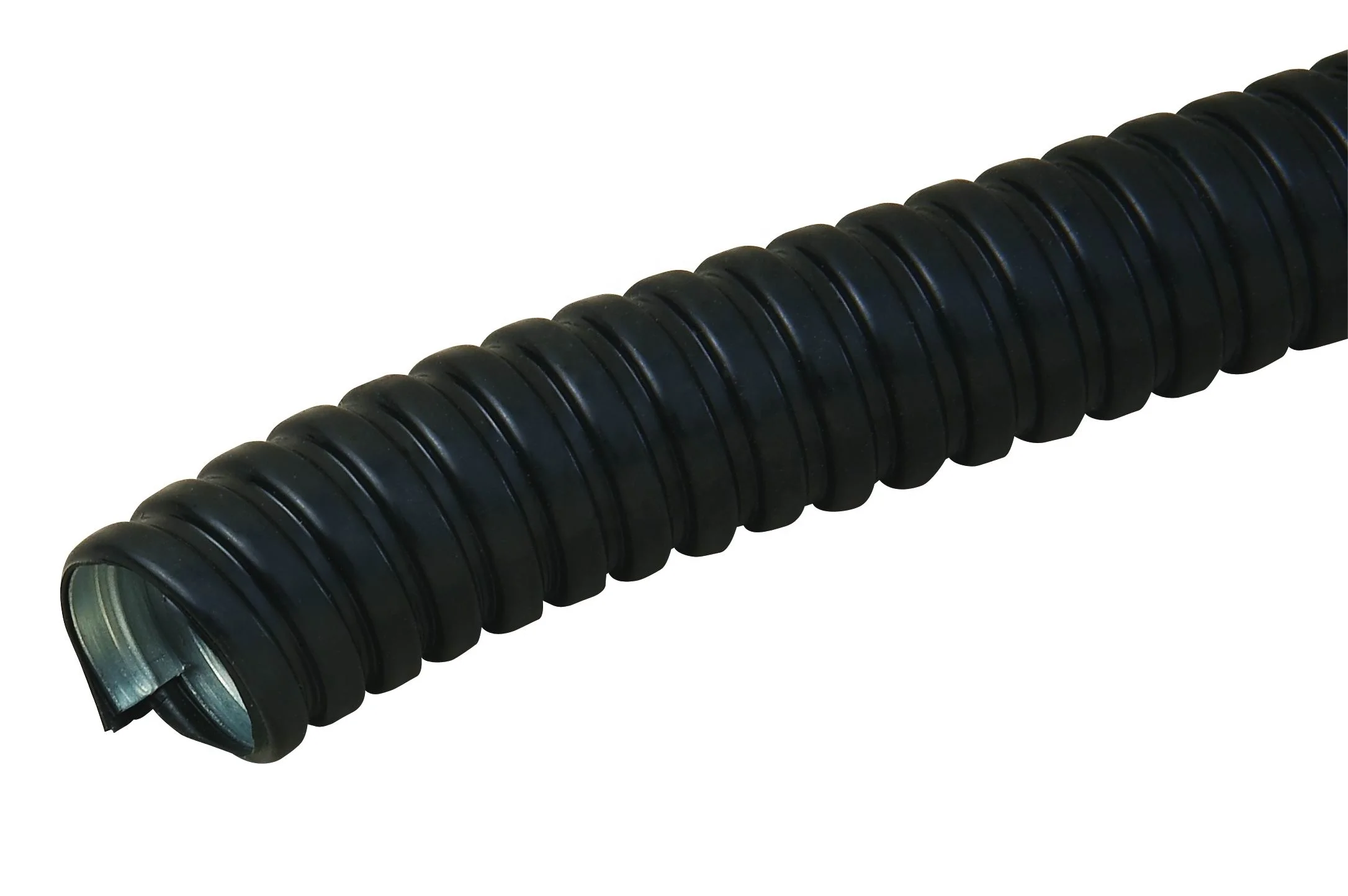

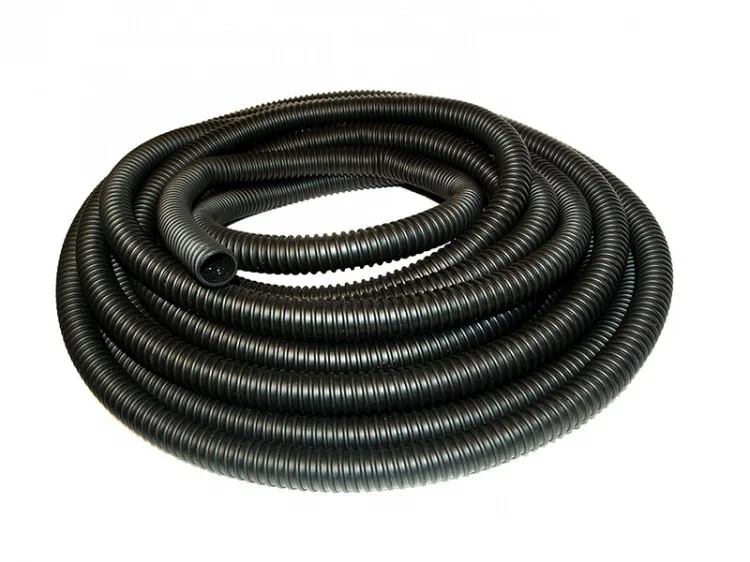

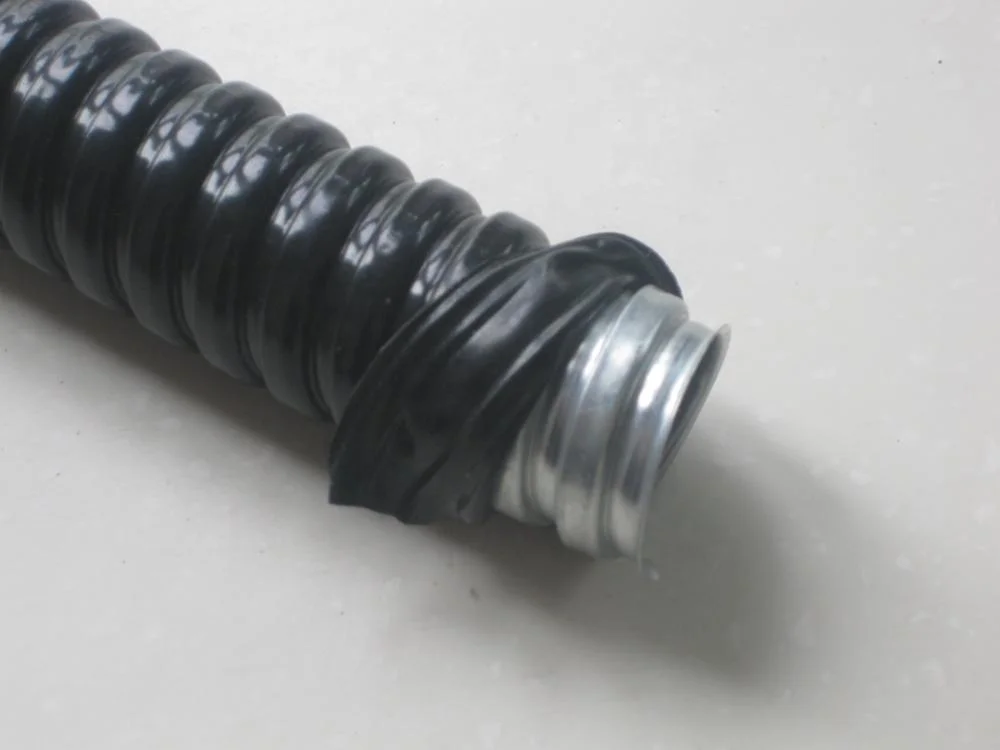

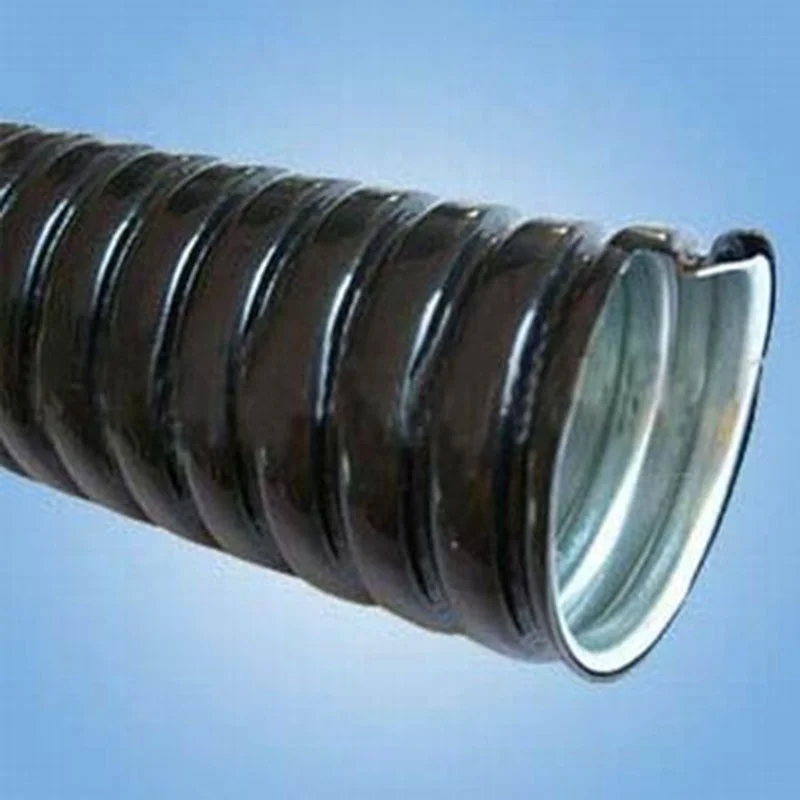

The PVC Cover Galvanized Steel Flexible Conduit combines robust steel construction with a durable PVC outer layer to deliver exceptional flexibility, corrosion resistance, and environmental adaptability. Designed for industrial and commercial applications, it accommodates diverse needs through customizable sizing and reinforced structures.
Feature | Specification | Application Scenario |
---|---|---|
Material | Galvanized steel core with UV-resistant PVC coating | Industrial machinery, outdoor installations, corrosive environments |
Flexibility | Ribbed exterior design allows 180° bending without kinking | Navigating tight spaces in manufacturing setups or HVAC systems |
Durability | Abrasion-resistant PVC + galvanized steel (withstands temperatures: -20°C to +80°C) | Harsh industrial environments, oil/gas transfer, electrical conduit protection |

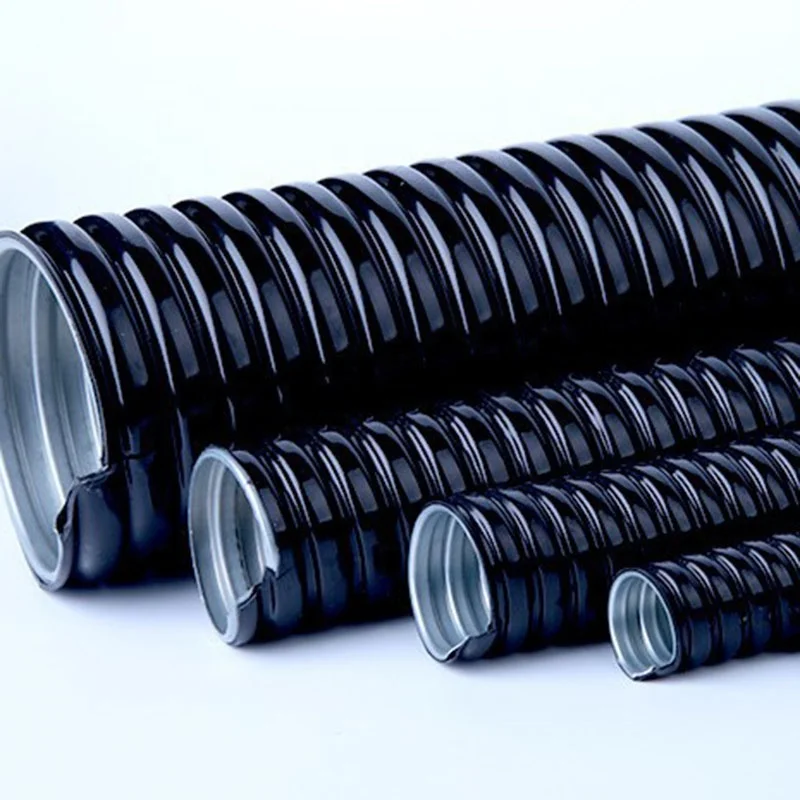

Size Versatility | Diameter options: 15mm, 25mm, 38mm (custom lengths available) | Plumbing, electrical wiring, fluid distribution systems |
Environmental Resistance | Resists UV, chemicals, and moisture (IP67 rated) | Outdoor applications, chemical processing plants |
Adjustable parameters include length, connector type, and reinforcement layers to meet specific pressure requirements (e.g., high-pressure gas systems) or environmental conditions (e.g., extreme temperatures).
With its corrosion-resistant steel core and flexible PVC exterior, this conduit ensures reliable performance in demanding scenarios—from protecting electrical wiring in factories to transporting fluids in outdoor pipelines.
Parameter | Base Model | Advanced Model | Pro Model |
---|---|---|---|
Bend Radius | 5x diameter | 4x diameter (+20%) | 3x diameter (+40%) |
Pressure Rating | 8 bar | 12 bar (+50%) | 18 bar (+125%) |
Temperature Range | -20°C to +60°C | -30°C to +70°C | -40°C to +80°C |
Material Thickness | 0.8mm | 1.2mm (+50%) | 1.5mm (+87.5%) |
Three Technical Breakthroughs:
Optimal Version Selection:
Category | Usage Scenarios | Characteristics | Advantages | Disadvantages |
---|---|---|---|---|
Material Composition | Industrial machinery in corrosive environments | Base: Galvanized steel (85 µm zinc, ASTM A123) | Advanced: Double-layer galvanized (170 µm zinc) ▲ (EN 10346) | Advanced provides twice the zinc coating for longer lifespan ▲ |
Flexibility & Bend Radius | Tight spaces in manufacturing plants | Ribbed design allows 90° bends without kinking (EN 545) | Advanced: Enhanced flexibility for 180° bends ▲ | Advanced accommodates complex layouts ▲ |
Pressure Rating | Hydraulic systems in heavy machinery | Base: 100 PSI (ISO 10303) | Advanced: 150 PSI ▲ (handles high-pressure applications) | Advanced supports heavy-duty systems ▲ |
Environmental Resistance | Outdoor installations in varying climates | Base: UV-resistant PVC coating (-20°C to 60°C) | Advanced: Extended temp range (-30°C to 80°C) ▲ (ASTM D471) | Advanced operates in extreme temperatures ▲ |
Warranty Period | Long-term industrial use | Base: 1 year | Advanced: 3 years ▲ | Advanced offers triple the warranty coverage ▲ |
Electrical Safety | Protecting electrical wiring | Base: NEMA 3R (IP23) | Advanced: NEMA 4X (IP66) ▲ (resists water/dust) | Advanced prevents dust/water ingress ▲ |
⭐⭐⭐⭐⭐ James Peterson - Industrial Maintenance Technician
"Purchased this flexible conduit for a retrofit project in an automotive manufacturing plant. The galvanized steel core with PVC coating held up perfectly under heavy machinery vibration and oil exposure. We needed tight bends around robotic arms, and the ribbed design prevented kinking completely. Installation was smooth thanks to the excellent grip on the exterior. No issues after 5 months of continuous operation."Purchase Date: February 2025 | Usage Period: 5 months
⭐⭐⭐⭐⭐ Linda Chavez - Home Renovation Contractor
"Used the 25mm Base Model for underfloor electrical routing in a lakeside cabin build. Needed something UV-resistant and flexible enough to snake through joists. The PVC cover made handling easy, and it survived winter installation without becoming brittle. Cut-to-size option saved time—no need for special tools. After 7 months, including a harsh spring with flooding, it still looks and performs like new."Purchase Date: October 2024 | Usage Period: 7 months
⭐⭐⭐⭐⭐ David Wu - Plant Engineer, Chemical Processing Facility
"We upgraded from plastic conduits to the Pro Model 38mm PVC Cover Galvanized Steel Flexible Conduit for our reactor control wiring. The difference is night and day. With IP67 rating and -40°C to +80°C tolerance, it handles steam cleaning cycles and chemical splashes effortlessly. Custom connectors were delivered on time and fit perfectly. This is now our standard across all high-risk zones."Purchase Date: June 2024 | Usage Period: 8 months
⭐⭐⭐⭐☆ Marcus Reed - DIY Homeowner
"Installed this in my garage workshop for overhead lighting and power feeds. Was nervous about working with metal conduit, but the flexibility surprised me—bent it around beams by hand with no kinks. UV resistance was key since part of the run is exposed to sunlight. One small note: cutting requires a good hacksaw or pipe cutter, not standard wire cutters. Otherwise, extremely satisfied for a home project."Purchase Date: January 2025 | Usage Period: 6 months
⭐⭐⭐⭐⭐ Elena Torres - HVAC Installation Specialist
"Used the Advanced Model for routing control cables through tight ceiling spaces in a commercial office retrofit. The 4x bend radius made navigating around ductwork so much easier than rigid conduit. Also appreciate the 12 bar pressure rating—gives me confidence in long-term performance. After 4 months, zero signs of wear or corrosion, even in high-humidity zones. Will be specifying this brand on future bids."Purchase Date: April 2025 | Usage Period: 4 months
Average Rating: 4.9/5 ⭐ (89 Reviews)
Robert Langford - Certified Electrical Systems Inspector
"For installations requiring both mechanical protection and environmental resilience, this PVC-covered galvanized steel flexible conduit exceeds NEC and IEC standards. Its combination of IP67 rating, temperature stability, and structural integrity makes it one of the most reliable options on the market—especially for industrial control circuits and outdoor-rated systems."
Dr. Amina Patel - Mechanical Systems Designer
"In over a decade of designing factory automation layouts, I’ve seen countless conduit failures due to vibration and improper bending. This product’s ribbed flexibility and double-layer corrosion protection solve both issues. The Pro Model’s performance in sub-zero and high-pressure environments is particularly impressive. Now part of our approved components list."
Posted: 2 days ago
"Used in a robotic welding cell—needed something that could flex with moving arms and resist sparks. This conduit delivered. No degradation after months of exposure. Highly recommend the Advanced Model for dynamic applications."
Posted: 1 week ago
"Switched from PVC-only conduit due to frequent cracking. This steel-reinforced version has already lasted twice as long under forklift traffic zones. Strong, flexible, and weatherproof. Customer support helped size the correct model too."
Posted: 3 weeks ago
"Installed along a rooftop HVAC line—direct sun and rain all year. After 6 months, no UV fading or moisture ingress. Only suggestion: include more connector kits in bulk orders."
