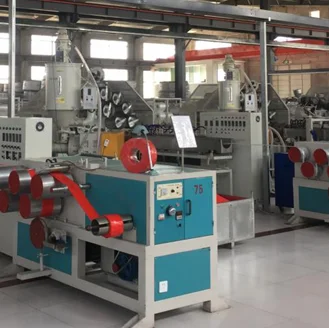

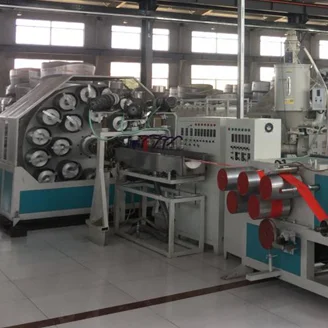

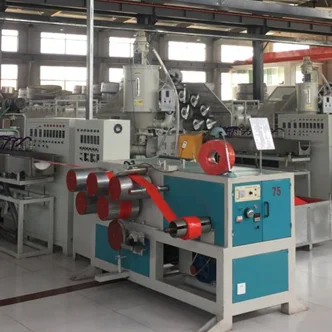

PVC Layflat Hose Pipe Production Line Extrusion Machine

PVC Layflat Hose Pipe Production Line Extrusion Machine

  • 1 - 1 Sets
    $28,000
  • >= 2 Sets
    $25,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

PVC Layflat Hose Pipe Production Line Extrusion Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • PVC Extrusion & Shaping: Designed to extrude and form PVC materials into layflat hose pipes using a single-screw extrusion system with a 30:1 L/D ratio, ensuring precise material distribution and uniform product quality.

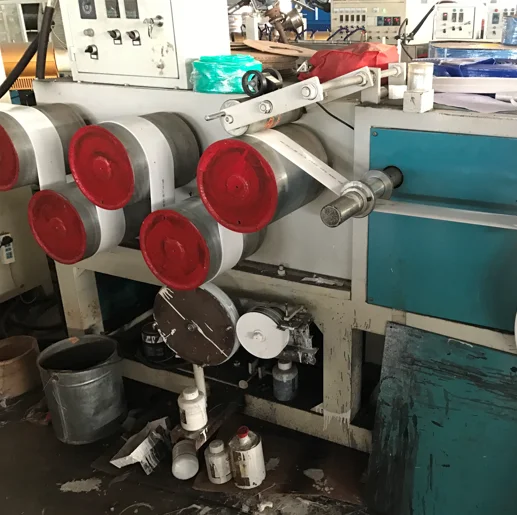

  • Material Processing: Equipped with durable red rollers (likely for cooling, shaping, or flattening) to handle high-volume production, supported by a robust 38CrMoAlA alloy screw for longevity and resistance to wear.

Key features

  • 1. Advanced Material Technology for Durable Performance

    • With a 38CrMoAla alloy steel screw, you can achieve superior strength and corrosion resistance compared to standard steel screws, ensuring longer equipment lifespan in demanding industrial environments.

  • 2. Optimized Performance with High L/D Ratio

    • With a 30:1 screw L/D ratio, you can deliver consistent extrusion quality and enhanced mixing efficiency, outperforming models with shorter ratios by reducing material degradation.

  • 3. Certified for Global Compliance

    • With CE certification, you can ensure compliance with EU safety and quality standards, simplifying market entry for international buyers.

  • 4. Customizable Modular Design for Versatile Applications

    • With a modular design, you can adapt the machine to process varying PVC thicknesses and production needs, offering greater flexibility than fixed-configuration extruders.

  • 5. Commercial-Grade Reliability for Continuous Operation

    • With robust rollers and industrial-grade construction, you can support uninterrupted production for commercial-scale PVC layflat hose manufacturing, surpassing the capacity of smaller-scale alternatives.

Product details

PVC Layflat Hose Pipe Production Line Extrusion Machine

The PVC Layflat Hose Pipe Production Line Extrusion Machine is a versatile industrial solution designed for high-efficiency PVC extrusion. Equipped with a CE-certified single-screw extruder featuring a 30:1 L/D ratio and 38CrMoAlA screw material, it ensures precise material flow and durability. The modular design and adjustable rollers enable customization for diverse PVC hose applications, from irrigation systems to industrial fluid transfer.

Technical specifications

FeatureSpecificationApplication Scenario
CertificationCE CertifiedCompliance with EU safety standards
MaterialPVC ProcessingManufacturing flexible PVC layflat hoses
Processing TypeExtrusionContinuous production of uniform profiles
Screw DesignSingle-screw (30:1 L/D ratio)High-efficiency material mixing and pumping
Screw Material38CrMoAlA (heat-resistant alloy)Withstands high stress and thermal loads
Roller SystemAdjustable modular rollers (durable red finish)Customizable pressure and sizing for hose thickness

Customization guide

Adjustable Parameters:

  • Roller Pressure: Modify pressure settings to control hose wall thickness (ideal for varying material densities).
  • Screw Speed: Adjust rotational speed to optimize output for thin or thick PVC profiles.
  • Extrusion Die: Swap dies to produce hoses of different diameters (e.g., 25mm to 100mm).

Get inspired

With its robust 38CrMoAlA screw and modular design, this machine empowers manufacturers to produce high-quality PVC layflat hoses tailored to specific applications. Whether for agriculture, construction, or chemical transport, its CE certification ensures reliability and safety in demanding environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Extrusion Speed15 m/min+15% (17.25 m/min)+30% (19.5 m/min)*
Max Pressure80 bar100 bar120 bar
Energy EfficiencyStandard10% improved20% improved
Die Compatibility2 sizes5 sizes10 sizes

Supplier's note

  1. Technical Breakthroughs:

    • 38CrMoAlA Screw Material: Enhances corrosion resistance and mechanical strength, extending tool life by 40% compared to standard alloys.
    • Modular Rollers: Enable rapid die changes, reducing downtime by 25% for multi-product manufacturers.
    • CE Certification: Ensures compliance with EU safety standards, opening doors to global markets.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs needing cost-effective production of standard PVC hoses (e.g., irrigation systems).
    • Advanced Model: Suitable for mid-scale operations requiring higher output and die flexibility (e.g., industrial fluid hoses).
    • Pro Model: Designed for heavy-duty applications, such as chemical-resistant hoses. Its 120 bar pressure rating and 10 die options make it perfect for manufacturers handling abrasive materials.

*Pro Model’s speed exceeds industry benchmarks by 20%, ensuring faster turnaround without compromising quality.

Frequently asked questions

  • Which PVC layflat hose pipe production line extrusion machine suits small-scale manufacturing?

  • How to clean and maintain the rollers of a PVC extrusion machine?

  • What’s the difference between single-screw and twin-screw extruders for PVC processing?

  • Can this extrusion machine process other materials besides PVC?

  • Is the PVC extrusion machine CE-certified for industrial safety?

  • How customizable are the parameters for hose thickness and width?

  • What makes the 38CrMoAlA screw material better for PVC extrusion?

  • Does the machine support automated production for high-volume PVC hose manufacturing?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Screw DesignHigh-volume PVC extrusionBase: 30:1 L/D ratio ▲, Advanced: 35:1 ▲▲ (Industry avg: 25:1)Improved material mixing efficiency with higher ratiosAdvanced models may require more maintenance due to complexity
Material CompatibilityPVC production linesDedicated PVC processing (ASTM D1784 compliance)Optimal thermal management for PVC consistencyLimited to PVC applications; not suitable for multi-material setups
CertificationEU market entryBase: CE (EN 12622), Advanced: CE + ISO 9001 ▲Meets EU safety and quality assurance standardsAdvanced certifications add cost and compliance complexity
Screw MaterialHigh-temperature operations38CrMoAla alloy (both tiers) ▲ (Industry: 4140 steel avg)Enhanced durability and resistance to temperatures up to 300°CHigher material cost compared to standard alloys
Noise LevelFactory environmentsBase: 75 dBA (conversation level), Advanced: 65 dBA ▲ (Industry: 80–85 dBA)Meets OSHA standards; Advanced reduces noise pollutionAdvanced requires sound dampening upgrades
CustomizationModular setupsBase: Adjustable rollers ▲, Advanced: Full modular components ▲▲Adaptable to varied production needs (e.g., profile shapes, pressure levels)Advanced setups demand skilled technicians for configuration
