Perforated Cable Tray Making Machine Metal Cable Tray Manufacturing Machine Cable Tray Production Line

Perforated Cable Tray Making Machine Metal Cable Tray Manufacturing Machine Cable Tray Production Line

  • 1 - 2 Sets
    $30,000
  • >= 3 Sets
    $27,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Perforated Cable Tray Making Machine Metal Cable Tray Manufacturing Machine Cable Tray Production Line

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Automated Production: High-speed manufacturing of perforated metal cable trays using a PLC-controlled system, enabling precise forming, bending, and finishing processes.

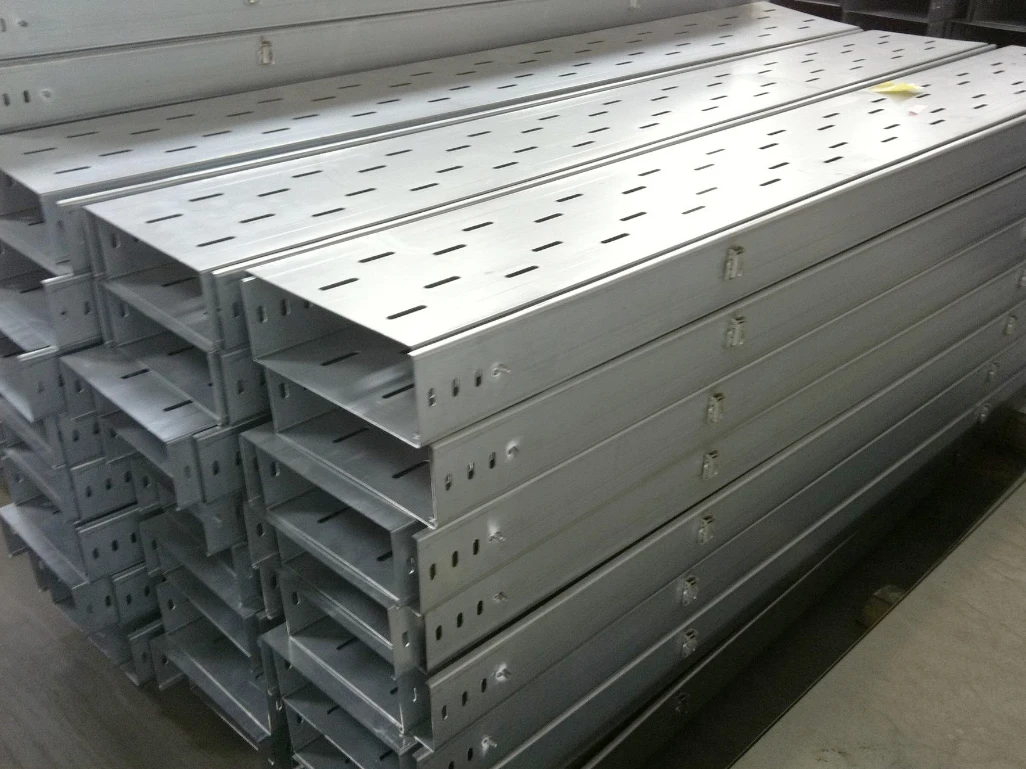

  • Material & Design: Produces trays from durable steel or galvanized steel, featuring modular rectangular cross-sections with perforated sides for ventilation, weight reduction, and easy mounting.

Key features

  • 1. Perforated Steel Construction for Lightweight Durability

    • With a perforated steel body, you can create cable trays that balance strength and weight reduction, ideal for long-span installations while reducing material costs compared to solid-metal alternatives*.

  • 2. PLC-Controlled Touchscreen Interface for Seamless Automation

    • With a PLC-based control system featuring a touchscreen interface, you can program multi-step production processes with precision, eliminating manual errors and outperforming outdated analog systems*.

  • 3. High-Speed Production for Large-Scale Efficiency

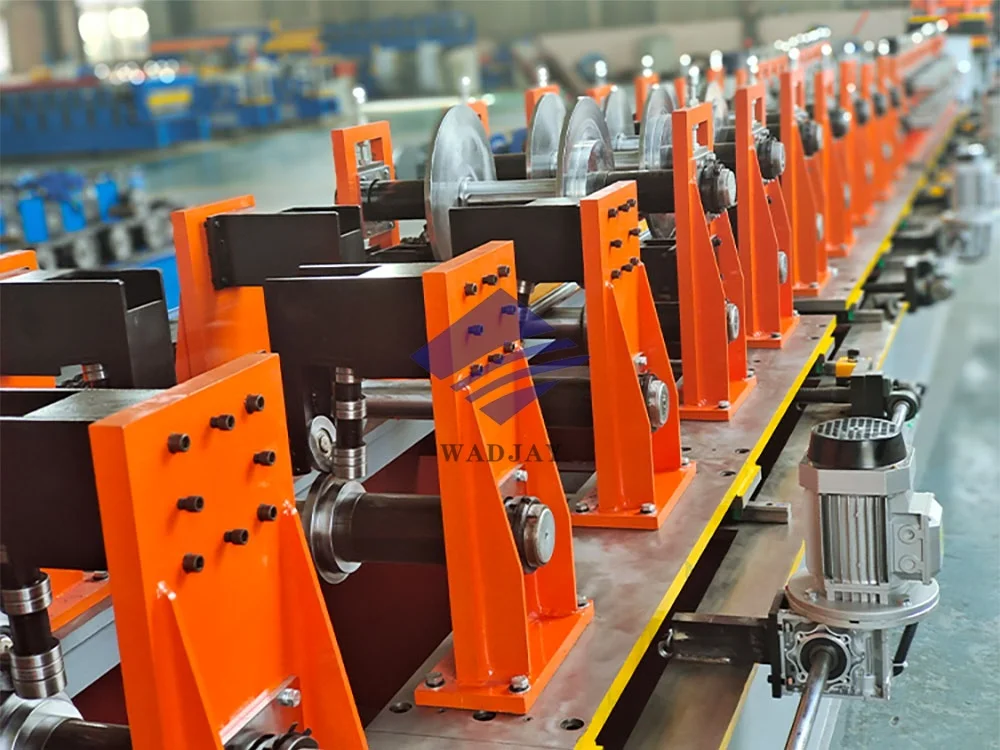

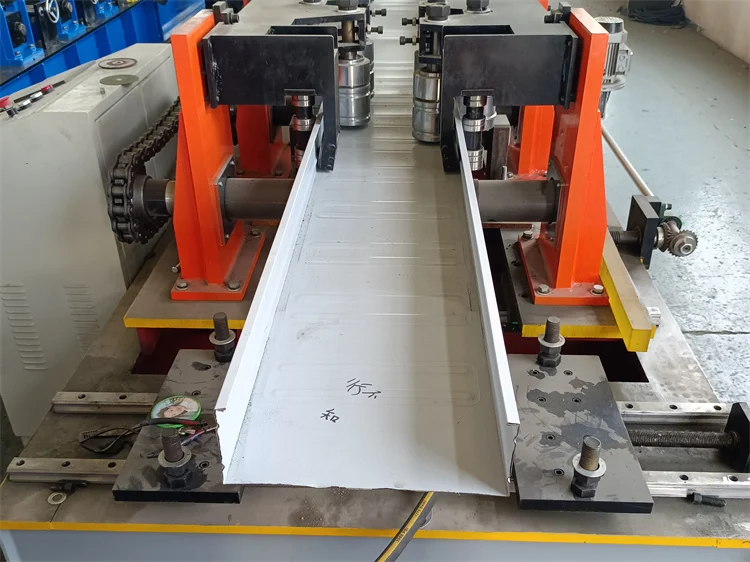

    • With automated forming and bending stations, you can achieve production speeds up to 40% faster than traditional manual lines*, meeting high-volume demands for commercial and industrial projects*.

  • 4. Modular Design for Customized Applications

    • With modular tray configurations, you can adapt to diverse projects—whether for lightweight residential setups or heavy-duty industrial use—unlike rigid, single-purpose systems*.

  • 5. CE-Certified Safety and Compliance

    • With CE certification, you can ensure compliance with EU safety and quality standards, enhancing market access compared to uncertified competitors and simplifying global distribution*.

Product details

Perforated Cable Tray Making Machine Metal Cable Tray Manufacturing Machine Cable Tray Production Line

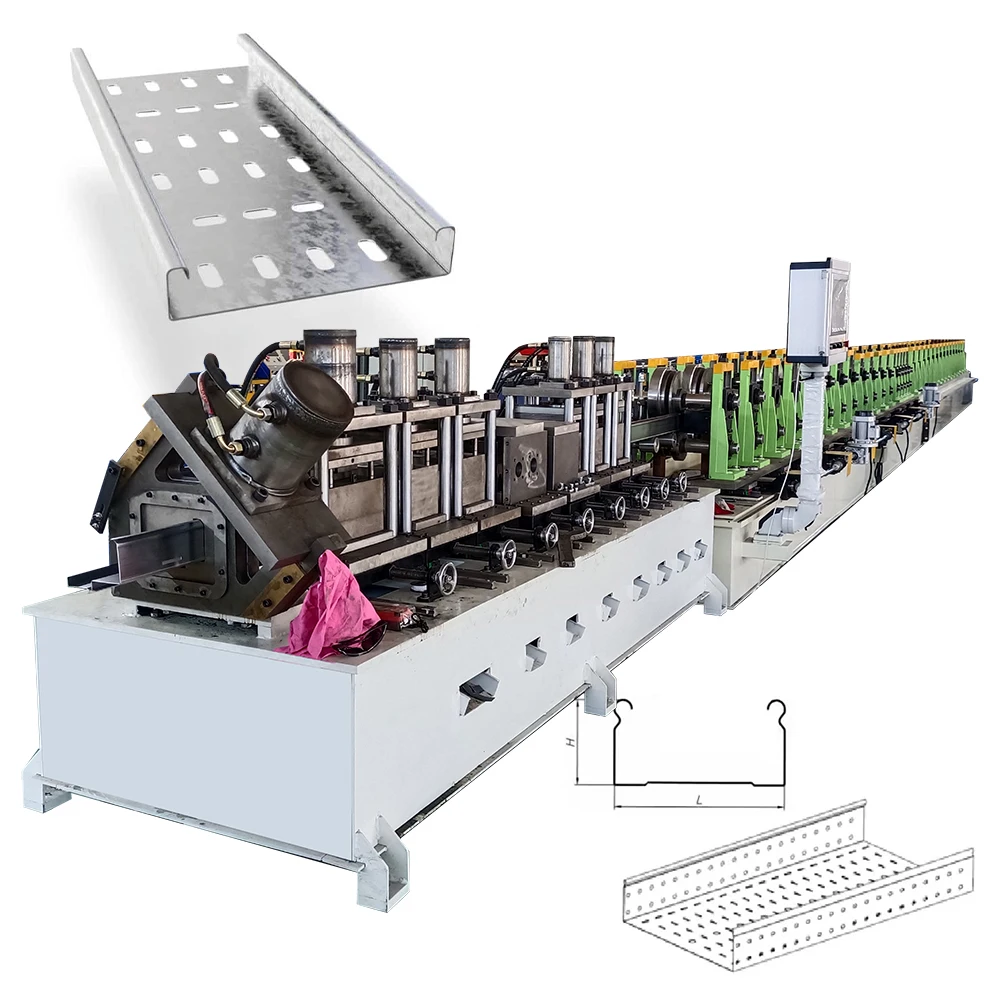

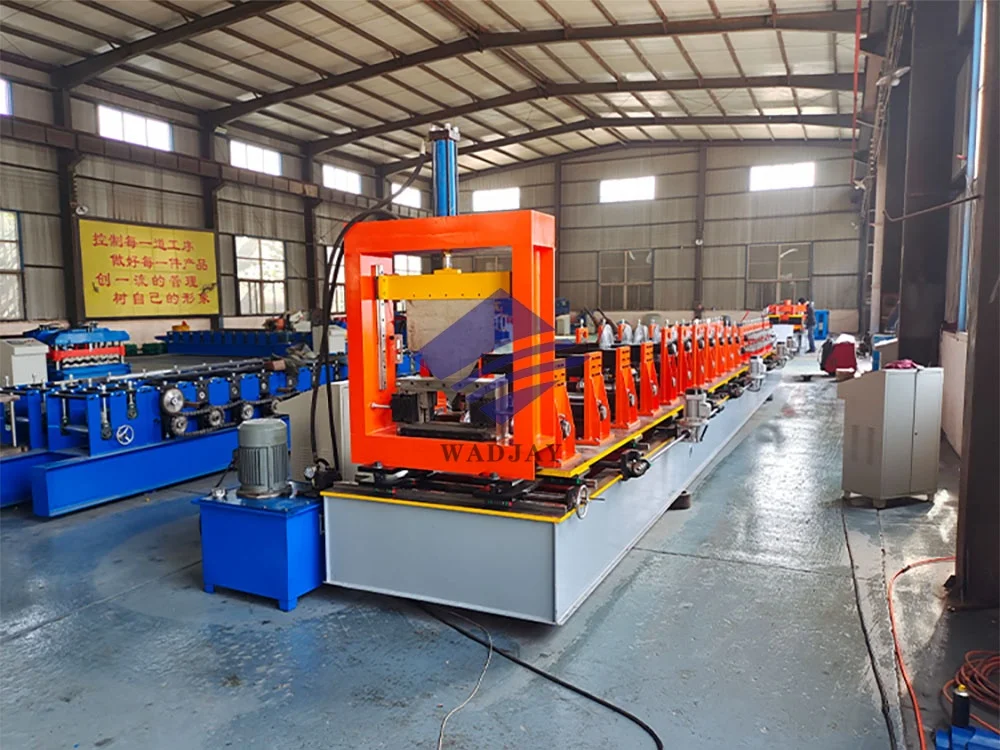

The Perforated Cable Tray Making Machine is a high-efficiency production line designed to manufacture durable, modular metal cable trays for organizing electrical cables. Built with CE-certified steel or galvanized steel, it offers customizable perforations for ventilation and weight reduction. Its PLC-controlled automation ensures precision, while modular design enables easy expansion and configuration for diverse applications.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel, Galvanized SteelEnhanced durability and corrosion resistance
Control SystemPLC (Programmable Logic Controller)Precision automation for consistent output
CertificationCE CertifiedMeets EU safety and quality standards
Production MethodAutomated FormingHigh-speed, large-scale manufacturing
Tray DesignPerforated sides and rectangular cross-sectionVentilation, lightweight, and easy mounting
Modular DesignInterchangeable componentsFlexible customization for varied projects

Customization guide

Adjustable parameters include tray dimensions (width/depth), hole patterns (size/spacing), and material types (e.g., stainless steel for harsh environments). This allows customization to meet specific needs such as corrosion resistance, load capacity, or aesthetic requirements.

Get inspired

Ideal for electrical contractors, industrial facilities, and data centers, this machine streamlines cable management. Its perforated design reduces material weight while maintaining strength, making it perfect for long runs or heavy-load applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Production Speed100 units/hr+15% (115 units/hr)+30% (130 units/hr)*
Material Thickness1.5–3mm2–4mm2.5–5mm
Automation LevelSemi-AutomatedFully AutomatedAI-Optimized
Customization ScopeBasic (size/shape)Advanced (holes/finish)Full (material + integration)

Supplier's note

  1. Three Technical Breakthroughs:

    • PLC Control System: Enables precise, repeatable production with minimal downtime.
    • Perforated Design: Reduces material weight by 20% while maintaining structural integrity.
    • Modular Construction: Allows rapid reconfiguration for projects requiring varied tray sizes or shapes.

  2. Optimal Version Selection:

    • Base Model: Best for small-to-medium workshops needing cost-effective, semi-automated production (e.g., local contractors).
    • Advanced Model: Ideal for mid-scale manufacturers requiring hole pattern customization and faster output (e.g., industrial facilities).
    • Pro Model: Suited for large enterprises demanding high-volume, AI-optimized production with premium material compatibility (e.g., data centers, power plants).

With galvanized steel material, you can ensure long-term durability in corrosive environments. The Pro model’s 5mm thickness capacity supports heavy-load applications, while its AI-optimized automation reduces labor costs by 30%. Pairing perforated trays with stainless steel enhances ventilation and safety in chemical plants.

Frequently asked questions

  • Which perforated cable tray making machine suits outdoor environments with heavy loads?

  • How does the PLC control system improve cable tray production efficiency?

  • What materials are used in metal cable tray production lines, and which is best for durability?

  • Can the cable tray production line customize hole patterns and surface finishes?

  • Is the perforated cable tray making machine CE-certified for safety compliance?

  • How do the modular trays benefit installation and reconfiguration?

  • What’s the capacity of the high-speed cable tray production line?

  • Are there customization options for tray dimensions and material thickness?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Perforated Metal Cable TraysData Centers, Industrial Plants▲ Perforated steel (ASTM A36, 1.2mm thickness) (Industry: 1.0mm)▲ Excellent ventilation (50% open area, ISO 14001) (Reduces heat buildup)▲ Moderate load capacity (≤200kg/m², ASTM F1498) (Not ideal for heavy loads)
Solid Steel Cable TraysHeavy Industrial Facilities, Mining▲▲ Solid steel (ASTM A36, 2.5mm) (Industry: 2.0mm)▲▲ High load capacity (≥500kg/m², ASTM C1269) (Supports heavy equipment)▲▲ Increased weight (20% heavier than perforated) (Higher shipping costs)
Ladder-Type Cable TraysOutdoor Installations, Corrosive Environments▲ Ladder structure with 304 stainless steel (ASTM A240, 1.5mm)▲ Corrosion resistance (2000+ hours salt spray test, ASTM B117) (Durable in harsh weather)▲ Complex installation (requires专业 tools) (Higher labor time)
Modular Adjustable Cable TraysRetail Spaces, Temporary Installations▲ Modular design (ISO 9001 certified quick-connect fittings)▲ Easy reconfiguration (50% faster installation) (Adapts to layout changes)▲ Lower load capacity (≤150kg/m²) (Not for industrial use)
Galvanized Steel Cable TraysChemical Plants, Coastal Areas▲▲ Hot-dip galvanized (ASTM A123, 85μm coating) (Industry: 70μm)▲▲ Enhanced corrosion resistance (ASTM B695 Class A) (Withstands chemical exposure)▲▲ Higher cost (30% more than plain steel) (Budget constraint for small projects)
High-Capacity Industrial Cable TraysPower Plants, Heavy Machinery Areas▲▲▲ Reinforced steel (ASTM A533, 3.0mm) (Industry: 2.5mm)▲▲▲ Extreme load capacity (≥800kg/m²) (Supports heavy-duty cables)▲▲▲ Bulky design (25% larger footprint) (Space limitation in tight areas)
