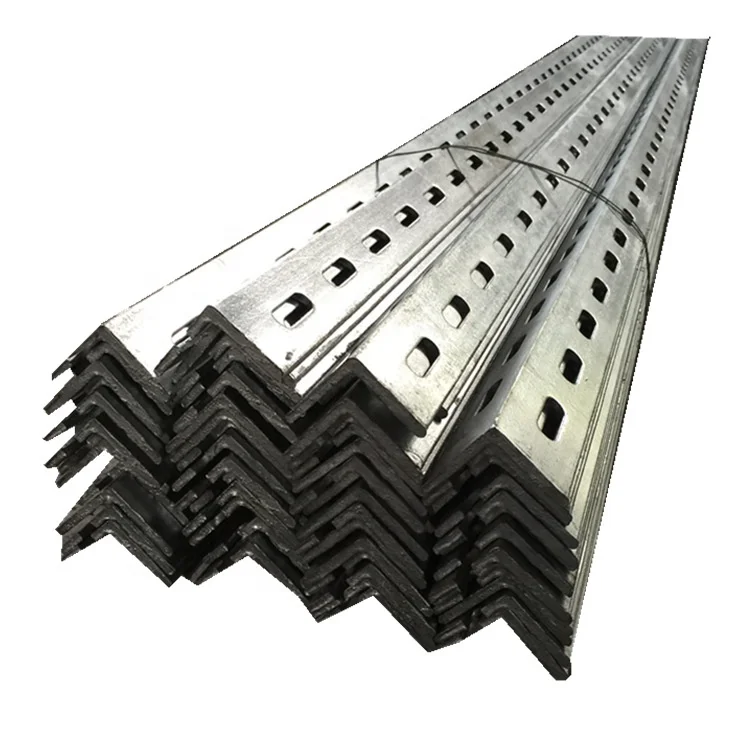

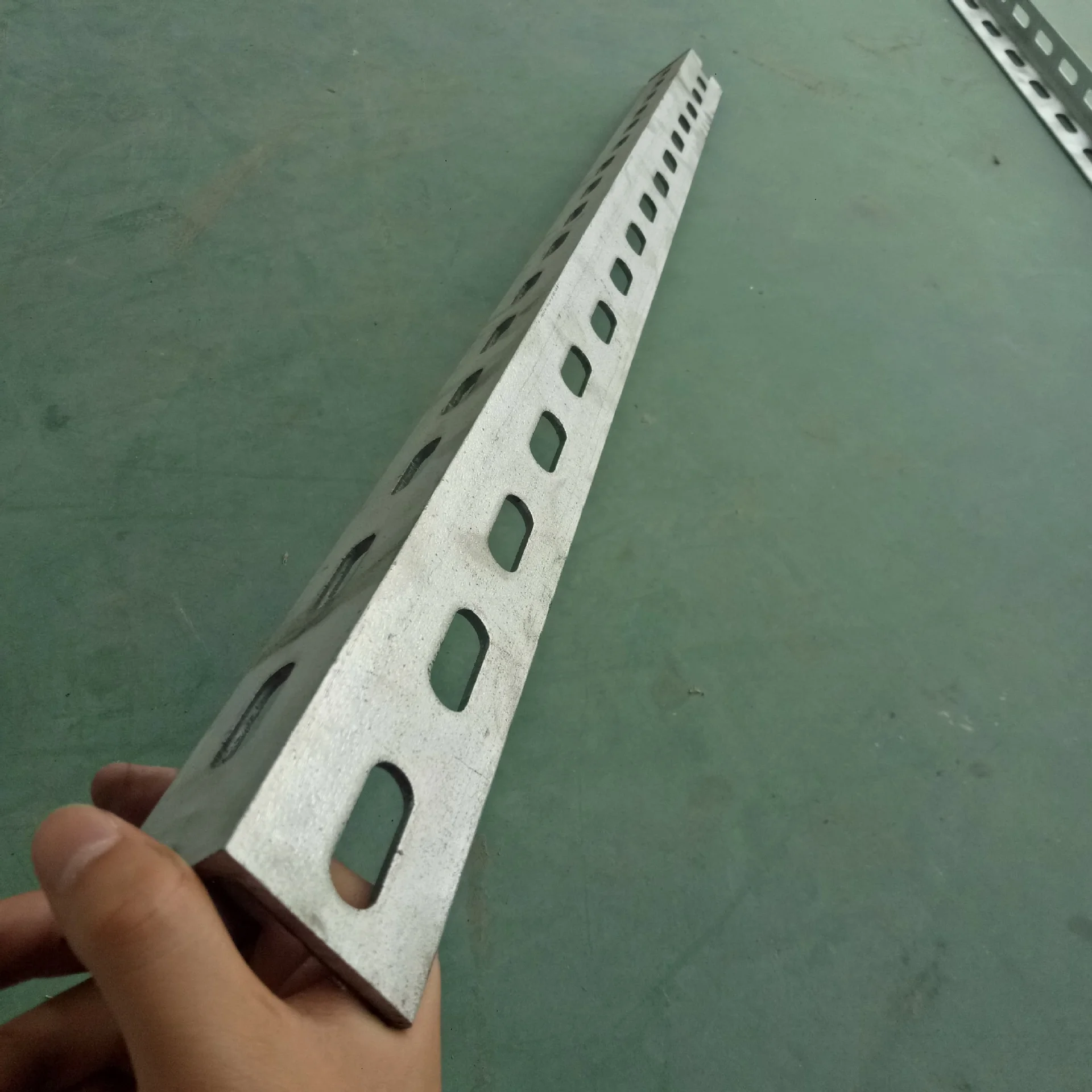

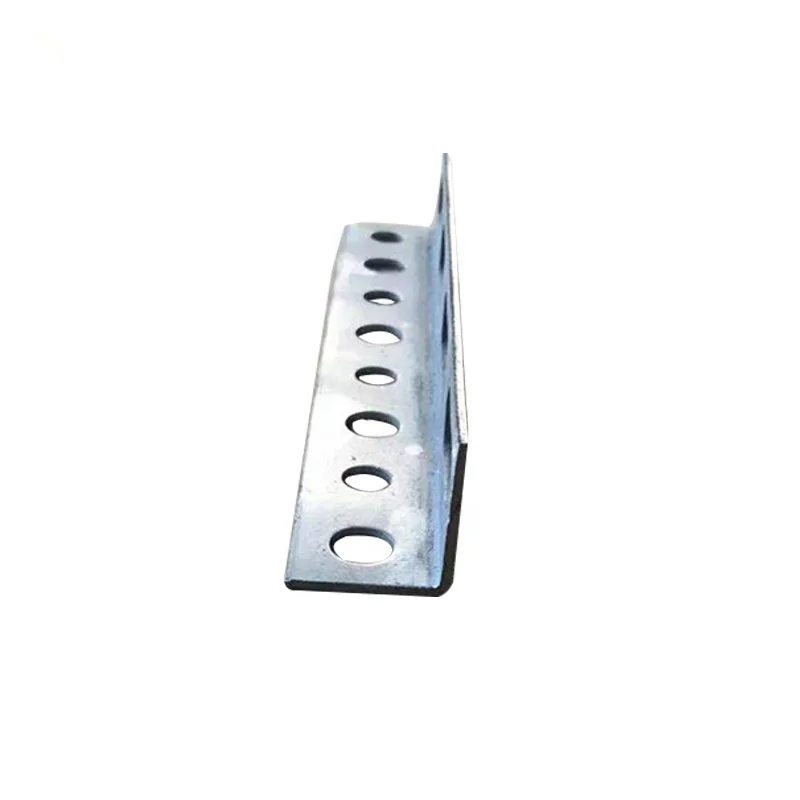

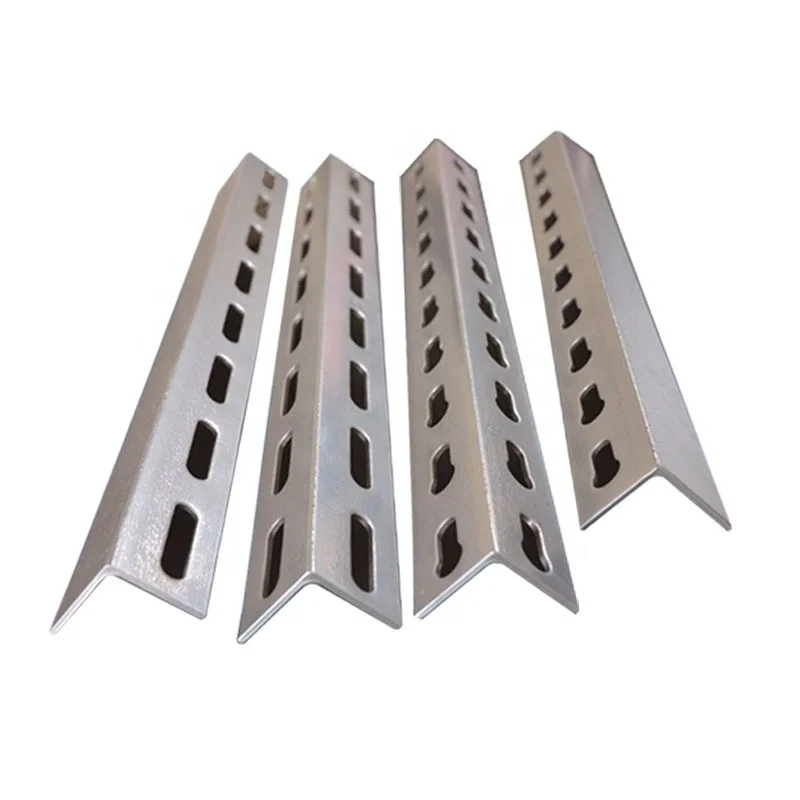

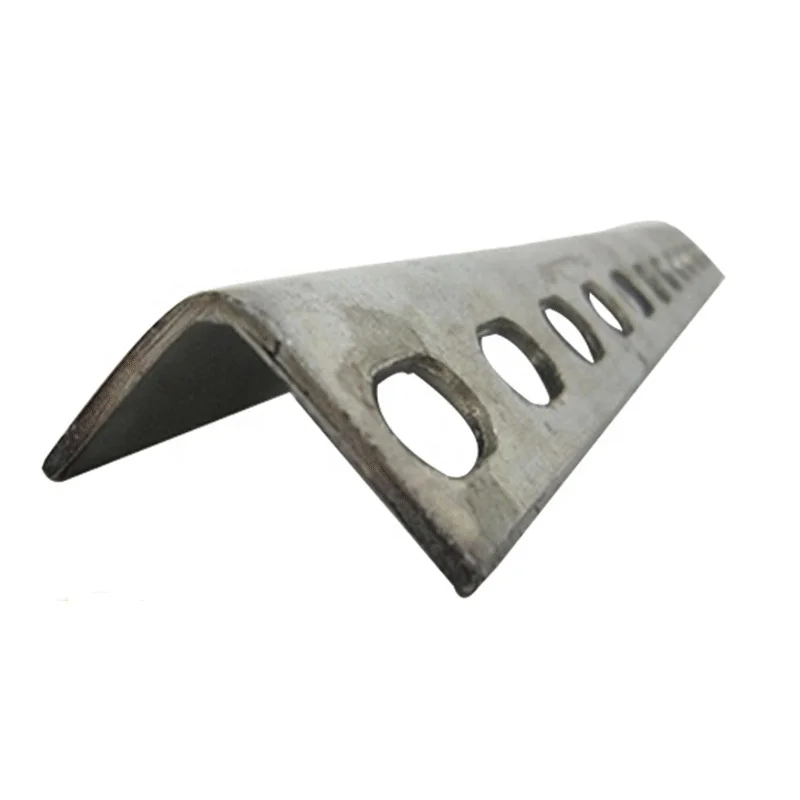

Perforated Slotted Angle Bar with Corner Plate and Bolts Nuts

Technical specifications

Customization guide

Adjustable parameters include:

• Leg dimensions (width/length) to fit specific structural gaps.
• Material thickness (Q195-Q420 series) for varying load capacities.
• Perforation patterns (size/density) to optimize airflow, cable routing, or weight reduction.

Get inspired

From reinforcing industrial frameworks to enhancing architectural aesthetics, these angle bars offer unmatched versatility. Their perforated slots simplify cable management in machinery, while their corrosion-resistant alloy ensures longevity in marine or chemical environments.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Alloy Composition: Q420-grade alloy in the Pro model offers 30% higher tensile strength than Q235, enabling heavy-duty applications like bridge supports.
   • Precision Tolerance: ±1% tolerance in Pro models ensures seamless integration with precision machinery.
   • Perforation Engineering: Strategically spaced slots reduce material weight by 20% without compromising load-bearing capacity.

2. Version Selection Guide:

   • Base Model: Ideal for standard construction projects (e.g., light industrial framing) where cost efficiency is prioritized.
   • Advanced Model: Suitable for medium-load applications (e.g., machinery supports) requiring enhanced durability and moderate customization.
   • Pro Model: Designed for high-stress environments (e.g., offshore platforms, heavy machinery) where extreme strength and precision are critical.

With the Pro model’s Q420-grade alloy, you can safely handle corrosive chemicals in marine settings. Pair its ±1% tolerance with perforated slots to streamline cable routing while maintaining structural integrity. For architects, the Base Model’s polished finish and lightweight design offer cost-effective aesthetic solutions.
