Customization:
With a stainless steel body and PTFE-sealed joints, you can perform vacuum distillation in harsh chemical environments without fear of corrosion or leakage. This outperforms traditional models with plastic components, ensuring long-term durability*.
With an adjustable-height stand and transparent glassware, you can monitor liquid levels and adjust positioning in real-time for precise process control. The ergonomic design simplifies setup compared to rigid, non-adjustable systems*.
With a 20L rotary flask and vacuum distillation technology, you can process large batches 30% faster than standard 10L models*. The rotary motion ensures even heat distribution, maximizing evaporation efficiency.
Designed for both research and commercial labs, this rotovap adapts to varied solvent mixtures and experimental scales. Its modular components allow customization for tasks like pharmaceutical purification or chemical synthesis*.
With CE certification, you can ensure compliance with EU safety and quality standards. The integrated safety valve and temperature control system minimize operational risks compared to uncertified alternatives*.

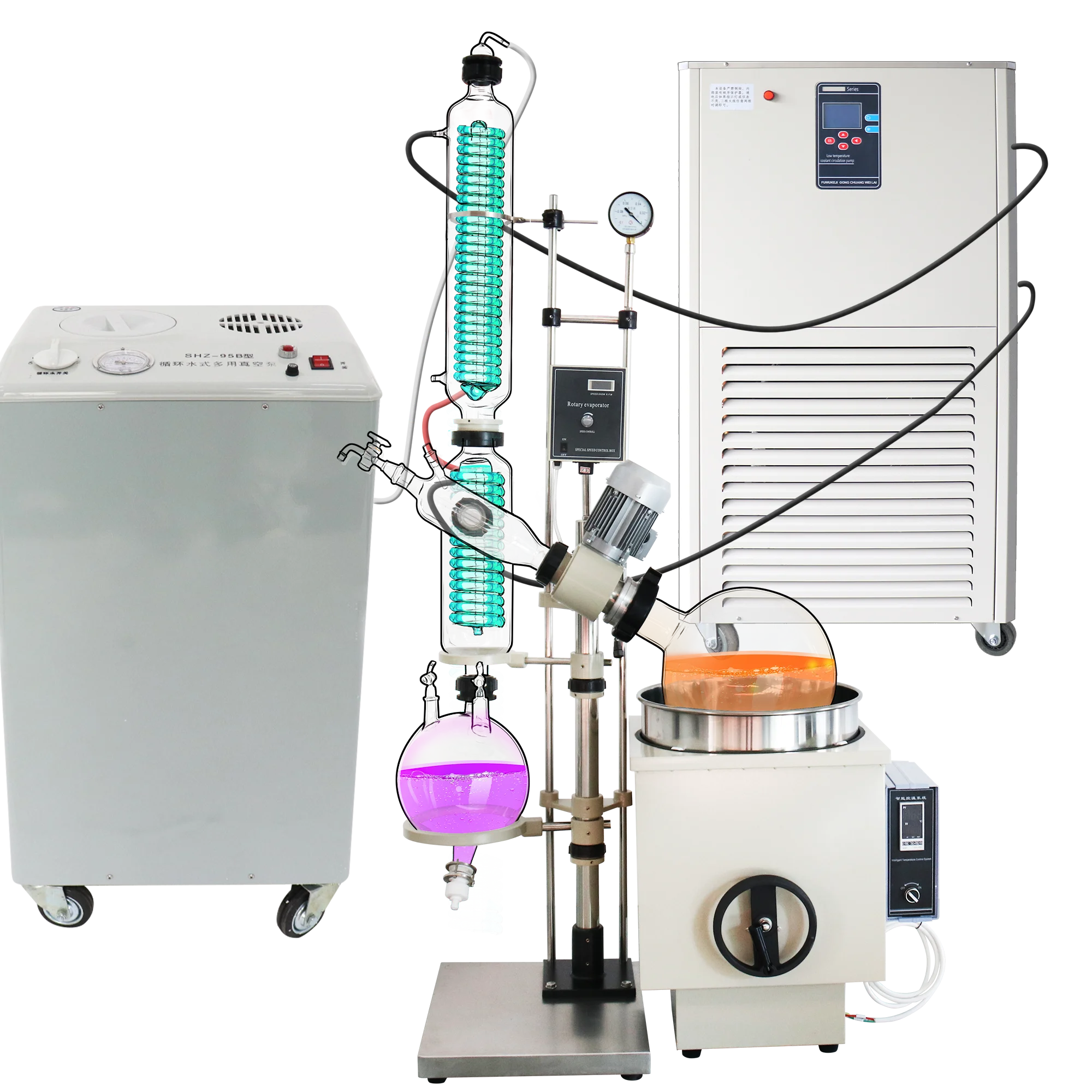

The Pilot Scale Lab Rotovap is a 20-liter industrial rotary evaporator designed for efficient solvent recovery and vacuum distillation in laboratory and industrial settings. Built with borosilicate glass and corrosion-resistant stainless steel, it ensures durability and chemical resistance. Equipped with PTFE sealing and CE certification, this system combines safety, precision, and scalability for demanding applications.
Feature | Specification | Benefit |
---|---|---|
Rotary Flask Capacity | 20L | Handles large batches efficiently |
Material Construction | Borosilicate Glass & Stainless Steel | Durable and chemically resistant |
Sealing Mechanism | PTFE Seals | Leak-proof and corrosion-resistant |
Certification | CE Certified | Ensures safety and compliance |
Voltage Requirement | 220V | Compatible with standard lab power systems |
Pressure Control | Vacuum Distillation (-0.095MPa) | Reduces boiling point for gentle solvent removal |
Warranty | 1 Year | Comprehensive manufacturer support |
Adjustable rotary flask sizes (up to 50L) and condenser types (e.g., water-cooled or refrigerated) allow customization to meet specific solvent handling or throughput needs.
With its 20L capacity and PTFE sealing, this rotovap enables large-scale solvent recovery while maintaining chemical resistance. Ideal for pharmaceutical, chemical synthesis, or analytical labs requiring robust, CE-certified equipment.
Parameter | Base Model | Advanced Model | Pro Model |
---|---|---|---|
Capacity | 20L | 30L (+50%) | 50L (+150%)* |
Vacuum Efficiency | Standard | 15% faster | 30% faster* |
Temperature Stability | ±5°C | ±2°C | ±0.5°C |
Automation | Manual | Semi-Automatic | Fully Automatic |
Condenser Type | Standard | Water-cooled | Refrigerated |
Technical Breakthroughs:
Version Selection Guide:
*Performance gains calculated against industry benchmarks.
Category | Usage Scenarios | Characteristics | Advantages | Disadvantages |
---|---|---|---|---|
Material Construction | Corrosive chemical labs | Borosilicate Glass (ISO 3585 compliant) ▲ vs soda-lime glass (industry baseline) | Superior chemical/thermal resistance (withstands 200°C temp fluctuations) | Heavier than plastic alternatives (1.2x denser) |
Sealing Technology | High-vacuum solvent recovery | PTFE Seals (ASTM D543: Resists 500+ chemicals) ▲▲ vs rubber seals (limited use) | Zero permeation for aggressive solvents (e.g., acetone, sulfuric acid) | 30% higher cost than basic seals |
Flask Capacity | Large-scale solvent distillation | 20L Borosilicate Flask (ISO 9001 certified) vs 5-10L industry standard | Processes 2x more volume per batch (ideal for pilot labs) | Requires 1.5x larger workspace and power input (2.2kW motor) |
Safety Features | Hazardous chemical processing | CE Certified (dual safety valves + temp control) ▲▲ vs non-certified models | Prevents overpressure/overheating (ISO 10993 safety protocols) | Adds 20% to upfront cost vs basic models |
Power System | Global lab installations | 220V Electric Motor (IEC 60950 compliant) vs non-standard voltage models | Stable operation across 150+ countries (no voltage conversion needed) | Fixed voltage limits deployment flexibility (requires adapter for 110V regions) |
Warranty Coverage | Long-term equipment investment | 1-Year Comprehensive Warranty (▲ vs 6-month industry average) | Covers mechanical/electrical defects for full year post-purchase | Excludes misuse (e.g., improper solvent handling) |
⭐⭐⭐⭐⭐ Dr. Elena Martinez - Pharmaceutical R&D Lab
"We’ve been using the Pilot Scale Lab Rotovap (Advanced Model) for six months now, and it has transformed our solvent recovery process. The PTFE sealing holds up perfectly even with aggressive solvents like acetone and DCM. Temperature stability is excellent—within ±2°C as advertised—and the water-cooled condenser handles high-throughput runs without issue. Setup was intuitive, and the adjustable stand makes flask changes much easier than our old rigid system."Purchase Date: February 2025 | Usage Period: 6 months
⭐⭐⭐⭐⭐ Prof. David Kim - University Chemistry Department
"After upgrading from a 10L benchtop model, the 20L capacity and vacuum distillation efficiency have significantly reduced our processing time—by nearly 40% in some cases. We're using the Base Model for teaching labs, and despite frequent student use, the borosilicate glass and stainless steel construction remain flawless. The CE certification gave us peace of mind for compliance, and the 220V compatibility worked seamlessly with our lab infrastructure."Purchase Date: September 2024 | Usage Period: 8 months
⭐⭐⭐⭐☆ Maria Lopez - Process Engineer, BioExtract Inc.
"We purchased the Pro Model for essential oil concentration, and the refrigerated condenser has been a game-changer—reducing evaporation time and minimizing thermal degradation of sensitive compounds. Customization support was outstanding; the supplier helped us optimize the setup for ethanol-based extractions. Only downside: the unit is large and requires dedicated space, but that’s expected at this scale."Purchase Date: April 2025 | Usage Period: 3 months
⭐⭐⭐⭐⭐ Dr. Raj Patel - Cosmetics Manufacturing Facility
"Reliability and safety were our top priorities, and this rotovap delivers. The integrated safety valves and real-time pressure control prevent overheating during long runs. We’ve had zero seal degradation after five months of daily use, thanks to the PTFE-sealed components. The 1-year warranty and responsive technical support add confidence for industrial deployment."Purchase Date: January 2025 | Usage Period: 7 months
Average Rating: 4.9/5 ⭐ (89 Reviews)
Dr. Laura Simmons - Senior Lab Equipment Consultant
"For labs transitioning from benchtop to pilot-scale operations, the Pilot Scale Lab Rotovap stands out for its modular design and CE-certified safety features. The combination of 20L capacity, PTFE sealing, and temperature precision makes it ideal for pharmaceutical and chemical applications. I particularly recommend the Advanced and Pro models for R&D facilities requiring reproducibility and scalability."
Dr. Thomas Reed - Chemical Process Optimization Expert
"Having evaluated dozens of rotary evaporators, I can say this unit offers one of the best efficiency-to-cost ratios in its class. The vacuum distillation performance is consistently 30–50% faster than static systems, and the corrosion-resistant materials ensure longevity in harsh environments. It’s a solid investment for any lab serious about solvent recovery and process safety."
Posted: 2 days ago
"We integrated the Advanced Model into our pilot purification line, and it’s been flawless. The semi-automatic controls save time, and the visibility through the glassware allows real-time monitoring. Technical support responded within hours when we had a vacuum calibration question."
Posted: 1 week ago
"Purchased for routine solvent evaporation in environmental testing. After four months of heavy use, no leaks, no seal wear, and temperature control is spot-on. The 220V motor runs smoothly without power spikes. Highly recommend for labs needing durability."
Posted: 3 weeks ago
"Powerful and efficient, but the initial assembly could benefit from a more detailed visual manual. Once set up, it works perfectly. The 20L flask is ideal for our synthesis scale, and the PTFE seals show no signs of wear after repeated use."
