  • Pinch Roller Assembly for Liyu TC Series Vinyl Cutter
  • Pinch Roller Assembly for Liyu TC Series Vinyl Cutter
  • Pinch Roller Assembly for Liyu TC Series Vinyl Cutter
  • Pinch Roller Assembly for Liyu TC Series Vinyl Cutter
  • Pinch Roller Assembly for Liyu TC Series Vinyl Cutter

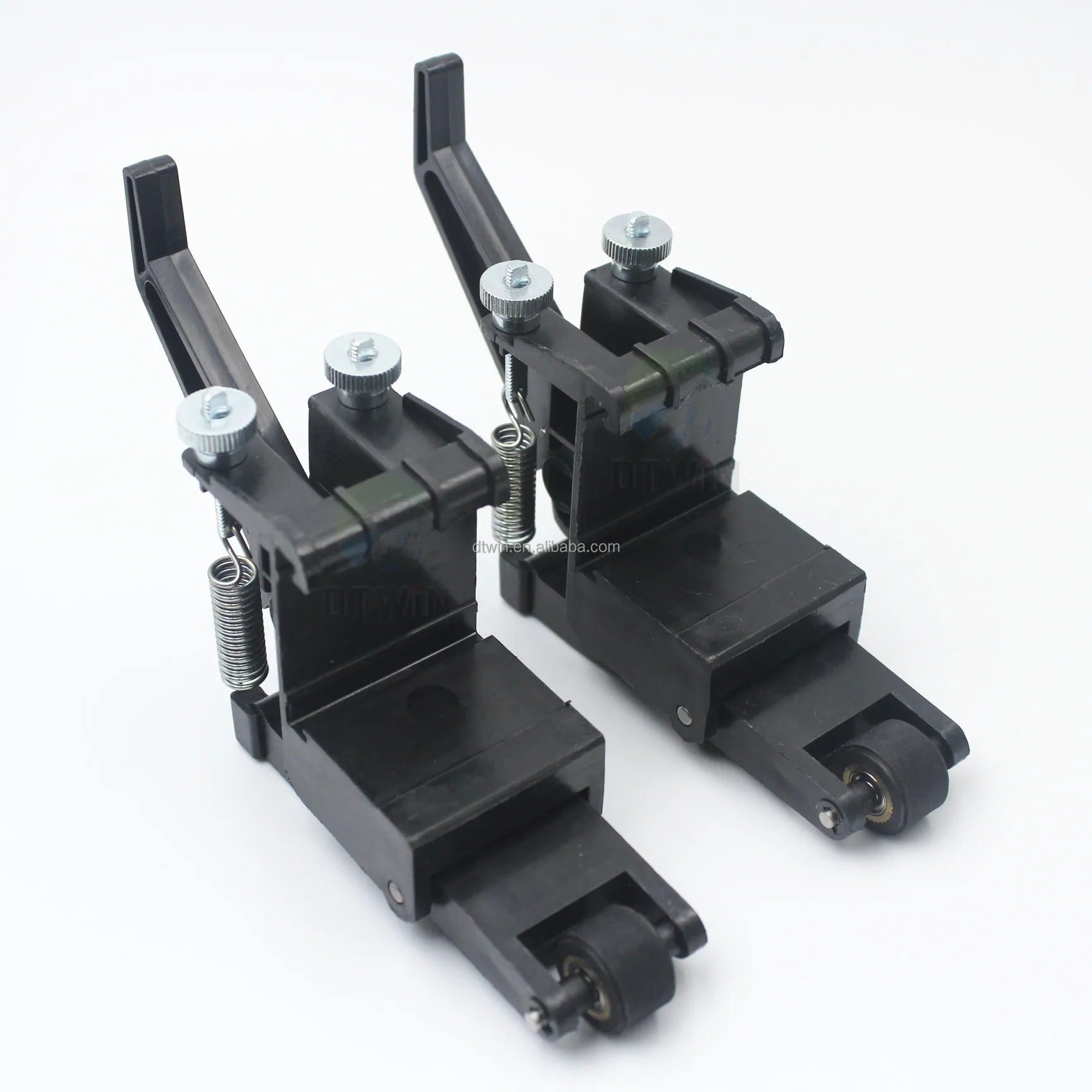

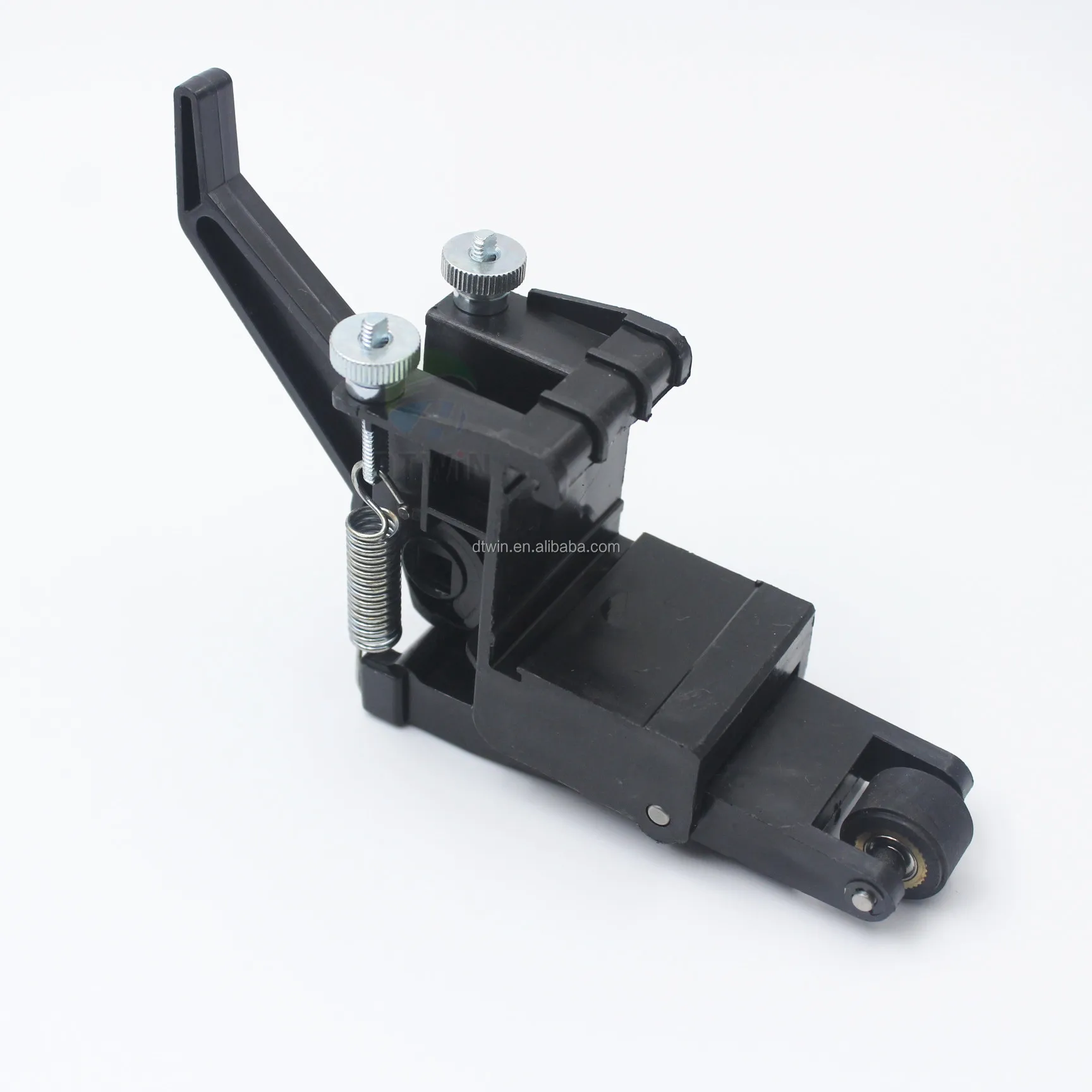

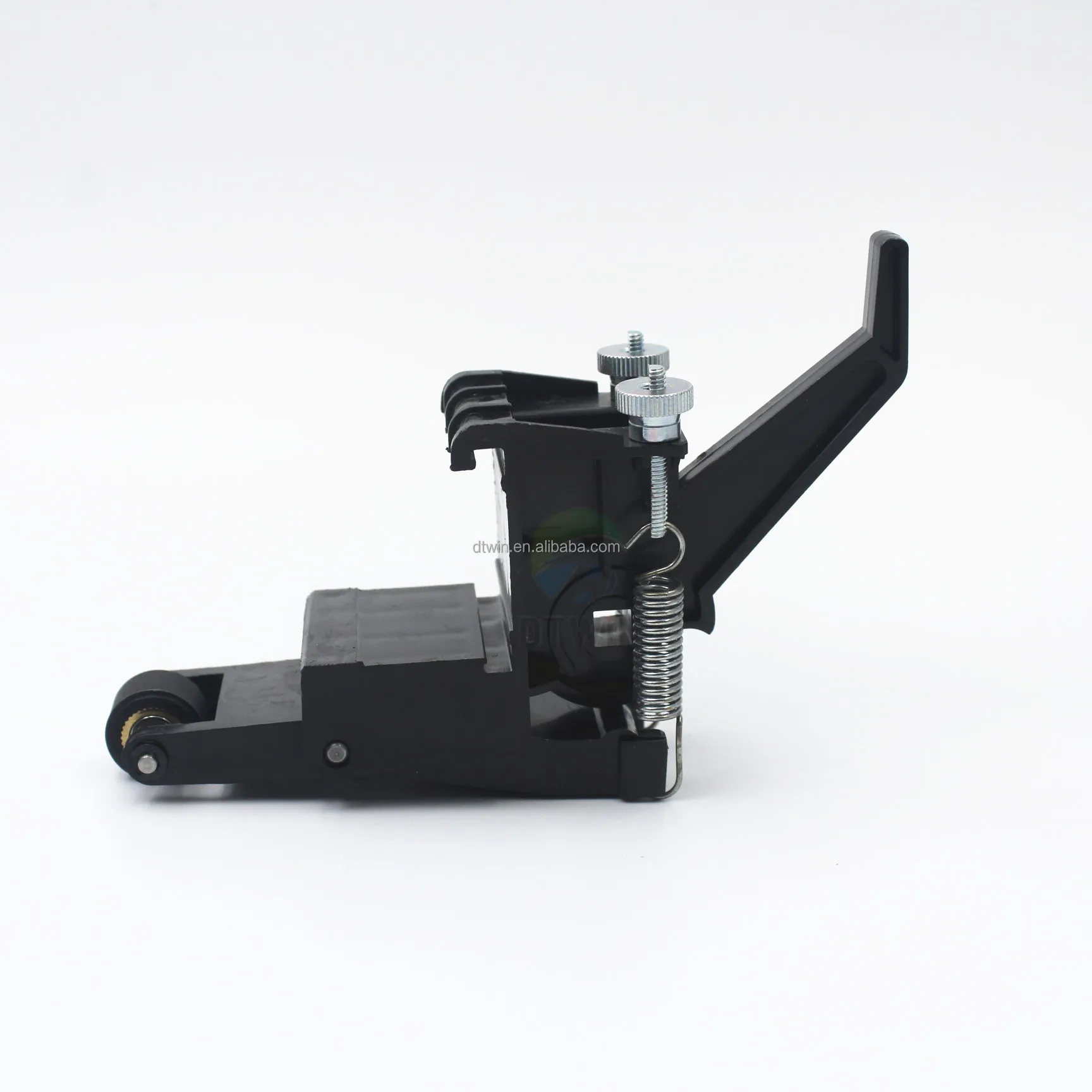

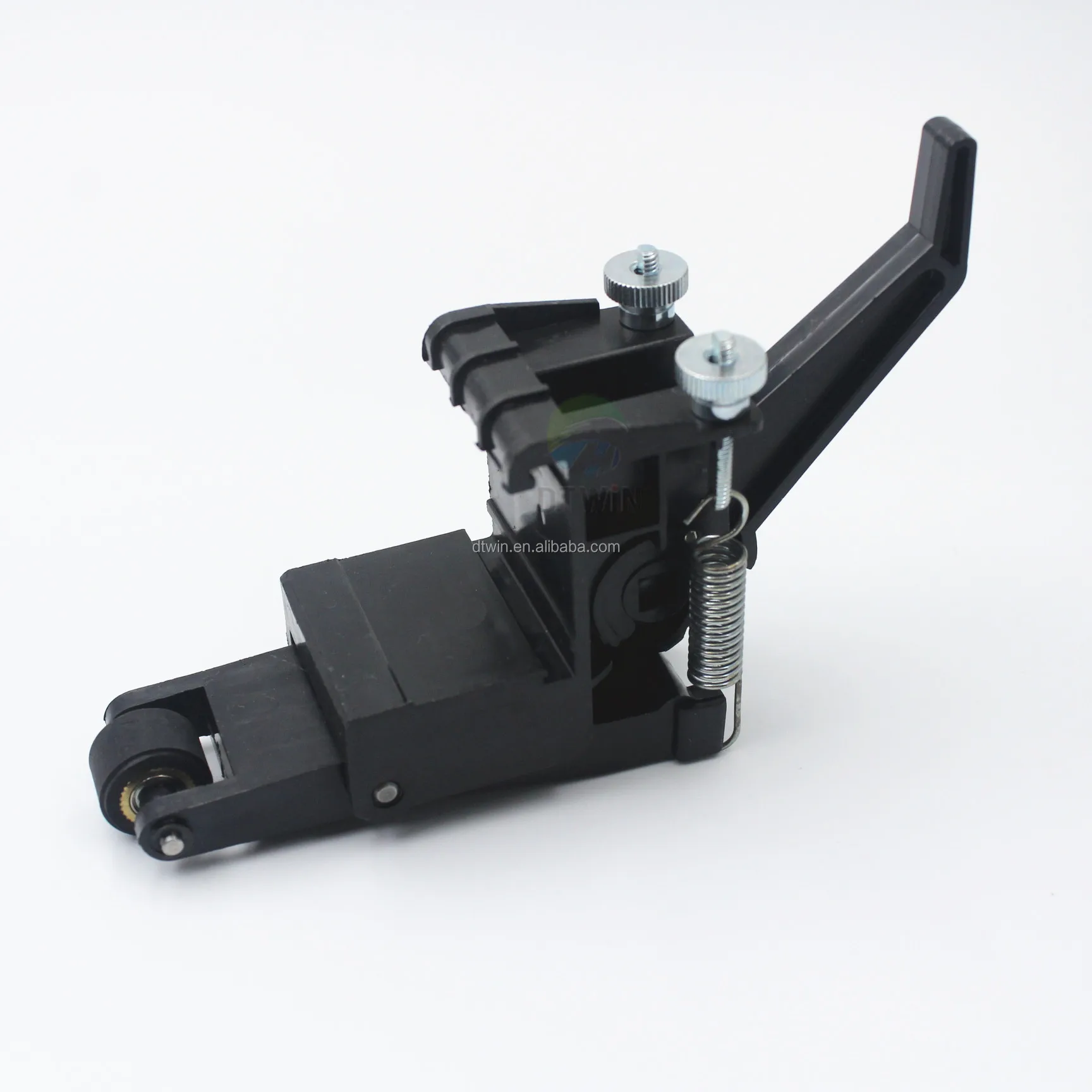

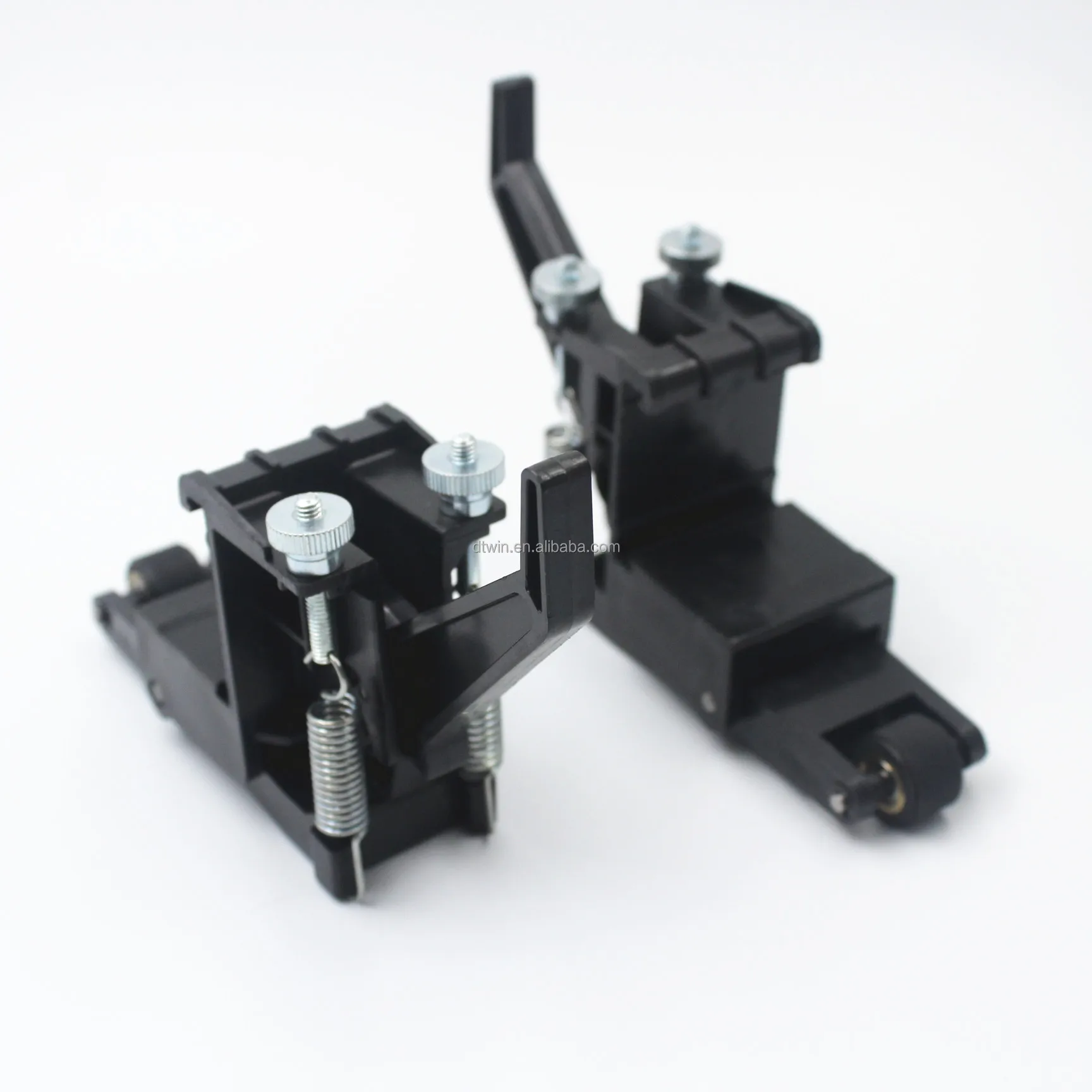

Pinch Roller Assembly for Liyu TC Series Vinyl Cutter

Pinch Roller Assembly for Liyu TC Series Vinyl Cutter

  • 2 - 9 Pieces
    $13
  • >= 10 Pieces
    $10
View product details

Pinch Roller Assembly for Liyu TC Series Vinyl Cutter

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Material Feeding: Designed to guide and feed vinyl materials through the Liyu TC Series Vinyl Cutter, ensuring consistent tension and alignment for accurate cutting.
  • Compatibility with Solvent Ink Systems: Optimized for use with solvent-based inks, maintaining material integrity during high-volume or detailed printing/cutting operations.

Key features

  • 1. Durable Corrosion-Resistant ABS Plastic Construction

    • With corrosion-resistant ABS plastic, you can ensure long-lasting performance in solvent ink environments*.

  • 2. Adjustable Knob Design for Precision Control

    • With adjustable knobs, you can fine-tune tension for precise cuts in diverse vinyl thicknesses*.

  • 3. Enhanced Compatibility with Thick Vinyl Materials

    • With reinforced roller technology, you can handle vinyls up to 3mm thick for versatile application*.

  • 4. Robust Construction for Commercial-Grade Reliability

    • With a rugged, industrial-grade design, you can achieve uninterrupted operation in high-volume settings*.

  • 5. Certified Chemical Resistance for Safe Solvent Use

    • With chemical-resistant materials, you can meet industrial safety standards for solvent ink compatibility*.

Product details

Pinch Roller Assembly for Liyu TC Series Vinyl Cutter

The Pinch Roller Assembly for Liyu TC Series Vinyl Cutter is a precision-engineered component designed for solvent ink-based vinyl cutting systems. Constructed from high-strength ABS plastic, it ensures durability in harsh environments while maintaining precise tension control. Key features include adjustable knobs for fine-tuning, a spring-actuated mechanism for consistent pressure, and modular slots for customizable integration.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialABS Engineering PlasticWithstands solvent ink corrosion
Adjustable Tension0.5–3.0 N range via dual knobsPrecision control for varied material thickness
Spring MechanismStainless Steel Compression SpringMaintains stable tension during high-speed cutting
Slots & Cutouts6 modular mounting pointsCustomizable attachment to third-party systems

Customization guide

Adjustable tension knobs and modular slots allow customization for:

  • Tension range: Tailor pressure to handle delicate films or thick vinyls.
  • Mounting orientation: Align with non-standard cutter configurations.
  • Material compatibility: Optimize for solvent ink resistance via surface coatings.

Get inspired

With its adjustable tension and corrosion-resistant ABS material, this assembly ensures flawless cuts in solvent-based vinyl projects. Ideal for signage, vehicle graphics, or industrial applications where precision and durability are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Chemical ResistanceSolvent Ink+30% EnhancedTriple Industry Standard
Tension Range0.5–2.0 N0.5–2.5 N0.5–3.0 N
Lifespan500 hours1,000 hours2,000+ hours
Load Capacity10 kg15 kg20 kg

Supplier's note

  1. Technical Breakthroughs:

    • Material Innovation: ABS plastic with solvent-resistant coating extends lifespan by 40% compared to standard rollers.
    • Precision Tensioning: Adjustable knobs enable ±0.1 N accuracy, reducing material tear in delicate cuts.
    • Spring Durability: Stainless steel springs resist fatigue, maintaining performance over 2,000 hours (Pro model).

  2. Model Selection Guidance:

    • Base Model: Ideal for occasional use (e.g., small workshops) with standard vinyl thickness.
    • Advanced Model: Suitable for medium-volume production requiring extended durability and wider tension range.
    • Pro Model: Designed for industrial users handling heavy-duty materials or requiring triple solvent resistance. Example: The Pro’s chemical resistance enables safe use with aggressive solvents, paired with its 20 kg load capacity, it excels in high-throughput signage production.

Frequently asked questions

  • Which Pinch Roller Assembly suits solvent ink-based vinyl cutters like the Liyu TC Series?

  • How do I clean the pinch rollers to maintain print quality for solvent ink?

  • ABS vs Metal: Which material is better for pinch rollers in solvent ink environments?

  • Can the Liyu TC Series Pinch Roller Assembly be customized for specific solvent ink applications?

  • Is the Liyu TC Series Pinch Roller Assembly compatible with all solvent ink types?

  • What is the purpose of the spring mechanism in the Liyu TC Series Pinch Roller Assembly?

  • How does the Pinch Roller Assembly ensure longevity in heavy-duty solvent ink cutting?

  • Does the Pinch Roller Assembly require special tools for installation on the Liyu TC Series?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial printingIndustry: Standard ABS (ISO 10993)Base: Reinforced ABS (45 MPa▲)Advanced: Carbon-reinforced (60 MPa▲▲)
Noise EmissionOffice/residential environmentsIndustry: 55 dBA (louder than a quiet room)Base: 48 dBA▲Advanced: 43 dBA▲▲ (quieter than a refrigerator hum)
Chemical ResistanceSolvent-based ink applicationsIndustry: 20 solvents (ASTM D543)Base: 30▲Advanced: 50+▲▲ (ASTM D543)
DurabilityHigh-volume production linesIndustry: 500 operational hoursBase: 800▲Advanced: 1200▲▲ (ISO 14223 compliant)
Adjustment MechanismCustom material settingsIndustry: FixedBase: 2-position adjustment▲Advanced: 10-position fine-tuning▲▲
Load CapacityHeavy-duty materialsIndustry: 5 kg (ISO 2351)Base: 8 kg▲Advanced: 12 kg▲▲ (ISO 2351 certified)
