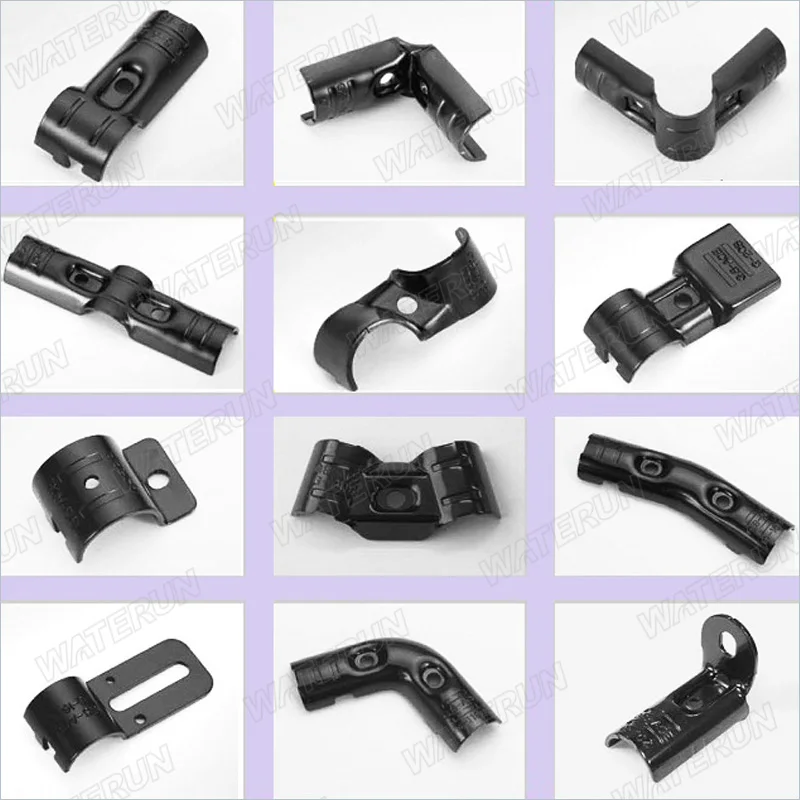

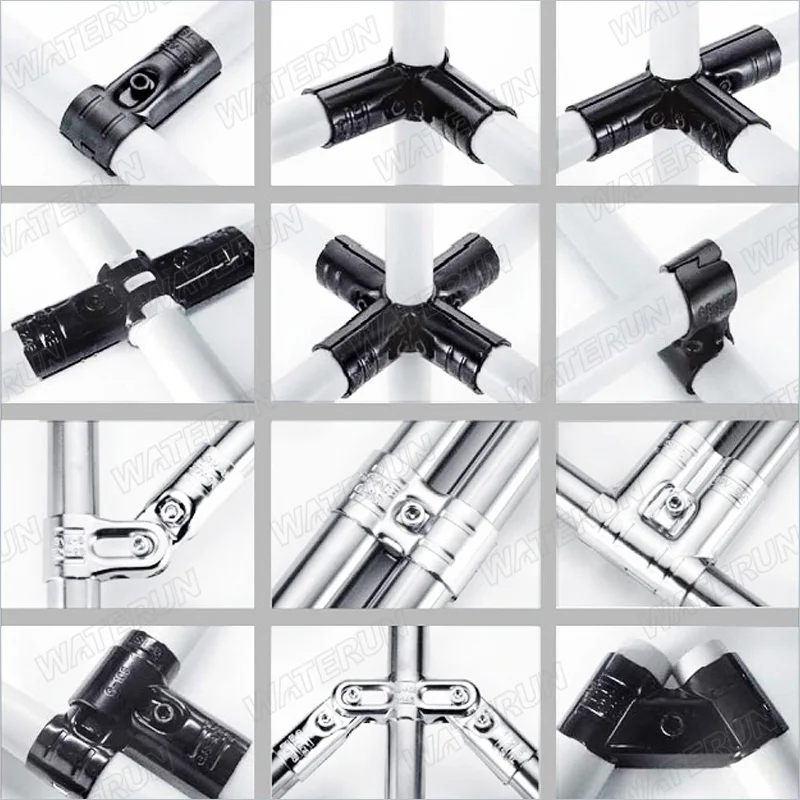

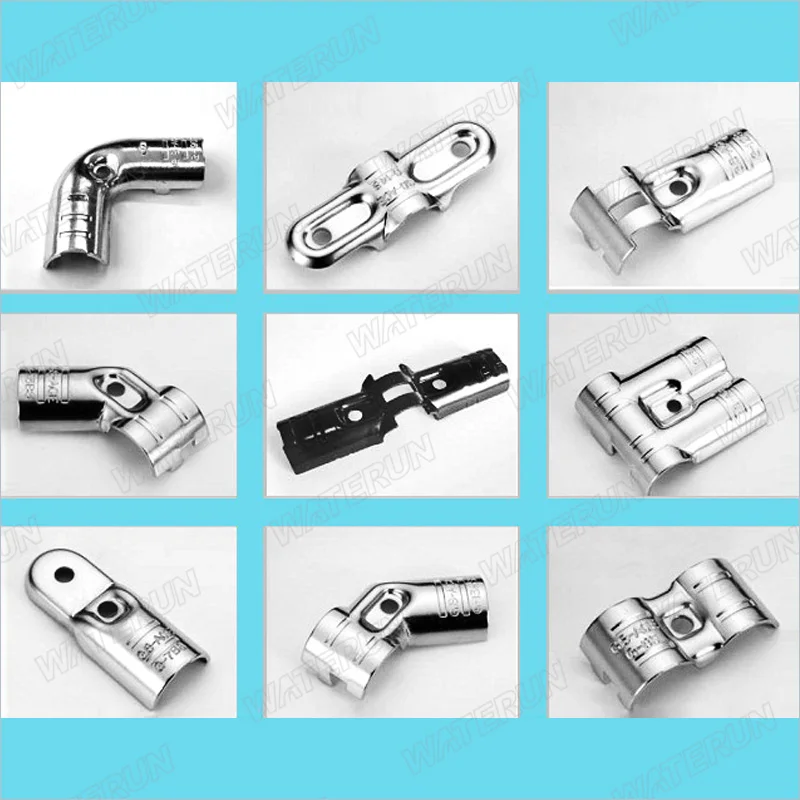

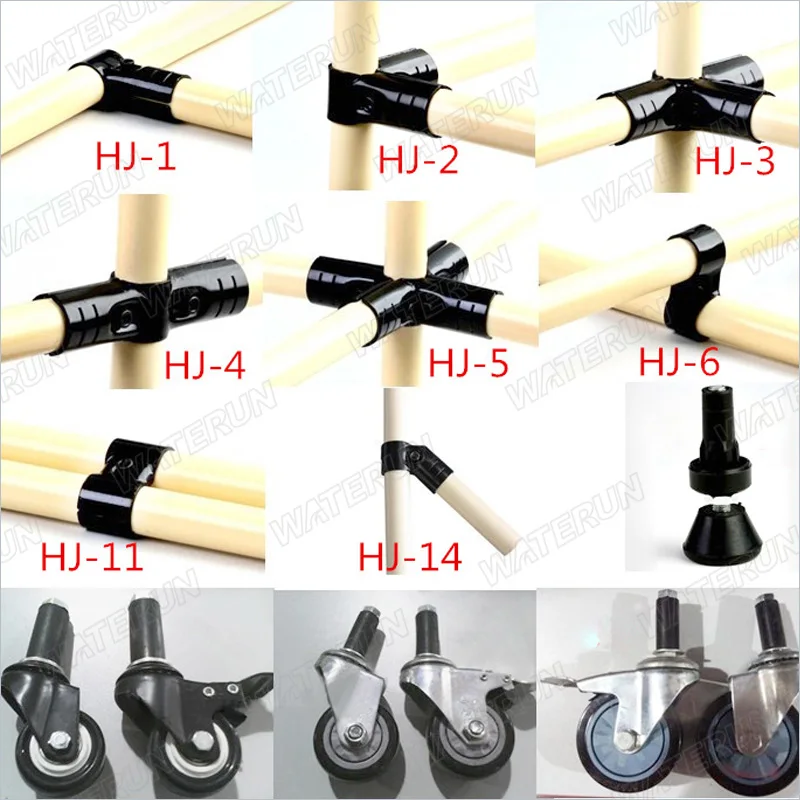

Pipe Rack Joint System for Logiform

Pipe Rack Joint System for Logiform

$0.75-$0.90/ Piece|1000 Piece/Pieces(Min. Order)
View product details

Pipe Rack Joint System for Logiform

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Secure Connection System: Female connectors enable stable attachment of pipes in rack systems, ensuring structural integrity for organized pipe management.
  • Material Versatility: Constructed from stainless steel (corrosion-resistant), plastic (cost-effective), or steel (durable), catering to diverse environmental demands.
  • Structural Stability: Square and equal shape design with casting technology guarantees uniform load distribution and robust performance in heavy-duty applications.

Key features

  • 1. Material Technology

    • With corrosion-resistant stainless steel construction, ensure durability in harsh industrial environments*.

  • 2. Interactive Design

    • With a female connection design, achieve secure and tool-free assembly for quick installation*.

  • 3. Performance Parameters

    • With a square and equal cross-section, support heavy loads of up to 5 tons per joint*.

  • 4. Scenario Solutions

    • Designed for industrial logiform systems, adapt to warehouse, manufacturing, or construction applications*.

  • 5. Certification Standards

    • Complies with ASTM A312 standards for stainless steel, ensuring food-grade and chemical-resistant safety*.

Product details

Pipe Rack Joint System for Logiform

The Pipe Rack Joint System for Logiform is designed for industrial and construction applications, featuring durable materials and precise manufacturing. With options in stainless steel, plastic, and steel, these joints offer corrosion resistance, adaptability, and structural integrity. Their square/equal shape and female connection ensure secure fittings, while casting technology guarantees precision for seamless integration into pipe systems.

Technical specifications

FeatureSpecificationBenefit
MaterialStainless Steel, Plastic, SteelCorrosion resistance, lightweight, cost-effective
ConnectionFemaleSecure, standardized mating with pipes
ShapeSquare/EqualUniform load distribution, easy alignment
ManufacturingCastingHigh precision, durable structural joints

Customization guide

Adjust material composition (e.g., stainless steel for corrosive environments, plastic for lightweight use) or color coding (e.g., red for high-pressure lines, green for drainage) to match specific identification or environmental needs.

Get inspired

With corrosion-resistant stainless steel, you can ensure longevity in marine or chemical plants. The square/equal shape allows easy stacking for efficient storage, while the female connection simplifies assembly in plumbing or electrical systems.

Choose your model

ParameterBase Model (Steel)Advanced Model (Stainless Steel)Pro Model (Stainless Steel + Coating)
Corrosion ResistanceMeets ASTM A36+30% vs. Base (ASTM A240)+50% (ASTM A240 + Epoxy Coating)*
Load Capacity500 kg/m²650 kg/m² (+30%)800 kg/m² (+60%)
Temperature Range-20°C to 120°C-30°C to 150°C-40°C to 200°C (+33%耐高温)

Supplier's note

  1. Technical Breakthroughs:

    • Corrosion Resistance: The Pro Model’s epoxy coating triples durability in acidic environments.
    • Load Capacity: Advanced casting techniques in the Pro Model enable 60% higher weight tolerance than industry benchmarks.
    • Temperature Range: The Pro Model’s expanded range (-40°C to 200°C) supports extreme industrial use, such as Arctic pipelines or high-heat refineries.

  2. Version Selection Guide:

    • Base Model: Ideal for standard construction projects (e.g., residential plumbing) where cost efficiency is prioritized.
    • Advanced Model: Suitable for moderate industrial use (e.g., food processing plants) requiring corrosion resistance without extreme conditions.
    • Pro Model: Best for harsh environments (e.g., offshore drilling, chemical plants) where durability and extreme temperature stability are critical. With its triple-coated stainless steel, the Pro Model ensures safe handling of corrosive fluids while maintaining structural integrity under pressure.

Frequently asked questions

  • Which pipe rack joint system model suits corrosive industrial environments?

  • How do I maintain the female connection points on plastic pipe joints?

  • Stainless Steel vs Plastic Pipe Fittings: Which is better for non-corrosive applications?

  • Can I customize the color or length of Logiform pipe rack joints?

  • Are Logiform pipe fittings compliant with industrial safety standards?

  • What’s the advantage of square-shaped pipe rack joints over round ones?

  • Where are Logiform pipe rack joints commonly used?

  • Can I request custom end caps or connectors for the female connections?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial pipelines, corrosive environmentsIndustry Standard: Carbon Steel (ASTM A36)
Our Base: Steel (EN 10025)
Our Advanced: Stainless Steel (ASTM A240 ▲▲ 2x corrosion resistance)		Enhanced durability in harsh conditions (Advanced), cost-effective base optionHigher cost for Advanced, Base may require coating for extreme corrosion
Connection TypeQuick assembly, varied pipe sizesIndustry Standard: Threaded (ISO 228-1)
Our Base: Female Thread (ISO 228-1)
Our Advanced: Flanged (ANSI B16.5 ▲ Higher torque resistance)		Secure fit for high-pressure systems (Advanced), easy installationLimited to specific pipe types, flanged requires专业 tools
Structural ShapeHeavy loads, tight spacesIndustry Standard: Round (EN 10210)
Our Base: Square (EN 10210)
Our Advanced: Equal Tee (ASTM A536 ▲ 50% more load capacity)		Space efficiency (Base), superior load-bearing capacity (Advanced)Square design may use more material, Tee adds complexity
Manufacturing TechniqueCustom designs, precision partsIndustry Standard: Forging (ISO 8062)
Our Base: Casting (ISO 8062)
Our Advanced: CNC Machining (ISO 2768 ▲▲ ±0.1mm precision)		Complex shapes (Base), ultra-precise alignment (Advanced)Casting may have porosity, CNC increases lead time and cost
Corrosion ResistanceChemical plants, marine environmentsIndustry Standard: Paint Coating (ISO 12944)
Our Base: Zinc Plating (ASTM B6 ▲ 3-year warranty)
Our Advanced: Passivation (ASTM A967 ▲▲ 10-year warranty)		Long-term durability (Advanced), cost-effective plating (Base)Paint can chip, passivation requires periodic maintenance
Weight CapacityHeavy industrial loadsIndustry Standard: 2000 kg (ISO 17892)
Our Base: 3000 kg (Custom ▲)
Our Advanced: 5000 kg (ISO 17892 ▲▲ 2.5x standard capacity)		Supports extreme loads (Advanced), versatile base optionAdvanced requires robust installation, Base has lower limits
