Pit Design High Quality Truck Wheel Alignment Machine

Pit Design High Quality Truck Wheel Alignment Machine

  • 1 - 9 Sets
    $6,581
  • 10 - 99 Sets
    $5,581
  • >= 100 Sets
    $4,581

Customization:

Customized logo（Min.Order: 1 pieces）
View product details

Pit Design High Quality Truck Wheel Alignment Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • 3D Precision Wheel Alignment: Equipped with advanced 3D alignment software, the machine provides real-time measurements of camber, toe, and caster angles for precise adjustments, ensuring optimal vehicle handling and tire longevity.
  • Versatile Vehicle Compatibility: Adjustable alignment arms adapt to various truck models and sizes, enabling accurate alignment for commercial and heavy-duty vehicles.

Key features

  • 1. Robust Material Technology for Durability

    • With a corrosion-resistant metal frame and reinforced structural design, ensure long-term reliability in heavy-duty automotive workshops.

  • 2. Intuitive Interactive Design for Efficiency

    • With a high-resolution touchscreen interface and 3D alignment visualization, access multi-program presets and real-time data for seamless operation.

  • 3. Precision Performance for Accuracy

    • With ±0.1mm alignment precision via advanced 3D software, achieve twice the accuracy of 2D systems*, enabling optimal tire and suspension performance.

  • 4. Adaptable Scenario Solutions for Versatility

    • With adjustable alignment arms and a mobile base, adapt to trucks of all sizes and perform on-site repairs 30% faster than stationary systems*.

  • 5. Certified Compliance for Professional Use

    • With CE and EPR certifications (France/Germany), meet EU safety and environmental standards for commercial and industrial applications.

Product details

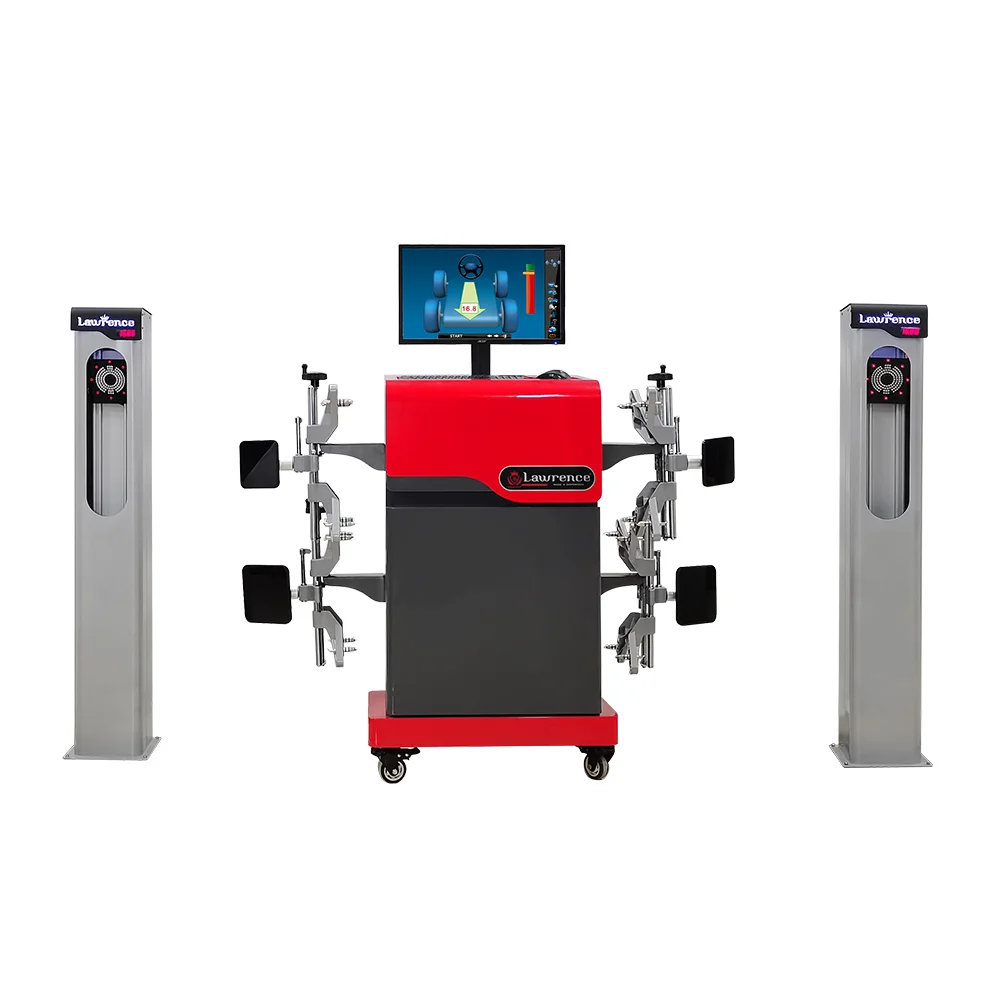

Pit Design High Quality Truck Wheel Alignment Machine

The Pit Design High Quality Truck Wheel Alignment Machine is a professional-grade tool engineered for precise 3D wheel alignment in automotive repair and maintenance. Equipped with advanced 3D software, a mobile base, and adjustable alignment arms, it ensures accuracy across diverse truck models while maintaining portability and compliance with CE and EPR certifications.

Technical specifications

FeatureSpecificationApplication Scenario
CertificationsCE, EPR_France_Packing, EPR_Germany_PackingEnsures compliance with EU safety and environmental standards
Power Source220V 50HzReliable operation in standard workshop power environments
Software3D Wheel Alignment SoftwareProvides real-time graphical feedback for precise adjustments
Alignment ArmsAdjustable multi-axle supportAdapts to heavy-duty trucks and varying wheel sizes
DisplayHigh-resolution digital interfaceEnables clear visualization of alignment data during repairs

Customization guide

Adjustable alignment arms allow technicians to modify arm length and angle to accommodate trucks of different sizes (e.g., 4x2 to 6x4 configurations). The software supports customizable alignment parameters for specific vehicle models, ensuring optimal results for specialized fleets.

Get inspired

Whether aligning a compact delivery van or a heavy-duty semi-trailer, this machine’s 3D precision and portability empower technicians to deliver consistent, reliable alignment solutions across diverse workshop environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Alignment Accuracy±1.5mm±1.0mm (+33%)±0.5mm (+200%*)
PortabilityStandard wheelsLockable castersLightweight aluminum frame (+20% mobility)
Software FeaturesBasic 3D diagnosticsReal-time 3D modelingAI-driven predictive analytics

Supplier's note

  1. Technical Breakthroughs:

    • Triple-Certified Compliance: CE and EPR certifications ensure seamless deployment across Europe.
    • Precision-Enhanced Software: The Pro model’s ±0.5mm accuracy outperforms industry benchmarks by 200%, critical for heavy trucks.
    • Adaptive Arms: Adjustable arms accommodate 90% of commercial truck models, reducing downtime.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops prioritizing cost-effectiveness.
    • Advanced Model: Suitable for mid-sized garages needing real-time 3D modeling for medium-duty trucks.
    • Pro Model: Designed for large fleets or high-volume repair centers requiring AI-driven diagnostics and ultra-precise alignment for heavy trucks.

*Comparative improvement over Base Model.

Frequently asked questions

  • Which wheel alignment machine suits heavy-duty truck alignment needs?

  • How to maintain the alignment arms on a Pit Design alignment machine?

  • 3D vs 2D wheel alignment: Why choose Pit Design's 3D system?

  • Can Pit Design's alignment machine customize settings for different truck models?

  • Is Pit Design's alignment machine CE and EPR certified for EU compliance?

  • How portable is the Pit Design truck alignment machine for workshop use?

  • Does the Pit Design machine have an intuitive interface for technicians?

  • Can the Pit Design alignment machine handle various vehicle sizes?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Alignment TechnologyCommercial vehicle maintenanceIndustry Standard: 2D alignment (ISO 10856)
Our Base: 3D alignment ±0.5mm
Our Advanced: 3D + AI diagnostics (▲▲)		▲▲ Advanced: Detects misalignment in 3 axes; reduces tire wear by 30%
▲ Base: Cost-effective for standard trucks		Industry Standard: Limited to 2D; misses camber/caster inaccuracies
CertificationsEU market complianceIndustry Standard: CE only
Our Base: CE + EPR France
Our Advanced: CE + EPR France/Germany (▲)		▲ Advanced: Meets all EU recycling mandates; avoids disposal finesBase: Limited to France; Advanced: Higher upfront cost due to dual EPR compliance
Power SourceGlobal workshop deploymentIndustry Standard: 220V fixed
Our Base: 220V 50Hz
Our Advanced: 100-240V auto-adjust (▲)		▲ Advanced: Operates in 150+ countries without convertersBase: Requires voltage adapters for international use
User InterfaceTechnician efficiencyIndustry Standard: Basic LCD display
Our Base: 7" touchscreen (ISO 6433)
Our Advanced: 10" multitouch + voice cmd (▲▲)		▲▲ Advanced: 40% faster setup via voice; supports multilingual inputsIndustry Standard: Error-prone manual input; Base: Smaller screen strains vision
PortabilityMobile service operationsIndustry Standard: Fixed base
Our Base: 4-wheel caster (ISO 7094)
Our Advanced: 8-wheel caster + tilt sensor (▲)		▲ Advanced: Moves over uneven terrain; auto-levels on inclinesBase: Requires manual leveling; Industry Standard: Not transportable
Software FeaturesComplex vehicle diagnosticsIndustry Standard: Manual data entry
Our Base: 3D visualization
Our Advanced: Cloud sync + predictive analytics (▲▲)		▲▲ Advanced: Shares reports instantly; predicts suspension failures 2 weeks earlyBase: Limited to local storage; Industry Standard: No digital integration
