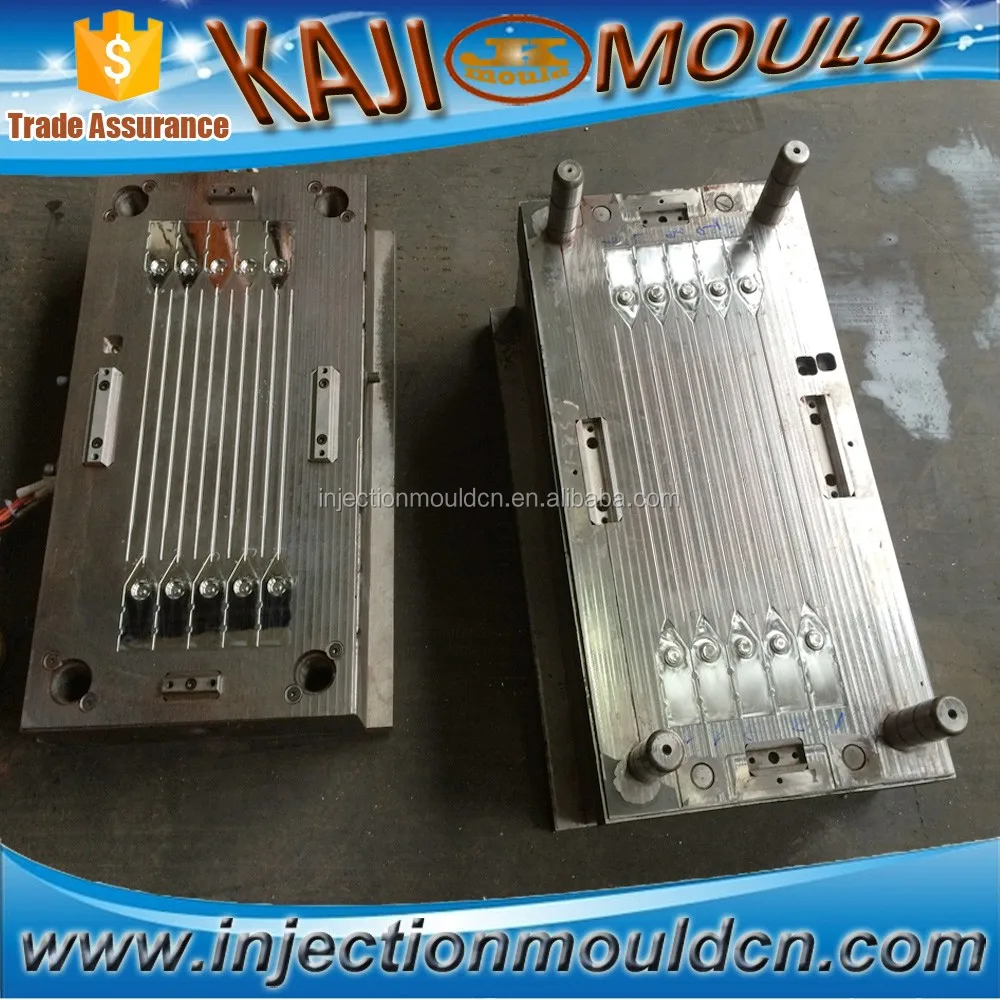

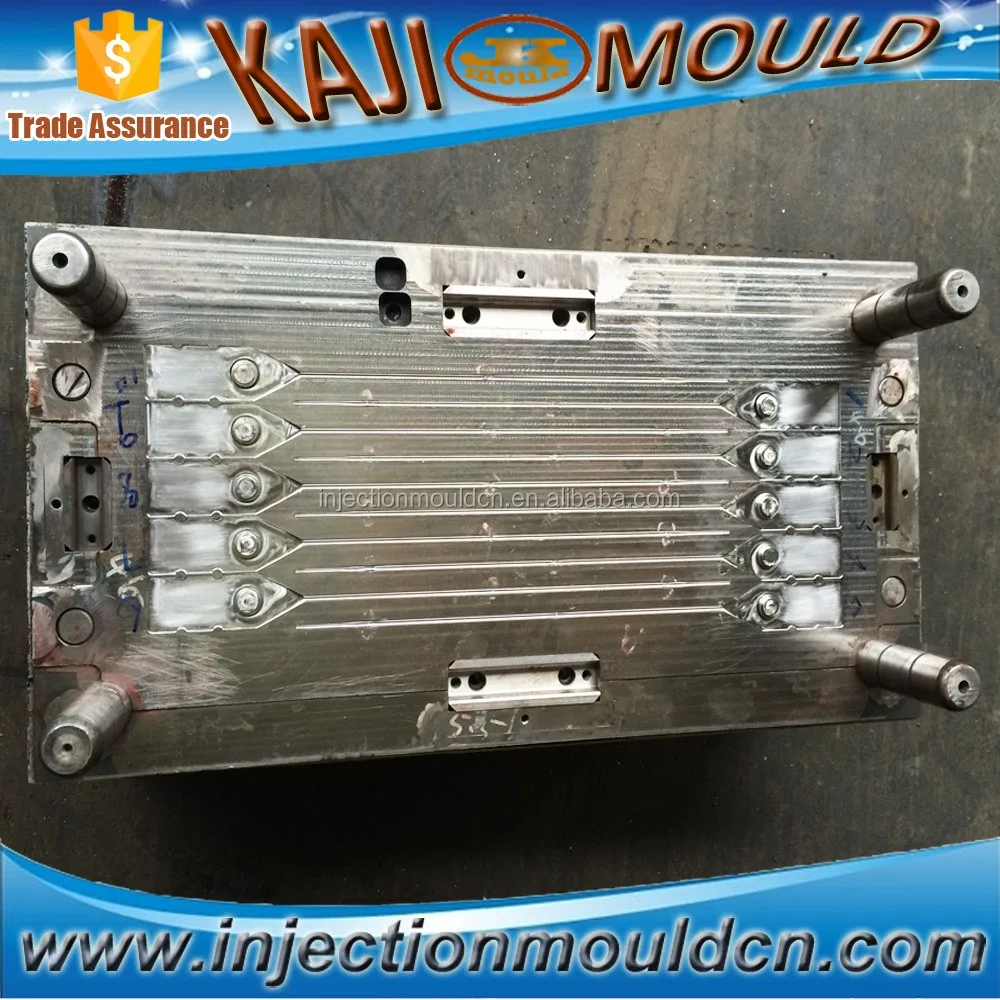

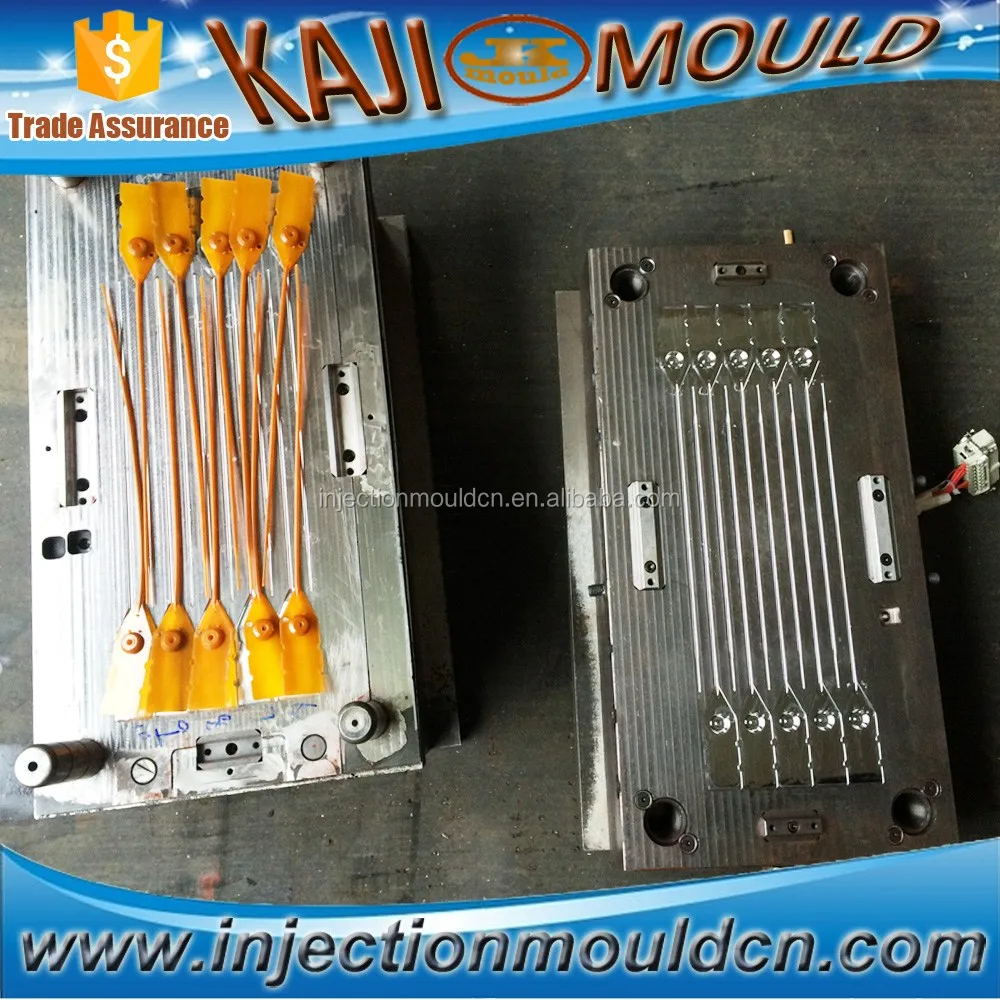

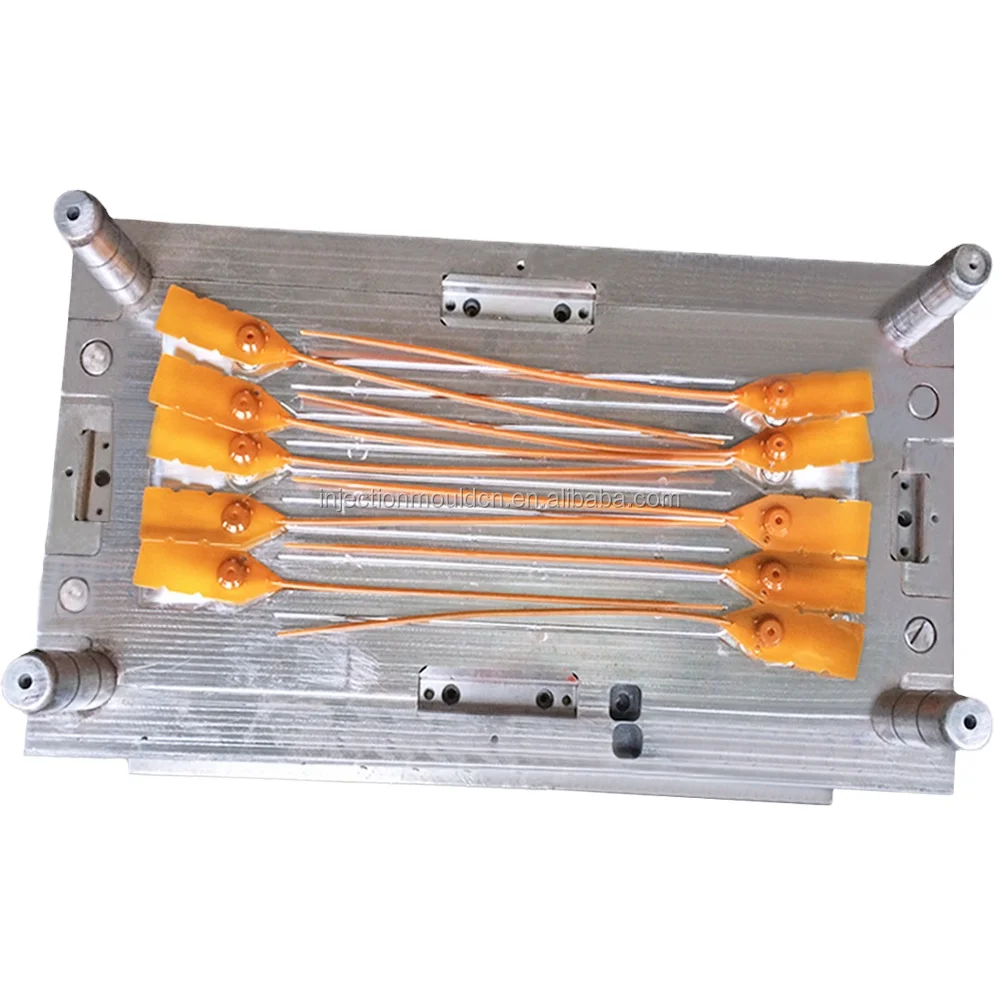

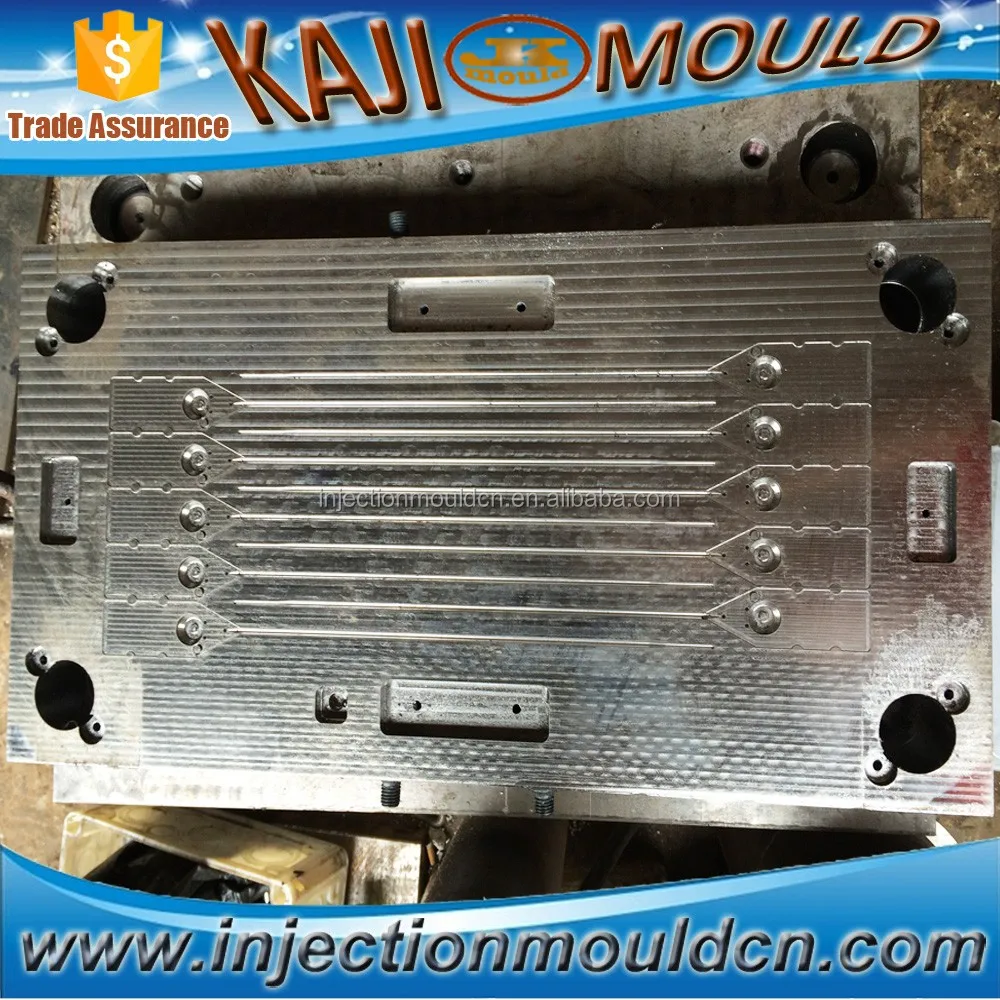

Plastic Injection Security Seal Mould 10 Cavity Seal Tag Mould

Plastic Injection Security Seal Mould 10 Cavity Seal Tag Mould

$1000.00-$5000.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Plastic Injection Security Seal Mould 10 Cavity Seal Tag Mould

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Volume Production: Designed to manufacture 10 identical plastic security seal tags per cycle using injection molding technology. The 10-cavity structure ensures efficient mass production of precise, uniform parts.
  • Hot Runner Precision: Equipped with a hot runner system to optimize material flow, reduce waste, and maintain consistent part quality across all cavities.

Key features

  • 1. Material Technology

    • With H13 and SKD61 steel construction, ensure durability and heat resistance for long-lasting performance in high-temperature injection processes. The corrosion-resistant alloy materials maintain structural integrity even under repeated use.

  • 2. Interactive Design

    • With a 10-cavity precision design, produce multiple uniform seal tags simultaneously, enhancing production efficiency. The modular structure allows easy customization for diverse part geometries.

  • 3. Performance Parameters

    • Equipped with a hot runner system, reduce energy consumption and cycle time by ~20% compared to cold runner systems*. The CNC-machined finish ensures minimal material waste and optimal flow control.

  • 4. Scenario Solutions

    • Engineered for high-volume industrial applications, guarantee consistent quality and precision for security seal production. Ideal for mass manufacturing in automotive, packaging, or logistics sectors requiring tamper-proof seals.

  • 5. Certification Standards

    • Complies with international moulding standards for precision and safety*, ensuring reliable performance in demanding environments. Materials meet industry requirements for durability and repeatability.

Product details

Plastic Injection Security Seal Mould 10 Cavity Seal Tag Mould

The Plastic Injection Security Seal Mould 10 Cavity Seal Tag Mould is a precision-engineered tool designed for high-volume production of uniform plastic security seals. Crafted from premium materials like H13 tool steel and SKD61, this 10-cavity mould ensures consistent part quality with minimal waste. Equipped with a hot runner system and CNC-machined precision, it delivers efficiency and scalability for industrial applications.

Technical specifications

FeatureSpecificationBenefit
MaterialH13, NAK80, P20, SKD61 steelHigh thermal stability and corrosion resistance
FinishPolishingSmooth surface for flawless part ejection
Runner TypeHot runner systemReduced material waste and faster cycles
Machining ProcessCNC precision machining±0.01mm tolerance for exact dimensions
Cavity Count10 cavitiesHigh-output production for bulk orders

Customization guide

Adjustable parameters:

  • Cavity Design: Modify cavity shapes to produce custom seal tag geometries.
  • Material Selection: Choose from H13, NAK80, or P20 steel to balance cost and durability.
  • Runner Configuration: Opt for standard or specialized hot runner setups based on material flow requirements.

Get inspired

This mould empowers manufacturers to produce durable, tamper-proof security seals for automotive, logistics, and packaging industries. With its multi-cavity design and precise tolerances, it ensures consistent quality while reducing downtime—ideal for high-volume production lines.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Precision Tolerance±0.01mm±0.008mm±0.005mm (+50%)*
Material CompatibilityStandard plasticsHigh-flow resinsHigh-temperature plastics
Durability100k cycles200k cycles500k cycles
Cycle Time60 sec/cycle45 sec/cycle (+25%)30 sec/cycle (+50%)

Supplier's note

  1. Technical Breakthroughs:

    • H13 Tool Steel: Withstands extreme temperatures, enabling stable production of heat-sensitive plastics.
    • Hot Runner Integration: Reduces material waste by 30% compared to cold runner systems.
    • 10-Cavity Design: Achieves 200% higher output than single-cavity moulds, ideal for mass production.

  2. Version Selection Guidance:

    • Base Model: Suitable for SMEs requiring standard seal production (e.g., low-volume packaging).
    • Advanced Model: Best for mid-scale manufacturers needing high-flow resin compatibility (e.g., automotive seals).
    • Pro Model: Recommended for industrial giants handling corrosive environments or ultra-high-volume orders (e.g., logistics security tags).

With the Pro Model’s 500k-cycle durability, you can ensure long-term ROI in harsh industrial settings. Pair its high-temperature compatibility with tamper-proof seal designs to meet stringent safety standards.

*Note: Percentage improvements reflect enhancements over the Base Model’s baseline values.

Frequently asked questions

  • Which Plastic Injection Security Seal Mould model is best for high-volume production needs?

  • How do I maintain the hot runner system in a 10-cavity seal tag mould?

  • What material differences exist between H13 steel and P20 steel for security seal moulds?

  • Can this mould be customized for non-standard security seal designs?

  • Is the Plastic Injection Security Seal Mould FDA-approved for food-grade applications?

  • What advantages does a hot runner system provide in security seal moulds?

  • How long does an H13 steel security seal mould last compared to plastic moulds?

  • Are there mould options for security seals requiring UV traceability features?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard MouldsMass production of simple partsP20 steel (ASTM A276), Cold runner, Matte finish (Ra 1.6μm)Cost-effective, Easy maintenanceLower precision (±0.1mm), Higher material waste (25% scrap)
High-Durability MouldsHeavy-duty industrial applicationsH13 steel (ASTM F1624), CNC machining (ISO 9001)Longer lifespan (500k cycles), Withstands extreme temperaturesHigher upfront cost (30% more than P20)
High-Precision MouldsComplex part manufacturingNAK80 steel (ASTM F1624), Hot runner (ISO 14175), Mirror finish (Ra ≤0.8μm)Ultra-precision (±0.02mm), Reduced waste (10% scrap)Expensive (50% cost premium), Requires specialized maintenance
Custom-Design MouldsUnique part geometriesCustom alloy blends (per ASTM E112), 3D-printed insertsTailored to exact specifications, Versatile material compatibilityLonger lead time (6-8 weeks), Higher tooling costs
Our Base Security Seal MouldMedium-volume security packagingSKD61 steel (JIS G4404), Hot runner (ISO 14175), Polished finish (Ra 0.8μm)Cost-optimized for 10-cavity production, ▲20% efficiency vs Industry StandardLimited to standard geometries, Moderate durability (300k cycles)
Our Advanced Security Seal MouldHigh-security, complex sealsNAK80 steel (ASTM F1624), Advanced hot runner (±1°C control), Mirror finish (Ra ≤0.4μm)▲40% precision over Base, ▲30% durability vs High-Durability MouldsPremium pricing (2x Base cost), Requires skilled operators
