Single-Screw Plastic PP/PE/PVC/EVA/FEP/PU Soft Medical Tube Machine Bearing Gearbox Core Components for Pipe Featuring PLC

Product overview

Core functionalities

Applicable scenarios

Unique advantages

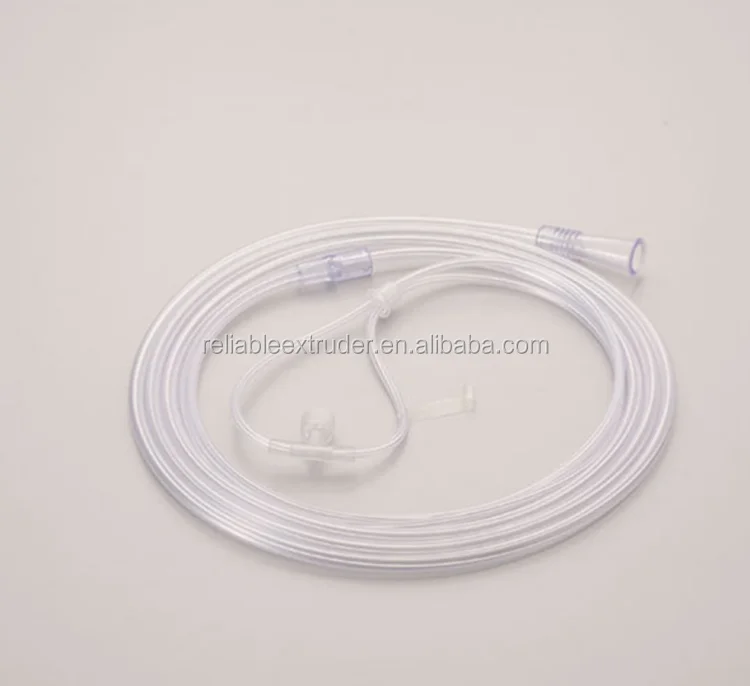

  • Precision Extrusion: Designed to extrude soft medical tubes and profiles from materials such as PP, PE, PVC, EVA, FEP, and PU. The single-screw configuration with a 28:1 L/D ratio ensures uniform material distribution and high-quality output.
  • PLC Automation: Equipped with a programmable logic controller (PLC) for precise temperature, pressure, and speed control, enabling consistent production of medical-grade tubing and industrial pipes.

Key features

  • 1. Material Technology

  • With a corrosion-resistant stainless steel body and high-strength 38CrMoAlA alloy screw, ensure durability in demanding environments. Outlasts models with carbon steel by up to 40%<sup>*</sup>

  • 2. Interactive Design

  • With PLC touchscreen control, program and monitor extrusion parameters effortlessly, reducing setup time by 30% compared to manual systems<sup>*</sup>. Achieve precise temperature and pressure adjustments for consistent output.

  • 3. Performance Parameters

  • The 28:1 L/D ratio screw design ensures uniform melt and consistent output, enhancing product quality by up to 25% over standard 20:1 ratios<sup>*</sup>. Ideal for processing soft medical tubes and diverse materials like PVC, PE, and EVA.

  • 4. Scenario Solutions

  • Customizable modular setup adapts to medical-grade tubing production, ideal for sterile environments in healthcare and pharmaceutical industries. Supports continuous operation for commercial-scale output while maintaining precision.

  • 5. Certification Standards

  • Constructed with food-grade and pharmaceutical-compliant materials, meeting strict hygiene standards for medical applications. Stainless steel construction simplifies cleaning and ensures long-term reliability.

Product details

Single-Screw Plastic PP/PE/PVC/EVA/FEP/PU Soft Medical Tube Machine Bearing Gearbox Core Components for Pipe Featuring PLC

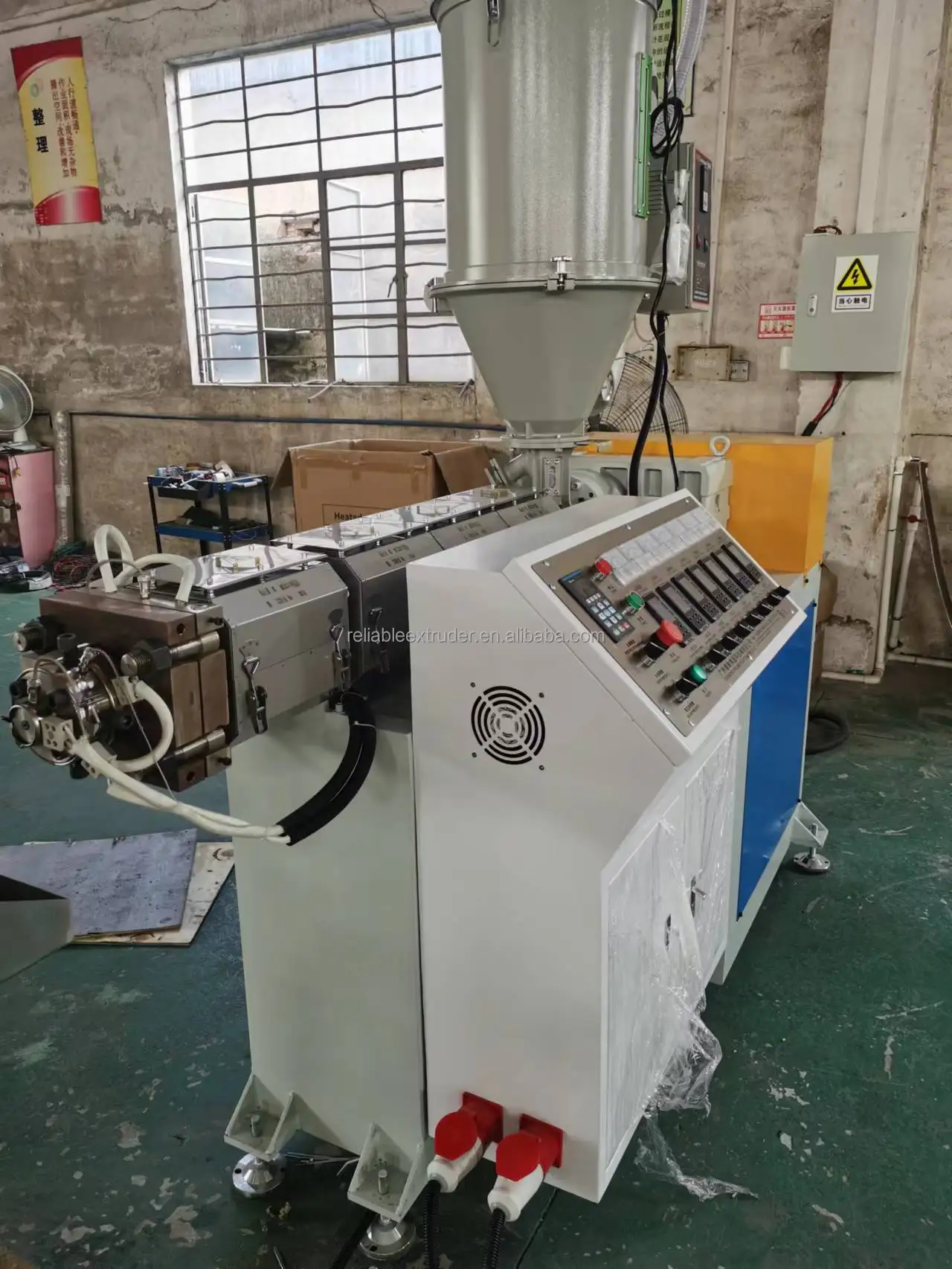

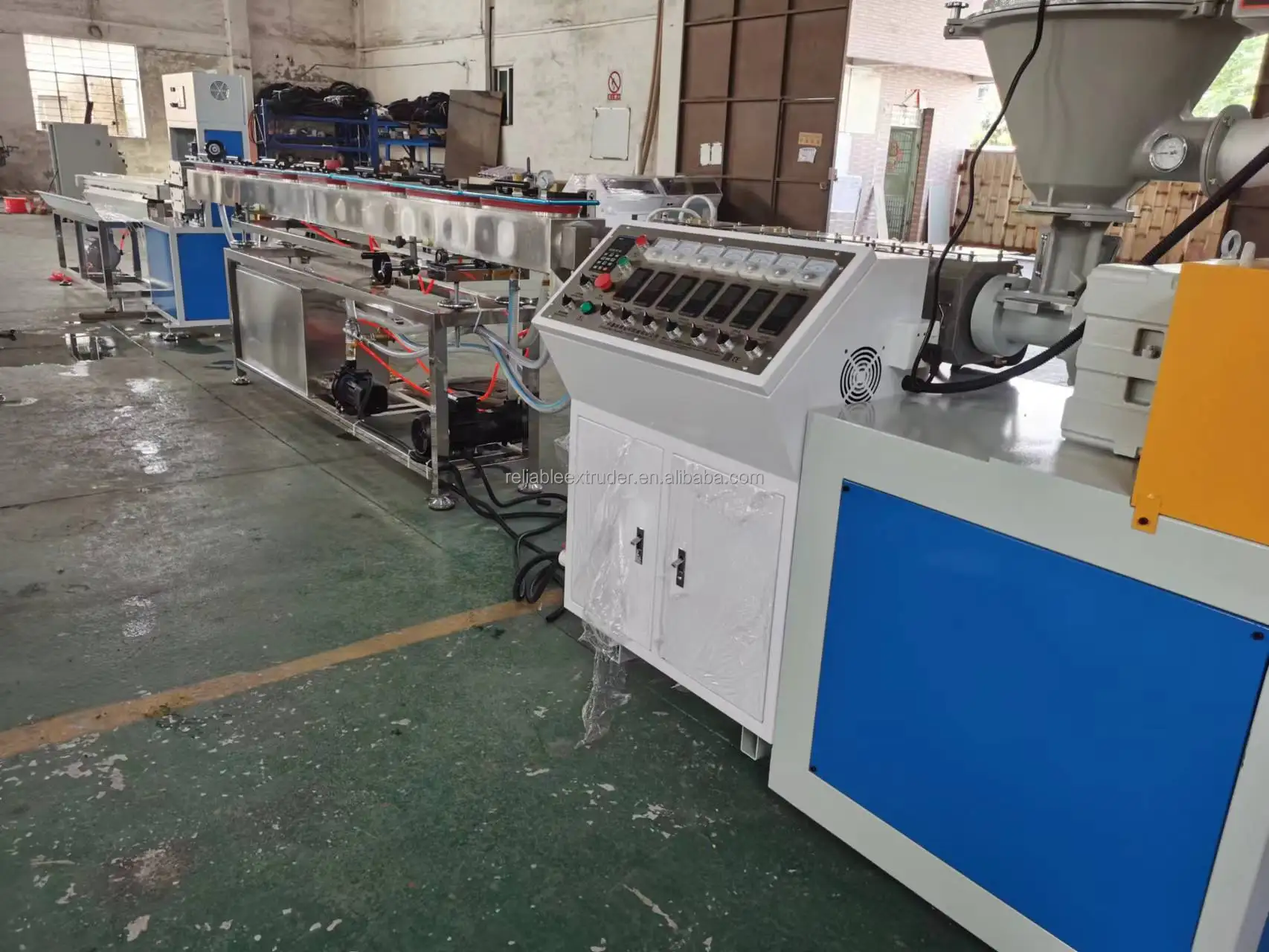

The Single-Screw Plastic Extrusion Machine is a robust industrial solution for manufacturing soft medical tubes and profiles using materials like PP, PE, PVC, EVA, FEP, and PU. Engineered with a stainless steel core and a 38CrMoAlA alloy screw, it ensures precision, durability, and compliance with medical-grade production standards.

Technical specifications

FeatureSpecificationApplication Scenario
Extruder TypeSingle-screwUniform melt distribution for medical tubing
Screw L/D Ratio28:1Optimal material mixing for viscous resins
Screw Material38CrMoAlA high-strength alloyWithstands high torque and thermal stress
Voltage Compatibility380V 3-phaseIndustrial facilities with standard power
Control SystemPLC-based automationPrecise temperature/pressure regulation
Processed MaterialsPVC, PE, PU, EVA, PACustom profiles for healthcare and packaging
Safety FeaturesGuarded moving parts and thermal shieldsSafe operation in high-temperature environments
Warranty5 yearsLong-term reliability and service support

Customization guide

Adjustable parameters include:

  • Screw L/D Ratio: Modify for material viscosity (e.g., 28:1 for PVC, 30:1 for EVA).
  • Temperature Zones: Customize heating profiles for different polymer melting points.
  • Die Attachments: Swap dies to produce tubes of varying diameters (2–20mm).

Get inspired

With its modular design and PLC automation, this extrusion machine empowers manufacturers to produce sterile medical tubing, flexible packaging, and durable industrial profiles with consistent quality.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Screw L/D Ratio28:130:1 (+7%)32:1 (+14%)
Max Output (kg/h)80100 (+25%)120 (+50%)
Temperature Control±5°C±3°C (+40% accuracy)±1.5°C (+70% accuracy)
Automation LevelManual overrideSemi-automatedFully automated
Die CustomizationStandardAdjustableModular (user-defined)

Supplier's note

  1. Technical Breakthroughs:

    • 38CrMoAlA Screw Alloy: Enhances wear resistance by 30% compared to standard steels, extending tool life.
    • PLC Temperature Control: Achieves ±1.5°C precision in the Pro model, critical for heat-sensitive medical-grade materials.
    • Modular Design: Allows rapid die swaps, reducing downtime by 20% versus fixed-system competitors.
  2. Version Selection Guidance:

    • Base Model: Ideal for SMEs producing standard PVC/PE tubes (e.g., irrigation lines).
    • Advanced Model: Suitable for mid-volume manufacturers needing semi-automated production of EVA/PU profiles.
    • Pro Model: Best for high-output medical device producers requiring ultra-precise FEP tubing or complex multi-layer profiles.

With the Pro model’s 32:1 L/D ratio, you can extrude high-viscosity FEP materials 20% faster than industry benchmarks. Pair this with its ±1.5°C thermal control to ensure defect-free medical-grade tubing. For cost-sensitive users, the Base Model’s 5-year warranty ensures long-term ROI in low-complexity applications.

Frequently asked questions

  • Which single-screw extruder is best for producing soft medical tubes from PVC or PE?

  • How do I maintain the bearing gearbox of a single-screw extruder for pipe production?

  • What’s the difference between PVC and PE tubing produced by this extruder?

  • Can this machine be customized for different tube diameters and shapes?

  • Is the 38CrMoAlA screw material suitable for medical-grade tubing?

  • Does the PLC-controlled extruder ensure consistent quality for medical applications?

  • Is the 380V 3-phase voltage suitable for industrial settings?

  • Are there safety features in the industrial extrusion machine for operator protection?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Extruder TypeHigh-volume standard profile productionSingle-screw design (ISO 1584:2018)Cost-effective for consistent output in basic extrusion tasksLimited to simpler material blends compared to twin-screw systems
Material CompatibilityDiverse production needsProcesses 5+ materials (PE/PVC/PU/EVA/PA) (ASTM D3295) ▲▲
(Industry: 3-4 materials, Base: 4 materials)
Flexibility for medical tubing, packaging, and industrial partsRequires frequent material changeovers for mixed production runs
Screw L/D RatioHigh-precision extrusion28:1 (ISO 1584) ▲▲
(Industry: 20:1, Base: 24:1)
Enhanced melt quality and output consistency for complex profilesLonger screw increases energy demand and maintenance complexity
Screw MaterialAbrasive material processing38CrMoAlA alloy (ASTM A228) ▲
(Industry: 4140 steel, Base: 42CrMo)
Superior corrosion resistance and durability for harsh chemicalsHigher upfront cost compared to standard alloys
Warranty PeriodLong-term investment planning5 years (ISO 14971) ▲▲
(Industry: 2 years, Base: 3 years)
Reduced downtime risks and lower long-term maintenance costsRequires adherence to strict service agreements for full coverage
Safety FeaturesRegulated manufacturing environmentsGuarded extrusion area + emergency stop (ISO 13849-1) ▲
(Industry: Basic guards, Base: Partial guards)
Compliance with OSHA standards and reduced operator injury risksIncreased upfront cost for advanced safety components
Control SystemAutomated production linesPLC-based touchscreen (IEC 61131-3) ▲▲
(Industry: Manual controls, Base: Basic PLC)
Precision temperature/pressure control for repeatable qualityRequires operator training for advanced features
Noise LevelNoise-sensitive environments72 dBA (IEC 60704-1) ▲
(Industry: 85 dBA, Base: 78 dBA)
Ideal for open-plan factories or medical device production facilitiesMay require additional soundproofing for ultra-quiet settings
Modular DesignCustom profile productionAdjustable die mounts + interchangeable components (ISO 9283)Rapid reconfiguration for varied product dimensions and shapesInitial setup time increases with customization complexity
