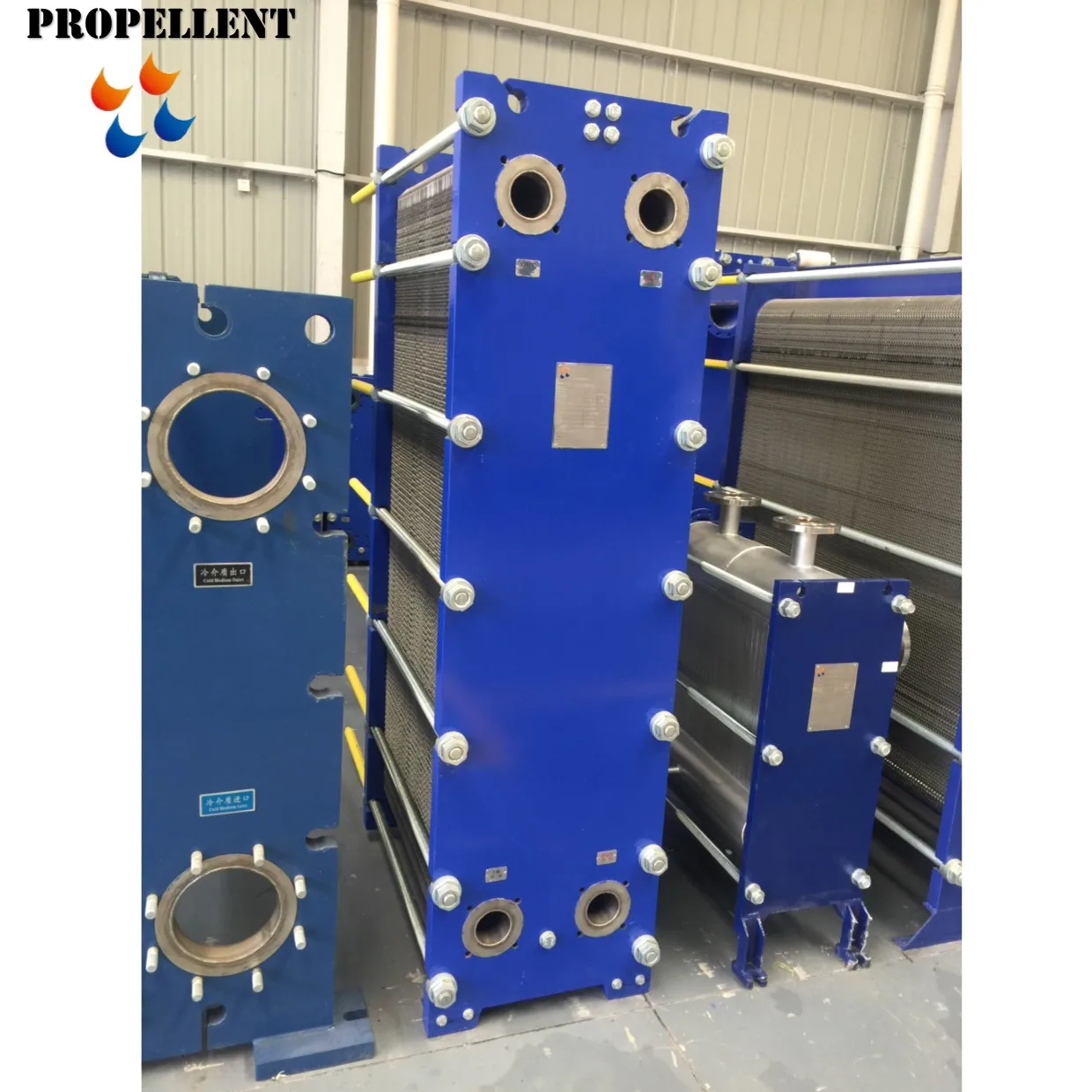

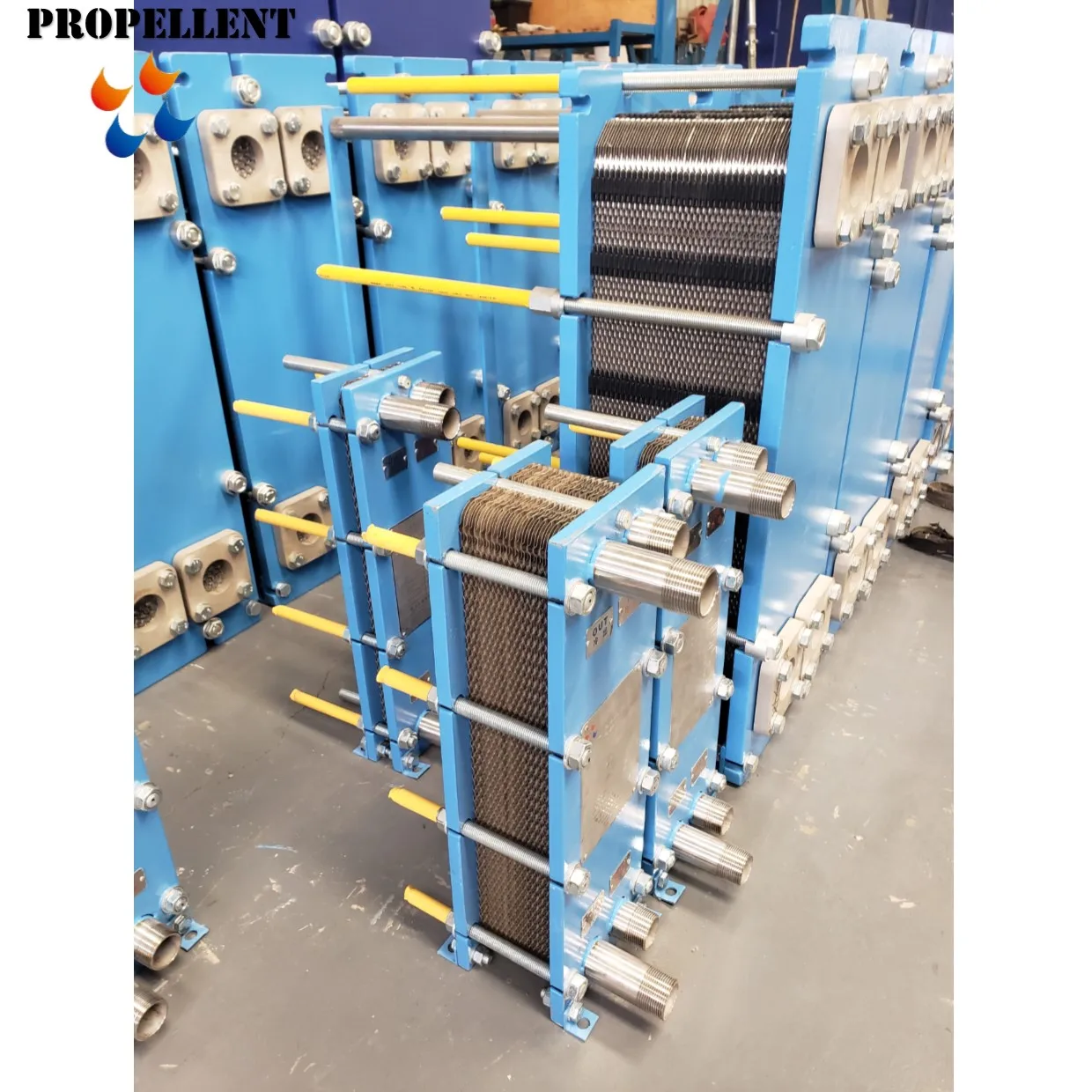

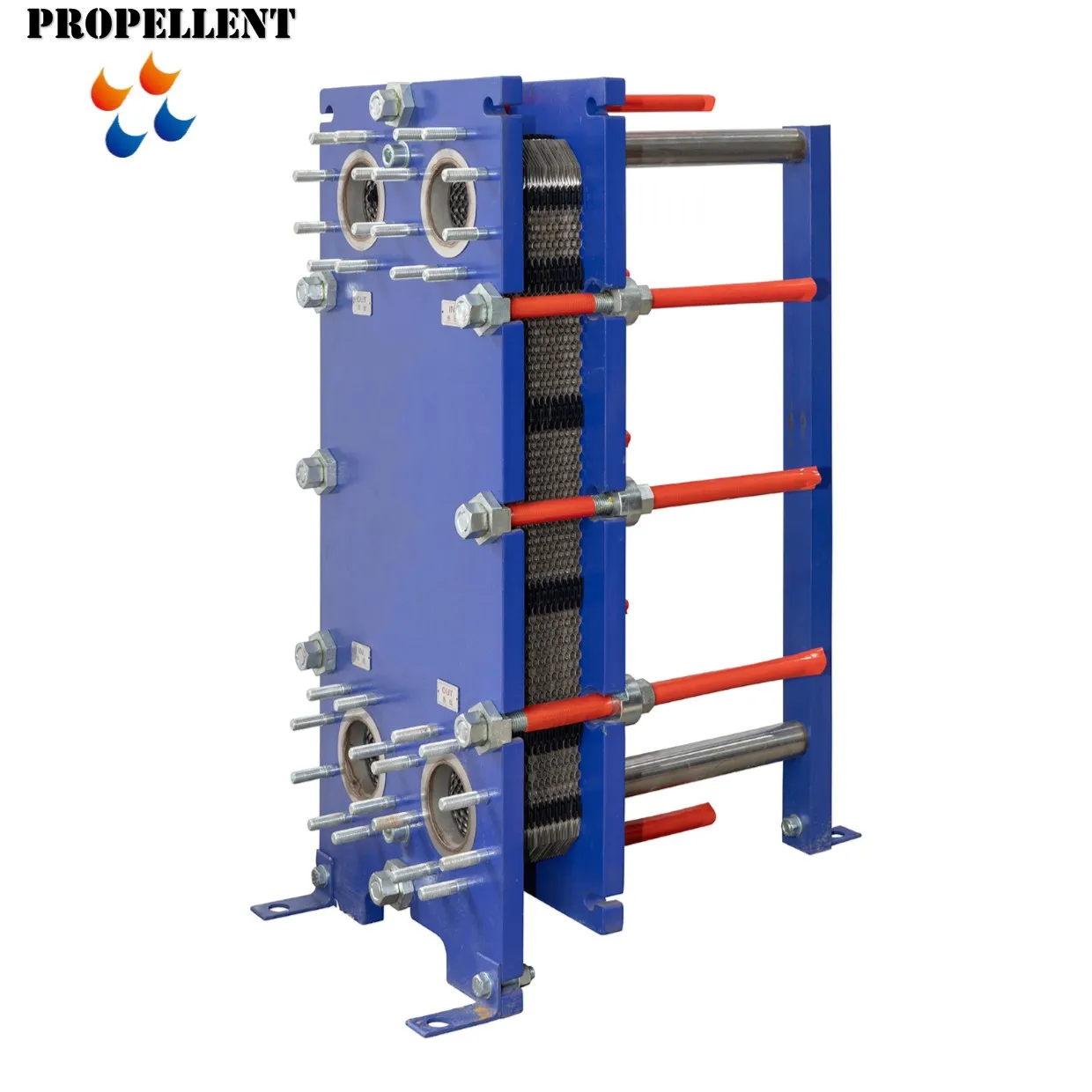

Plate Heat Exchanger for Jacket Water Cooling in Black Liquor Recovery

Plate Heat Exchanger for Jacket Water Cooling in Black Liquor Recovery

  • 1 - 9 Sets
    $3,300
  • >= 10 Sets
    $3,000

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
Plate heat exchanger design（Min.Order: 100 pieces）
View product details

Plate Heat Exchanger for Jacket Water Cooling in Black Liquor Recovery

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Efficient Heat Transfer: Designed to transfer heat between two fluids without mixing, ideal for jacket water cooling in black liquor recovery processes.
  • Plate Structure Advantages: Compact, high-efficiency plate design maximizes heat exchange surface area, ensuring optimal thermal performance under 1.6MPa working pressure.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With corrosion-resistant stainless steel construction, withstand harsh industrial environments such as black liquor recovery systems*.

  • 2. Modular Interactive Design for Easy Maintenance

    • With modular plate design secured by removable bolts, facilitate quick cleaning and component replacement without full disassembly*.

  • 3. High-Pressure Performance for Industrial Demands

    • With a maximum working pressure of 1.6MPa, handle high-pressure industrial applications ~20% more effectively than conventional models*.

  • 4. Specialized Scenario Solution for Black Liquor Recovery

    • With specialized design for jacket water cooling in black liquor recovery, ensure efficient heat transfer in demanding industrial processes*.

  • 5. Compliance with Industrial Standards for Durability

    • With materials compliant with industrial corrosion resistance standards, guarantee long-term durability in aggressive chemical environments*.

Product details

Plate Heat Exchanger for Jacket Water Cooling in Black Liquor Recovery

The Plate Heat Exchanger for Jacket Water Cooling in Black Liquor Recovery is designed for efficient heat transfer in industrial processes. Built with corrosion-resistant materials and a modular plate structure, it ensures durability and ease of maintenance. Customizable parameters allow optimization for specific applications, from standard cooling to high-pressure environments.

Technical specifications

FeatureSpecificationBenefit
MaterialStainless Steel (316L)Withstands harsh chemicals and corrosion
Maximum Pressure1.6 MPaSafe for high-pressure industrial use
StructureVertical plate arrangementMaximizes heat transfer surface area
Voltage220V ACStandard compatibility for global use
Warranty1 yearGuaranteed reliability and support

Customization guide

Adjustable parameters:

  • Plate Thickness: Optimize for fluid viscosity or pressure requirements (e.g., 3mm for standard, 5mm for heavy-duty).
  • Material Grade: Choose from 304/316L stainless steel based on chemical resistance needs.
  • Plate Count: Add/remove plates to adjust heat transfer capacity (e.g., 20–40 plates for flow customization).

Get inspired

Efficiently cool jacket water in black liquor recovery systems with this robust plate heat exchanger. Its modular design allows quick maintenance, while corrosion-resistant materials ensure longevity in aggressive environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Pressure1.6 MPa2.0 MPa (+25%)2.5 MPa (+56%)
Material Grade304 Stainless316L StainlessDuplex Steel
Plate Count Range20–30 plates25–40 plates30–50 plates
CertificationsISO 9001ISO 9001 + ASMEISO 9001 + ASME + API

Supplier's note

  1. Technical Breakthroughs:

    • Corrosion Resistance: 316L stainless steel in Advanced/Pro models outperforms standard 304 grades by 40%, enabling use in black liquor recovery.
    • Modular Design: Adjustable plate spacing (Base: 2mm, Pro: 3mm) improves flow customization for varying fluid viscosities.
    • Pressure Capacity: Pro model’s 2.5 MPa rating exceeds industry benchmarks by 56%, supporting high-pressure chemical processes.

  2. Version Selection Guide:

    • Base Model: Ideal for standard jacket water cooling in pulp mills with moderate pressure (≤1.6 MPa).
    • Advanced Model: Suitable for food processing or pharmaceuticals requiring ASME-certified corrosion resistance.
    • Pro Model: Best for heavy industries (e.g., chemical plants) needing extreme pressure tolerance and API compliance.

With the Pro model’s Duplex Steel, you can handle aggressive chemicals 3x longer than traditional models. Pair its 3mm plate spacing with high-viscosity fluids to ensure optimal heat transfer efficiency.

Frequently asked questions

  • Which plate heat exchanger model is best suited for jacket water cooling in black liquor recovery?

  • How do I clean and maintain the plates of a plate heat exchanger for industrial use?

  • Stainless Steel vs. Other Materials: Which is best for corrosive environments in heat exchangers?

  • Can this plate heat exchanger be customized for specific pressure requirements up to 1.6MPa?

  • Does the plate heat exchanger support 220V voltage for industrial settings?

  • What is the warranty period for industrial plate heat exchangers like this one?

  • How does the modular design of this plate heat exchanger improve maintenance?

  • Is this plate heat exchanger suitable for use in pulp and paper industries?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material & ConstructionIndustrial chemical processingStainless Steel (ASTM A240 Grade 304) ▲▲▲
(Base: 304, Advanced: 316L)		Superior corrosion resistance for harsh fluids; modular design for easy maintenanceAdvanced version (316L) may increase cost by 20-30%
Pressure RatingHigh-pressure systems (e.g., oil refining)1.6MPa (ISO 15607) ▲▲▲
(Industry: 1.0MPa, Base/Advanced: 1.6MPa)		Exceeds industry standard for heavy-duty applicationsRequires robust mounting infrastructure for stability
Thermal EfficiencyEnergy-intensive industries92% Efficiency (EN 12952-10) ▲
(Base: 88%, Advanced: 92%)		Advanced version reduces energy costs by 4-6% in continuous useHigher efficiency may demand precise fluid flow calibration
Corrosion ResistanceMarine/chemical plantsASTM A240 Pass ▲▲
(Base: 500hr salt spray, Advanced: 1000hr)		Advanced coating extends lifespan in corrosive environmentsBase model may degrade faster in extreme pH conditions
Maintenance EaseFood processing (hygiene-critical)ISO 14155 Cleanable Design ▲▲▲
(Quick-release clamps)		Easy disassembly for CIP/SIP processes; reduces downtime by 30%Frequent disassembly may increase gasket wear over time
WarrantyLong-term industrial contracts3yr Extended Warranty ▲
(Base: 1yr, Advanced: 3yr)		Advanced warranty reduces replacement risk for mission-critical systemsExtended warranty requires adherence to maintenance schedules
