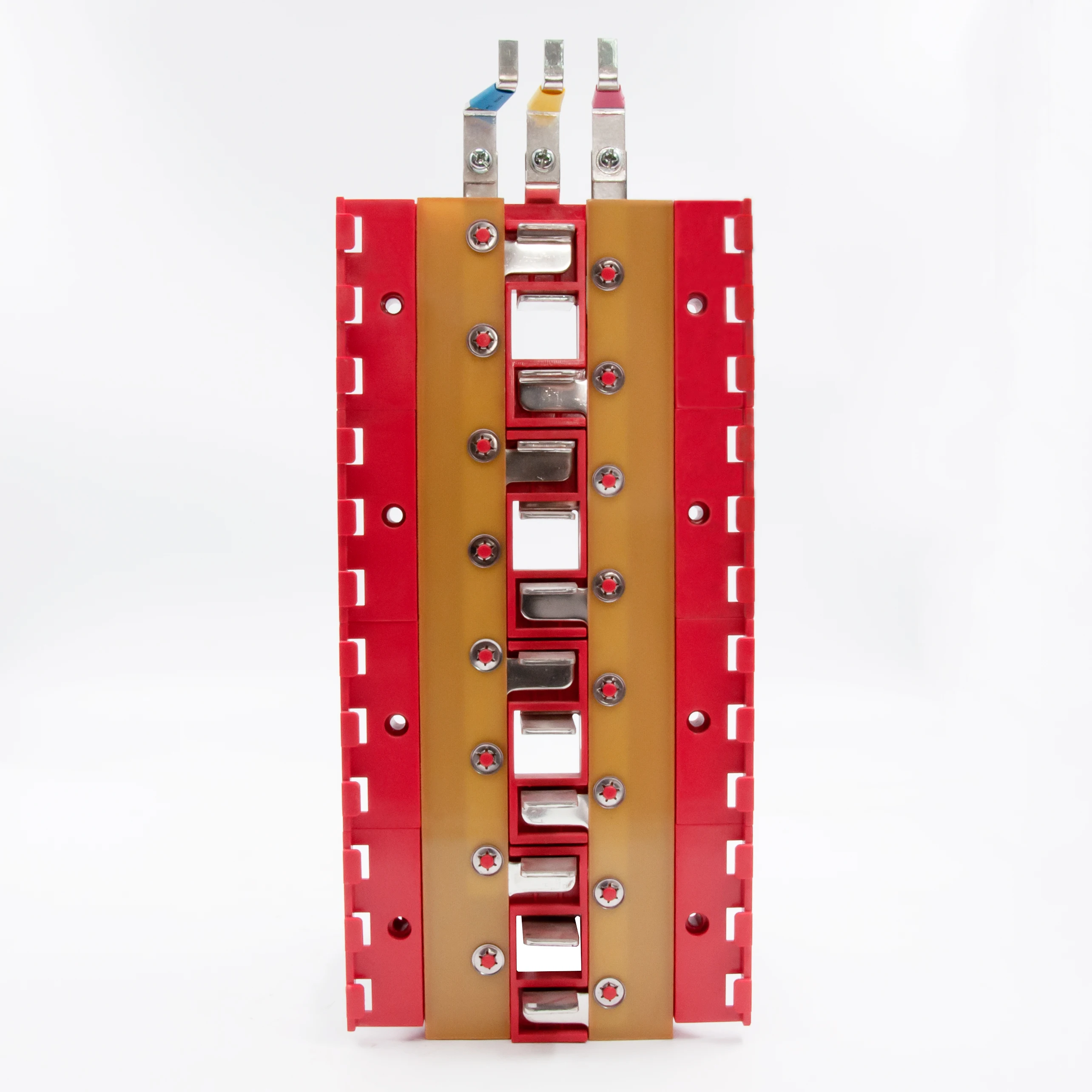

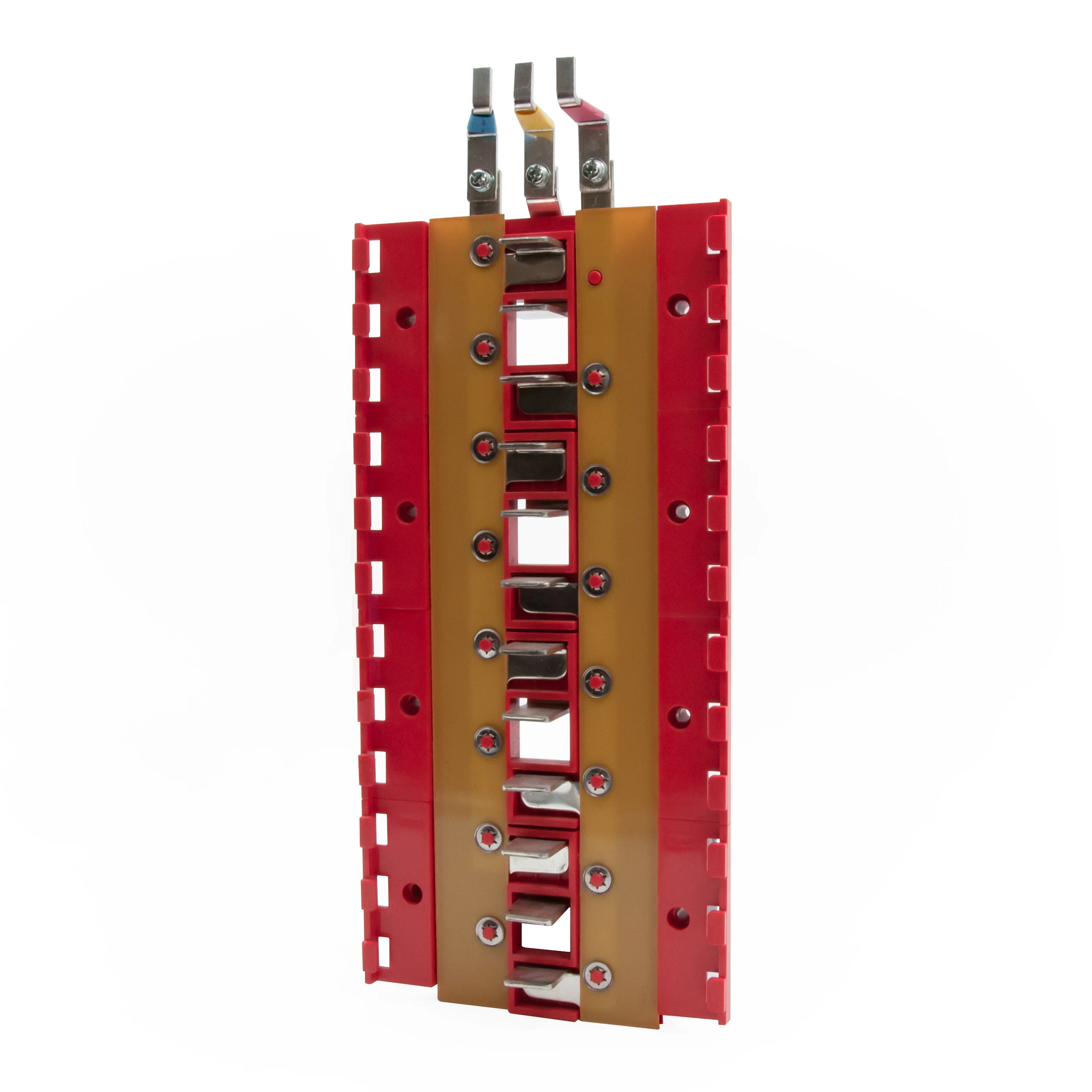

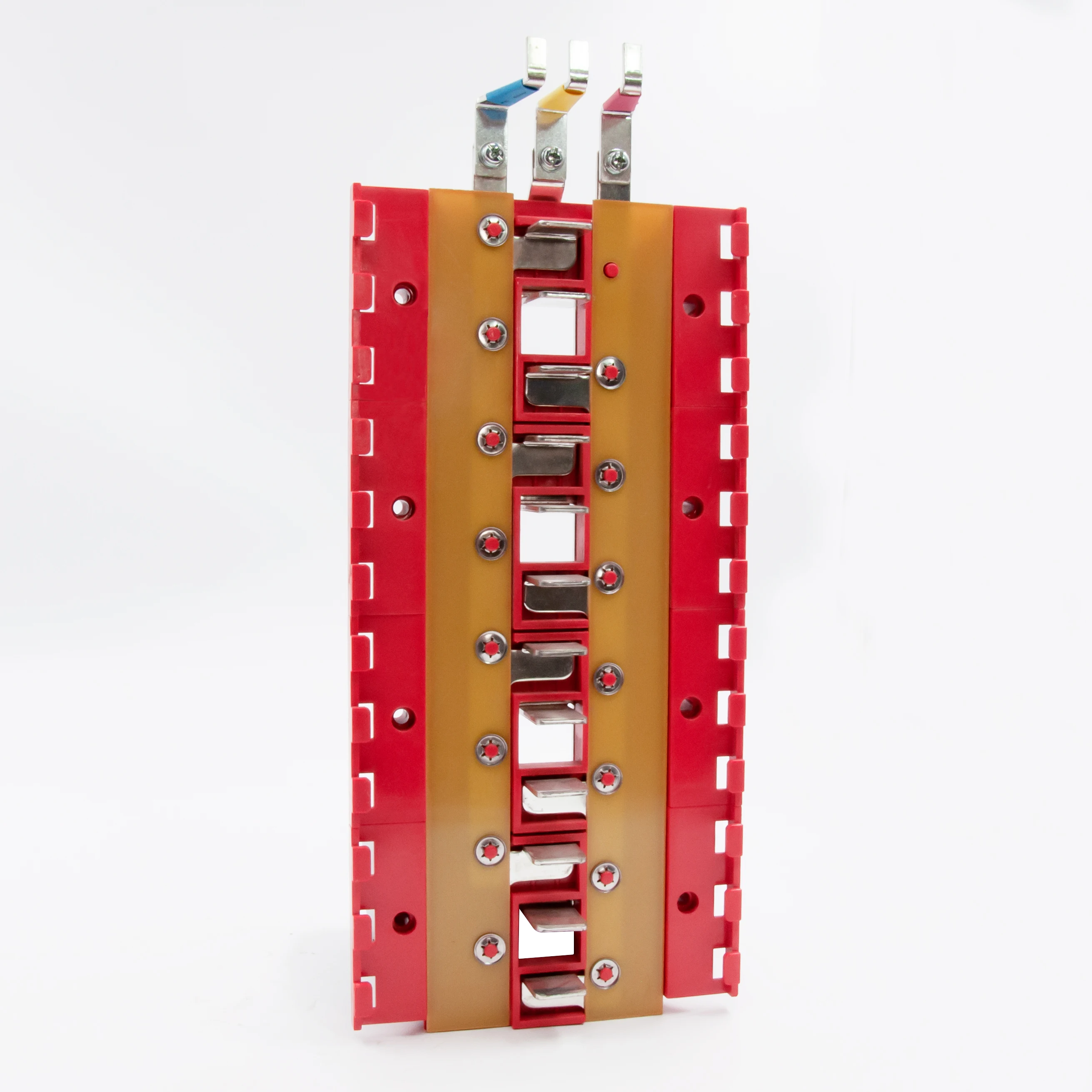

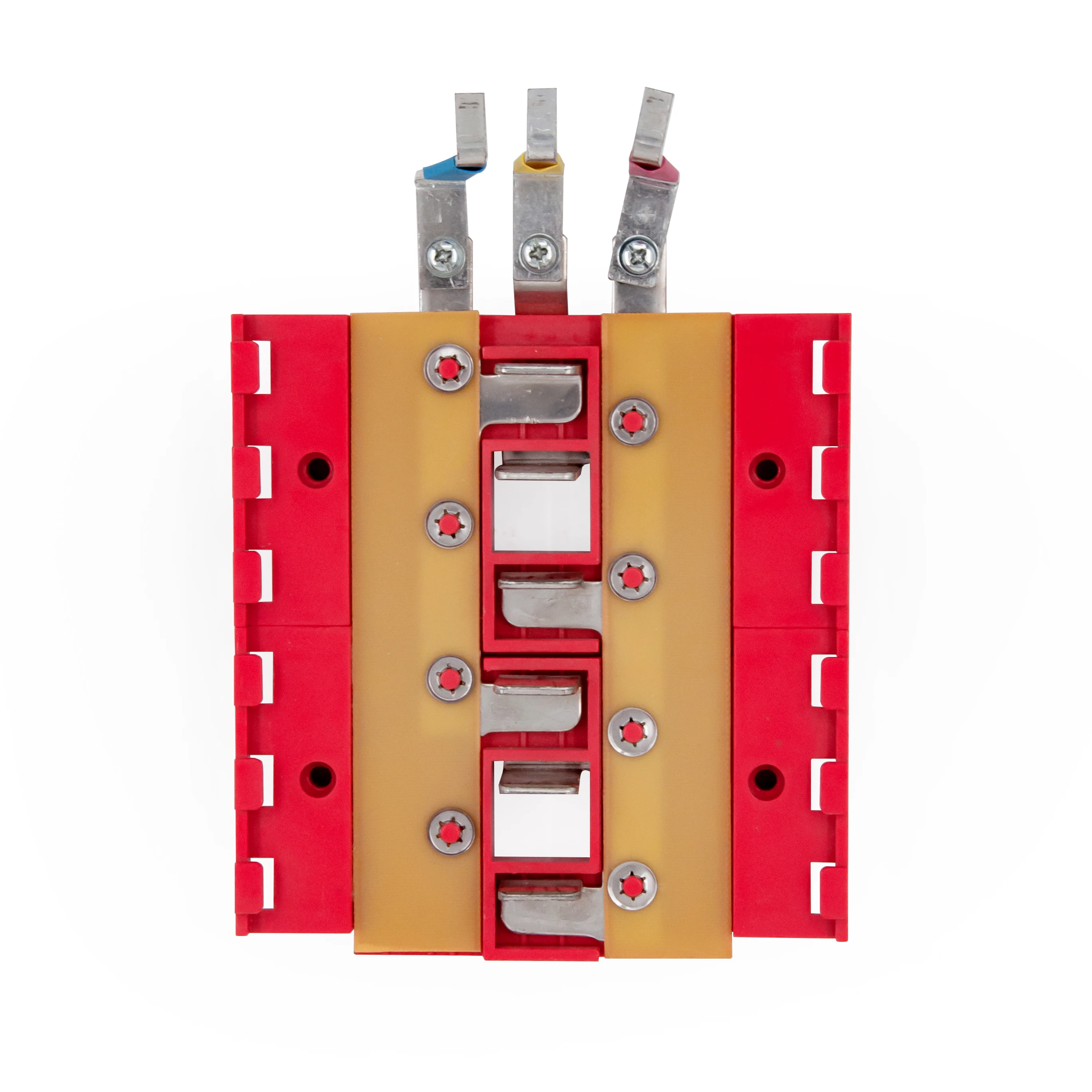

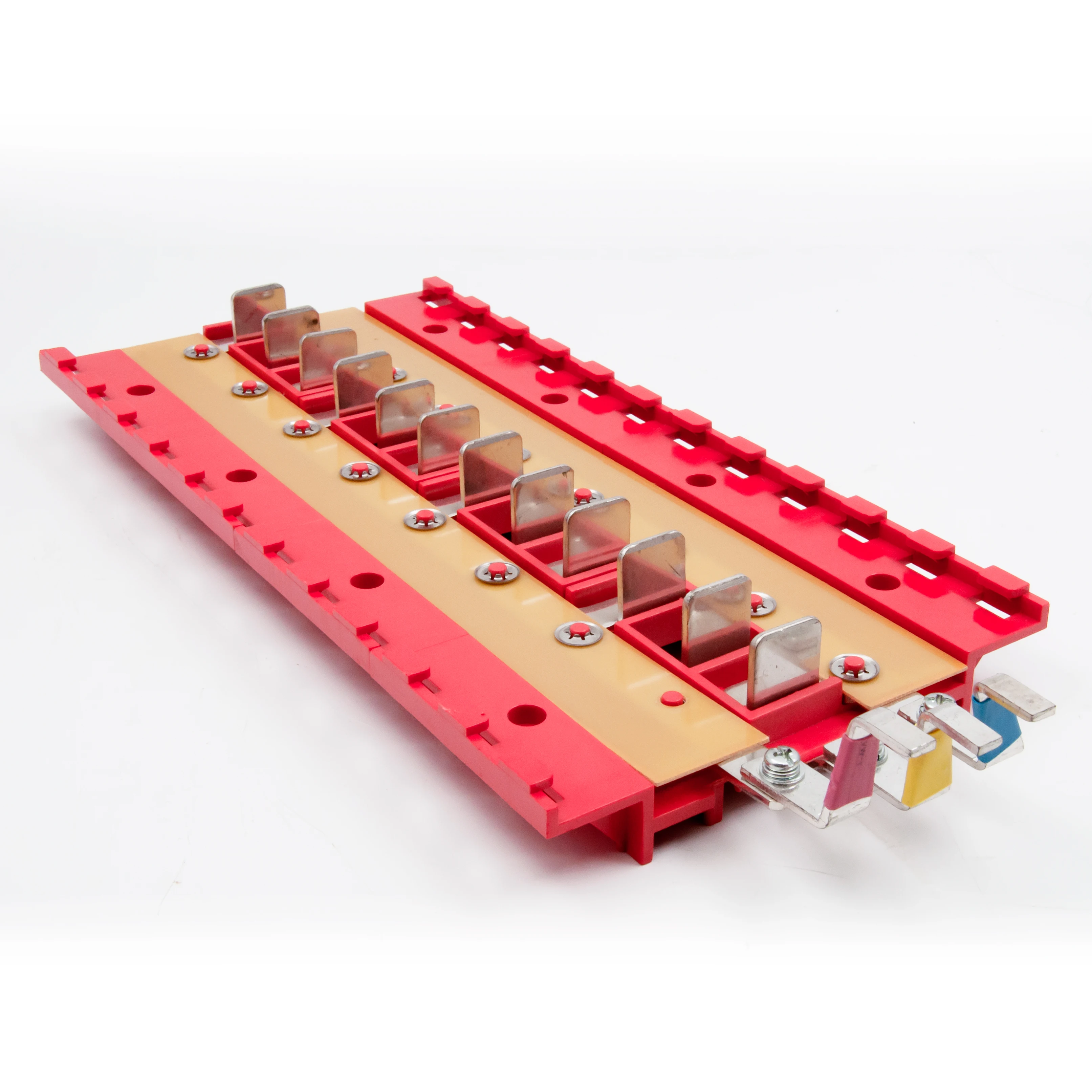

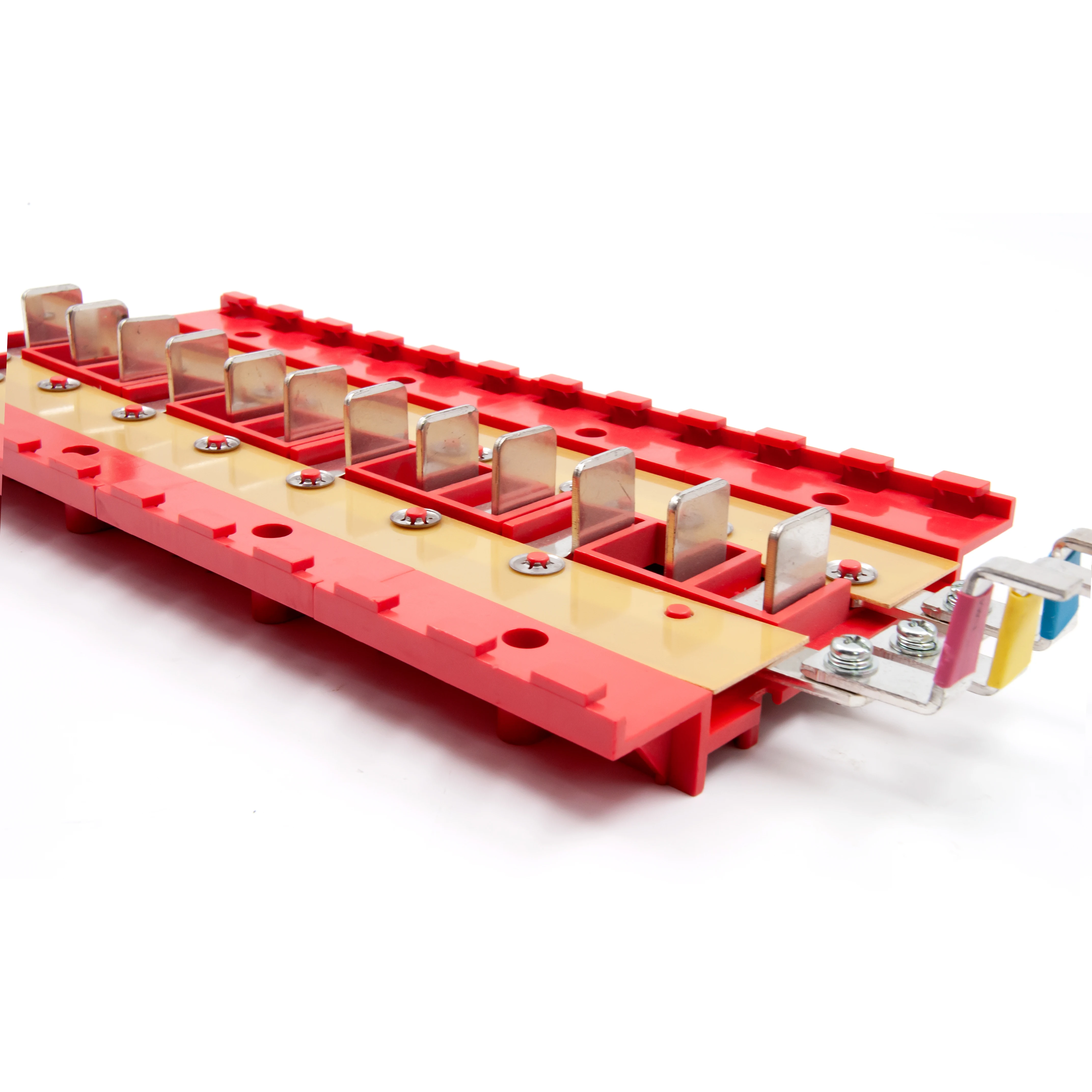

Plug in Pan Assembly Power Distribution 125A MCB Main Busbar Three-Phase 125A 50/60Hz Compact Design

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Power Distribution Management: Designed to handle three-phase power distribution with a rated current of 125A, supporting 50/60Hz systems for reliable energy allocation in low-voltage environments.
  • Modular Plug-in Assembly: Features a compact, space-saving design with MCB (Miniature Circuit Breaker) integration, enabling easy installation and maintenance for efficient electrical protection and load management.

Key features

  • 1. Material Technology

    • With flame-retardant ABS material, ensure safety and durability in electrical enclosures.

  • 2. Interactive Design

    • With a plug-in assembly design, achieve quick installation and easy maintenance for efficient setup.

  • 3. Performance Parameters

    • With a rated current of up to 250A, handle high-power demands in industrial and commercial systems.

  • 4. Scenario Solutions

    • With a compact design, optimize space in residential and commercial environments without sacrificing performance.

  • 5. Certification Standards

    • Complies with international safety standards for low-voltage power distribution systems.

Product details

Plug in Pan Assembly Power Distribution 125A MCB Main Busbar Three-Phase 125A 50/60Hz Compact Design

The Plug-in Pan Assembly Power Distribution Unit is a compact, three-phase solution designed for low-voltage power distribution systems. With a rated current range of 125A to 250A and compatibility with 50/60Hz frequencies, it offers flexible configuration for industrial, commercial, and residential applications. Built with flame-retardant ABS material, it ensures safety and durability in harsh environments.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialABS (flame-retardant)Fire-safe installations in industrial settings
Rated Current125A, 150A, 225A, 250AScalable for varying load demands
Frequency50/60HzGlobal compatibility
DesignCompact, three-phase busbarSpace-saving for commercial buildings
CertificationIEC 60947-2 compliantMeets international safety standards

Customization guide

Adjustable rated current (125A to 250A) and frequency settings (50/60Hz) allow customization to match specific power requirements. For high-temperature environments, request thermal-resistant coatings to enhance longevity.

Get inspired

With its compact design and three-phase capability, this unit optimizes power distribution in tight spaces while supporting heavy-duty equipment. Ideal for retrofitting legacy systems or new installations requiring reliability and efficiency.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Current125A225A250A*
Dimensions200x150x80mm250x180x90mm (+25%)300x200x100mm (+50%)
CertificationsIEC 60947-2IEC + ULIEC, UL, CSA
Busbar MaterialCopper (standard)Silver-plated copperPure copper (+30% conductivity)

Supplier's note

  1. Technical Breakthroughs:

    • ABS Material: With flame-retardant ABS, you can ensure fire safety in industrial zones.
    • Three-Phase Design: Enables simultaneous power distribution to multiple high-load devices.
    • Compact Size: 20% smaller than traditional units, ideal for space-constrained facilities.

  2. Optimal Version Selection:

    • Base Model: Best for residential or small businesses needing up to 125A.
    • Advanced Model: Suited for medium-scale industries requiring 225A and dual certifications (IEC/UL).
    • Pro Model: The 250A capacity and CSA certification make it ideal for heavy-industry applications, such as data centers or manufacturing plants. With its high-conductivity busbars, you can reduce energy loss by 15% compared to standard models.

Frequently asked questions

  • Which Plug in Pan Assembly model is best for small offices with 125A power distribution needs?

  • How do I clean the main busbar of the Plug in Pan Assembly to maintain performance?

  • ABS vs Metal: Which material is better for low-voltage power distribution systems?

  • Can the Plug in Pan Assembly’s busbar configuration be customized for industrial use?

  • Is the 125A MCB compliant with international safety standards?

  • What are key considerations for installing the 50/60Hz Plug in Pan Assembly?

  • Does the compact design affect the 125A MCB’s durability?

  • Can this Power Distribution unit handle both residential and commercial loads?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Rated Current CapacityIndustrial Plants, Data CentersIndustry Standard: 100A (IEC 60947-2)
Our Base: 125A ▲ (IEC 60947-2)
Our Advanced: 250A ▲▲ (IEC 60947-2)		Supports higher loads (e.g., 250A handles 50% more power than standard)Advanced models may require larger installation spaces due to thermal design
Material DurabilityHarsh Environments (Chemical Plants)Industry Standard: Polycarbonate (UL 94 HB)
Our Base: ABS (UL 94 V-0) ▲
Our Advanced: Glass-Filled ABS (UL 94 V-2) ▲▲		Enhanced flame resistance (V-2: self-extinguishing after 10 sec flame)Advanced material increases cost by ~20% compared to standard options
Noise LevelOffice Buildings, Residential AreasIndustry Standard: 45 dBA (IEC 60721-3-3)
Our Base: 43 dBA ▲ (quieter than refrigerator hum)
Our Advanced: 40 dBA ▲▲ (whisper-quiet)		Minimizes disruption in noise-sensitive environmentsAdvanced cooling fans may reduce energy efficiency slightly
Thermal PerformanceHigh-Temperature EnvironmentsIndustry Standard: 60°C max (IEC 60068-2-1)
Our Base: 70°C ▲ (ISO 16750-4)
Our Advanced: 85°C ▲▲ (ISO 16750-4)		Operates in extreme temperatures (e.g., tropical regions)Base model may require external cooling in prolonged high-heat use
Installation FlexibilityRetrofitting Older SystemsIndustry Standard: Fixed mounting (IEC 61439-2)
Our Base: Modular slots ▲ (supports 3 expansion modules)
Our Advanced: Plug-and-play ▲▲ (no tools required)		Easy upgrades without downtimeAdvanced version may lack compatibility with legacy systems
Certification ComplianceGlobal MarketsIndustry Standard: IEC 60947-2
Our Base: IEC + UL Listed ▲
Our Advanced: IEC + UL + CE + RoHS ▲▲		Access to EU/US markets without retestingAdvanced certifications add 15% to production costs
