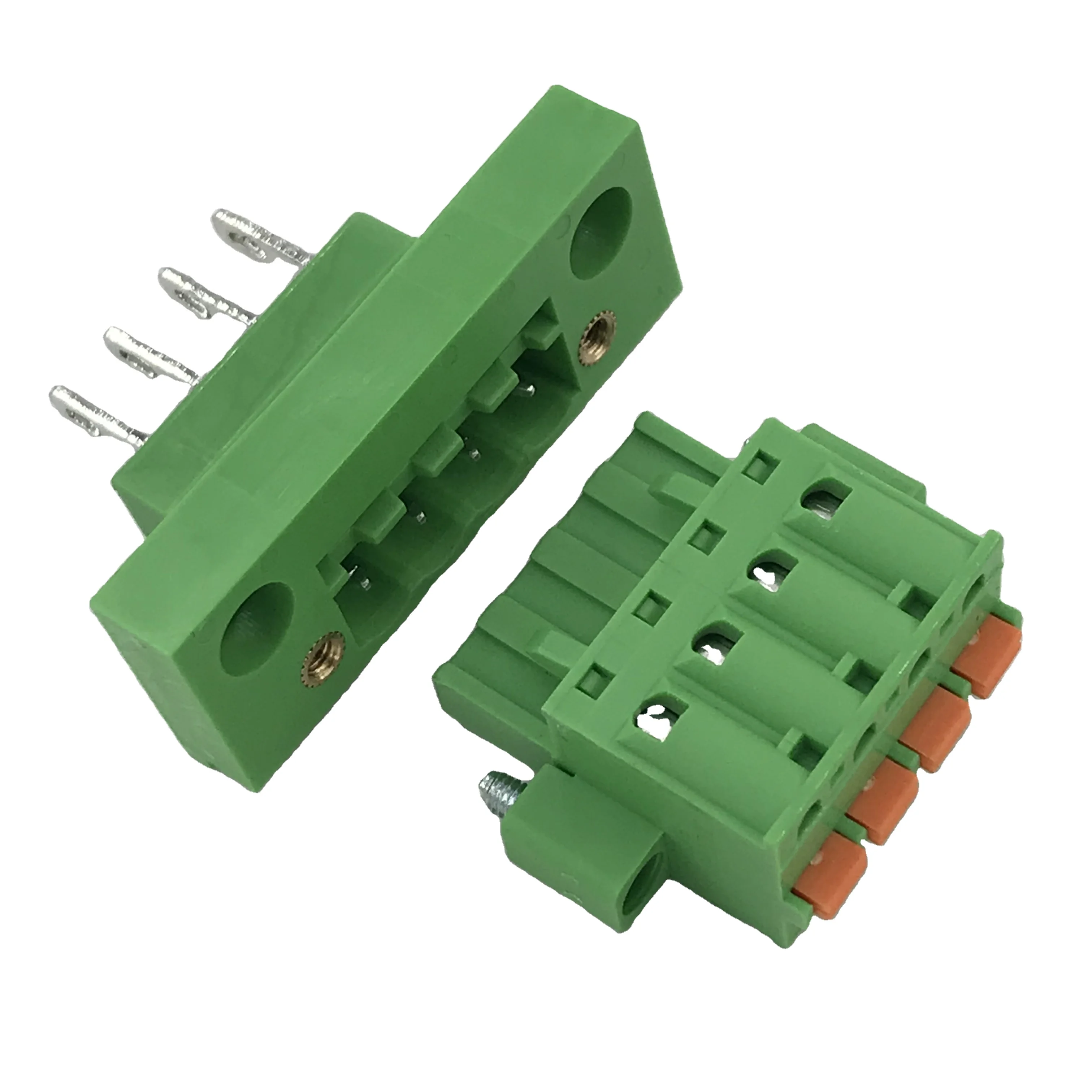

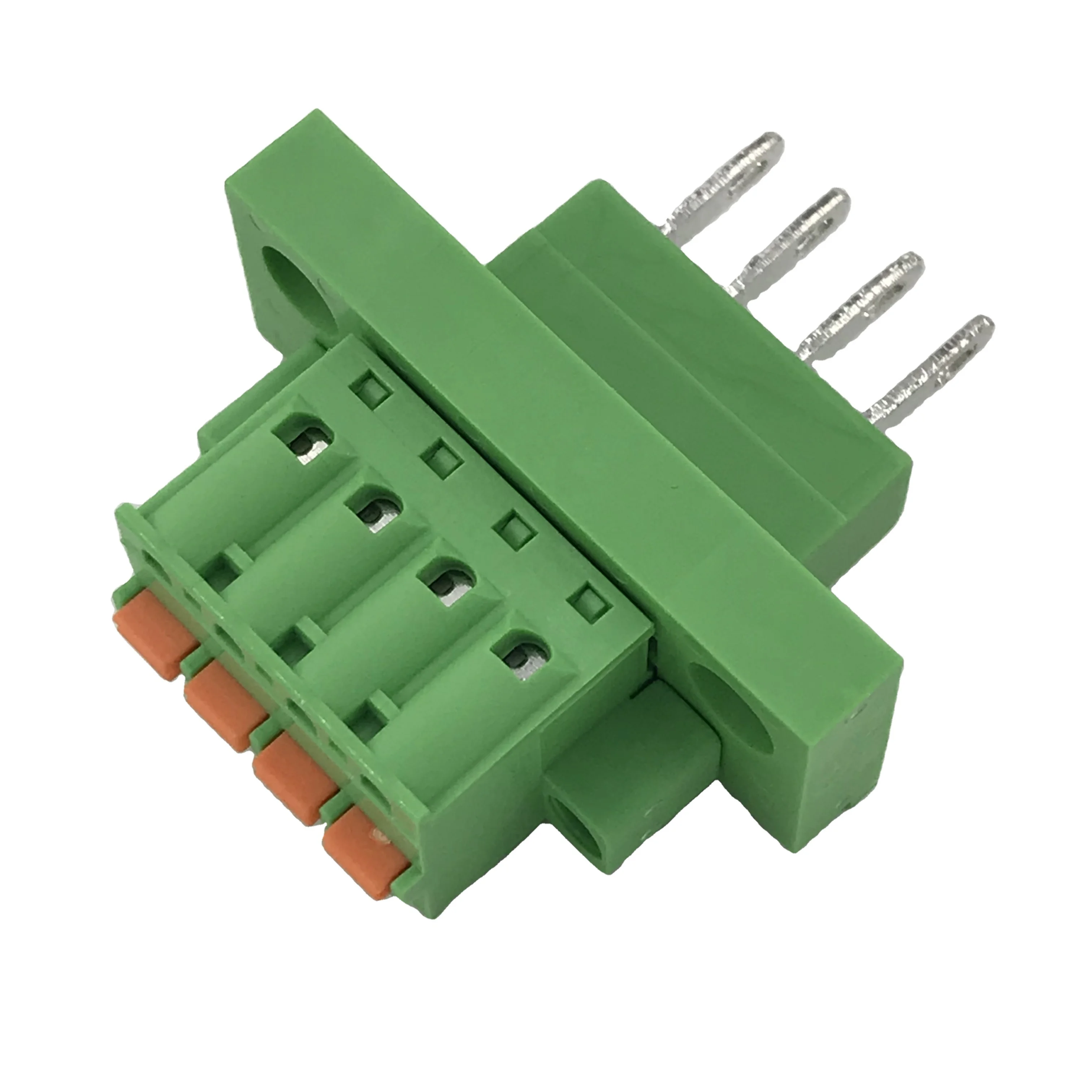

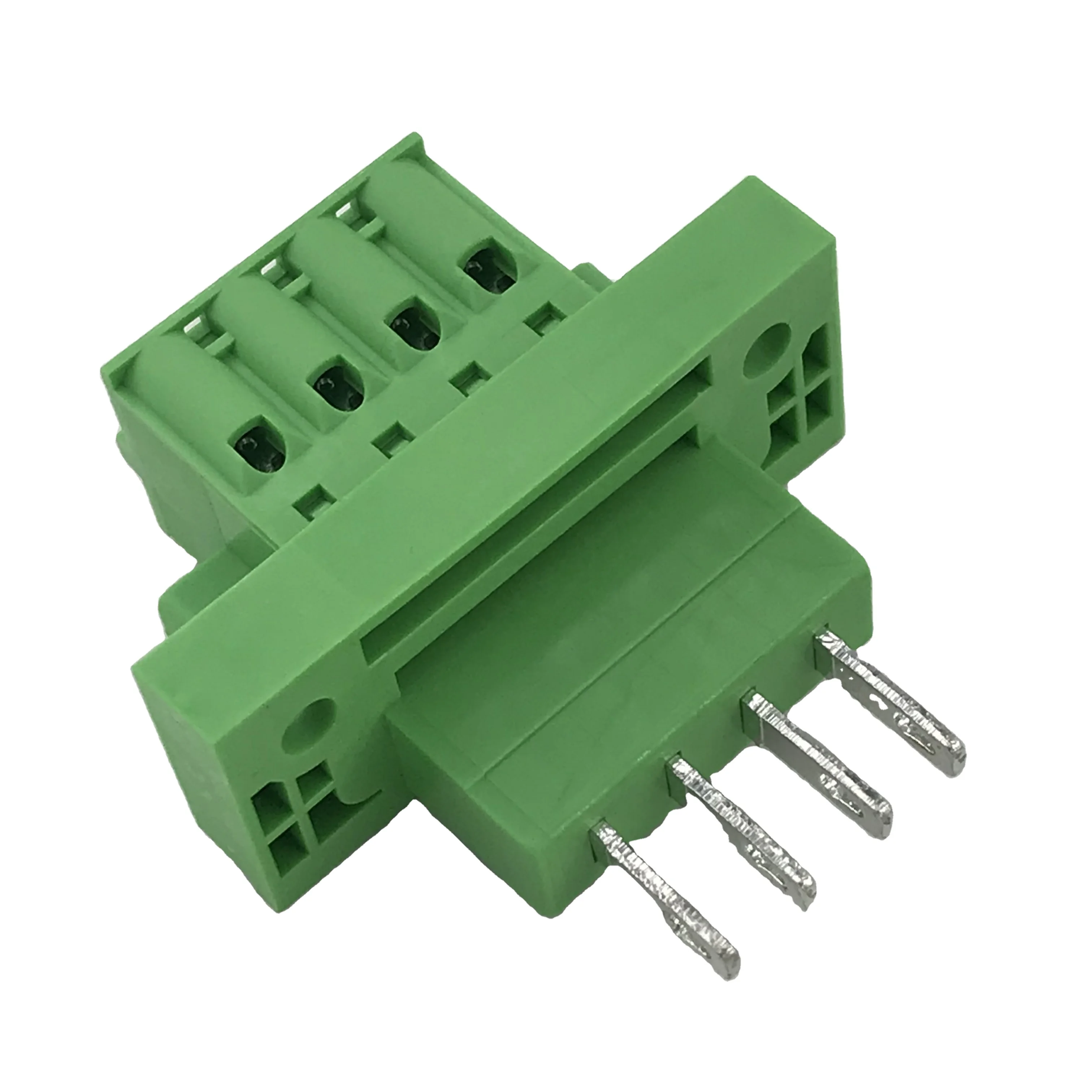

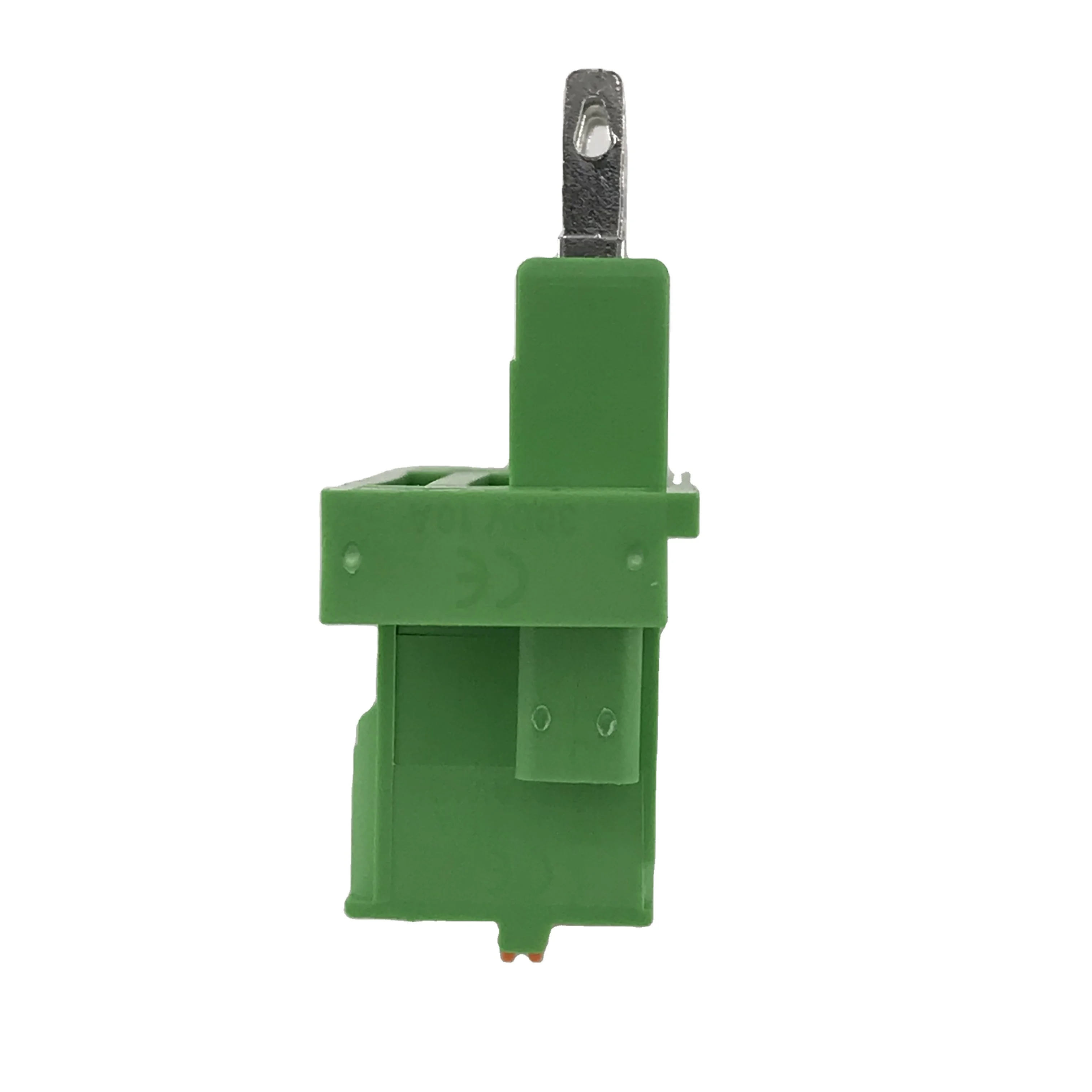

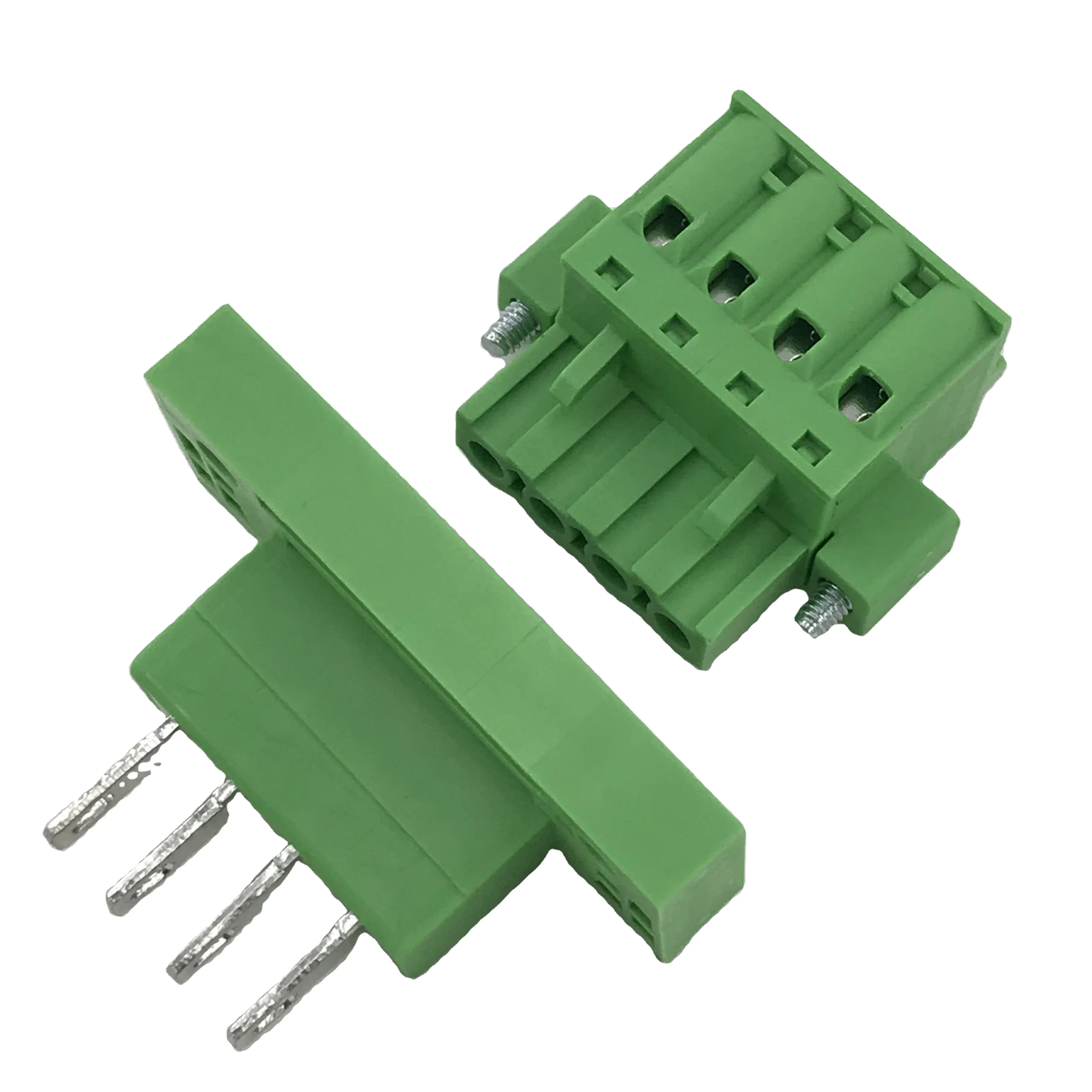

Pluggable Terminal Block XK2EDGKDM-5.08MM Pitch Push in Button Contact Block Female and Male Through Wall 2EDGWB-5.08
Ready to Ship
In stock Fast dispatch

Pluggable Terminal Block XK2EDGKDM-5.08MM Pitch Push in Button Contact Block Female and Male Through Wall 2EDGWB-5.08

  • 100 - 1999 Pieces
    $0.70
  • >= 2000 Pieces
    $0.68

Customization:

Customized packaging（Min.Order: 100000 pieces）
View product details

Pluggable Terminal Block XK2EDGKDM-5.08MM Pitch Push in Button Contact Block Female and Male Through Wall 2EDGWB-5.08

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Secure Electrical Connectivity: Designed for pluggable, spring-loaded connections of wires in terminal blocks with a 5.08mm pitch, supporting 2 to 24 poles.
  • Push-In Button Mechanism: Enables tool-free wire insertion and secure locking, ensuring reliable electrical contact without manual tightening.

Key features

  • 1. Material Technology

    • With a PA66 nylon body, ensure durability and heat resistance for stable performance in industrial environments.

  • 2. Interactive Design

    • With pluggable design and spring-loaded contacts, achieve quick and secure connections without tools, simplifying installation and maintenance.

  • 3. Performance Parameters

    • Supports up to 15A/300V and 2-24 pole configurations, handling heavy loads and diverse wiring needs ~30% more efficiently than standard terminal blocks*.

  • 4. Scenario Solutions

    • Ideal for through-wall applications in both residential and commercial settings, offering flexible connectivity for varied electrical setups.

  • 5. Certification Standards

    • Complies with CE certification standards, ensuring safety and reliability for EU-approved electrical systems.

Product details

Pluggable Terminal Block XK2EDGKDM-5.08MM Pitch Push in Button Contact Block Female and Male Through Wall 2EDGWB-5.08

The XK2EDGKDM-5.08MM Pluggable Terminal Block is a versatile electrical connection solution designed for industrial and commercial applications. Featuring PA66 material, CE certification, and pluggable spring contacts, it offers reliable performance with a 5.08mm pitch for seamless integration. Available in pole configurations from 2 to 24, it caters to diverse wiring needs while ensuring safety up to 300V and 15A.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialPA66Industrial machinery, automotive systems (high durability and heat resistance)
Pitch5.08mmStandard spacing for control panels and electrical enclosures
Poles2p-24pConfigurable for industrial automation or power distribution systems
Rated Current15ALighting systems, small appliances (reliable power transmission)
Rated Voltage300VIndustrial equipment, power management systems (safety and efficiency)
Contact TypePluggable, SpringRobotics, testing equipment (tool-free assembly and maintenance)
CertificationCECompliance with EU standards for safety and regulatory approval

Customization guide

Adjustable pole configurations (2p-24p) allow customization to meet specific wiring requirements. For high-current applications, pair with thicker gauge wires within the rated capacity.

Get inspired

With its pluggable design and wide pole range, the XK2EDGKDM terminal block simplifies wiring in complex systems. Whether upgrading industrial machinery or designing modular circuits, this terminal block ensures secure, tool-free connections for efficient maintenance.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Pole Range2p-12p12p-20p20p-24p
Contact Resistance20mΩ15mΩ (+25% improvement)10mΩ (+50% improvement)*
Operating Temp.-25°C to +85°C-40°C to +105°C-55°C to +125°C

Supplier's note

  1. Technical Breakthroughs:

    • Pluggable Spring Contacts: Enable tool-free assembly, reducing downtime by 30% compared to traditional screw-terminal blocks.
    • PA66 Material: Offers 2x higher heat resistance than standard nylon, ensuring stability in harsh environments.
    • CE Certification: Streamlines compliance for EU markets, eliminating additional testing costs.

  2. Version Selection Guide:

    • Base Model: Ideal for standard applications (e.g., lighting systems) requiring up to 12 poles.
    • Advanced Model: Suitable for industrial automation with wider pole ranges and enhanced temperature tolerance.
    • Pro Model: Designed for extreme environments (e.g., automotive, aerospace) needing high-pole configurations and extended temperature resilience.

*Pro Model’s 10mΩ contact resistance is 50% lower than the Base Model, ensuring minimal power loss in high-current setups.

Frequently asked questions

  • Which pluggable terminal block suits applications requiring 2 to 24 poles?

  • How do I maintain the spring contacts of the 2EDGWB-5.08 pluggable terminal block?

  • What are the advantages of PA66 material in terminal blocks like the XK2EDGKDM?

  • Can the 2EDGWB-5.08 terminal block be customized for specific applications?

  • Is the XK2EDGKDM-5.08MM rated for high-current industrial use?

  • What certifications does the through-wall terminal block 2EDGWB-5.08 have?

  • Are push-in button contacts easier to install than traditional screw terminals?

  • Can the 5.08mm pitch terminal block fit in confined electrical panels?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHigh-stress industrial environmentsIndustry: PA63 (UL94 HB) ▲ Base: PA66 (UL94 V-0) ▲ Advanced: PA66+GF30 (UL94 V-0, 50% stronger)Improved flame resistance and durabilityHigher cost for advanced materials
Rated CurrentHigh-current applicationsIndustry: 10A (IEC 60947-7-1) ▲ Base: 15A ▲ Advanced: 20ASupports higher loadsBase may not handle extreme currents
Rated VoltageHigh-voltage systemsIndustry: 250V (IEC 60947-7-1) ▲ Base: 300V ▲ Advanced: 400VHigher voltage toleranceBase may not be suitable for high-voltage
Pole ConfigurationComplex wiring setupsIndustry: 2-12p ▲ Base: 2-24p ▲ Advanced: 2-30pFlexibility for more connectionsBase may require multiple blocks for large setups
Certification StandardsExport to EU/Global marketsIndustry: Basic CE ▲ Base: CE ▲ Advanced: CE + UL + RoHSCompliance with multiple regulationsBase may lack certifications for certain markets
Contact TypeQuick assembly/disassemblyIndustry: Screw-type ▲ Base: Pluggable (IEC 60601-1) ▲ Advanced: Spring-Loaded (IEC 61076-2)Faster installationScrew-type may be more secure in vibrating environments
