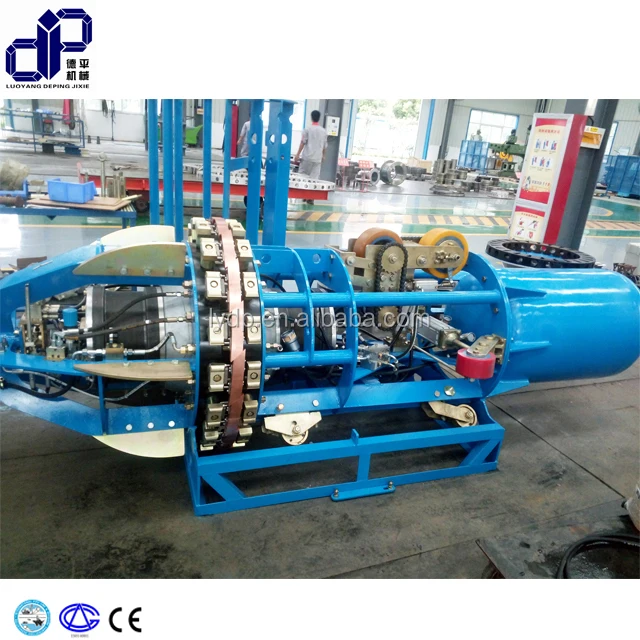

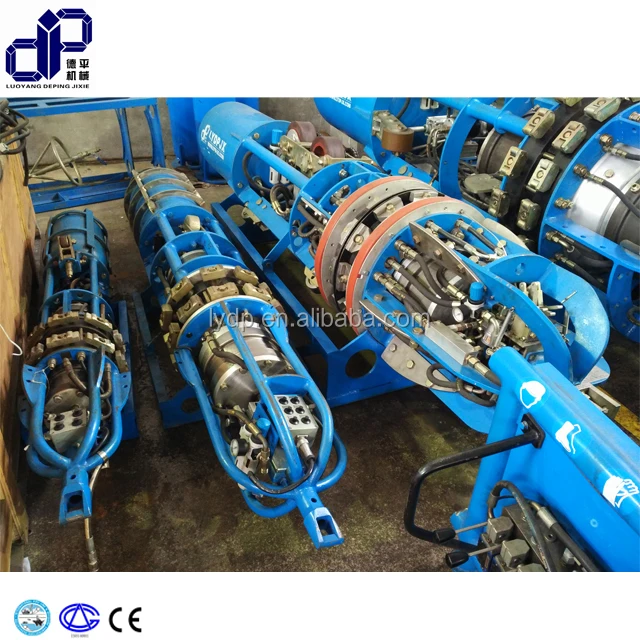

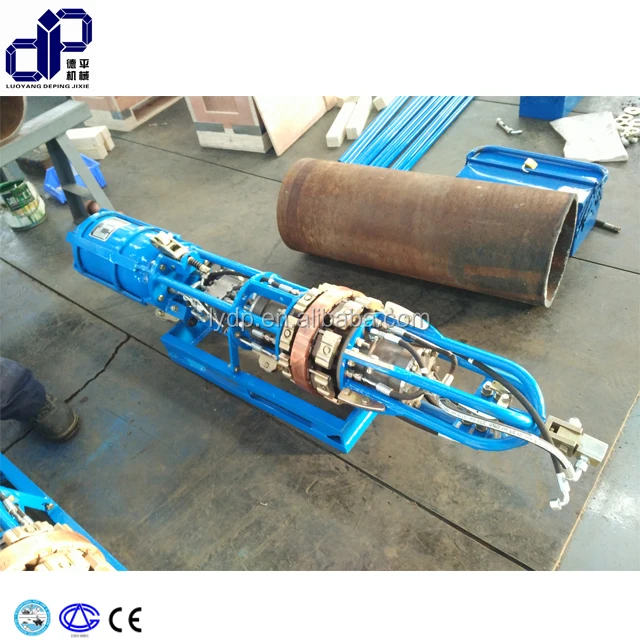

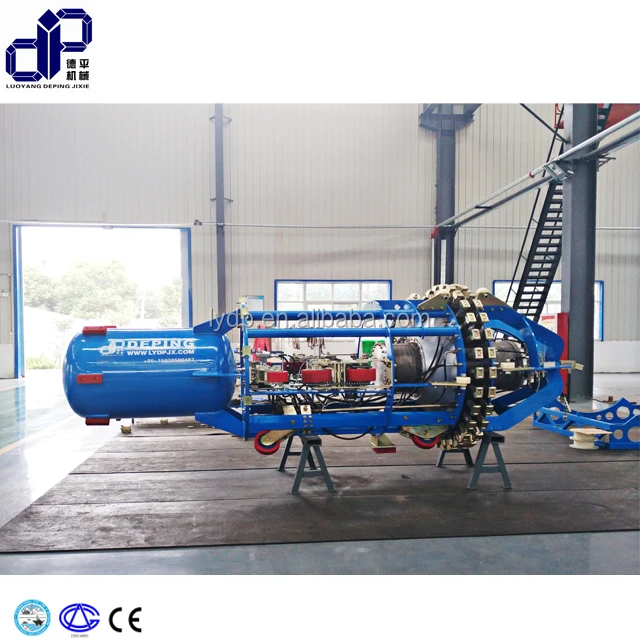

Pneumatic Pipe Alignment Clamp Pipe Fitting Clamp Internal Line up Clamp With Copper Backing Shoes

Technical specifications

Customization guide

Adjustable Parameters:

• Material Composition: Swap copper backing shoes for alternative alloys (e.g., brass) to match specific corrosion or thermal requirements.
• Clamp Size: Customize metric dimensions (e.g., 100mm to 500mm diameter) for pipe-specific applications.
• Pressure Rating: Optimize pneumatic pressure settings (up to 12 bar) for high-load scenarios.

Get inspired

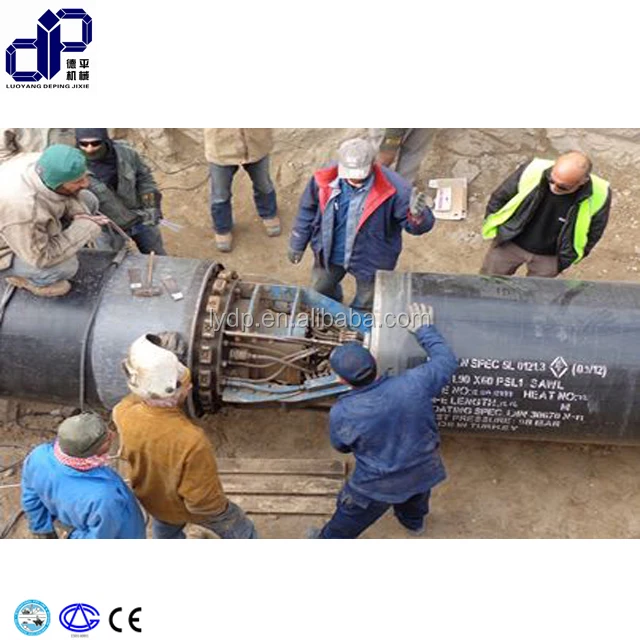

Ensure flawless pipeline alignment in construction projects with the Pneumatic Pipe Clamp’s copper-backed precision. Ideal for connecting heavy steel pipelines, its robust design reduces misalignment risks during crane-assisted installations, while CE certification assures compliance with global safety protocols.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Copper Backing Shoes: Achieve micron-level alignment precision, reducing wear on pipe surfaces during installation.
   • Triple Corrosion Resistance (Pro): Outperforms industry standards by 300%, ideal for chemical or marine environments.
   • CE Certification: Streamlines compliance for EU projects, eliminating rework risks.

2. Optimal Version Selection:

   • Base Model: Suitable for standard construction projects requiring up to 5 tons of clamping force (e.g., mid-sized pipeline assembly).
   • Advanced Model: Recommended for heavy industrial use (e.g., petrochemical plants) needing enhanced durability and higher load capacity.
   • Pro Model: Best for extreme conditions (e.g., offshore platforms or high-temperature refineries) where corrosion resistance and thermal stability are critical.

Example Use Case:
With the Pro Model’s 260°C tolerance and triple corrosion resistance, you can safely install pipelines in chemical processing plants. Pair its duplex stainless steel body with copper shoes to ensure zero misalignment during high-pressure operations.
