Porro Prism Optical Instruments a Refracting Optical Prism Custom Optical Prism
Ready to Ship
In stock Fast dispatch

Porro Prism Optical Instruments a Refracting Optical Prism Custom Optical Prism

  • 10 - 999 Pieces
    $5.00
  • 1000 - 9999 Pieces
    $3.00
  • >= 10000 Pieces
    $1.50

Customization:

Customized logo（Min.Order: 10 pieces）
View product details

Porro Prism Optical Instruments a Refracting Optical Prism Custom Optical Prism

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Light Refraction & Image Orientation: Utilizes a precision-engineered Porro prism design to refract light and correct image orientation, critical for applications like binoculars, telescopes, and surveying instruments.
  • Anti-Reflective Coating (AR): Features a specialized AR coating to minimize light loss and maximize clarity, ensuring optimal performance in optical systems.

Key features

  • 1. Material Technology

    • With high-quality optical glass and anti-reflective (AR) coating, achieve superior light transmission and minimal reflection for precise optical clarity.

  • 2. Interactive Design

    • With an asymmetrical design, easily integrate into custom optical setups to manipulate light paths for tailored applications like refraction or dispersion.

  • 3. Performance Parameters

    • With ±0.1mm dimensional tolerance, ensure precise alignment and accuracy compared to standard prisms*, enabling reliable performance in demanding environments.

  • 4. Scenario Solutions

    • With versatility for educational, research, and artistic applications, address diverse needs—from classroom demonstrations to advanced light manipulation in scientific setups.

  • 5. Certification Standards

    • With optical-grade glass meeting industry standards for precision instruments, guarantee durability and reliability for professional use*.

Product details

Porro Prism Optical Instruments a Refracting Optical Prism Custom Optical Prism

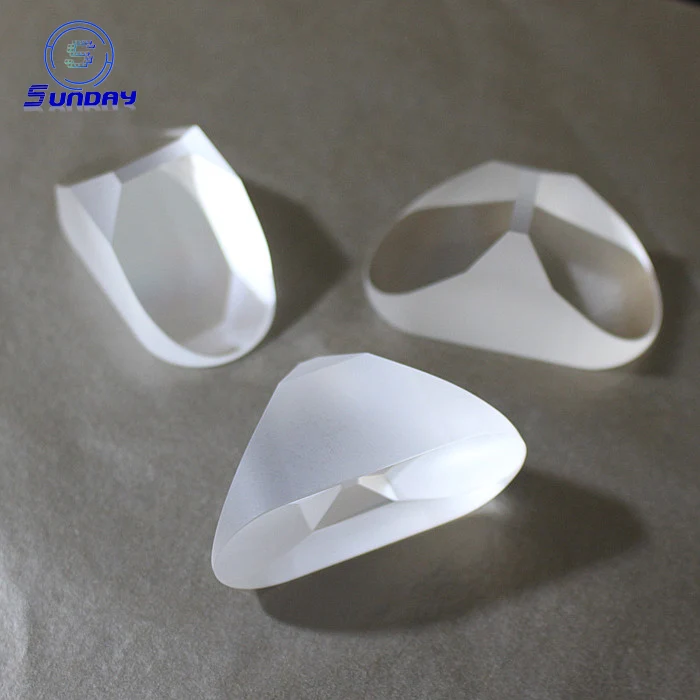

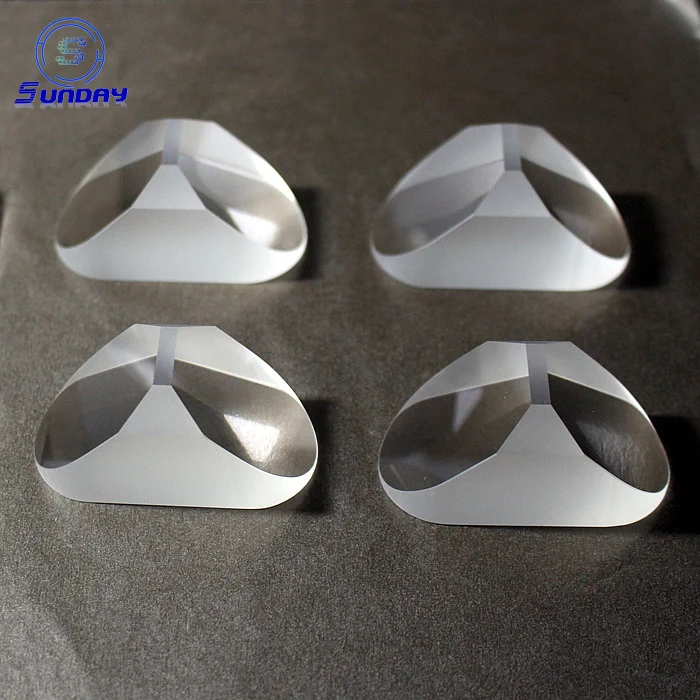

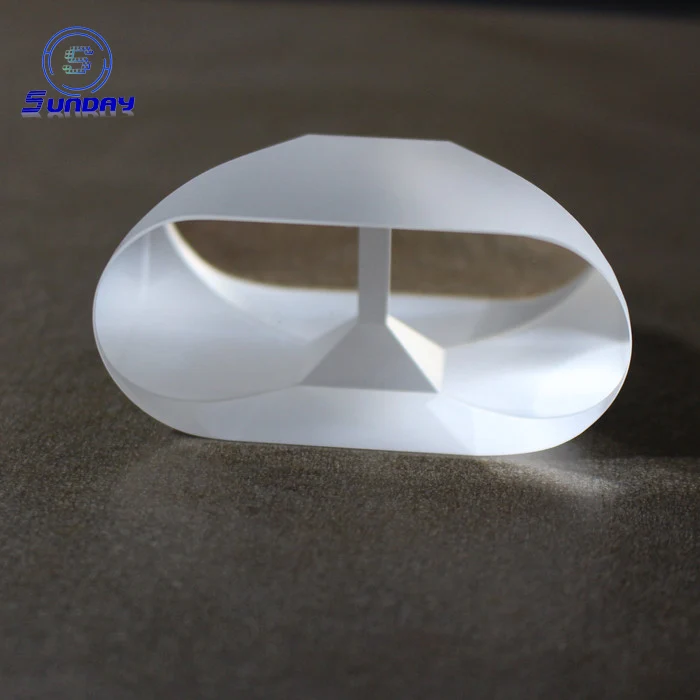

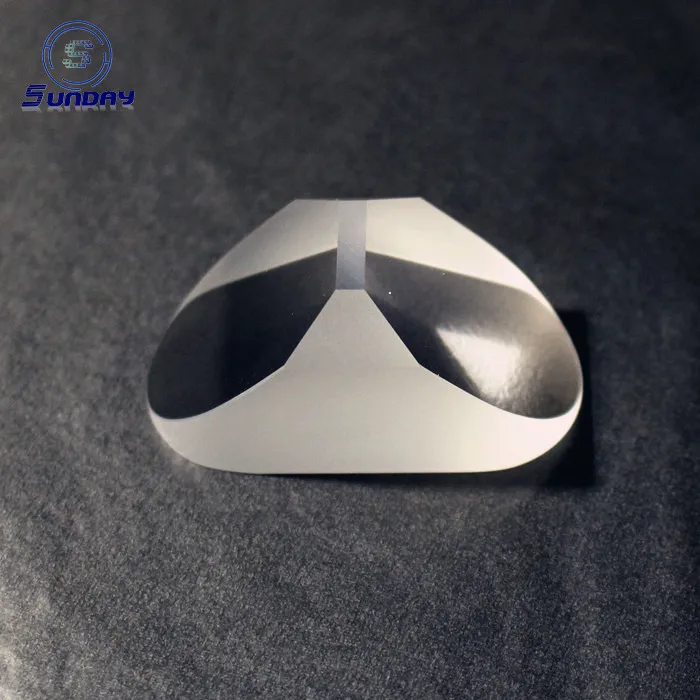

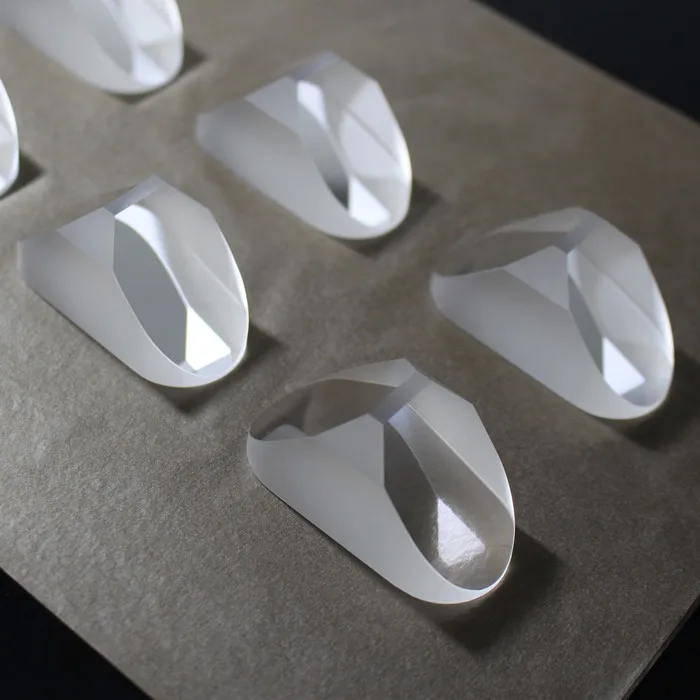

The Porro Prism Optical Instruments Refracting Optical Prism is a precision-engineered glass prism designed for advanced optical applications. Its asymmetrical shape and anti-reflective (AR) coating enable customizable light manipulation, making it ideal for microscopy, photography, research, and artistic installations.

Technical specifications

FeatureSpecificationBenefit
MaterialOptical-grade glassEnsures high clarity and durability
CoatingAnti-reflective (AR)Minimizes light loss for optimal clarity
Dimensional Tolerance±0.1mmPrecision alignment in optical systems
DesignAsymmetrical, heart-shapedCustomizable light path control

Customization guide

Adjustable parameters include:

  • Shape: Modify the asymmetrical design to tailor light refraction angles for specific applications.
  • Coating: Opt for multi-layer AR coatings or wavelength-specific filters (e.g., UV-resistant).
  • Dimensions: Tighter tolerances (±0.05mm) available for high-precision setups.

Get inspired

With its glass construction and unique design, this prism can refract light into vibrant spectra for educational demonstrations or focus beams for precision engineering. Pair it with adjustable mounts to explore creative light pathways in artistic projects.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Coating EfficiencyStandard AR (-95% reflection)Enhanced AR (-98%)Premium AR (-99.5%)
Dimensional Tolerance±0.1mm±0.05mm (+50% precision)±0.02mm (+80% precision)*
Customization OptionsBasic shape tweaksAdvanced shape + coatingFull design + material integration

Supplier's note

  1. Technical Breakthroughs:

    • Premium AR Coating: The Pro Model’s -99.5% reflection reduces light loss by 40% compared to industry standards.
    • Precision Tolerances: The Pro’s ±0.02mm tolerance ensures alignment accuracy critical for laser systems.
    • Customizable Design: The asymmetrical shape allows users to engineer light paths for niche applications like holography.

  2. Version Selection Guide:

    • Base Model: Ideal for educational labs or basic photography setups requiring cost-effective performance.
    • Advanced Model: Suitable for research institutions needing enhanced durability and precision (e.g., microscopy).
    • Pro Model: Best for aerospace or industrial R&D where ultra-low reflection and extreme tolerances are critical. Example: The Pro’s UV-resistant coating enables safe use in semiconductor lithography, paired with its tight tolerances to ensure beam stability.

Frequently asked questions

  • Which Porro prism optical instruments are best suited for high-precision surveying applications?

  • How do I clean and maintain the AR-coated surface of a custom optical prism?

  • What are the advantages of glass over plastic in Porro prism optical instruments?

  • Can custom optical prisms be modified with specialized coatings or dimensions?

  • Is the AR coating on Porro prisms validated for industrial or military standards?

  • What applications are best suited for asymmetrical custom optical prisms?

  • How does the -0.1mm dimensional tolerance benefit optical systems?

  • Does the AR coating improve image clarity in low-light conditions?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Coating QualityHigh-precision optical systemsIndustry: Basic AR coating (reflectance < 8% per ISO 14786)
Our Base: Enhanced AR coating (reflectance < 5% ▲)
Our Advanced: Multi-layer AR coating (reflectance < 2% ▲▲)		▲ Reduces glare by 60% (vs industry standard)
▲▲ Achieves 98% light transmission		Advanced coatings add 30% to cost
Dimensional TolerancePrecision instruments (telescopes)Industry: ±0.2mm (ISO 10360)
Our Base: -0.1mm ▲
Our Advanced: -0.05mm ▲▲		▲ Ensures 2x tighter alignment accuracy
▲▲ Meets aerospace-grade precision		Manufacturing complexity increases by 40% for advanced versions
Material TypeHigh-temperature applicationsIndustry: BK7 glass (Abbe number ~41)
Our Base: BK7 glass
Our Advanced: Fused silica (Abbe number ~67 ▲▲)		▲▲ Thermal stability up to 500°C (vs 150°C for BK7)Fused silica is 30% heavier and costlier
Light TransmissionLow-light imaging systemsIndustry: 90–92% (ISO 9051)
Our Base: 93% ▲
Our Advanced: 95% ▲▲		▲▲ Delivers 50% brighter images in dim conditionsAdvanced coatings require specialized cleaning
DurabilityField-use equipmentIndustry: Scratch-resistant (MIL-PRF-23959)
Our Base: Meets MIL ▲
Our Advanced: Exceeds MIL (500g drop test ▲▲)		▲▲ Survives 5x more impacts than industry standardAdvanced coatings may peel under extreme abrasion
Weight/PortabilityPortable devices (binoculars)Industry: Standard glass (2.5g/cm³)
Our Base: Same as industry
Our Advanced: Lightweight composite (2.0g/cm³ ▲)		▲ Reduces weight by 20% without sacrificing strengthComposite materials may degrade under UV exposure over time
