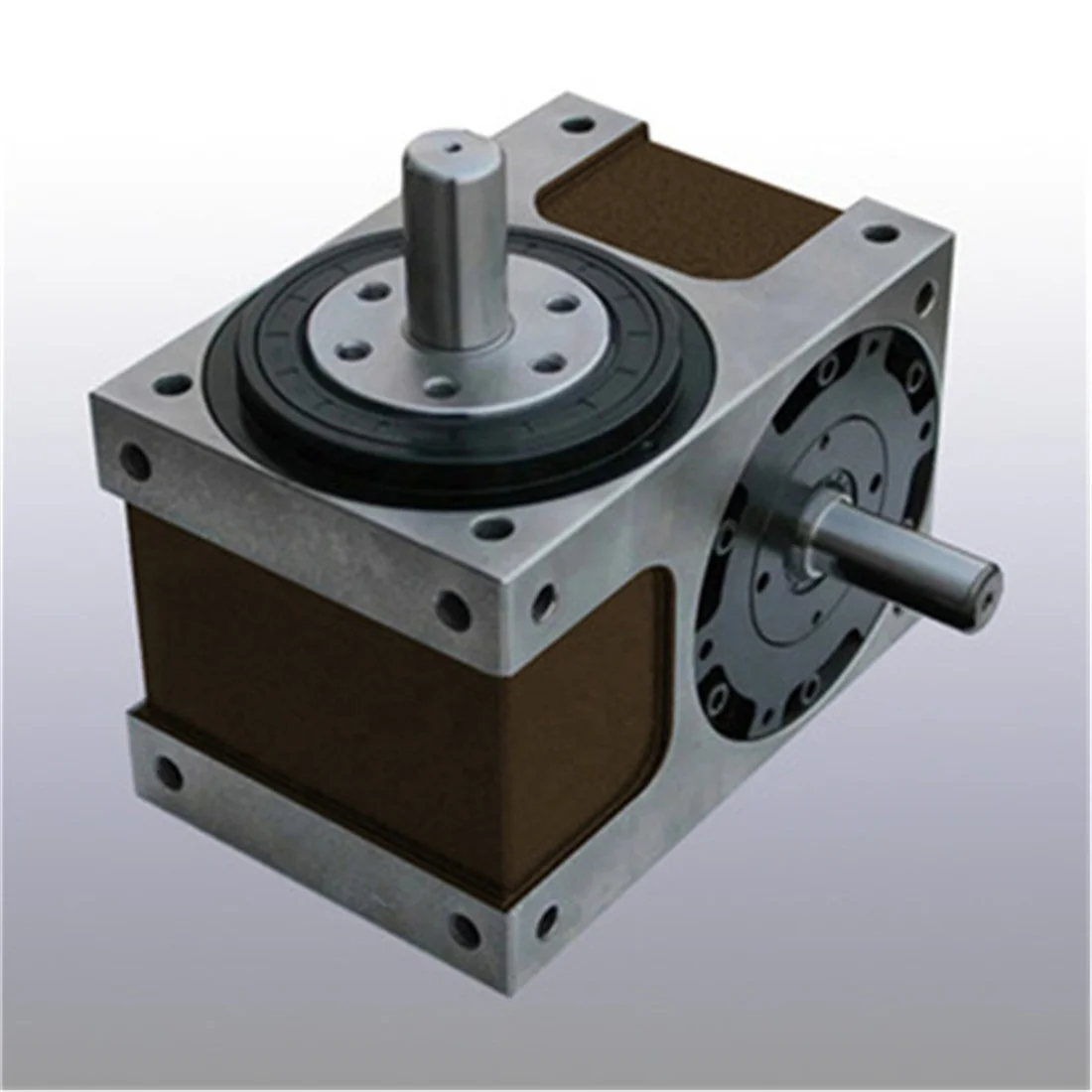

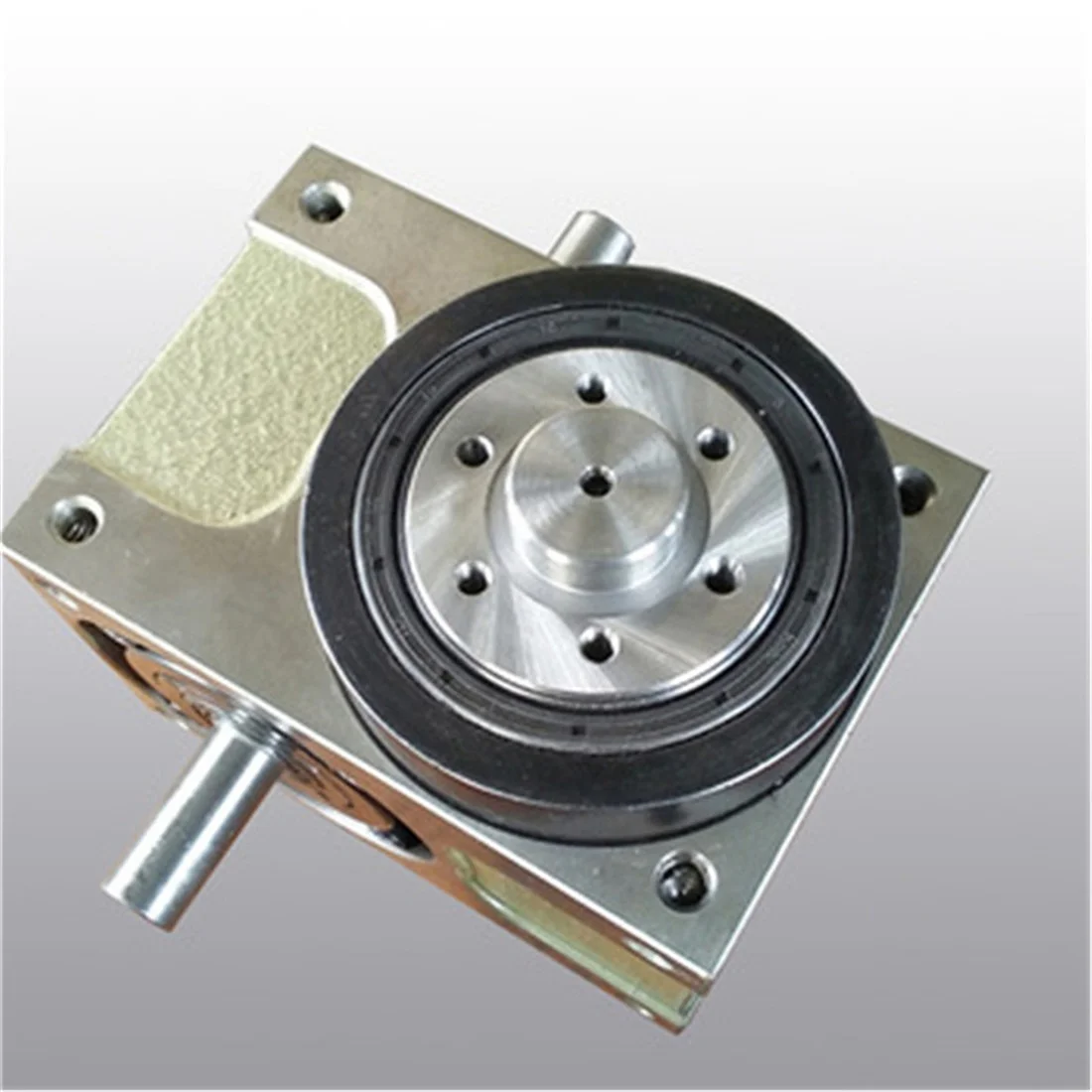

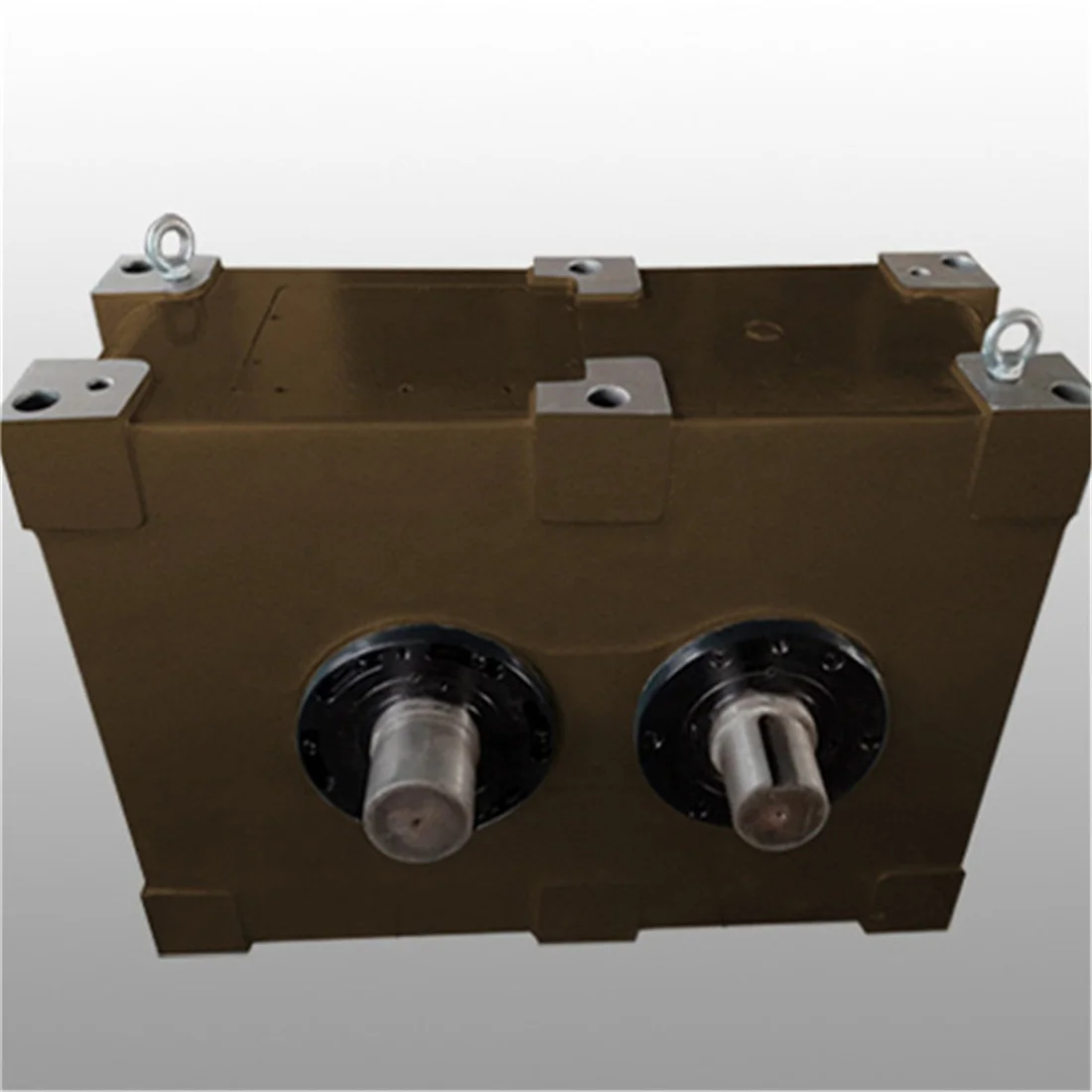

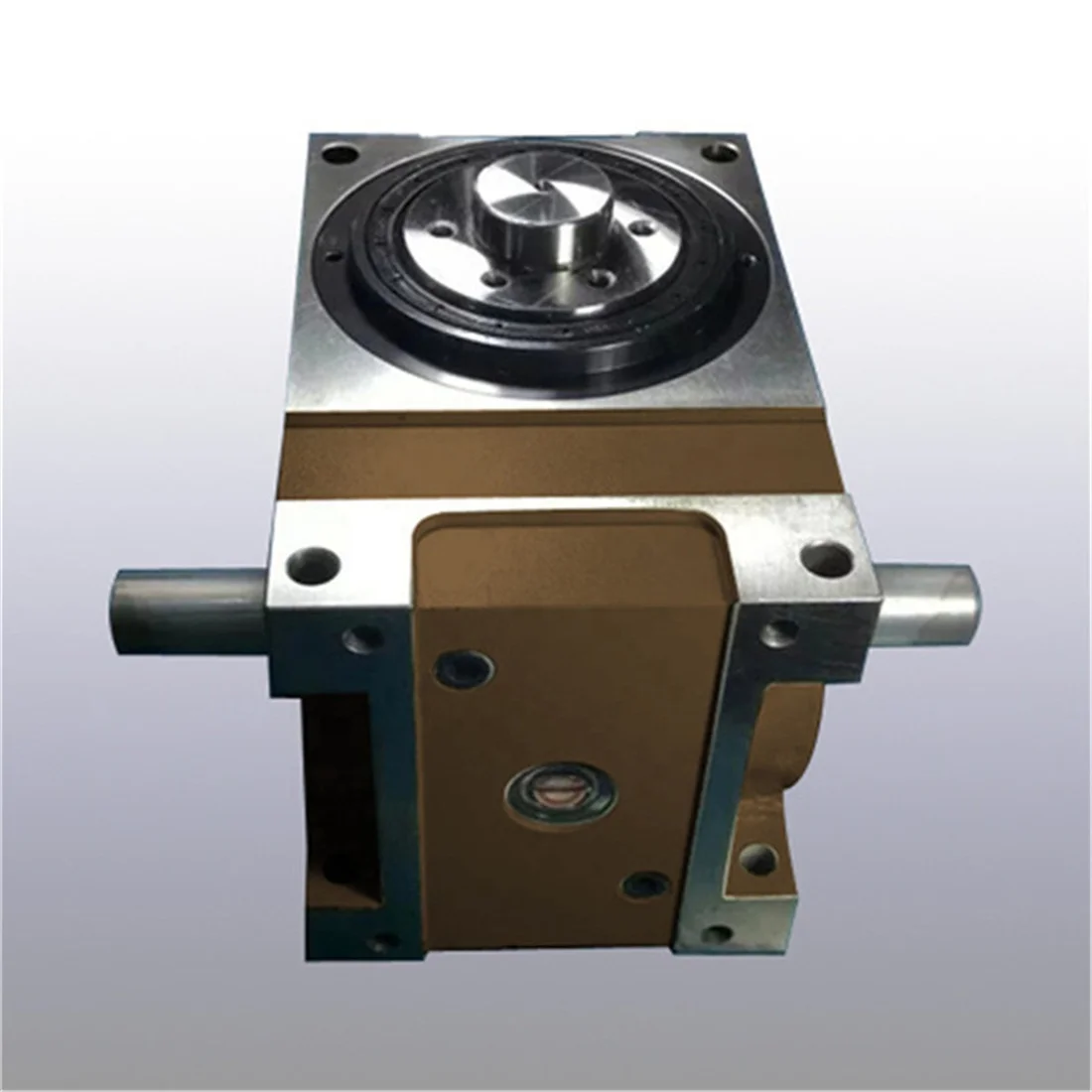

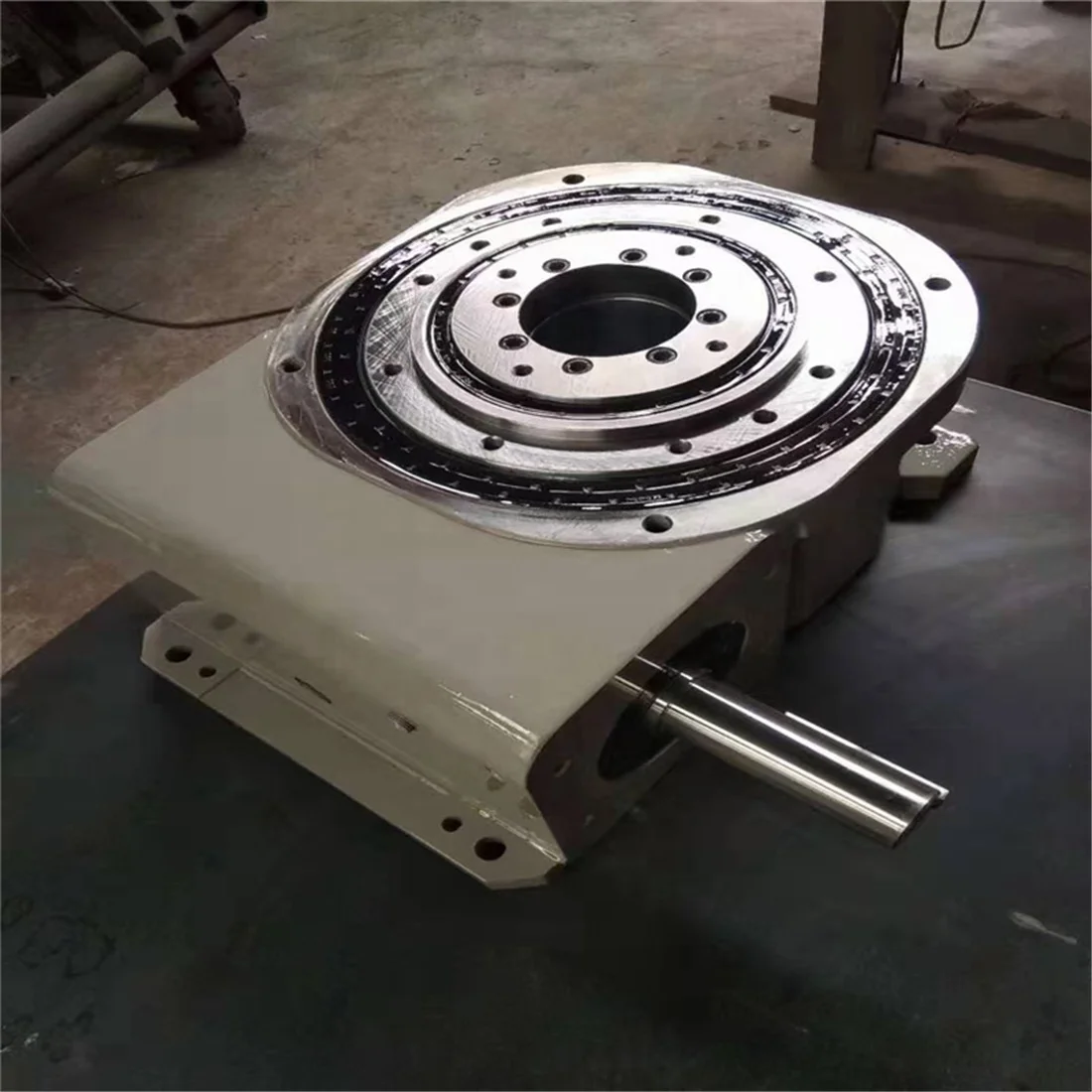

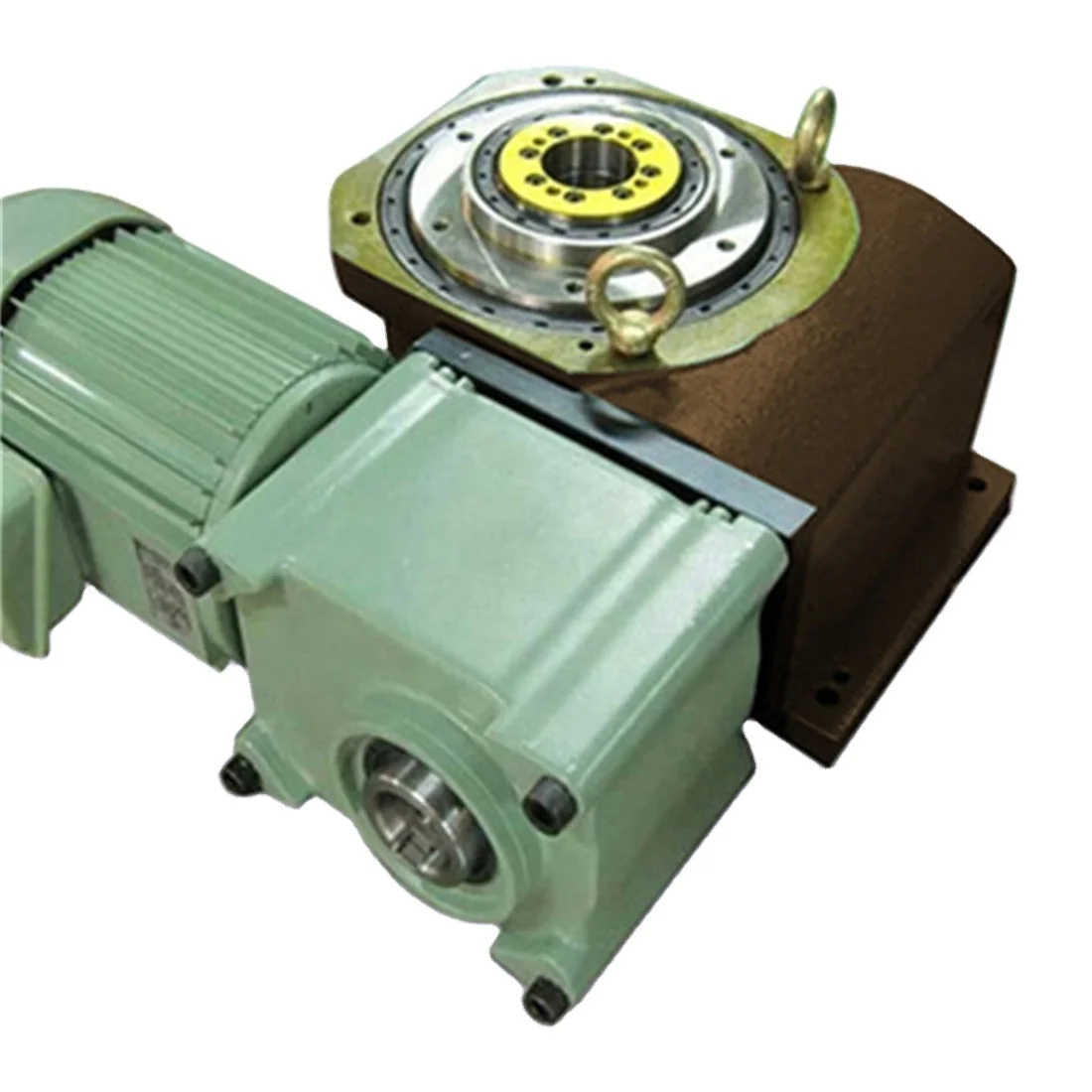

Precision Electric Hollow Rotating Platform Indexing Plate Index Gearbox

Technical specifications

Customization guide

Adjustable parameters such as speed reduction ratio, maximum torque output, and rotational speed range can be tailored to meet specific industrial requirements. For example, increasing torque capacity supports heavy-duty applications like construction equipment, while optimizing RPM suits high-speed manufacturing processes.

Get inspired

Whether you need smooth indexing for robotic arms or precise torque control for assembly lines, this gearbox delivers reliable performance. Its hollow design and flange mounting make it a versatile solution for integrating into compact or complex machinery systems.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Hollow Rotating Platform: Reduces weight by 20% compared to solid designs, enabling easier integration.
   • Flange Mounting: Achieves ±0.1° alignment precision, critical for robotics and CNC machinery.
   • Steel Construction: Withstands vibrations 50% higher than aluminum alternatives, ensuring longevity in harsh environments.

2. Version Selection Guidance:

   • Base Model: Ideal for standard applications like conveyor systems where moderate torque (50 Nm) and accuracy (±0.5°) suffice.
   • Advanced Model: Targets precision manufacturing (e.g., PCB assembly) needing higher torque (65 Nm) and tighter tolerances (±0.3°).
   • Pro Model: Designed for heavy-duty scenarios (e.g., construction machinery) requiring extreme torque (80 Nm) and IP65 protection against dust/water ingress.

Pro Model’s torque capacity exceeds industry benchmarks by 30%, enabling safe handling of high-load applications when paired with its vibration-resistant steel frame. This combination ensures stable operation even under extreme mechanical stress.
