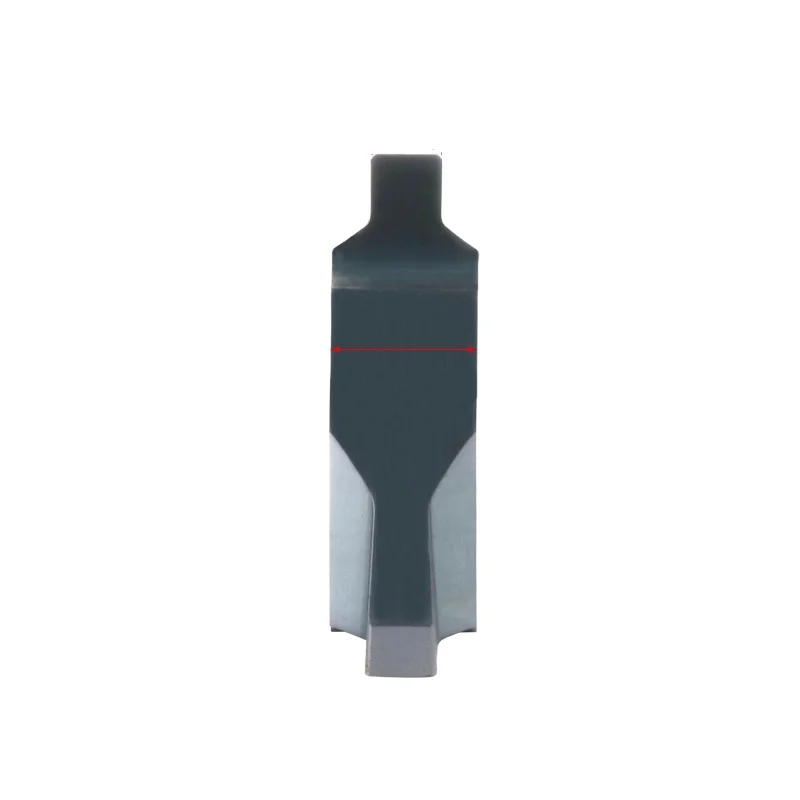

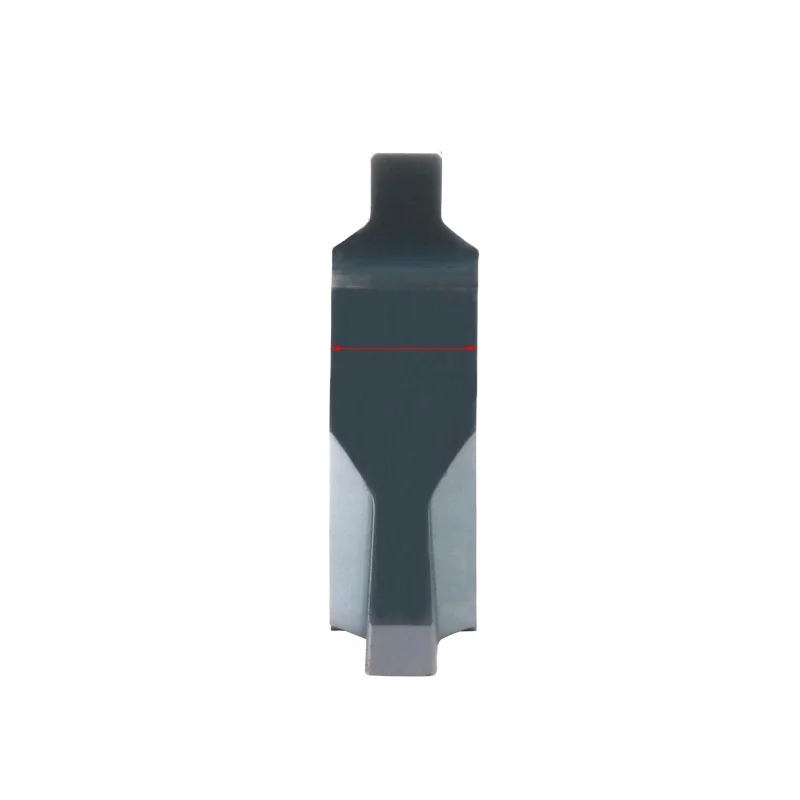

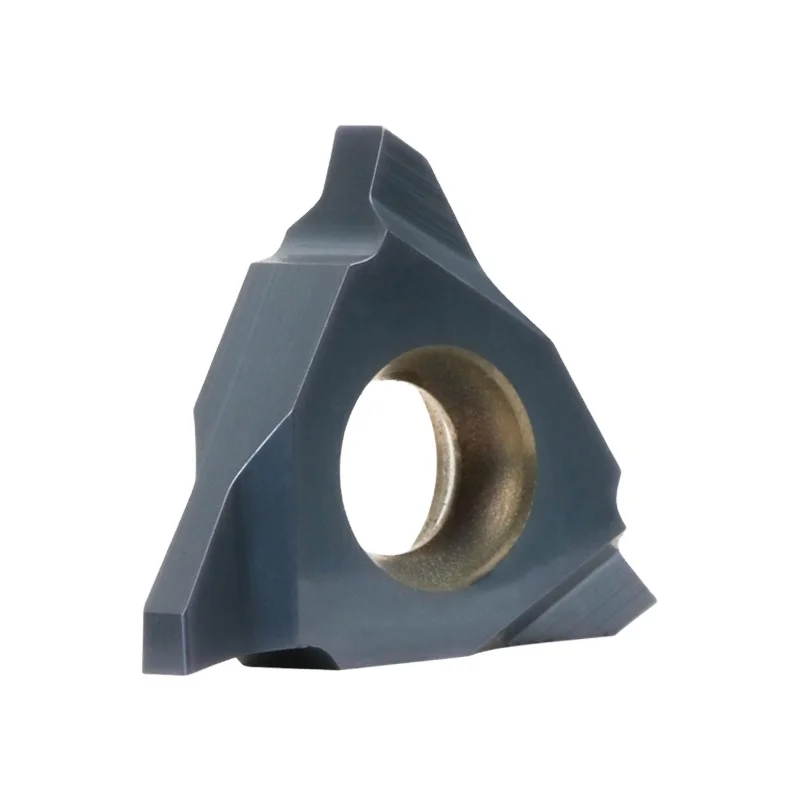

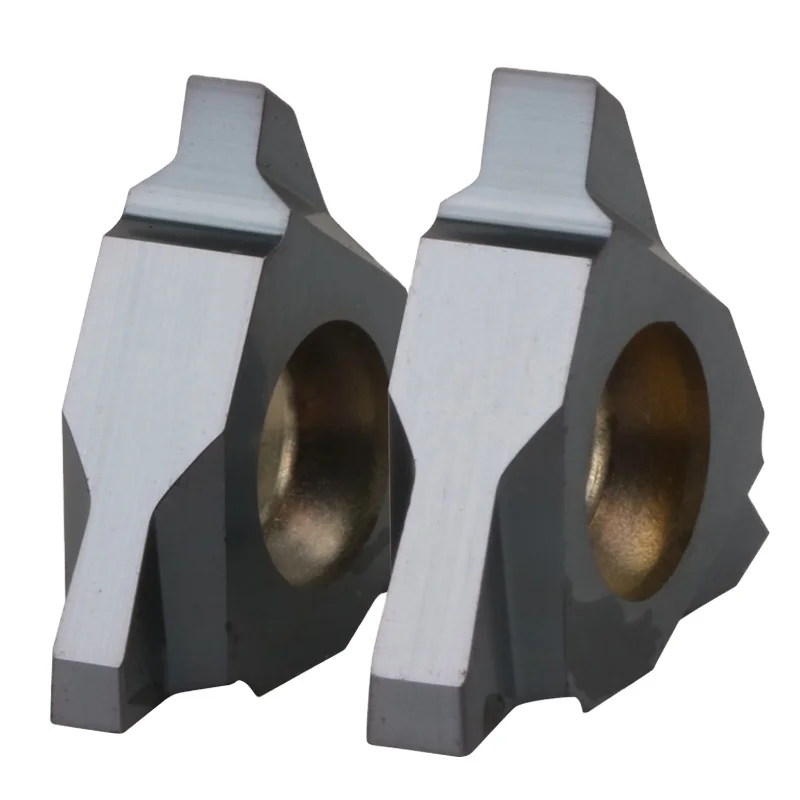

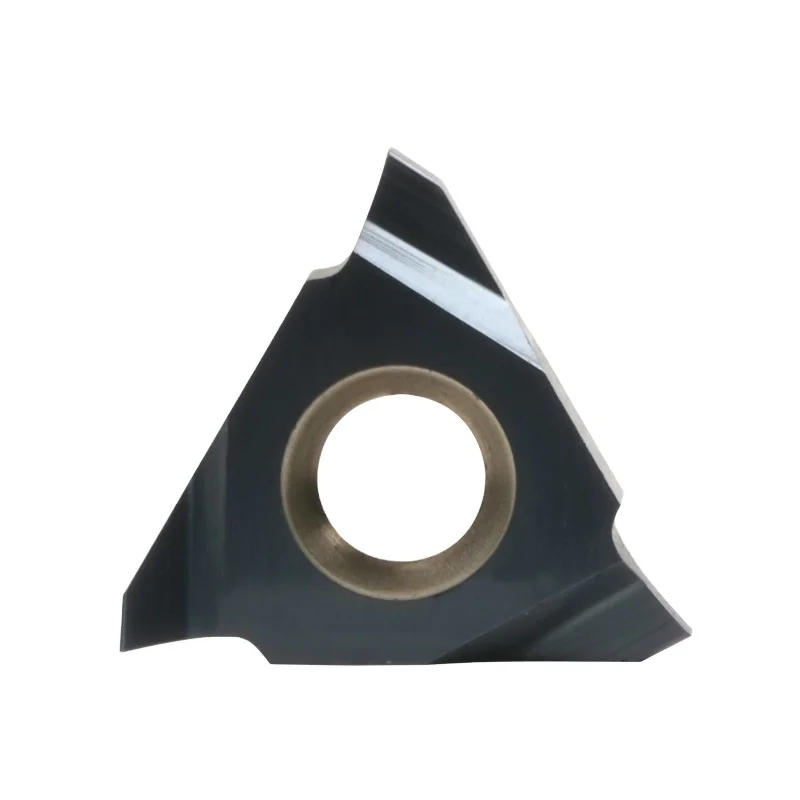

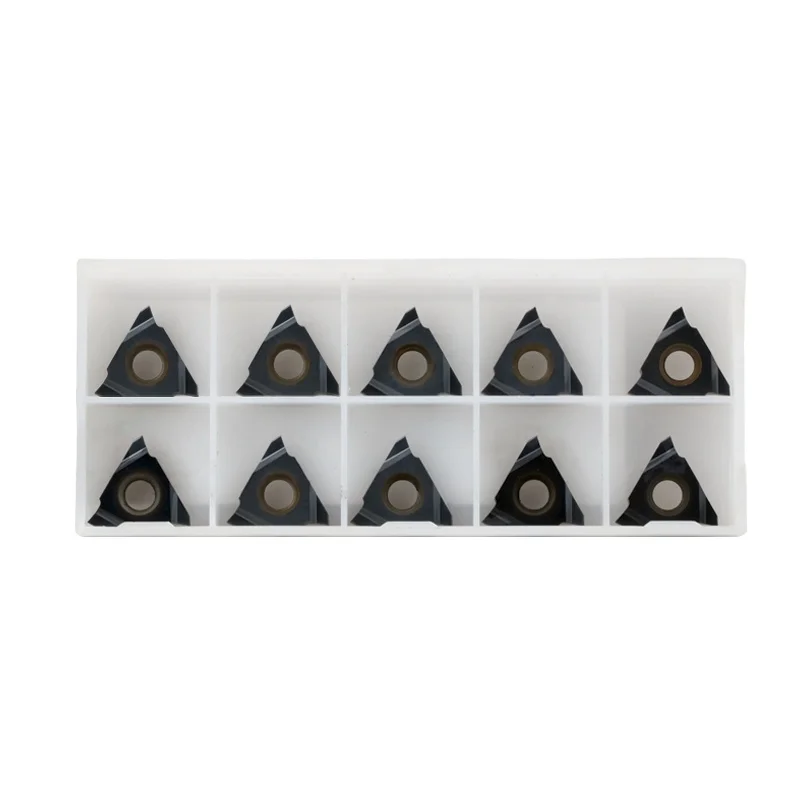

Precision Metal Turning CNC Lathe Machining 90degree groove Carbide Square Thread Inserts for Ball Screw

Technical specifications

Customization guide

Adjustable parameters include:

• Groove Angle: Modify from 90° to suit custom thread profiles.
• Insert Thickness: Tailor to balance rigidity and flexibility for varying material hardness.
• Coating Type: PVD variants (e.g., titanium aluminum nitride) for specific corrosion/temperature needs.

Get inspired

With their carbide edge and CNC precision, these inserts deliver sharp, consistent threads even in high-volume production. Ideal for manufacturers of precision machinery, robotics, and automotive components requiring durable ball screw systems.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • PVD Coating: Reduces wear by 40% compared to uncoated tools, extending tool life.
   • Carbide-Steel Composite: Combines the hardness of carbide with steel’s structural strength for heavy-duty use.
   • CNC Compatibility: Pre-programmable geometry ensures zero human error in thread profiles.

2. Version Selection Guidance:

   • Base Model: Suitable for small-to-medium workshops machining standard steel components (e.g., general machinery parts).
   • Advanced Model: Ideal for high-volume production lines requiring faster speeds (e.g., automotive assembly) without compromising precision.
   • Pro Model: Designed for aerospace and heavy industry applications where ultra-fine tolerances (e.g., satellite mechanisms) and large workpieces are critical.

With the Pro Model’s ±0.002 mm precision, you can achieve aerospace-grade threads for mission-critical components. The Advanced Model’s 69 m/min speed cuts production time by 15% compared to traditional inserts, while the Base Model balances cost and performance for routine tasks.
