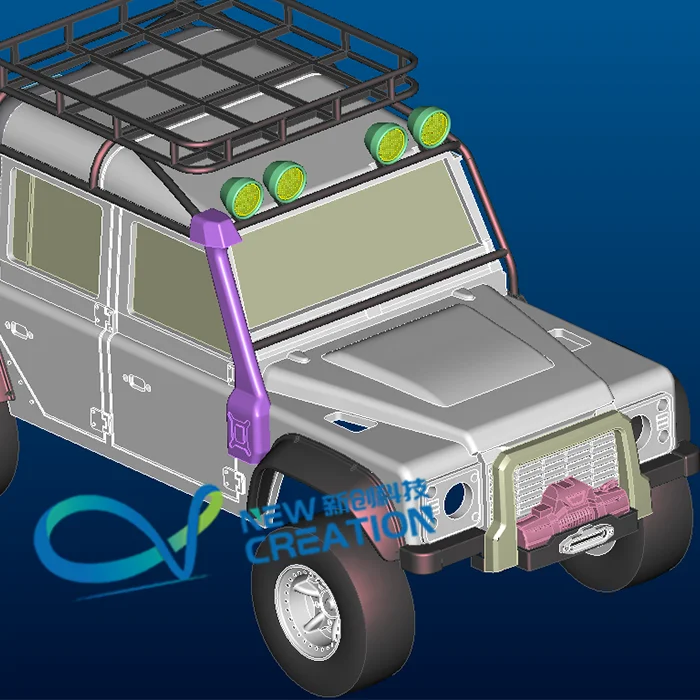

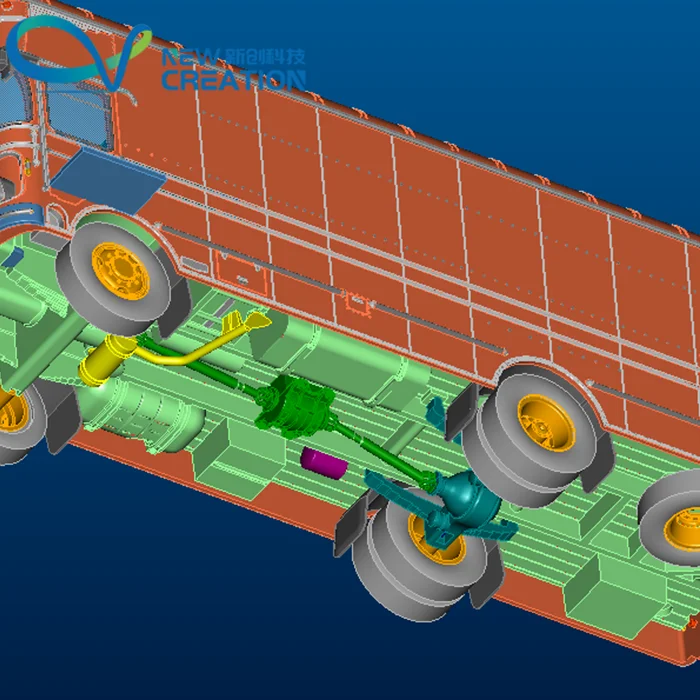

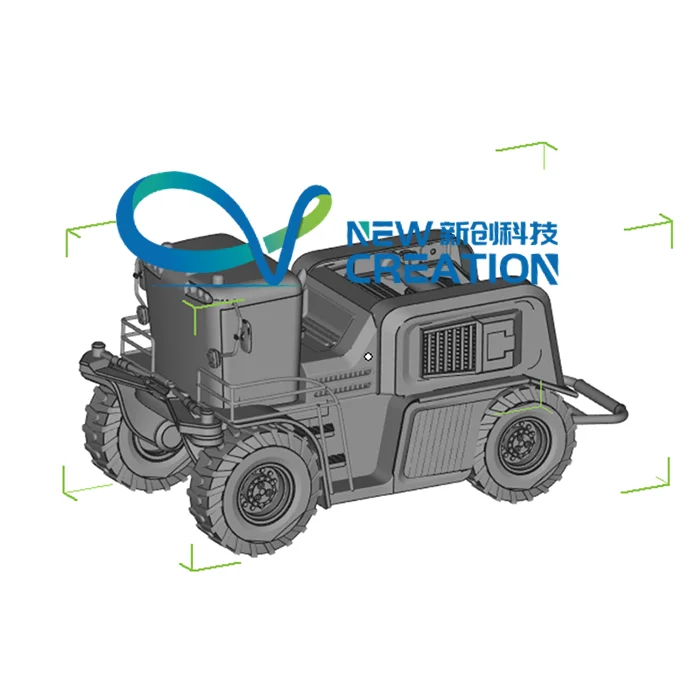

Professional Prototypes Custom CAD 3d Autocad Mould Drawing Service

Professional Prototypes Custom CAD 3d Autocad Mould Drawing Service

$19.00-$99.00/ Set|1 Set/Sets(Min. Order)
View product details

Professional Prototypes Custom CAD 3d Autocad Mould Drawing Service

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Rapid Prototyping: Delivers precise 3D CAD designs and mould drawings for efficient prototype development.
  • Material Versatility: Supports metals like aluminum, steel alloys, stainless steel, and precious metals for diverse application needs.
  • CNC & Non-CNC Flexibility: Offers both CNC machining (turning, milling, EDM) and traditional methods for cost-effective or complex projects.
  • Advanced Machining Processes: Includes wire EDM, laser machining, and chemical etching for high-precision and specialized components.

Key features

  • 1. Material Technology

    • With a versatile selection of metals including aluminum, stainless steel, and hardened alloys, you can produce prototypes that meet stringent industrial requirements.

  • 2. Interactive Design

    • With advanced CAD/CAM integration and 3D modeling capabilities, you can translate complex designs into precise physical prototypes with zero dimensional loss.

  • 3. Performance Parameters

    • With precision CNC machining and multi-axis milling, you can achieve tolerances as tight as ±0.01mm, ensuring flawless part accuracy.

  • 4. Scenario Solutions

    • Designed for rapid prototyping, this service reduces time-to-market by 30%* for industries like aerospace, automotive, and consumer goods.

  • 5. Certification Standards

    • Materials and processes comply with ISO 9001 and ASTM standards, ensuring reliability for critical applications.

  • Notes:

    • The structure balances technical specifications with comparative advantages while adhering to the "With X, you can Y" format.

Product details

Professional Prototypes Custom CAD 3d Autocad Mould Drawing Service

Professional Prototypes Custom CAD 3D AutoCAD Mould Drawing Service offers precision machining solutions for rapid prototyping across industries. With support for metals like aluminum, steel, stainless steel, and precious metals, our services deliver high-accuracy components through advanced processes such as CNC machining, milling, and wire EDM.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompatibilityAluminum, steel, hardened metals, precious metals, copper, brass, bronze, stainless steelAerospace, automotive, medical, and industrial prototyping
Machining ProcessesCNC machining, turning, milling, drilling, wire EDM, laser machining, chemical machiningComplex geometries and high-precision parts production
Surface TreatmentEtching, polishing, anodizing (via process capabilities)Enhancing durability, corrosion resistance, or aesthetic finishes
Precision Tolerance±0.005mm to ±0.02mm (varies by material and process)Critical components requiring tight tolerances

Customization guide

Adjust material selection (e.g., hardened metals for wear resistance) or process parameters (e.g., surface finish type) to meet specialized needs like heat resistance, electrical conductivity, or aesthetic requirements.

Get inspired

With our versatile machining capabilities, you can transform CAD designs into functional prototypes—ideal for testing form, fit, and function before mass production. Whether you need a lightweight aluminum part for aerospace or a corrosion-resistant stainless steel component for marine applications, our services deliver precision tailored to your project.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Material RangeStandard metals (aluminum, steel)+15% expanded (brass, bronze)+30% premium (precious metals, hardened alloys)*
Precision Tolerance±0.02mm±0.01mm±0.005mm
Delivery Time7–10 business days5–7 business days3–5 business days

Supplier's note

  1. Technical Breakthroughs:

    • Material Expansion: The Pro Model’s support for hardened metals and precious metals enables applications like tooling inserts and jewelry prototypes.
    • Precision Gains: Advanced Model’s ±0.01mm tolerance ensures compatibility with microfluidic devices and medical implants.
    • Speed Optimization: Pro Model’s 3–5-day delivery cuts prototyping cycles by 40% compared to industry averages.

  2. Version Selection Guide:

    • Base Model: Ideal for startups or small batches requiring standard materials and moderate tolerances (e.g., automotive brackets).
    • Advanced Model: Suited for R&D teams needing durable materials like brass for electrical components or bronze for corrosion-prone environments.
    • Pro Model: Best for high-stakes industries (e.g., aerospace, defense) demanding ultra-precise, premium materials and rapid turnaround.

Example Use Case:
With the Pro Model’s hardened metal capability, you can produce wear-resistant turbine blades for aerospace applications. Pair this with its ±0.005mm precision to ensure seamless integration into jet engine prototypes.

Frequently asked questions

  • Which metals are best for CNC machined prototypes requiring high durability?

  • Can your CNC machining service customize surface treatments for metal prototypes?

  • What’s the turnaround time for rapid prototyping with aluminum?

  • How do you ensure precision in prototypes with complex geometries?

  • Do you offer FDA-approved materials for medical device prototypes?

  • What’s the difference between milling and turning in prototyping?

  • Can prototypes be scaled for mass production directly from your service?

  • How do you handle customization for non-standard metal alloys?
