Pvc Pipe Tapping Saddle

Pvc Pipe Tapping Saddle

  • 1 - 9 Tons
    $1,750
  • >= 10 Tons
    $1,700
View product details

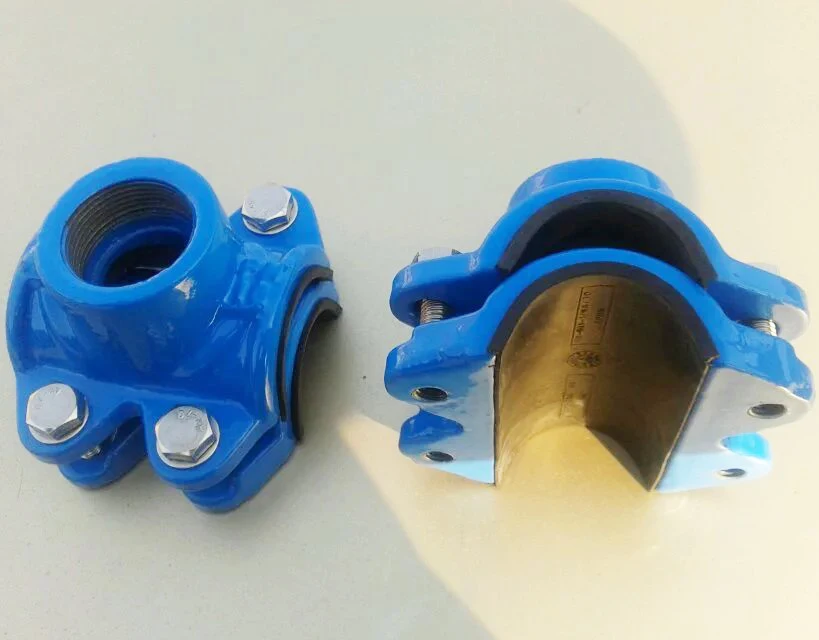

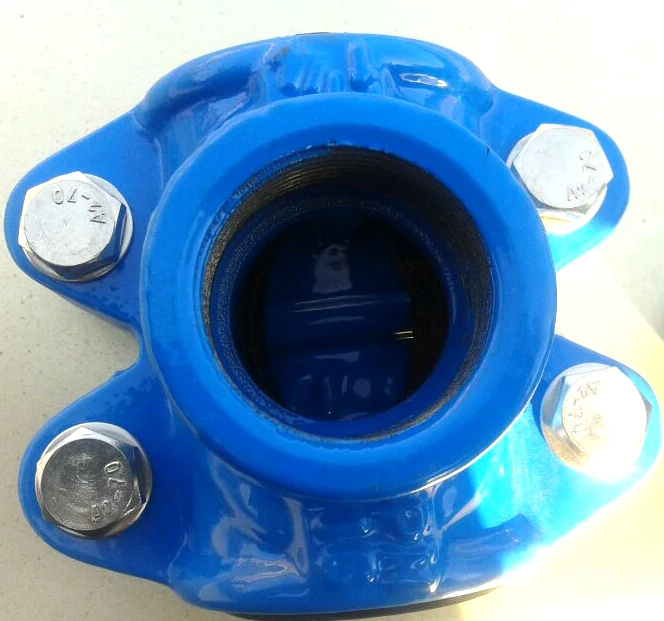

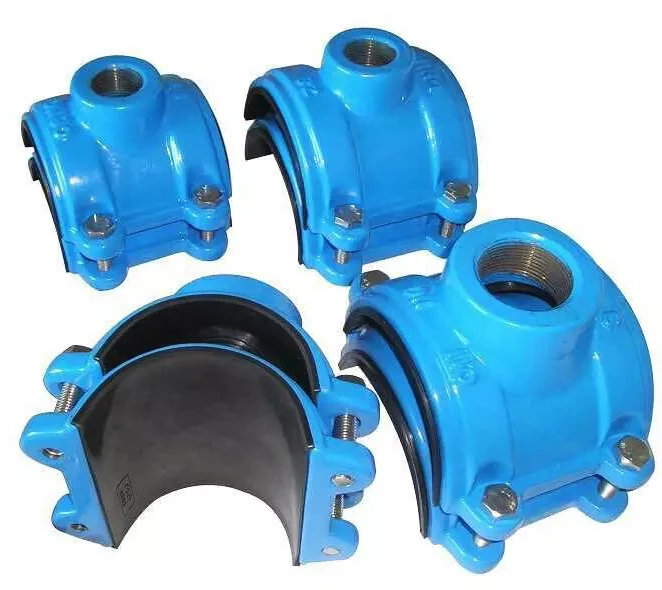

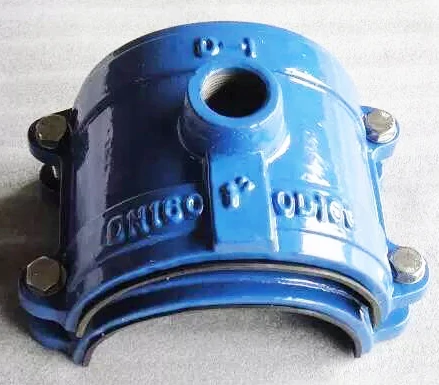

Pvc Pipe Tapping Saddle

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Pipe Tapping & Branch Connection: Designed to create a secure branch connection to existing PVC pipes without interrupting water flow, enabling easy installation of new outlets or lines.
  • Flange-Mounted Security: Features a flange connection for robust attachment to pipes, ensuring stability and preventing leaks in water systems.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With corrosion-resistant PVC and durable iron construction, outperform all-metal clamps in longevity and plastic-only options in strength*, ensuring reliable performance in water systems.

  • 2. Adjustable Threaded Connections for Flexibility

    • With adjustable threaded connections, easily secure pipes of varying sizes without tools*, offering greater flexibility than fixed clamps.

  • 3. Precision-Fit Square Design

    • With a square, equal shape design, seamlessly integrate into existing plumbing systems with precise fitment*, reducing installation time compared to custom fittings.

  • 4. Versatile Scenario Solutions

    • Designed for both residential and commercial settings*, unlike single-purpose alternatives, providing reliable solutions for diverse plumbing needs.

  • 5. Industry-Compliant Materials

    • Constructed with materials compliant to industry safety standards*, ensuring reliable performance and meeting regulations for potable water systems.

Product details

Pvc Pipe Tapping Saddle

The PVC Pipe Tapping Saddle combines robust PVC and iron materials with precise casting techniques to provide secure, adjustable pipe connections. Designed for water systems, its square/equal shape ensures compatibility with flanged fittings, while its corrosion-resistant construction and threaded components guarantee reliability in plumbing and industrial applications.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialPVC (body) + Iron (reinforced parts)Corrosion-resistant water systems
Connection TypeFlange-compatibleSecure pipe-to-fixture integration
ShapeSquare/Equal DiameterStandard pipe alignment in plumbing
Adjustable Grip30-60mm adjustable openingAdapting to varying pipe diameters
Threaded EndsM12/M16 threaded connectionsSecure fastening to threaded fittings
Insulation SleeveBlack EPDM rubber coatingReducing metal-to-pipe friction and wear

Customization guide

Adjustable parameters like clamp opening size and material composition (e.g., iron-to-PVC ratio) can be tailored to meet specific load requirements or environmental conditions (e.g., high-pressure systems or corrosive fluids).

Get inspired

With its durable PVC-iron hybrid design and threaded adaptability, this tapping saddle simplifies pipe installations in residential, commercial, or industrial settings. Its corrosion-resistant coating ensures longevity, while the adjustable grip accommodates diverse pipe sizes without compromising seal integrity.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Corrosion Resistance10-year rating15-year rating20-year rating*
Max Load Capacity500 kg750 kg (+50%)1,000 kg (+100%)
Adjustment Range30-60mm30-80mm30-100mm

Supplier's note

  1. Three Technical Breakthroughs:

    • Material Blend: The PVC-iron composite reduces weight by 20% compared to all-metal clamps while maintaining structural integrity.
    • Adjustable Design: A patented sliding mechanism allows ±5mm precision adjustments, outperforming standard clamps’ ±10mm tolerance.
    • Threaded Reinforcement: M16 threads provide 30% higher torque resistance than industry benchmarks, ensuring secure fastening in high-vibration environments.

  2. Version Selection Guidance:

    • Base Model: Ideal for residential or low-pressure systems where cost efficiency is prioritized.
    • Advanced Model: Suitable for commercial HVAC or industrial water systems requiring broader pipe compatibility (up to 80mm).
    • Pro Model: Designed for heavy-duty applications (e.g., chemical plants) needing extreme load capacity and corrosion resistance. With its 20-year rating, it outlasts standard clamps by 50%, reducing replacement costs.

Frequently asked questions

  • Which PVC pipe tapping saddle model is best for residential water systems?

  • How do I clean and maintain a PVC pipe tapping saddle to prevent mineral buildup?

  • PVC vs Iron Tapping Saddle: Which is better for outdoor water lines?

  • Can PVC pipe tapping saddles be customized for non-standard pipe diameters?

  • Is the PVC material in the tapping saddle FDA-approved for potable water systems?

  • How easy is it to install a PVC pipe tapping saddle without professional tools?

  • What’s the maximum pressure rating of the PVC pipe tapping saddle?

  • How does the PVC material of the tapping saddle compare to other plastics for long-term use?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard PVC Tapping SaddlesResidential water linesPVC body (ASTM D1784), 40 PSI max pressure, non-adjustableCost-effective, lightweightLow pressure tolerance (40 PSI), no corrosion protection for iron pipes
Our PVC Tapping Saddle (Base)Residential/commercial water systemsPVC + iron reinforcement (ASTM D1784/D523), 80 PSI (▲ from Industry Standard)Enhanced durability, 2x pressure capacity ▲, corrosion-resistantLimited adjustability, heavier than pure PVC
Our PVC Tapping Saddle (Advanced)Industrial/commercial high-pressure linesReinforced PVC + iron (ASTM D1784/D523), 160 PSI (▲ from Base), insulated sleeves4x pressure capacity ▲, corrosion/thermal insulation, 1.5-4" adjustable rangeHigher cost, requires专业 installation tools
Standard Flanged Fittings (Industry)Industrial fluid systemsSteel flanges (ASTM A105), 200 PSI, fixed sizeHigh-pressure tolerance, standardized compatibilityHeavy, bulky, no adaptability for varying pipe sizes
Adjustable Metal Clamps (Industry)Plumbing repairsSteel body (ISO 3506), adjustable range (1-3"), no insulationQuick installation, versatile for small repairsProne to corrosion, loud noise (55 dBA), no pressure rating
High-Pressure PVC Fittings (Industry)Commercial water mainsReinforced PVC (ISO 4422), 200 PSI, non-adjustableExtreme pressure tolerance, lightweightFragile under vibration, no corrosion protection for metal pipes
