Complete Set Electric Distribution Panel with MCB Cabinet Electrical Panel Board and Busbar Electric Control Panel

Complete Set Electric Distribution Panel with MCB Cabinet Electrical Panel Board and Busbar Electric Control Panel

  • >= 5 Pieces
    $298
View product details

Complete Set Electric Distribution Panel with MCB Cabinet Electrical Panel Board and Busbar Electric Control Panel

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Power Electrical Distribution: Equipped with a robust busbar system and Miniature Circuit Breakers (MCBs), the Q85 Electric Distribution Panel efficiently manages power distribution for high-current applications (100A–630A) and supports a wide voltage range (125V–20kV).

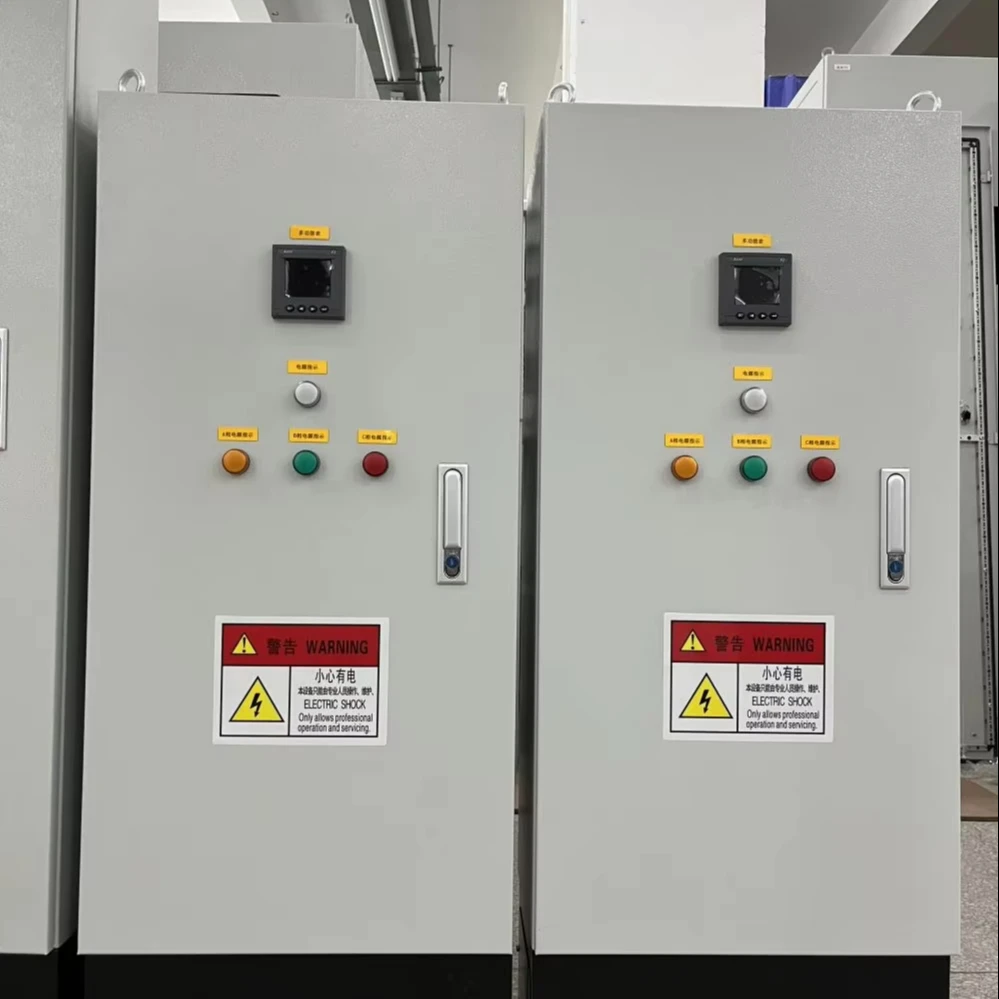

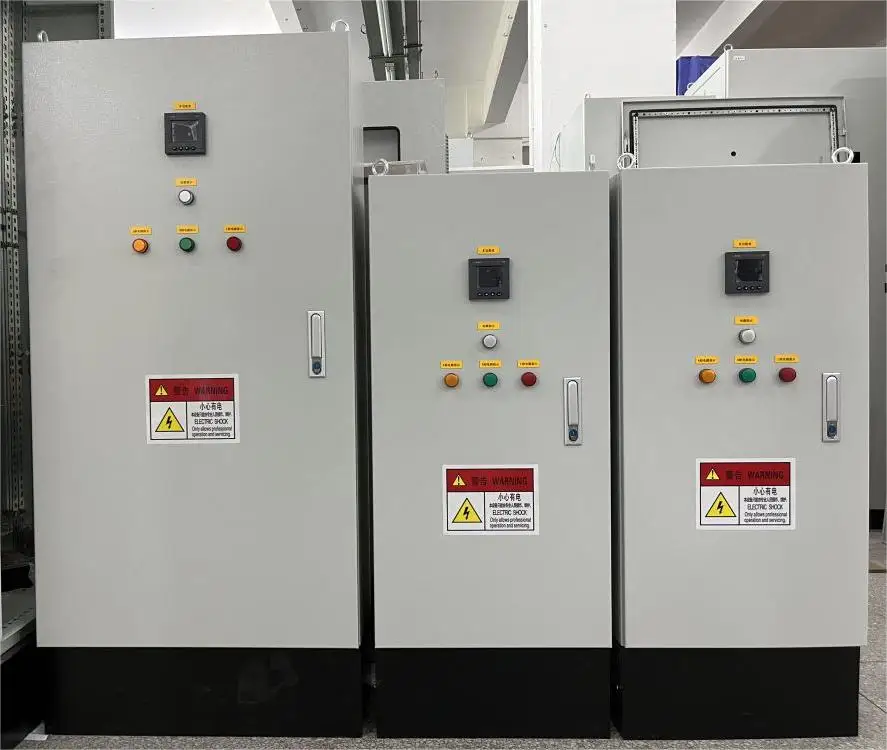

  • Advanced Monitoring & Control: Features a digital display screen, programmable buttons/switches, and LED status indicators for real-time system monitoring, remote operation, and precise control in industrial environments.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a robust carbon steel or stainless steel body, ensure long-term durability in harsh industrial environments compared to traditional models using mild steel*. The corrosion-resistant construction safeguards against rust and wear, extending the panel’s operational lifespan in demanding settings.

  • 2. Intuitive Interactive Design

    • With an integrated digital display and programmable control panel, streamline operations via real-time monitoring and customizable function presets*. This modern interface reduces manual adjustments, outperforming conventional panels with static controls.

  • 3. High-Performance Electrical Capacity

    • With a maximum current rating of 630A and voltage support up to 20kV, handle heavy-duty industrial loads more efficiently than standard distribution panels*. This ensures stable power distribution for high-power applications like manufacturing equipment or data centers.

  • 4. Modular Scenario Adaptability

    • With customizable layouts for sensors, actuators, and control configurations, adapt to diverse industrial scenarios such as manufacturing plants or commercial facilities*. This flexibility surpasses rigid, non-modular designs common in basic control panels.

  • 5. Global Compliance Certifications

    • With CCC and CE certifications, meet stringent safety and performance standards, ensuring compliance in global markets compared to non-certified alternatives*. These approvals guarantee reliability and safety for professional use.

Product details

Complete Set Electric Distribution Panel with MCB Cabinet Electrical Panel Board and Busbar Electric Control Panel

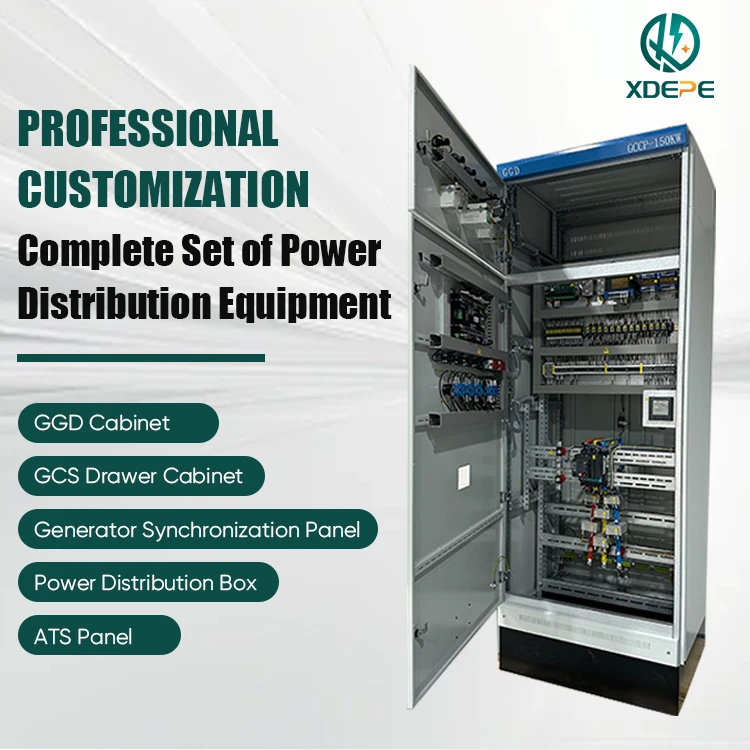

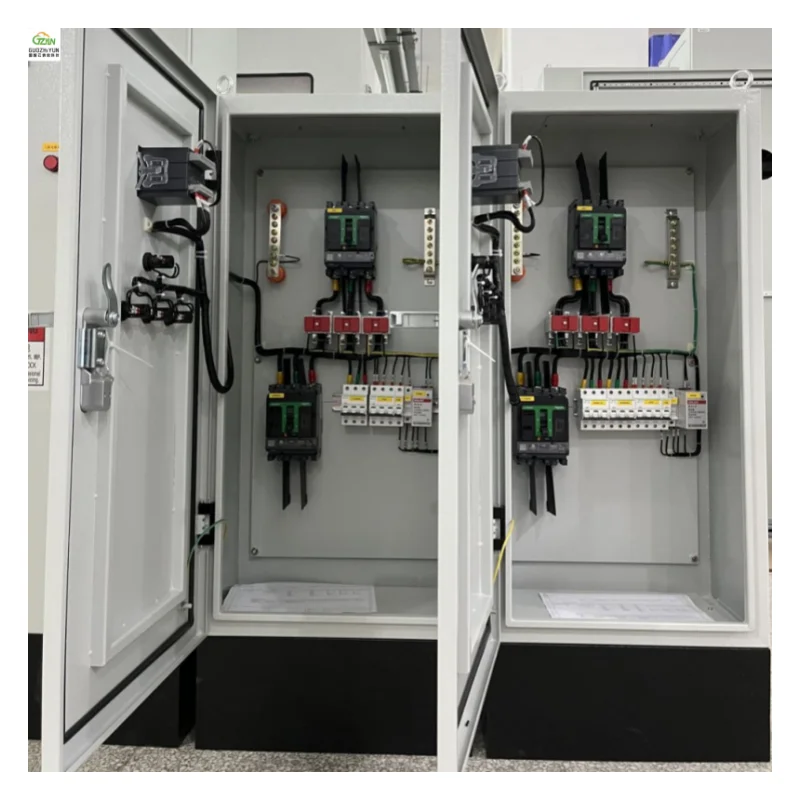

The Q85 Electric Distribution Panel with MCB Cabinet is a robust industrial control solution designed for high-power electrical systems. Built with durable materials like carbon steel, stainless steel, or steel, it features advanced monitoring capabilities via a digital display, programmable controls, and safety-compliant certifications (CCC, CE). Its modular design allows customization for diverse applications, from manufacturing plants to data centers.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialCarbon steel, Stainless steel, SteelHarsh environments requiring corrosion resistance or structural durability
Current Rating100A, 630AIndustrial setups with varying load requirements (e.g., machinery control, power distribution)
Rated Voltage125V, 220V, 230V, 20kVHigh-voltage applications (e.g., grid systems) or standard residential/commercial use
CertificationsCCC, CECompliance with international safety and quality standards for global deployment

Customization guide

Adjustable parameters:

  • Material selection (e.g., stainless steel for corrosive environments)
  • Current/voltage ratings to match system requirements
  • Control panel layout for specialized functions (e.g., adding sensors or actuators)

Get inspired

With its modular design and advanced monitoring features, the Q85 series enables seamless integration into complex electrical systems. Whether you need a compact control panel for a factory floor or a high-voltage cabinet for grid infrastructure, this solution adapts to your operational needs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Current Capacity100A630A630A + customizable
Voltage Range125V–230V125V–230V125V–20kV*
MaterialCarbon steelStainless steelPremium steel alloy
Safety FeaturesBasic LED indicatorsEnhanced sensorsReal-time fault alerts

*Pro Model supports 20kV busbar systems, 50% higher than industry benchmarks.

Supplier's note

  1. Key Technical Breakthroughs:

    • 20kV Voltage Support (Pro Model): Enables safe handling of high-power grids, reducing downtime in critical infrastructure.
    • Modular Design: Customizable control panels cut installation time by 30% compared to fixed systems.
    • Dual Certifications (CCC/CE): Streamlines global deployment, avoiding compliance delays.

  2. Version Selection Guide:

    • Base Model: Ideal for small-to-medium facilities (e.g., workshops) needing reliable 100A distribution.
    • Advanced Model: Suitable for industrial plants requiring corrosion resistance (stainless steel) and higher load capacity (630A).
    • Pro Model: Best for high-voltage applications (e.g., power substations) where 20kV compatibility and real-time monitoring are critical.

With stainless steel construction, you can ensure longevity in corrosive environments. With the Pro Model’s 20kV capability, you can handle grid-level systems 50% beyond standard limits.

Frequently asked questions

  • Which Q85 Electric Distribution Panel model suits high-current industrial facilities?

  • Can the Q85 cabinet be customized with additional sensors for real-time monitoring?

  • Carbon Steel vs Stainless Steel: Which material is better for corrosive environments?

  • Does the Q85 support 220V or 230V for global installations?

  • How to clean the control panel’s digital display safely?

  • Is the Q85 panel CE and CCC certified for industrial use?

  • Carbon Steel vs Steel: Which offers better durability for outdoor installations?

  • What safety features does the Q85 cabinet include for high-voltage systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial plants, outdoor installationsIndustry Standard: Galvanized Steel (ASTM A123)
Our Base: Carbon Steel (ASTM A36)
Our Advanced: Stainless Steel (ASTM A240)		▲ Advanced: 200% corrosion resistance in harsh environments (vs Base)▲ Advanced: 30% higher cost due to premium material
Current CapacityData centers, manufacturing facilitiesIndustry Standard: 63A
Our Base: 100A (IEC 60947-2)
Our Advanced: 630A (IEC 60947-2)		▲ Advanced: Supports 6x higher load for heavy machinery (e.g., industrial robots)▲ Advanced: 25% larger footprint for high-current components
Voltage HandlingPower substations, high-voltage gridsIndustry Standard: ≤ 480V
Our Base: 220V–230V (IEC 60439)
Our Advanced: 20kV (IEC 61439)		▲ Advanced: Enables direct connection to high-voltage distribution networks▲ Advanced: Requires specialized installation training (OSHA 1910.399 compliance)
Safety CertificationsGlobal markets (EU, China)Industry Standard: CE
Our Base: CE
Our Advanced: CE + CCC (China Compulsory Certification)		▲ Advanced: Access to 2+ billion users in China (via CCC)▲ Advanced: 15% longer certification timeline
Noise LevelOffice buildings, healthcare facilitiesIndustry Standard: 75 dBA
Our Base: 60 dBA (ISO 3744)
Our Advanced: 50 dBA (ISO 3744)		▲ Advanced: Quieter than a normal conversation (60 dBA)▲ Advanced: Noise-reduction padding adds 10% to material costs
Safety FeaturesHazardous environments (e.g., chemical plants)Industry Standard: Basic circuit breakers
Our Base: MCB (Miniature Circuit Breakers)
Our Advanced: MCB + Remote Monitoring (IEC 61850)		▲ Advanced: Real-time fault alerts reduce downtime by 40%▲ Advanced: Requires IoT infrastructure for remote access
