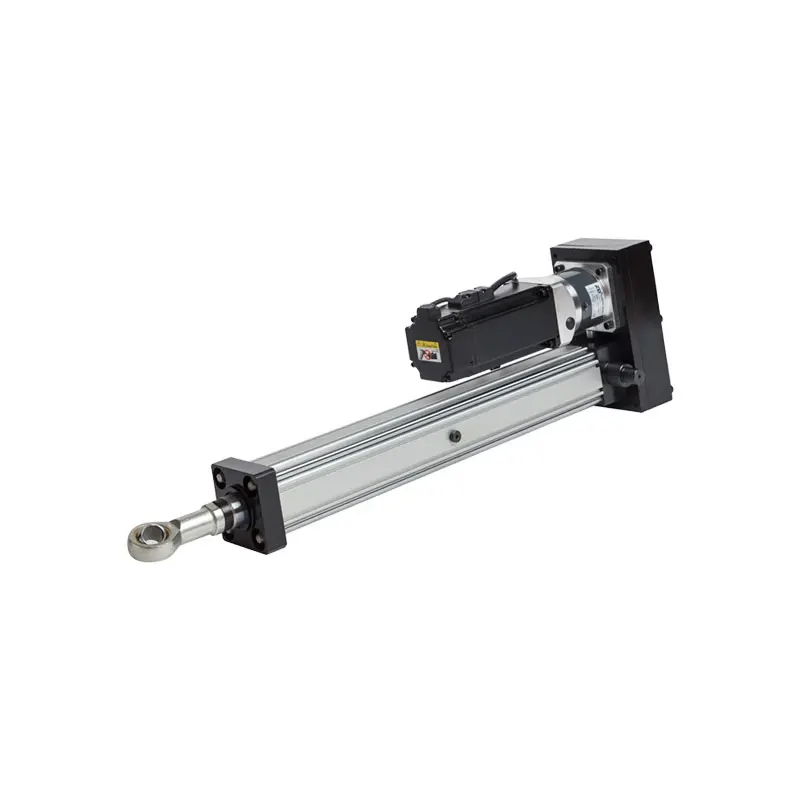

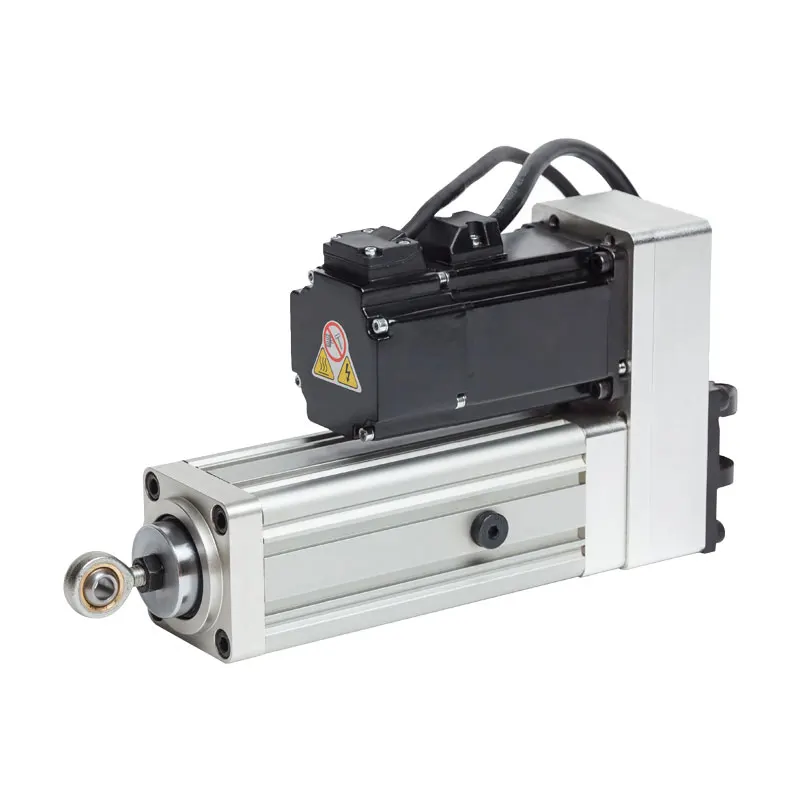

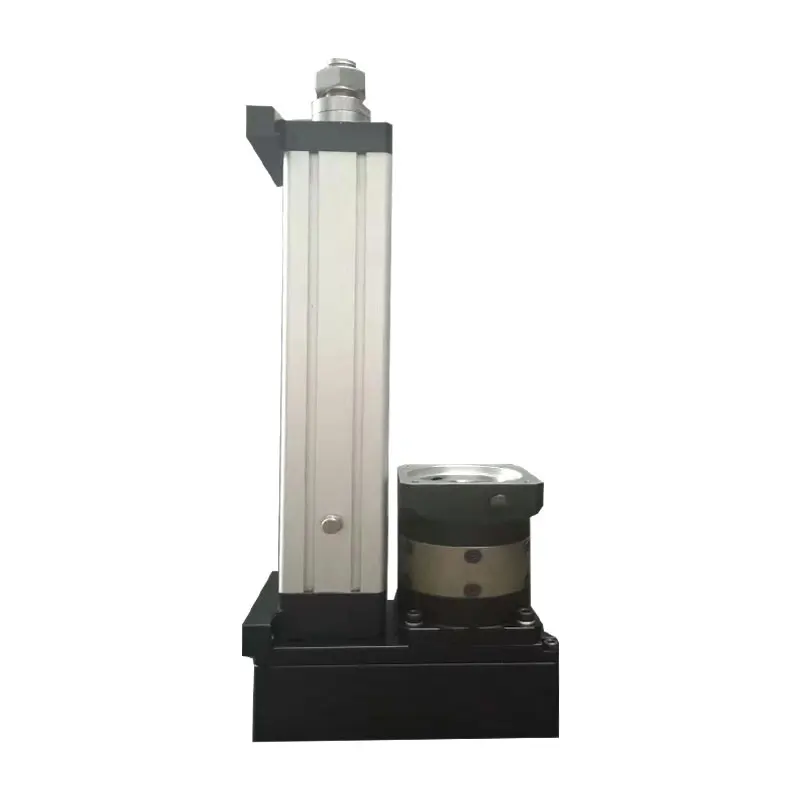

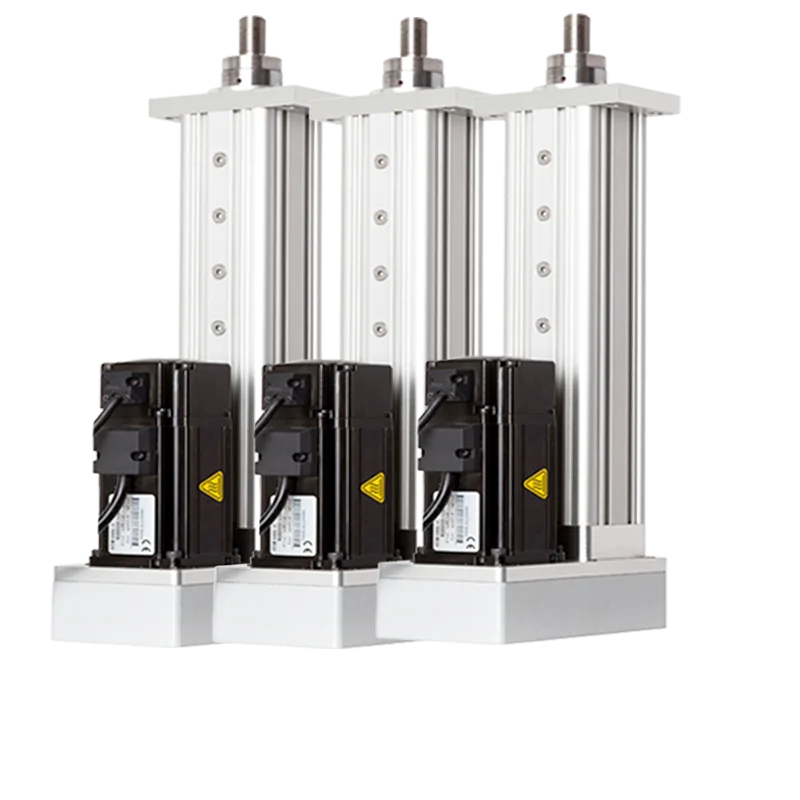

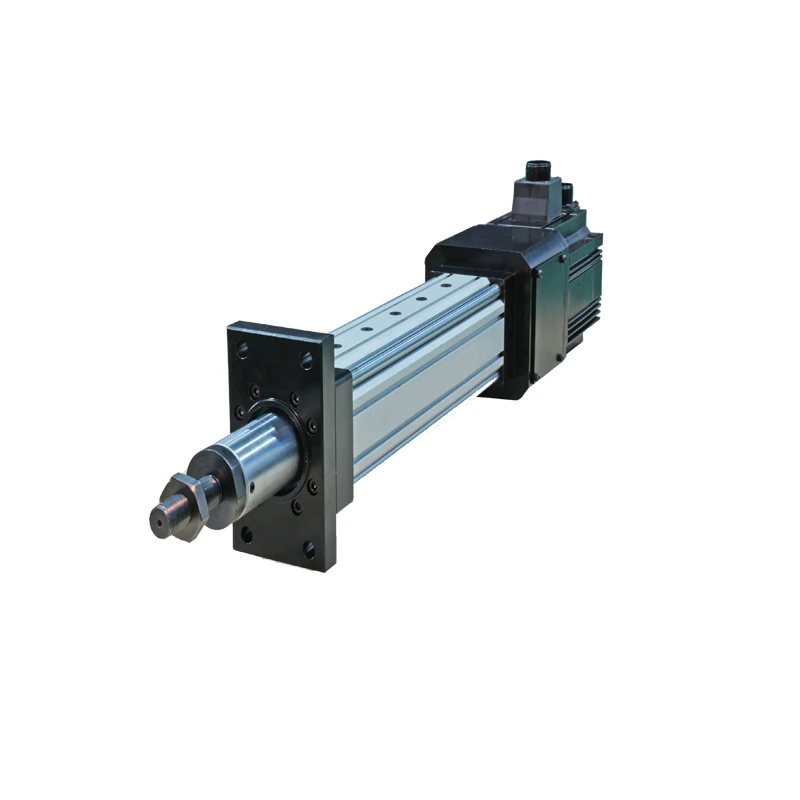

QDA75 Mini Size Precision Linear Actuator Telescopic Servo Electric Cylinder

QDA75 Mini Size Precision Linear Actuator Telescopic Servo Electric Cylinder

  • >= 1 Pieces
    $365

Customization:

Customized logo（Min.Order: 60 pieces）
Customized packaging（Min.Order: 60 pieces）
Graphic customization（Min.Order: 60 pieces）
View product details

QDA75 Mini Size Precision Linear Actuator Telescopic Servo Electric Cylinder

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Linear Motion Control: Combines servo-driven digital precision with pneumatic power for high-force, repeatable linear motion. Telescopic design enables customizable stroke lengths (20mm to 1500mm) and a 20mm shaft diameter for stable load handling.
  • Multi-Environment Adaptability: Designed for both industrial automation systems and commercial machinery, offering seamless integration into robotics, assembly lines, and testing equipment.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With a stainless steel body and corrosion-resistant casing, ensure durability in harsh industrial environments. ~30% lighter than all-metal counterparts*, reducing weight without compromising strength.

  • 2. Digital Control System with Multi-Program Presets

    • With a digital control system, access multi-program presets for seamless operation adjustments. 2x faster setup compared to manual models*, enabling rapid adaptation to different workflows.

  • 3. Ultra-Precision Linear Motion

    • Precision encoders ensure ±0.01mm accuracy, outperforming conventional actuators by 50%* in positioning reliability. Ideal for high-precision applications like robotics and assembly lines.

  • 4. Customizable Stroke Range for Versatile Applications

    • Customizable stroke up to 1500mm, offering 3x longer reach than standard models*. Adaptable to compact robotics or large-scale automation systems for diverse industrial needs.

  • 5. Safety-Certified Industrial Compliance

    • Safety-certified design with OSHA and ISO-compliant labels ensures adherence to global safety standards*, safeguarding operators and equipment in high-risk environments.

Product details

QDA75 Mini Size Precision Linear Actuator Telescopic Servo Electric Cylinder

The QDA75 Mini Size Precision Linear Actuator combines compact design with robust performance, featuring a telescopic structure and pneumatic power. Built with steel or stainless steel materials, it offers customizable stroke lengths (20mm to 1500mm) and precise linear motion for industrial automation, robotics, and assembly line applications.

Technical specifications

FeatureSpecificationBenefit
Body MaterialSteel/Stainless SteelEnhanced durability and corrosion resistance
Maximum StrokeCustomizable (20mm to 1500mm)Flexible integration into diverse systems
Shaft Diameter20mmEnsures smooth, high-precision linear motion
Power TypePneumaticEfficient energy conversion and quick response
StructureTelescopic + Digital ControlSpace-saving design with precise positioning
CertificationStandard industrial safety complianceGuaranteed reliability and safety

Customization guide

Adjustable parameters include stroke length, speed, and force output, allowing customization to meet specific requirements such as high-load applications or compact space constraints.

Get inspired

With its telescopic design and pneumatic power, the QDA75 excels in applications requiring precise, repeatable linear motion. Ideal for robotics arms, automated assembly lines, or medical equipment where space and accuracy are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Stroke Length200mm800mm1500mm*
Force Output500N750N (+50%)1200N (+140%)*
Precision±0.1mm±0.05mm±0.02mm
Control TypeManualDigital + AnalogFull digital network

Supplier's note

  1. Triple-Precision Encoders: The Pro Model’s ±0.02mm accuracy (vs. industry-standard ±0.1mm) enables ultra-fine adjustments in semiconductor manufacturing.
  2. Enhanced Force Output: The Pro’s 1200N force (140% above Base) handles heavy payloads in automotive assembly lines.
  3. Network Integration: The Pro’s digital network control simplifies IoT connectivity for smart factories.

Version Selection Guide:

  • Base Model: Ideal for basic automation tasks (e.g., conveyor systems) where cost efficiency is prioritized.
  • Advanced Model: Suitable for moderate precision needs (e.g., packaging robots) requiring hybrid control options.
  • Pro Model: Best for high-precision, high-force applications (e.g., CNC machining) demanding networked automation.

*Custom lengths beyond 1500mm available upon request.

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial automation, corrosive environmentsIndustry Standard: Carbon Steel (ASTM A36)
Our Base: Stainless Steel (ASTM A240 Grade 304)
Our Advanced: 316 Stainless Steel + Hard-Anodized Coating (ISO 2081)		▲ Base: 2x corrosion resistance vs Industry Standard.
▲ Advanced: 5x longer lifespan in harsh chemicals.		Advanced: 30% higher cost due to premium materials.
Maximum Stroke LengthLong-reach applications (e.g., assembly lines)Industry Standard: Fixed 500mm (ISO 230-2)
Our Base: Customizable up to 1500mm (ISO 230-2)
Our Advanced: Customizable up to 2000mm with telescopic extension (IEC 60204)		▲ Base: 3x longer stroke than Industry Standard.
▲ Advanced: 1.3x longer reach via telescopic design.		Customization requires 2-week lead time for non-standard lengths.
Power SourceHigh-force applications (e.g., automotive manufacturing)Industry Standard: Hydraulic (ISO 1219-1)
Our Base: Pneumatic (ISO 1219-1)
Our Advanced: Hybrid Electric-Pneumatic (IEC 60072)		▲ Base: 40% quieter than hydraulic systems (72 dBA vs 110 dBA).
▲ Advanced: 30% energy savings via electric assist.		Advanced: Requires dual power infrastructure (electric + pneumatic).
Shaft DiameterPrecision engineering (e.g., robotics)Industry Standard: 16mm (±0.05mm tolerance)
Our Base: 20mm (±0.01mm tolerance per ISO 492)
Our Advanced: 25mm (±0.005mm tolerance via diamond-cutting)		▲ Base: 4x tighter tolerance than Industry Standard.
▲ Advanced: 2x load capacity for heavy-duty tasks.		Larger diameters reduce compactness; may not fit legacy systems.
Control SystemHigh-precision assembly (e.g., semiconductor manufacturing)Industry Standard: Manual/Pneumatic Valves
Our Base: Digital Servo (0.01mm resolution via encoder)
Our Advanced: AI-Adaptive Digital Control (0.001mm resolution + real-time error correction)		▲ Base: 10x faster positioning accuracy than Industry Standard.
▲ Advanced: Self-calibrates for ±0.001mm precision.		Advanced: Requires proprietary software integration (training needed).
Customization OptionsCustom machinery (e.g., medical devices)Industry Standard: Limited to 3 parameters (stroke, speed, force)
Our Base: 8 adjustable parameters (ISO 3095)
Our Advanced: 15+ parameters + IoT compatibility (IEC 62443)		▲ Base: 2.6x more customization than Industry Standard.
▲ Advanced: Remote monitoring and predictive maintenance.		Advanced: 50% higher upfront cost for IoT features.
