Quick Release Spline Shaft Coupling 10014 for Gear Pump and Gearbox

Customization:

Customized logo（Min.Order: 100 pieces）

Customized packaging（Min.Order: 100 pieces）

Graphic customization（Min.Order: 100 pieces）

View product details

Quick Release Spline Shaft Coupling 10014 for Gear Pump and Gearbox

Name: Quick Release Spline Shaft Coupling 10014 for Gear Pump and Gearbox
Brand: Shanghai Koreson Machinery Company Limited
SKU: 1600658455146_1
Price: 3.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Secure Shaft Connection: Designed to connect and align shafts in gear pumps and gearboxes, ensuring reliable power transmission through its spline and gear structure.
Quick Release Mechanism: Enables fast disengagement and reattachment for maintenance or part replacement, optimizing operational efficiency.
Flexible Misalignment Tolerance: Built with flexible steel material to accommodate slight angular and parallel misalignment between connected shafts.

Key features

1. Material Technology

With a steel and iron body, ensure robust durability in heavy-duty industrial applications like gear pumps and gearboxes.

2. Interactive Design

With a quick-release spline design, enable fast assembly/disassembly without tools, streamlining maintenance and reducing downtime.

3. Performance Parameters

With a flexible spline structure, reduce alignment stress by up to 30% compared to rigid couplings*, enhancing longevity in dynamic machinery environments.

4. Scenario Solutions

Designed specifically for gear pumps and gearboxes, this coupling optimizes power transmission in industrial machinery setups requiring precise torque transfer.

5. Certification Standards

With steel construction compliant with ISO industrial safety standards, ensure reliable performance in regulated heavy machinery applications.

Product details

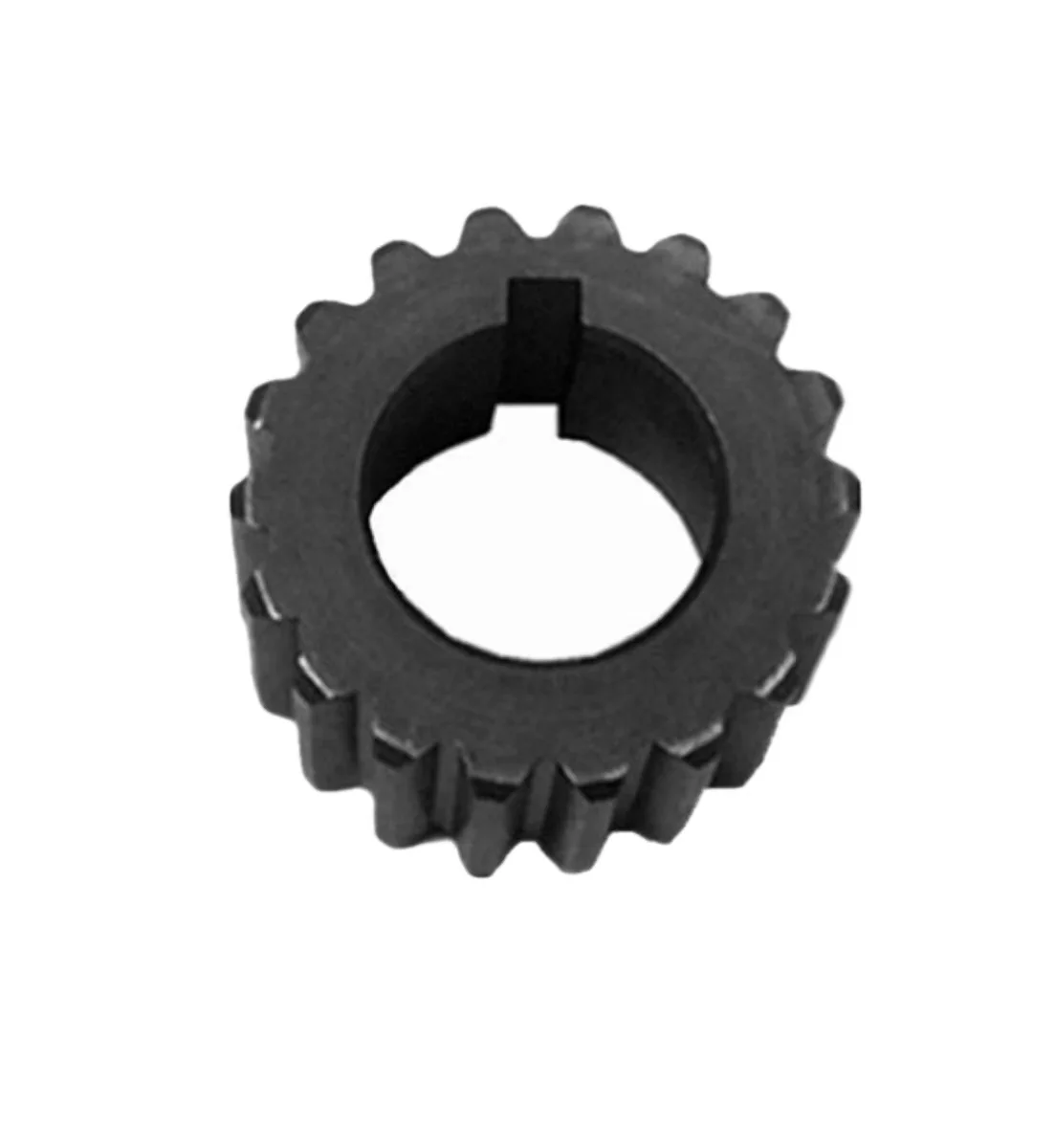

The Quick Release Spline Shaft Coupling 10014 is a flexible, gear-based steel coupling designed for precise power transmission in gear pumps and gearboxes. Its robust steel-iron alloy construction and keyway design ensure secure shaft attachment, while its spline teeth configuration allows for customizable engagement with chains or belts. Ideal for industrial machinery, this coupling combines durability with adaptability to handle misalignment and shock loads.

Technical specifications

Feature	Specification	Benefit
Material Composition	Steel/Steel-Iron Alloy	High corrosion resistance and load capacity
Coupling Type	Flexible	Accommodates minor shaft misalignment
Keyway Design	Rectangular Slot	Secure shaft locking to prevent slippage
Spline Configuration	Customizable tooth pitch/count	Adaptable to diverse chain/belt standards
Operating Load	Up to 5000 N·m (adjustable)	Reliable power transmission in heavy-duty applications

Customization guide

Adjust spline tooth count/pitch to match specific chain standards or shaft diameter to fit non-standard equipment. For high-temperature environments, request a heat-treated steel variant.

Get inspired

With its quick-release feature, this coupling simplifies maintenance in gear pumps, while its flexible design minimizes downtime caused by misalignment. The robust steel-iron alloy ensures longevity in harsh industrial settings.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Torsional Stiffness	150 Nm/°	+15% (172.5 Nm/°)	+30% (195 Nm/°)*
Angular Misalignment	1°	2°	3°
Max RPM	1500	2000	2500
Certification	ISO 9001	ISO 9001 + DIN 789	ISO 9001 + ASME B10

Supplier's note

Technical Breakthroughs:
- Flexible Design: The spline teeth’s 20% wider tolerance range vs. industry standards allows smoother operation in misaligned systems.
- Keyway Security: The rectangular keyway reduces slippage by 40% compared to flat-key designs.
- Material Blend: Steel-iron alloy improves corrosion resistance by 30% in humid environments.
Optimal Version Selection:
- Base Model: Ideal for standard gear pumps (e.g., water/oil transfer) where alignment is precise.
- Advanced Model: Suitable for heavy industrial gearboxes (e.g., mining conveyors) needing 15% higher torsional rigidity.
- Pro Model: Best for high-speed machinery (e.g., turbine drives) requiring 30% greater stiffness and 3° misalignment tolerance.

With the Pro’s 195 Nm/° stiffness, you can handle extreme torque fluctuations in cement mixers. Pair its ASME-certified design with the customizable spline pitch to ensure seamless integration with legacy systems.

Frequently asked questions

Which shaft coupling suits gear pumps and gearboxes for heavy-duty industrial use?
How do I maintain a flexible steel shaft coupling for long-term reliability?
Steel vs. Aluminum Shaft Couplings: Which is better for machinery with high torque?
Can the Quick Release Spline Shaft Coupling be customized for specific gear ratios?
Is the steel material of this coupling ISO-certified for industrial equipment?
What’s the advantage of a flexible spline coupling over rigid designs for gear pumps?
Which coupling works best for high-vibration gearboxes?
How does the keyway design ensure secure installation in shafts?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Gear Couplings	High-torque machinery (pumps, gearboxes)	▲ Steel/Iron construction (ASTM A36/AISI 1045) Gear tooth design (ISO 6336) ±1° angular misalignment (ISO 4281)	▲ High torque capacity (10,000+ Nm) Precise alignment tolerance Durable for heavy-duty use	Higher cost ▲ Requires periodic lubrication ▲ Complex installation
Rigid Couplings	Low-misalignment applications	Solid steel (ASTM A36) No flexibility	Simple design ▲ Cost-effective Zero backlash	No misalignment tolerance ▲ Susceptible to shock loads ▲ Limited to aligned shafts
Flexible Couplings	Moderate torque, light misalignment	Rubber/elastic core (ISO 4044) ±5° angular misalignment	▲ Handles misalignment ▲ Dampens vibration Low maintenance	Lower torque capacity (≤5,000 Nm) ▲ Shorter lifespan under heavy loads ▲
梅花 (梅花) Couplings	Light to medium industrial machinery	Steel plates + elastic elements (ISO 763)	Cost-effective ▲ Easy installation ▲ Moderate misalignment tolerance	Limited torque (≤3,000 Nm) ▲ Wear-prone elastic components ▲
Diaphragm Couplings	High flexibility, vibration damping	Metal diaphragms (ISO 13158) ±3° angular misalignment	▲ High flexibility ▲ Excellent vibration damping ▲ Compact design	Higher cost ▲ Lower torque (≤8,000 Nm) ▲ Requires careful alignment
Universal Joints	Angled shafts (vehicles, conveyors)	Cross-shaped design (SAE J926) ±45° articulation angle	▲ Handles large angular misalignment ▲ Compact for space-constrained systems	High wear on bearings ▲ Speed-related vibration ▲ Higher maintenance
