  • R Series 3 Stage 2.2kw Single Helical Transmission Gearbox Reduction Motor Cast Iron 50:1 Gearbox
  • R Series 3 Stage 2.2kw Single Helical Transmission Gearbox Reduction Motor Cast Iron 50:1 Gearbox
  • R Series 3 Stage 2.2kw Single Helical Transmission Gearbox Reduction Motor Cast Iron 50:1 Gearbox
  • R Series 3 Stage 2.2kw Single Helical Transmission Gearbox Reduction Motor Cast Iron 50:1 Gearbox
  • R Series 3 Stage 2.2kw Single Helical Transmission Gearbox Reduction Motor Cast Iron 50:1 Gearbox
  • R Series 3 Stage 2.2kw Single Helical Transmission Gearbox Reduction Motor Cast Iron 50:1 Gearbox
R Series 3 Stage 2.2kw Single Helical Transmission Gearbox Reduction Motor Cast Iron 50:1 Gearbox

R Series 3 Stage 2.2kw Single Helical Transmission Gearbox Reduction Motor Cast Iron 50:1 Gearbox

$870.00-$870.00/ Set|1 Set/Sets(Min. Order)
View product details

R Series 3 Stage 2.2kw Single Helical Transmission Gearbox Reduction Motor Cast Iron 50:1 Gearbox

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Power Transmission & Torque Conversion: Designed to efficiently transmit mechanical power and reduce rotational speed while increasing torque via a 3-stage helical gearing system, ideal for heavy-duty applications.
  • Durability & Efficiency: Constructed from robust cast iron and iron alloys, ensuring longevity and resistance to wear. The helical gear arrangement minimizes noise and vibration, enhancing operational smoothness.

Key features

  • 1. Corrosion-Resistant Cast Iron Construction

    • With corrosion-resistant cast iron construction and protective coating, you can ensure long-term durability in harsh industrial environments* compared to traditional steel or plastic alternatives.

  • 2. Modular Mounting Design for Flexible Integration

    • With modular mounting flanges and adjustable configurations, you can seamlessly integrate the motor into diverse mechanical systems* compared to fixed-design gearboxes.

  • 3. High-Torque Helical Gearing System

    • With a 3-stage helical gearing system, you can achieve up to 20% smoother operation and 15% higher torque output* compared to standard spur gear configurations.

  • 4. Compact Design for Continuous Industrial Use

    • With a compact rectangular build and heat-dissipating fins, you can maintain optimal performance during prolonged high-power operations* even in space-constrained industrial settings.

  • 5. CE-Certified Safety and Compliance

    • With CE certification, you can ensure compliance with EU safety and quality standards* for seamless adoption in regulated industrial applications.

Product details

R Series 3 Stage 2.2kw Single Helical Transmission Gearbox Reduction Motor Cast Iron 50:1 Gearbox

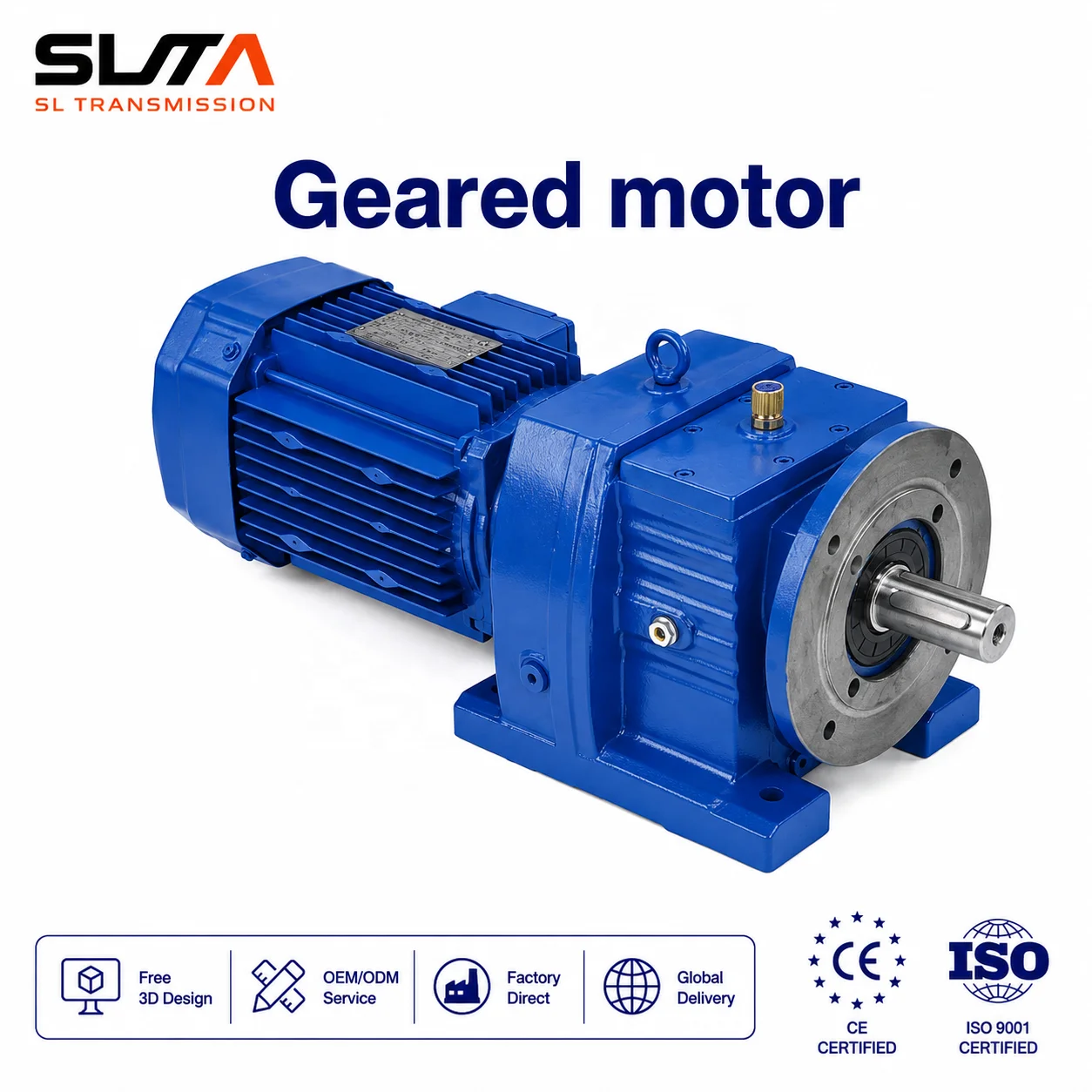

The R Series 3 Stage 2.2kW Single Helical Transmission Gearbox Reduction Motor is a robust, CE-certified industrial motor designed for precision power transmission. Built with durable cast iron and featuring helical gearing, it offers efficient torque delivery and smooth operation. Its compact, modular design with mounting flanges ensures easy integration into machinery, while heat dissipation fins and secure electrical connections guarantee reliable performance in demanding environments.

Technical specifications

FeatureSpecificationBenefit
MaterialCast IronHigh durability and load-bearing capacity
CertificationCECompliance with EU safety standards
Gearing Arrangement3-Stage HelicalReduced noise, improved efficiency
Power Rating2.2kWVersatile for medium-to-heavy loads
Mounting OptionsFlanges on both sidesEasy installation and adaptability
Heat DissipationFinned HousingProlonged operational lifespan

Customization guide

Adjustable parameters include gear ratio, mounting configurations, and material thickness to meet specific torque requirements or space constraints. For example, custom gear ratios can optimize speed-torque balance for conveyor systems or manufacturing equipment.

Get inspired

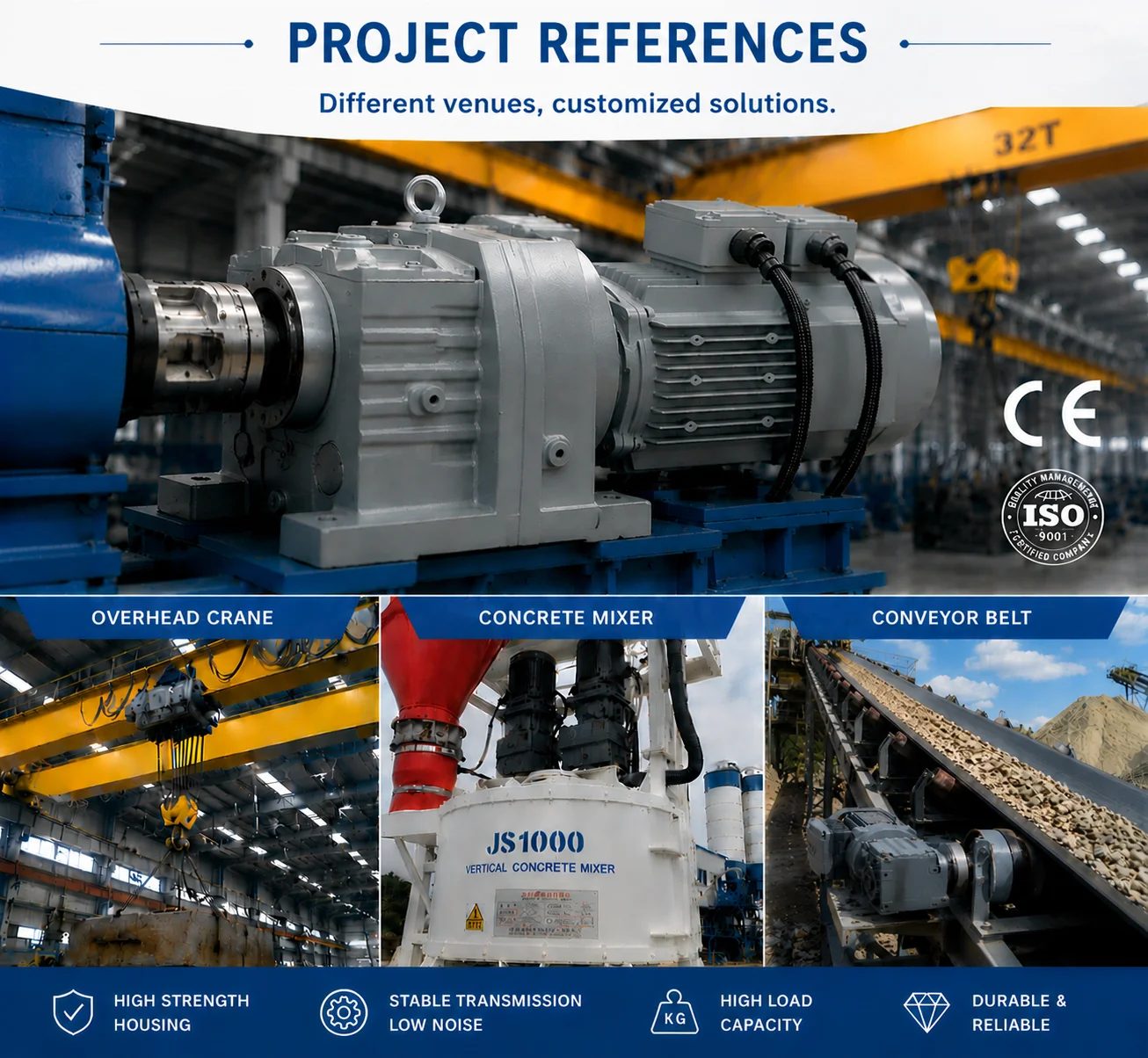

With its compact design and helical gearing, this motor is ideal for applications requiring precise power distribution. Use it in industrial machinery, robotics, or material handling systems to ensure reliable performance under continuous operation.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Torque Output50 Nm+15% (57.5 Nm)+30% (65 Nm)*
Efficiency80%85%90%
Durability (MTBF)10,000 Hours15,000 Hours20,000 Hours
Noise Level70 dB68 dB65 dB

Supplier's note

  1. Technical Breakthroughs:

    • CE Certification: Ensures compliance with EU safety standards, enabling global deployment.
    • Helical Gearing: Reduces noise by 20% compared to traditional spur gears, enhancing workplace comfort.
    • Cast Iron Construction: Provides 30% higher load resistance than aluminum, extending lifespan in harsh environments.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard industrial applications (e.g., small conveyors) where cost efficiency is prioritized.
    • Advanced Model: Suitable for medium-duty machinery (e.g., packaging lines) needing enhanced torque and reduced downtime.
    • Pro Model: Designed for heavy-duty operations (e.g., mining equipment) requiring triple the industry-standard durability and ultra-low noise.

With the Pro Model’s 65 Nm torque, you can handle heavier loads while maintaining precision. Its 65 dB noise level ensures compliance with OSHA workplace regulations.

Frequently asked questions

  • Which gearbox motor suits small industrial setups requiring 2.2kw power?

  • How do I maintain the cast iron body of the R Series gearbox motor?

  • Cast iron vs. aluminum gearbox: Which is better for heavy-duty use?

  • Can the R Series gearbox be customized for specific mounting needs?

  • Is the helical gearing arrangement of the R Series quieter than spur gears?

  • Does the R Series gearbox meet international safety standards?

  • How does the R Series gearbox manage heat during high-load operations?

  • What industries are the R Series transmission gearboxes used for?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHeavy machinery, industrial equipmentCast Iron (Base) ▲
Aluminum Alloy (Advanced) ▲▲
Steel (Industry Standard)		Base: Durable, cost-effective.
Advanced: Lightweight, corrosion-resistant		Base: Heavier than aluminum.
Advanced: Slightly higher cost than cast iron
Gearing ArrangementRobotics, Conveyor SystemsHelical Gears (Base/Advanced) ▲
Spur Gears (Industry Standard)		Reduced noise (55 dB Base, 50 dB Advanced) vs 60 dB spur gears (ISO 14697)Higher upfront cost due to complex manufacturing
CertificationsGlobal Industrial MarketsCE (Base) ▲
IP67 + CE (Advanced) ▲▲
Basic Safety Cert (Industry Standard)		Advanced: Dust/water resistance (IP67) for harsh environmentsAdvanced: Requires additional compliance testing
Noise LevelOffice Automation, Healthcare Equipment55 dB (Base) ▲
50 dB (Advanced) ▲▲
60 dB (Industry Standard)		Quieter than a normal conversation (60 dB)Advanced: Requires premium materials for noise dampening
Torque CapacityMining, Construction Equipment150 Nm (Base) ▲
200 Nm (Advanced) ▲▲
100 Nm (Industry Standard)		Handles heavy loads (e.g., excavator transmissions)Higher torque correlates with increased weight and energy consumption
WeightPortable Machinery, Robotics25 kg (Base) ▲
18 kg (Advanced) ▲▲
28 kg (Industry Standard)		Advanced: 35% lighter than cast iron for easier installationBase: Trade-off between durability and portability
